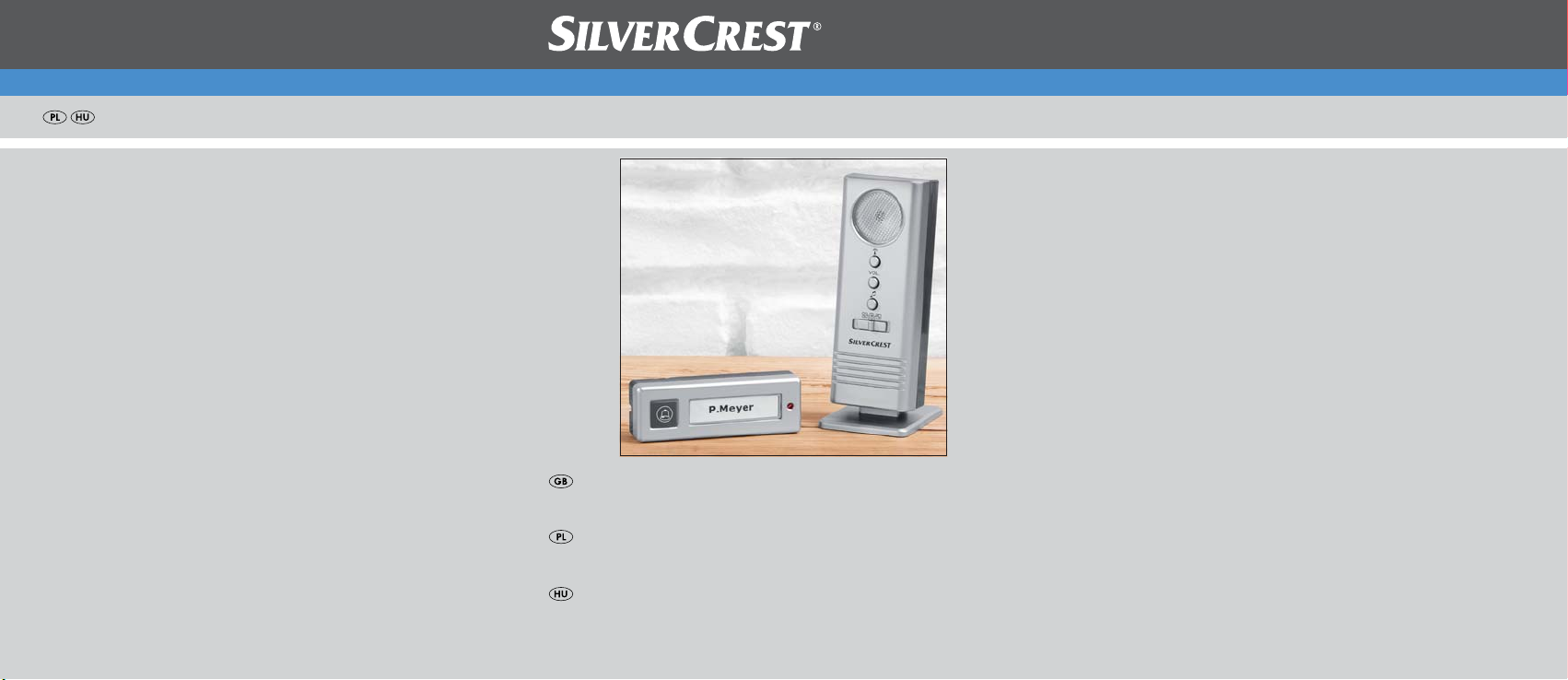

Silvercrest KH 206 Manuel utilisateur

Wireless Doorbell

KOMPERNASS GMBH

BURGSTRASSE 21 · D-44867 BOCHUM

www.kompernass.com

ID-Nr.: KH206-06/10-V2

KH 206

Wireless Doorbell

Operating instructions

Dzwonek do drzwi sterowany radiowo

Instrukcja obsługi

Ajtócsengő

Használati utasítás

CV_KH206_53464_GB_PL_HU.indd 1-3CV_KH206_53464_GB_PL_HU.indd 1-3 19.07.2010 16:17:02 Uhr19.07.2010 16:17:02 Uhr

KH 206

CV_KH206_53464_GB_PL_HU.indd 4-6CV_KH206_53464_GB_PL_HU.indd 4-6 19.07.2010 16:17:02 Uhr19.07.2010 16:17:02 Uhr

- 1 -

Read these operating instructions carefully before using the appliance for

the first time and preserve this booklet for later reference. Pass this booklet

on to whoever might acquire the appliance at a future date.

INDEX PAGE

Intended Use 2

Items supplied 2

Technical data 3

Safety instructions 3

The appliance parts 5

Taking the appliance into use 6

Maintenance 10

Cleaning and Care 10

Disposal 11

CE Conformity 12

Importer 12

Warranty and Service 12

LB4A.indb 1LB4A.indb 1 20.07.2010 10:35:41 Uhr20.07.2010 10:35:41 Uhr

- 2 -

Intended Use

This appliance serves as a radio doorbell system for wireless

visitor signalisation and thus makes possible the operation of

a door bell without wiring. The appliance is intended for

domestic use only, not for commercial or industrial applications.

No warranty is provided for damages resulting from improper

use of the appliance!

Items supplied

1 Receiver

1 Transmitter

2 1.5 V Batteries, Type "AA/Mignon/LR6"

1 3 V Battery, Type CR2032

1 Stand for the receiver

1 Screw for fixing the transmitter on to the assembly plate

5 Nameplates

1 Plastic cover for the nameplate

2 Wallplugs with screws for transmitter assembly

1 Wallplug with a screw for receiver suspension

1 Operating manual

LB4A.indb 2LB4A.indb 2 20.07.2010 10:35:41 Uhr20.07.2010 10:35:41 Uhr

- 3 -

Technical data

Power supply

Receiver: 2 x 1.5V Type "AA/Mignon/LR6"

Transmitter: 1 x 3V Type CR2032

Type of transmitter

protection: IP X4

Transmission frequency: 433 MHz

Range: 100 m (Free-space range)

Ring-tone volume: min. 73dB(A) in 1 m (on max. setting)

Safety instructions

Do not permit children to handle electrical appliances•

without supervision, as they cannot correctly assess the

possible dangers of injury.

Check the appliance and all parts for visible damages.•

If the appliance is damaged, arrange for it to be checked

by Customer Services.

NEVER open the appliance. There are no user-serviceable•

elements inside.

Risk of accidents and injury!

This appliance is not intended for use by individuals (including•

children) with restricted physical, physiological or intellectual

abilities or deficiences in experience and/or knowledge

unless they are supervised by a person responsible for their

safety or receive from this person instruction in how the appli-

ance is to be used.

LB4A.indb 3LB4A.indb 3 20.07.2010 10:35:41 Uhr20.07.2010 10:35:41 Uhr

- 4 -

Children should be supervised to ensure that they do not play•

with the appliance.

Keep batteries well away from children. Children can put bat-•

teries into their mouths and swallow them. If a battery is swal-

lowed, medical assistance must be sought IMMEDIATELY.

For the handling of batteries please observe the following:

Risk of explosion!

Do not throw batteries into a fire.•

Do not recharge the batteries.•

Never open batteries, never solder or weld batteries.•

The risk of explosions and injuries exists!

Regularly check the condition of the batteries. Leaking•

batteries can cause damage to the appliance.

If you do not intend to use the appliance for an extended•

period, remove the batteries.

Damage on the appliance

Avoid the simultaneous usage of batteries of varying•

types resp. capacities.

Do not use any aggressive chemical substances for•

cleaning.

NEVER submerse the appliance in water. Wipe it only•

with a slightly damp cloth.

LB4A.indb 4LB4A.indb 4 20.07.2010 10:35:41 Uhr20.07.2010 10:35:41 Uhr

- 5 -

Protect the receiver against moisture. Use it only in dry•

rooms, do not use it when it is raining outdoors or when

close to liquids.

Ensure that, when the receiver is in use, it cannot become•

wet or moist and that it cannot be damaged.

The appliance parts

Receiver (Fig. A)

qSignal indicator

w:Synchronisation button, Receiver

eVOL.: Button for sound volume control

r: Button for melody selection

t: Signal type switch (optical/acoustic)

ySpeaker

uStand

iBattery compartment - receiver

oLoop for suspension of the receiver

aBattery compartment cover - receiver

Transmitter (Fig. B)

sBell button

dNameplate

fIndicator for signal confirmation

gBattery compartment - Transmitter

hAssembly plate - Transmitter

LB4A.indb 5LB4A.indb 5 20.07.2010 10:35:41 Uhr20.07.2010 10:35:41 Uhr

- 6 -

Taking the appliance into use

Take the appliance out of the carton and remove all packaging

materials.

Inserting the batteries in the receiver

Open the battery compartment>ion the rear of the

appliance.

Insert 2 x 1.5V batteries of the type "AA/Mignon/LR6">

as per the insertion markings shown in the battery

compartment i.

Replace the battery compartment cover>a.

Inserting the battery in the transmitter

Remove the assembly plate>hfrom the transmitter.

Insert a 3 V battery of type CR2032 into the battery>

compartment g. The side marked with "+" must be

facing up.

Replace the assembly plate>hback onto the transmitter.

Should the performance of the appliance diminish or fall

away completely, it means the batteries are exhausted. The

used batteries should then be changed for new ones of the

same type.

LB4A.indb 6LB4A.indb 6 20.07.2010 10:35:41 Uhr20.07.2010 10:35:41 Uhr

- 7 -

Selecting the signal type

The receiver can indicate the reception of a door-ring signal

either optically, acoustically or optically and acoustically. To

select, bring the signal type switch tinto the desired position:

- only acoustic ring indications, the selected melody

sounds,

- only optical ring indications, the signal indicator blinks,

- optical and acoustic ring indications.

Adjusting the signal sound volume

To select the desired signal sound volume, press the VOL.

button erepeatedly until the desired volume level is set.

Loud Medium Quiet

Selecting the call melody

There are 36 different call melodies stored in the appliance.

Repeatedly press the button for melody selection>r.

When the desired melody sounds, stop the selection.>

The appliance will utilise the last melody it played as the

call melody.

LB4A.indb 7LB4A.indb 7 20.07.2010 10:35:42 Uhr20.07.2010 10:35:42 Uhr

- 8 -

Synchronising the transmitter and receiver

The transmitter and receiver of this doorbell system can com-

municate with each other on a variety of different frequencies.

Consequently, up to four transmitters can be operated with

one receiver. The precondition for this is that the transmitter and

receiver within a system are working on the same frequency.

For this, you must synchronise the appliances as follows:

Press the synchronisation button on the receiver>w.

The red signal indicator qnow glows.

Now press the bell button>s on the transmitter.

If the synchronisation has been a success, the receiver notifies

you of the programmed call signal. The appliances terminate

the synchronisation mode and the signal indicator qgoes

out. Should the receiver not react as described, repeat the

synchronisation.

The transmitter shows, with a brief glowing of the indica-

tor fwhen being activated, the transmission of the signal

to the receiver.

LB4A.indb 8LB4A.indb 8 20.07.2010 10:35:42 Uhr20.07.2010 10:35:42 Uhr
