C8051F32x-DK

C8051F32XDEVELOPMENT KIT USER’SGUIDE

1. Kit Contents

The C8051F32x Development Kit contains the following items:

• C8051F320 Target Board

• C8051Fxxx Development Kit Quick-Start Guide

• C8051F32x Development Kit User’s Guide (this document)

• Silicon Laboratories IDE and Product Information CD-ROM. CD content includes:

• Silicon Laboratories Integrated Development Environment (IDE)

• Keil 8051 Development Tools (macro assembler, linker, evaluation ‘C’ compiler)

• Source code examples and register definition files

• Documentation

• AC to DC Power Adapter

• 6’ USB Cable

• Debug Adapter. Items include:

• EC2 Serial Adapter (RS232 to Debug Interface)

• RS232 Serial Cable

• 7” Ribbon Cable

• USB Debug Adapter (USB to Debug Interface)

• USB Cable

2. Hardware Setup using an EC2 Serial Adapter

Connect the target board to a PC running the Silicon Laboratories IDE via the Serial Adapter as shown in Figure 1.

1. Connect one end of the RS232 serial cable to a serial (COM) port on the PC.

2. Connect the other end of the RS232 serial cable to the DB-9 connector on the Serial Adapter.

3. Connect the Serial Adapter to the DEBUG connector on the target board using the 10-pin ribbon cable.

4. Connect the AC/DC power adapter to power jack P1 on the target board.

Notes:

•UsetheReset button in the IDE to reset the target when connected using an EC2 Serial Adapter.

• Remove power from the target board and the EC2 before connecting or disconnecting the ribbon cable from

the target board. Connecting or disconnecting the cable when the devices have power can damage the

device and/or the EC2.

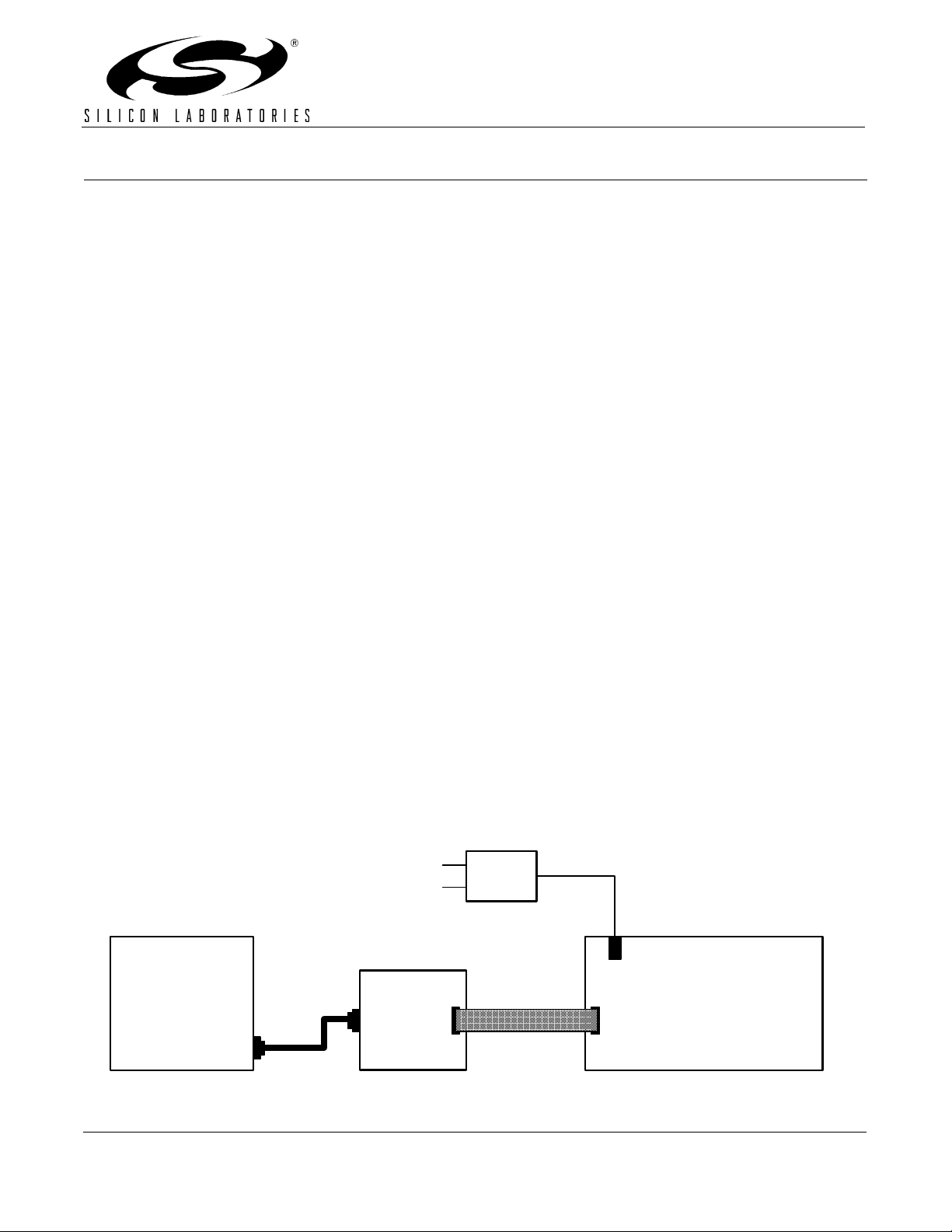

Figure 1. Hardware Setup using an EC2 Serial Adapter

Serial Port

Serial

Adapter

Ribbon

Cable Target

Board

AC/DC

Adapter

Serial

Cable

C8051F32x-DK

2 Rev. 0.7

3. Hardware Setup using a USB Debug Adapter

The target board is connected to a PC running the Silicon Laboratories IDE via the USB Debug Adapter as shown

in Figure 2.

1. Connect the USB Debug Adapter to the DEBUG connector on the target board with the 10-pin ribbon cable.

2. Connect one end of the USB cable to the USB connector on the USB Debug Adapter.

3. Connect the other end of the USB cable to a USB Port on the PC.

4. Connect the AC/DC power adapter to power jack P1 on the target board.

Notes:

• Use the Reset button in the IDE to reset the target when connected using a USB Debug Adapter.

• Remove power from the target board and the USB Debug Adapter before connecting or disconnecting the

ribbon cable from the target board. Connecting or disconnecting the cable when the devices have power can

damage the device and/or the USB Debug Adapter.

Figure 2. Hardware Setup using a USB Debug Adapter

4. Software Setup

The included CD-ROM contains the Silicon Laboratories Integrated Development Environment (IDE), Keil software

8051 tools and additional documentation. Insert the CD-ROM into your PC’s CD-ROM drive. An installer will auto-

matically launch, allowing you to install the IDE software or read documentation by clicking buttons on the Installa-

tion Panel. If the installer does not automatically start when you insert the CD-ROM, run autorun.exe found in the

root directory of the CD-ROM. Refer to the readme.txt file on the CD-ROM for the latest information regarding

known IDE problems and restrictions.

5. Silicon Laboratories Integrated Development Environment

The Silicon Laboratories IDE integrates a source-code editor, source-level debugger and in-system Flash program-

mer. The use of third-party compilers and assemblers is also supported. This development kit includes the Keil

Software A51 macro assembler, BL51 linker and evaluation version C51 ‘C’ compiler. These tools can be used

from within the Silicon Laboratories IDE.

5.1. System Requirements

The Silicon Laboratories IDE requirements:

• Pentium-class host PC running Microsoft Windows 98SE or later.

• One available COM or USB port.

• 64 MB RAM and 40 MB free HD space recommended.

USB Port

USB

Debug

Adapter

Ribbon Cable

Target Board

AC/DC

Adapter

USB

Cable

C8051F32x-DK

Rev. 0.7 3

5.2. Assembler and Linker

A full-version Keil A51 macro assembler and BL51 banking linker are included with the development kit and are

installed during IDE installation. The complete assembler and linker reference manual can be found under the Help

menu in the IDE or in the “SiLabs\MCU\hlp” directory (A51.pdf).

5.3. Evaluation C51 ‘C’ Compiler

An evaluation version of the Keil C51 ‘C’ compiler is included with the development kit and is installed during IDE

installation. The evaluation version of the C51 compiler is the same as the full professional version except code

size is limited to 4 kB and the floating point library is not included. The C51 compiler reference manual can be

found under the Help menu in the IDE or in the “SiLabs\MCU\hlp” directory (C51.pdf).

5.4. Using the Keil Software 8051 Tools with the Silicon Laboratories IDE

To perform source-level debugging with the IDE, you must configure the Keil 8051 tools to generate an absolute

object file in the OMF-51 format with object extensions and debug records enabled. You may build the OMF-51

absolute object file by calling the Keil 8051 tools at the command line (e.g. batch file or make file) or by using the

project manager built into the IDE. The default configuration when using the Silicon Laboratories IDE project

manager enables object extension and debug record generation.

Refer to Applications Note

AN104 -

Integrating

Keil 8051 Tools Into the Silicon Labs IDE

in the “SiLabs\MCU\Documentation\Appnotes” directory on the CD-

ROM for additional information on using the Keil 8051 tools with the Silicon Laboratories IDE.

To build an absolute object file using the Silicon Laboratories IDE project manager, you must first create a project. A

project consists of a set of files, IDE configuration, debug views, and a target build configuration (list of files and tool

configurations used as input to the assembler, compiler, and linker when building an output object file).

The following sections illustrate the steps necessary to manually create a project with one or more source files, build

a program and download the program to the target in preparation for debugging. (The IDE will automatically create a

single-file project using the currently open and active source file if you select

Build/Make Project

before a project is

defined.)

5.4.1. Creating a New Project

1. Select Project->New Project to open a new project and reset all configuration settings to default.

2. Select File->New File to open an editor window. Create your source file(s) and save the file(s) with a rec-

ognized extension, such as .c, .h, or .asm, to enable color syntax highlighting.

3. Right-click on “New Project” in the Project Window. Select Add files to project. Select files in the file

browser and click Open. Continue adding files until all project files have been added.

4. For each of the files in the

Project

Window

that you want assembled, compiled and linked into the target

build, right-click on the file name and select

Add file to build

. Each file will be assembled or compiled as

appropriate (based on file extension) and linked into the build of the absolute object file.

Note:

If a project contains a large number of files, the “Group” feature of the IDE can be used to organize.

Right-click on “New Project” in the

Project Window

. Select

Add Groups to project

. Add pre-defined

groups or add customized groups. Right-click on the group name and choose

Add file to group

. Select files

to be added. Continue adding files until all project files have been added.

C8051F32x-DK

4 Rev. 0.7

5.4.2. Building and Downloading the Program for Debugging

1. Once all source files have been added to the target build, build the project by clicking on the Build/Make

Project button in the toolbar or selecting Project->Build/Make Project from the menu.

Note: After the project has been built the first time, the Build/Make Project command will only build the

files that have been changed since the previous build. To rebuild all files and project dependencies, click

on the Rebuild All button in the toolbar or select Project->Rebuild All from the menu.

Before connecting to the target device, several connection options may need to be set.

Open the

Connection Options

window by selecting

Options->Connection Options...

in the IDE menu. First, select

the adapter that was included with the kit in the “Serial Adapter” section. Next, the correct “Debug Interface”

must be selected.

C8051F32x

family devices use the Silicon Labs 2-wire (C2) debug interface. Once all the

selections are made, click the OK button to close the window.

3. Click the

Connect

button in the toolbar or select

Debug->Connect

from the menu to connect to the device.

4. Download the project to the target by clicking the Download Code button in the toolbar.

Note: To enable automatic downloading if the program build is successful select Enable automatic con-

nect/download after build in the Project->Target Build Configuration dialog. If errors occur during the

build process, the IDE will not attempt the download.

5. Save the project when finished with the debug session to preserve the current target build configuration,

editor settings and the location of all open debug views. To save the project, select Project->Save Project

As... from the menu. Create a new name for the project and click on Save.

C8051F32x-DK

Rev. 0.7 5

6. Example Source Code

Example source code and register definition files are provided in the “SiLabs\MCU\Examples\

C8051F32x

” directory

during IDE installation. These files may be used as a template for code development. Example applications include

a blinking LED example which configures the green LED on the target board to blink at a fixed rate. A Universal

Serial Bus (USB) application example is also included with the C8051F32x development kit.

6.1. Register Definition Files

status bits. They are installed into the “SiLabs\MCU\Examples\C8051F32x” directory during IDE installation. The

also installed in the default search path used by the Keil Software 8051 tools. Therefore, when using the Keil 8051

tools included with the development kit (A51, C51), it is not necessary to copy a register definition file to each

project’s file directory.

6.2. Blinking LED Example

The example source files blink.asm and blinky.c show examples of several basic C8051F32x functions. These

include; disabling the watchdog timer (WDT), configuring the Port I/O crossbar, configuring a timer for an interrupt

routine, initializing the system clock, and configuring a GPIO port. When compiled/assembled and linked this pro-

gram flashes the green LED on the C8051F320 target board about five times a second using the interrupt handler

with a C8051F320 timer.

C8051F32x-DK

6 Rev. 0.7

6.3. Universal Serial Bus (USB) Application Example

The included USB application example requires Windows 98SE/2000/XP operating system. This example consists

of three parts, firmware running on the C8051F320 device, a USB device driver running on the host PC, and a host

application. The host application communicates with the C8051F320 via USB, allowing the user to view and to

change the state of several I/O peripherals on the C8051F320 target board. The example files can be found in the

“SiLabs\MCU\Examples\C8051F32x\C\USB_INT” directory. Located in this directory is the project file for the

firmware, the USB driver files, and the host application executable. In addition, three subdirectories are provided

that contain the source code for each part of the example application; Host Application Source, Driver Source, and

Firmware. Use the following instructions to set up the example USB firmware, install the USB driver, and then run

the example host application.

After the target board is connected to the host computer via USB, the example application enumerates and sends

data between the target and the host application using Endpoint 0, 1, and 2. The Endpoint 0 packets are control

packets as defined in Chapter 9 of the Universal Serial Bus Specification, version 2.0. Endpoints 1 and 2 are used

for data IN and OUT, respectively. These data packets consist of 8 bytes used to denote the current status of the

buttons, LEDs, Potentiometer, and logic levels of various port pins on the target board. Accessing the USB core

(i.e., accessing the USB registers and moving data to and from the Endpoint FIFOs on the target board) is

documented in Silicon Laboratories’ C8051F32x datasheet.

6.3.1. Setting-up the Firmware

1. Set up the hardware on the C8051F320 target board according to the instructions in Section 2 or

Section 3.

2. Create a project using the following steps.

a. Open the Silicon Laboratories IDE.

b. Click on the Project->Open Project... option in the IDE menus.

c. Answer No to the following message:

Not all project windows can be restored if not connected.

Do you want to connect now?

d. Select the USB__Int.wsp project, located by default in the SiLabs\MCU\Exam-

ples\C8051F32x\C\USB_INT directory, and click the Open button.

e. Click the Build/Make Project button in the IDE toolbar.

f. The project should now be compiled and linked successfully, with no errors.

g. Connect to the device by clicking the Connect button on the IDE toolbar.

h. Download the project to the target by clicking the

Download Code

button in the IDE toolbar.

3. Begin program execution on the target by either of the following methods:

a. Click the Go button in the IDE toolbar.

b. Disconnect the IDE from the device by pressing the Disconnect button on the toolbar. Next, press

the Reset button on the C8051F320 target board.

C8051F32x-DK

Rev. 0.7 7

6.3.2. Installing the USB Driver

1. Connect the USB cable between the host computer and the C8051F320 target board, as shown in

Figure 3. See Figure 4 on page 8 for the location of the USB connector.

2. At this point, Windows should notify you it has found new hardware and prompt you with a Found New

Hardware wizard. Press the Next button.

3. Select Search for a suitable driver for my device (recommended) and press the Next button.

4. Select Specify a location under “Optional search locations:” and press the Next button.

5. Press the

Browse

button to locate the SiLabsInt.inf driver installation file, located by default in the

“SiLabs\MCU\Examples\C8051F320\C\USB_INT” directory. Once this file is selected press the

button.

6. Verify that the correct path and filename are shown and press the Next button.

7. Press the Finish button.

6.3.3. Running the Host Application

1. Once firmware has been downloaded to the target board and the driver has been installed successfully, run

the USBTest.exe example application located by default in the “SiLabs\MCU\Exam-

ples\C8051F320\C\USB_INT” directory.

2. The USBTest application will display the status of the potentiometer, the temperature sensor, the two

switches, and the lower four bits of Port 0.

3. The application also includes check boxes for turning on the two LEDs and changing the logic levels on the

lower four bits of Port 1.

4. If any of the application functions do not operate correctly, verify shorting blocks are installed at the follow-

ing positions: J3[1-2] (P2.0 Switch), J3[3-4] (P2.1 Switch), J3[5-6] (P2.2 LED), J3[7-8] (P2.3 LED), J9

(P0.2), J10 (P0.3) and J13 (P1.7 Potentiometer).

5. See Figure 4 on page 8 for the location of headers, LEDs, switches, and potentiometer.

Note: The C8051F320 target board has the ability to be powered through the USB cable. To enable the USB powered mode,

move the shorting block located at header J2 to header J11.

Figure 3. USB Application Hardware Setup

Serial or USB Port

Debug

Adapter

Ribbon

Cable

PC Serial or USB

Cable

C8051F32x

Target

Board

Debug

RS232

AC/DC

Adapter

USB Port USB

Connector

C8051F32x-DK

8 Rev. 0.7

7. Target Board

The

C8051F32x

Development Kit includes a target board with a

C8051F320

device pre-installed for evaluation and

preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyping

using the target board. Refer to

Figure 4

for the locations of the various I/O connectors.

P1 Power connector (accepts input from 7 to 15 VDC unregulated power adapter)

J1 36-pin Expansion I/O connector

J2 Power Target Board from power adapter

J3 Port I/O Configuration Connector

J4 DEBUG connector for Debug Adapter interface

J5 DB-9 connector for UART0 RS232 interface

J6 Analog I/O terminal block

J7 Low pass filter connector

J8 USB Debug Adapter target board power connector

J9, J10 External crystal enable connectors

J11 Power Target Board from USB

J12 Connects external capacitance to P0.7

J13 Connects R14 Potentiometer to P1.7

J14 USB connector for USB interface

DEBUG

Pin 1

Prototype Area

C8051

F32X

Prototyping Area I/O Connection Points

J10

PWR

Pin 1

J14

J11

J7 J12

P2.3

P2.2

Pin 1

Pin 2

RESETP2.1 P2.0

Pin 2

Pin 1

J13

R14

Figure 4. C8051F320 Target Board

C8051F32x-DK

Rev. 0.7 9

7.1. System Clock Sources

The

C8051F320

device installed on the target board features a calibrated programmable internal oscillator which is

enabled as the system clock source on reset. After reset, the internal oscillator operates at a frequency of 1.5 MHz

(±1.5%) by default but may be configured by software to operate at other frequencies. Therefore, in many applica-

tions an external oscillator is not required. However, if you wish to operate the C8051F320 device at a frequency not

available with the internal oscillator, an external crystal may be used. Refer to the

C8051F32x

datasheet for more

information on configuring the system clock source.

The target board is designed to facilitate the installation of an external crystal. Remove shorting blocks at headers

J9 and J10 and install the crystal at the pads marked Y1. Install a 10 MΩresistor at R9 and install capacitors at

C14 and C15 using values appropriate for the crystal you select. Refer to the C8051F32x datasheet for more infor-

mation on the use of external oscillators.

7.2. Switches and LEDs

Three switches are provided on the target board. Switch SW1 is connected to the RESET pin of the C8051F320.

Pressing SW1 puts the device into its hardware-reset state. Switch SW2 and SW3 are connected to the

C8051F320’s general purpose I/O (GPIO) pins through headers. Pressing SW2 or SW3 generates a logic low sig-

nal on the port pin. Remove the shorting blocks from the header to disconnect SW2 and SW3 from the port pins.

The port pin signals are also routed to pins on the J1 I/O connector. See Table 1 for the port pins and headers cor-

responding to each switch.

Three LEDs are also provided on the target board. The red LED labeled PWR is used to indicate a power connec-

tion to the target board. The green LEDs labeled with port pin names areconnected to the C8051F320’s GPIO pins

through headers. Remove the shorting blocks from the header to disconnect the LEDs from the port pin. The port

pin signals are also routed to pins on the J1 I/O connector. See Table 1 for the port pins and headers correspond-

ing to each LED.

Also included on the C8051F320 target board is a 10 K

Ω

Thumb-wheel Rotary Potentiometer, part number R14. The

Potentiometer is connected to the C8051F320’s GPIO pin through a header. Remove the shorting block from the

header to disconnect the Potentiometer from the port pin. The port pin signal is also routed to a pin on the J1 I/O

connector. See Table 1 for the port pin and header corresponding to the Potentiometer.

Description I/O Header

SW1 Reset none

SW2 P2.0 J3[1-2]

SW3 P2.1 J3[3-4]

Green LED P2.2 J3[5-6]

Green LED P2.3 J3[7-8]

Red LED PWR none

Potentiometer R14 J13

Table 1. Target Board I/O Descriptions

C8051F32x-DK

10 Rev. 0.7

7.3. Universal Serial Bus (USB) Interface (J14)

A Universal Serial Bus (USB) connector (J14) is provided to facilitate connections to the USB interface on the

C8051F320. Table 2 shows the J14 pin definitions.

7.4. Expansion I/O Connector (J1)

The 32-pin Expansion I/O connector J1 provides access to all signal pins of the C8051F320 device. Pins for +3 V,

digital ground and the output of an on-board low-pass filter are also available. A small through-hole prototyping area

is also provided. All I/O signals routed to connector J1 are also routed to through-hole connection points between J1

and the prototyping area (see Figure 4 on page 8). Each connection point is labeled indicating the signal available at

the connection point. See Table 3 for a list of pin descriptions for J1.

7.5. USB Self-powered Configuration (J2, J11)

The C8051F320 target board can be configured as a self-powered USB device to take power from the USB cable

instead of the AC/DC adapter connected at P1. To configure the target boards as a self-powered USB device,

remove the shorting block from J2 and install on J11. (A shorting block should only be installed on J2 or J11, never

both at the same time.) Install shorting blocks in the following manner:

J2(ON) & J11(OFF) ->Target Board is powered from the AC/DC Adapter at P1.

J2(OFF) & J11(ON) ->Target Board is powered from the USB connection

Note: When the C8051F320 target board is self-powered from the USB, the Serial Adapter is not powered from the

target board. The Serial Adapter must be powered directly by connecting the AC/DC adapter to the Serial Adapt-

ers’ DC power jack. Also, the RS232 Serial Interface (J5) cannot be used when powering the target board from the

USB.

Pin # Description

1 VBUS

2D-

3D+

4 GND (Ground)

Table 2. USB Connector Pin Descriptions

Pin # Description Pin # Description Pin # Description

1 +3VD(+3.3VDC) 13 P1.2 25 P2.6

2 PWM Output 14 P1.3 26 P2.7

3 P0.0 15 P1.4 27 P3.0

4 P0.1 16 P1.5 28 /RST (Reset)

5 P0.2 17 P1.6 29 VREGIN

6 P0.3 18 P1.7 30 VDD

7 P0.4 19 P2.0 31 VBUS

8 P0.5 20 P2.1 32 GND (Ground)

9 P0.6 21 P2.2

10 P0.7 22 P2.3

11 P1.0 23 P2.4

12 P1.1 24 P2.5

Table 3. J1 Pin Descriptions

Table des matières

Autres manuels Silicon Laboratories Microcontrôleur

Silicon Laboratories

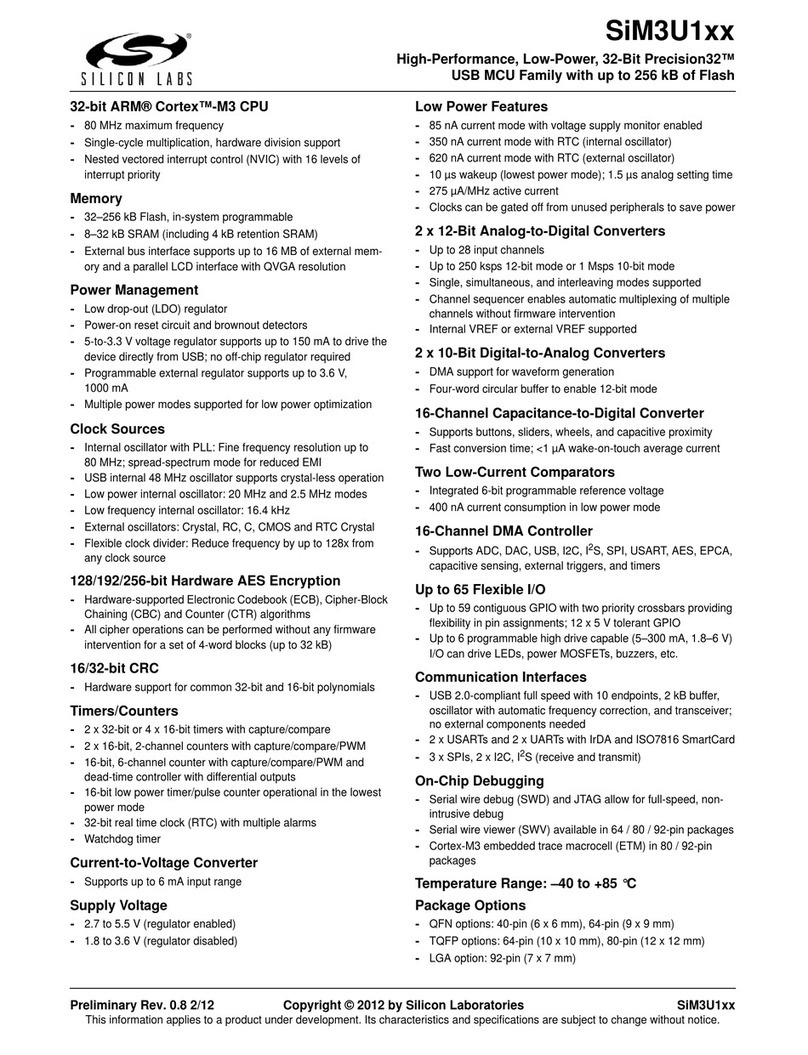

Silicon Laboratories SiM3U1xx Manuel utilisateur

Silicon Laboratories

Silicon Laboratories UG338 Manuel utilisateur

Silicon Laboratories

Silicon Laboratories EFM32G Manuel utilisateur

Silicon Laboratories

Silicon Laboratories C8051F41 Series Manuel utilisateur

Silicon Laboratories

Silicon Laboratories BB50 Manuel utilisateur

Silicon Laboratories

Silicon Laboratories EFR32MG Manuel utilisateur

Silicon Laboratories

Silicon Laboratories C8051F12X Manuel utilisateur

Silicon Laboratories

Silicon Laboratories CP2501DK Manuel utilisateur

Silicon Laboratories

Silicon Laboratories C8051F02 Series Manuel utilisateur

Silicon Laboratories

Silicon Laboratories C8051F38 Series Manuel utilisateur

Silicon Laboratories

Silicon Laboratories EFM8SB1-SLSTK2010A Manuel utilisateur

Silicon Laboratories

Silicon Laboratories C8051F500 Manuel utilisateur

Silicon Laboratories

Silicon Laboratories C8051F30 series Manuel utilisateur

Silicon Laboratories

Silicon Laboratories EM35 Series Manuel utilisateur

Silicon Laboratories

Silicon Laboratories WF200 Manuel utilisateur

Silicon Laboratories

Silicon Laboratories C8051F336 Manuel utilisateur

Silicon Laboratories

Silicon Laboratories EM35 Series Manuel utilisateur

Silicon Laboratories

Silicon Laboratories Si8410 Manuel utilisateur

Silicon Laboratories

Silicon Laboratories C8051F120 Manuel utilisateur

Silicon Laboratories

Silicon Laboratories SLWSTK6104A Manuel utilisateur

Silicon Laboratories

Silicon Laboratories Wireless M-Bus-EK Manuel utilisateur

Silicon Laboratories

Silicon Laboratories C8051F35x Manuel utilisateur

Silicon Laboratories

Silicon Laboratories C8051F53 Series Manuel utilisateur

Silicon Laboratories

Silicon Laboratories Telegesis ETRX357DVK Manuel utilisateur

Manuels Microcontrôleur populaires d'autres marques

AMS

AMS AS7261 Demo Kit Manuel utilisateur

Novatek

Novatek NT6861 Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266 SDK Guide de configuration

Nuvoton

Nuvoton ISD61S00 ChipCorder Mode d’emploi

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manuel utilisateur

Texas Instruments

Texas Instruments Chipcon CC2420DK Manuel utilisateur

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manuel utilisateur

NEC

NEC 78GK0S/K 1+ Series Instructions d'installation et d'utilisation

Mikroe

Mikroe SEMITECH N-PLC Click Instructions d'installation et d'utilisation

Intel

Intel Agilex Manuel utilisateur

Cypress

Cypress CY4607 HX2VL Manuel utilisateur

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manuel utilisateur

Texas Instruments

Texas Instruments TMS320F2837 D Series Manuel utilisateur

CYPRES

CYPRES CY14NVSRAMKIT-001 Manuel utilisateur

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266EX Mode d'emploi

Abov

Abov AC33M8128L Manuel utilisateur

Laird

Laird BL654PA Manuel utilisateur
