UG237: EFM8BB2-SLSTK2021A User's

Guide

The EFM8BB2-SLSTK2021A is an excellent starting point to get

familiar with the EFM8 Busy Bee microcontrollers.

The kit contains sensors and peripherals demonstrating some of the MCU's many capa-

bilities. The kit can also serve as a starting point for application development.

The kit includes the following:

KEY FEATURES

• EFM8BB22F16G MCU with 16 KB Flash

and 2 KB RAM.

• 20-pin expansion header.

• Power sources include USB and CR2032

battery.

• 2 user buttons, 1 tri-color LED.

• 8-direction joystick.

• Ultra low power 128x128 pixel Memory-

LCD.

• EFM8BB2 Busy Bee Starter Kit Board

• 1 x CR2032 battery

• Getting Started card

• 1 x mini USB cable

silabs.com | Building a more connected world. Rev. 0.4

1. Getting Started

Hardware

To set up the hardware for the EFM8BB2-SLSTK2021A kit:

1. Provide power to the board by connecting the USB connector to the PC using the provided USB cable.

2. Move the switch to the Advanced Energy Monitor (AEM) position.

Figure 1.1. Hardware Setup

Software

The first step to get started with your new EFM8BB2-SLSTK2021A is to go to

http://www.silabs.com/simplicity

The Simplicity Studio software package contains all the tools, drivers, software examples and documentation needed to use the

EFM8BB2 Starter Kit. The board comes pre-loaded with a default application, Space Invaders, to interact with while the software down-

loads.

After downloading the latest version of Simplicity Studio and installing:

1. Select the J-Link adapter for the kit under [Devices].

2. Click one of the demos available under [Getting Started]>[Demos] or click the [Getting Started]>[Demos]>[View All] to view the

entire list of available demos.

3. Click the [Rainbow Blinky] demo and click [Start] to download and run the demo.

Additional demos showcasing the various features of the EFM8 are also available in Simplicity Studio.

UG237: EFM8BB2-SLSTK2021A User's Guide

Getting Started

silabs.com | Building a more connected world. Rev. 0.4 | 2

2. Kit Block Diagram

An overview of the EFM8BB2 Starter Kit is shown in the figure below.

ADC

Joystick

EFM8BB2

Microcontroller

POWER

Board

Controller

UART

Figure 2.1. EFM8BB2-SLSTK2021A Block Diagram

UG237: EFM8BB2-SLSTK2021A User's Guide

Kit Block Diagram

silabs.com | Building a more connected world. Rev. 0.4 | 3

3. Kit Hardware Layout

The layout of the EFM8BB2 Starter Kit is shown below.

Kit USB

Connector

CR2032

Battery Holder

Power Source Select

User Push

Buttons User LED

EFM8 Reset Button

EFM8BB2 MCU

Expansion

Header

Joystick

128x128 Pixel

Memory LCD

Direct

Debug Connector

Debug IN/OUT

Connector

Reference

Board Connector

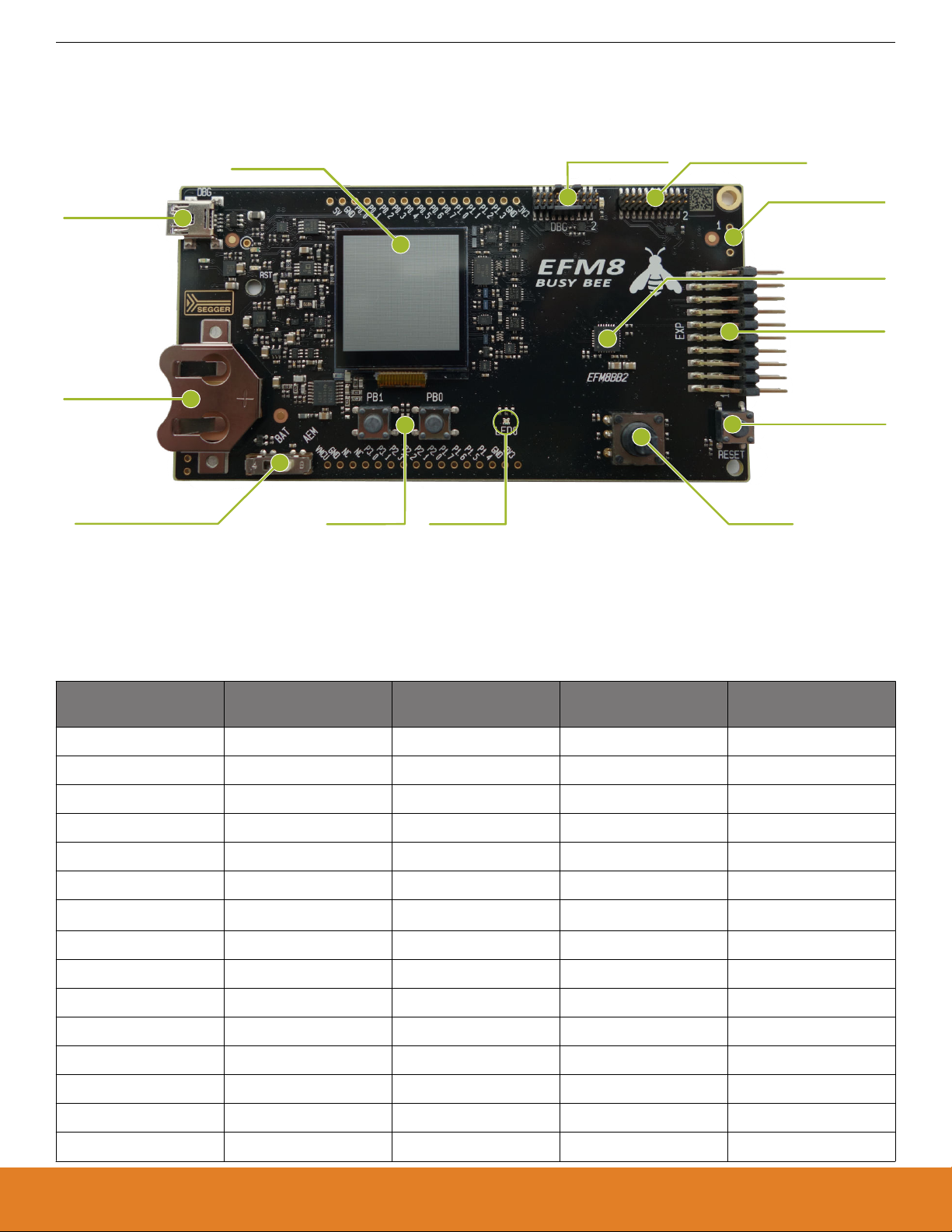

Figure 3.1. EFM8BB2-SLSTK2021A Hardware Layout

The EFM8 device on the kit is connected to several peripherals. The table below shows all of the external connections to the MCU.

Table 3.1. Kit MCU Connections

MCU Port Pin Port Pin Assigned

Function

Primary Board Connec-

tion

Secondary Board Con-

nection

Expansion Port Con-

nection (EXP)

P0.0 GPIO EXP3

P0.1 GPIO DISP - SPI CS AGND

P0.2 Port Match Input Push Button 0 (PB0)

P0.3 Port Match Input Push Button 1 (PB1)

P0.4 UART0 TX BC - UART_TX

P0.5 UART0 RX BC - UART_RX

P0.6 SPI0 SCK DISP - SPI CLK1SPI CLK EXP8

P0.7 SPI0 MISO SPI MISO EXP6

P1.0 SPI0 MOSI DISP - SPI MOSI SPI MOSI EXP4

P1.1 SPI0 NSS SPI CS EXP10

P1.2 SMBus0 SDA I2C SDA BC - REFCLK EXP16

P1.3 SMBus0 SCL I2C SCL BC - 1 kHz SINE EXP15

P1.4 PCA0 CEX0 RGB LED0 EXP5

P1.5 PCA0 CEX1 RGB LED1 EXP7

P1.6 PCA0 CEX2 RGB LED2 EXP9

UG237: EFM8BB2-SLSTK2021A User's Guide

Kit Hardware Layout

silabs.com | Building a more connected world. Rev. 0.4 | 4

MCU Port Pin Port Pin Assigned

Function

Primary Board Connec-

tion

Secondary Board Con-

nection

Expansion Port Con-

nection (EXP)

P1.7 ADC / CMP Joystick

P2.0 GPIO BC - Enable

P2.1 UART1 TX UART1 TX EXP12

P2.2 UART1 RX UART1 RX EXP14

P2.3 GPIO DISP - Enable DISP - SPI CS (alt) EXP11

P3.0 / C2D C2D (for debug)

P3.1 GPIO EXP13

Note:

1. This signal has high loading. If the MCU pin is used for signals where edge speed is critical, this signal should be disconnected

from the pin.

UG237: EFM8BB2-SLSTK2021A User's Guide

Kit Hardware Layout

silabs.com | Building a more connected world. Rev. 0.4 | 5

4. Power Supply and Reset

4.1 MCU Power Selection

The Busy Bee MCU on the EFM8BB2-SLSTK2021A is designed to be powered by three different sources:

• Through the on-board debugger.

• By a 3 V Battery.

• An externally supplied power source.

Selecting the power source is done with the slide switch in the lower left corner of the board. The figure shows how the different power

sources can be selected with the slide switch.

AEM

BAT

AEM

BAT

Figure 4.1. EFM8BB2-SLSTK2021A Power Switch

With the switch in the AEM position, an on-board low noise LDO with a fixed output voltage of 3.3 V is used to power the MCU. This

LDO is powered from the "J-Link" USB cable.

With the switch in the BAT position, the device may be powered from either a 20 mm coin cell battery (in the CR2032 socket) or an

external power supply (connected to the VMCU and GND pins on the expansion header).

4.2 MCU Reset

The EFM8 MCU can be reset by a few different sources:

• The RESET button.

• An external debugger by pulling the RSTb pin low.

UG237: EFM8BB2-SLSTK2021A User's Guide

Power Supply and Reset

silabs.com | Building a more connected world. Rev. 0.4 | 6

5. Peripherals

The starter kit has a set of peripherals that showcase some of the features of the EFM8 Busy Bee microcontroller.

Be aware that most EFM8 I/O routed to peripherals are also routed to the breakout pads. This must be taken into consideration when

using the breakout pads for your application.

5.1 Push Buttons and LEDs

The kit has two user push buttons. They are connected to the EFM8, and are debounced by RC filters with a time constant of 1 ms. The

buttons are connected to pins P0.2 and P0.3.

In addition to the two push buttons, the kit also features a tri-color LED that is controlled by EFM8 GPIO. The LED is connected to pins

P1.4, P1.5, and P1.6 in an active-low configuration.

Figure 5.1. Buttons/LEDs

UG237: EFM8BB2-SLSTK2021A User's Guide

Peripherals

silabs.com | Building a more connected world. Rev. 0.4 | 7

5.2 Joystick

The kit has an analog joystick with 8 measureable positions. This joystick is connected to the EFM8 on the P1.7 pin and uses different

resistor values to create voltages measurable by the ADC0.

Figure 5.2. Joystick

Table 5.1. Joystick Resistor Combinations

Direction Resistors Combinations (kΩ) Expected UIF_JOYSTICK Voltage (V)1

Center press 0.1

0.1 + 10

0.033

Up (N) 60.4

60.4 + 10

2.831

Up-Right (NE) (N// E)

(N// E) + 10 =21.34

21.34 + 10

2.247

Right (E) 33

33 + 10

2.533

Down-Right (SE) (S// E)

(S// E) + 10 =7.67

7.67 + 10

1.433

Down (S) 10

10 + 10

1.650

Down-Left (SW) (S// W)

(S// W) + 10 =6

6 + 10

1.238

Left (W) 15

15 + 10

1.980

Up-Left (NW) (N// W)

(N// W) + 10 =12.01

12.01 + 10

1.801

Note:

1. These calculated values assume a VMCU of 3.3 V.

UG237: EFM8BB2-SLSTK2021A User's Guide

Peripherals

silabs.com | Building a more connected world. Rev. 0.4 | 8

5.3 Memory LCD-TFT Display

A 1.28-inch SHARP Memory LCD-TFT has been added to the board to enable interactive applications to be developed. The display has

a high resolution of 128 by 128 pixels and consumes very little power. It is a reflective monochrome display, so each pixel can only be

light or dark, and no backlight is needed in normal daylight conditions.

The display interface consists of an SPI-compatible serial interface and some extra control signals. Data are sent to the display one line

(128 bits) at a time.

The Memory LCD-TFT display is shared with the kit Board Controller, allowing the Board Controller application to display useful infor-

mation when the user application is not using the display. The EFM8 MCU always controls ownership of the display using the

EFM_DISP_ENABLE signal:

• 0: The Board Controller has control of the display.

• 1: The user application (EFM8) has control of the display.

Data are clocked in on EFM_DISP_MOSI (P1.0) when EFM_DISP_CS (P0.1) is high, and the clock is sent on EFM_DISP_SCLK

(P0.6). The maximum supported clock speed is 1 MHz.

Please refer to the display application information for details on driving the display:

http://www.sharpmemorylcd.com/1-28-inch-memory-lcd.html

0: BC controls display

1: EFM controls display

EFM_DISP_ENABLE

P0.6 (SPI0)

P1.0 (SPI0)

P0.1 (GPIO)

P2.3 (GPIO)

Figure 5.3. 128x128 Pixel Memory LCD

UG237: EFM8BB2-SLSTK2021A User's Guide

Peripherals

silabs.com | Building a more connected world. Rev. 0.4 | 9

6. Connectors

6.1 Breakout Pads

Many of the EFM8's pins are routed out to "breakout pads" at the top and bottom edges of the kit. A 2.54 mm pitch pin header can be

soldered in for easy access to these pins. Most I/O pins are available, with the exception of pins used to drive the LCD.

Note: Some of the breakout pads are shared by on-board EFM peripherals. The schematic must be consulted to make sure that it is

acceptable to use a shared pin in your application.

P0.0

P0.1

P0.2

P0.3

P0.5

P0.6

P0.7

P1.0

P1.1

P1.2

P1.3

P0.4

P3.0

P3.1

P2.2

P2.1

P2.0

P1.7

P1.6

P1.5

P1.4

P2.3

VMCU

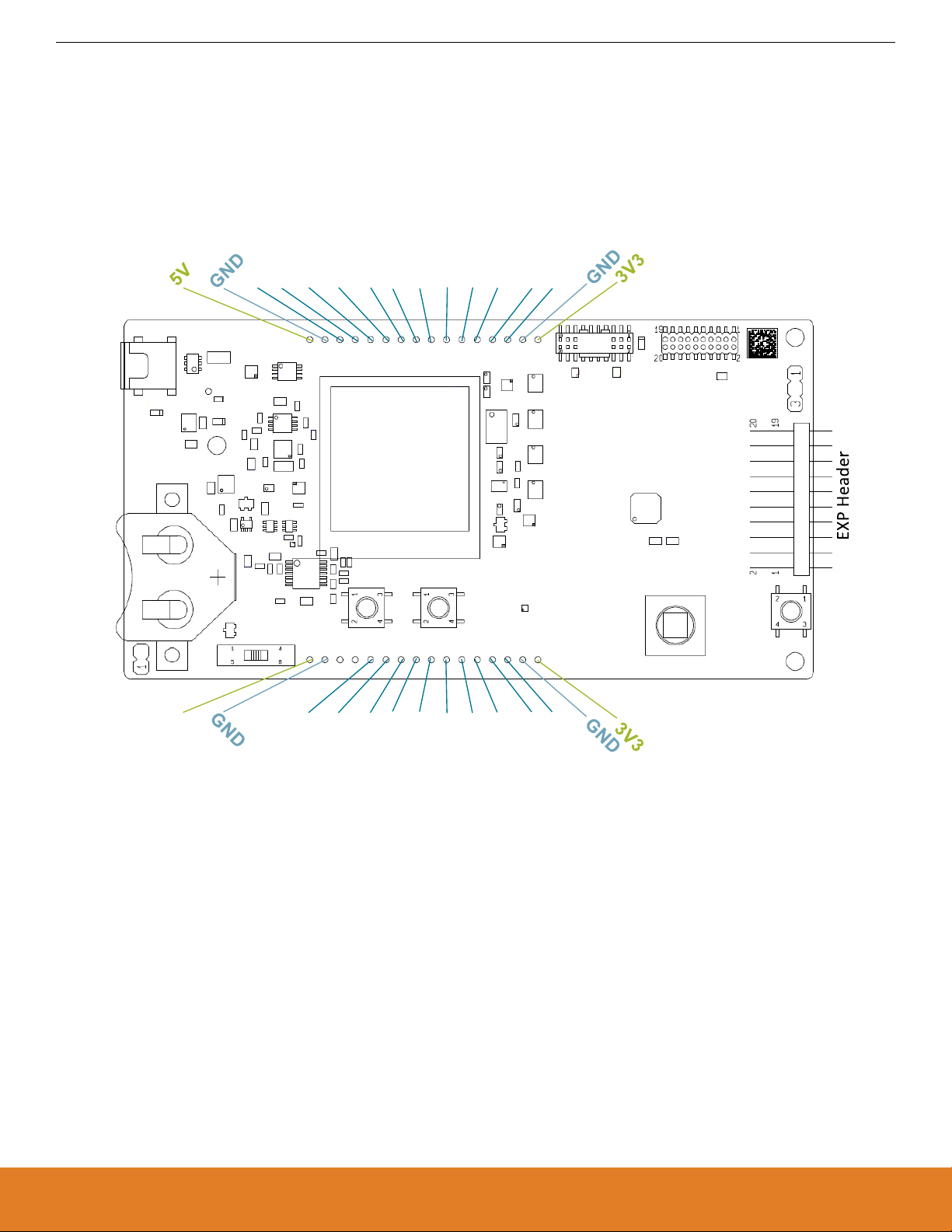

Figure 6.1. Breakout Pads and Expansion Header

UG237: EFM8BB2-SLSTK2021A User's Guide

Connectors

silabs.com | Building a more connected world. Rev. 0.4 | 10
