Activating your PinPoint X on AT&T

•Installing the SIM

•Configuring the

APN

•Hardware

Installation

•Indicator Lights

•Optional: Setting up

a DUN

Connection

This Quick Start guide provides step-by-step directions for activating

your PinPoint X on AT&T’s network.

Tip:

For additional configuration options, refer to the User Guide for your

PinPoint X.

Installing the SIM

The Subscriber Identity Module (SIM) in the PinPoint X is a

smartcard that securely stores the key identifying a cellular

subscriber. Generally, you will only need to install a SIM once in the

life of the modem and it may be pre-installed by your Sierra Wireless

Representative.

If the SIM was pre-installed, unless you need to set a custom APN,

activation of your modem is complete. Skip to the PinPoint X

Placement section and/or to the DUN instructions, if you need Dial-

Up Networking.

Cellular Account Required

• Cellular Account Required- To use your modem, you need to

have a SIM with an active account with your cellular provider.

Software Required

• ACEmanager - Graphical interface for entering most AT

Commands. You can download ACEmanager from the Sierra

Wireless AirLink Solutions website: http://

www.sierrawireless.com/support/. A default installation of this

utility is assumed later in these directions

Hardware Required

• Ethernet cable or serial cable - An Ethernet cable or straight

through serial cable.

PinPoint X HSUPA/HSDPA

24 20070914

• Serial cable - A straight through serial cable.

Note: Until you install a driver for the USB port, you cannot use your USB port to configure

the modem.

• Power adapter and a power source - You will need a power supply and

power source for the modem.

• PC or laptop - To configure the modem, you will need a computer with an

available Ethernet port or serial port.

Tools Required

• Small Phillips screw driver - The Phillips screw driver is the one which is

also called a plus (+) or X screw driver.

• Slim stylus - A PDA stylus, an unbent paperclip, or other such item.

Procedure

a. Unplug the PinPoint X power and all cables.

b. Remove slot cover on the front of the PinPoint X to reveal the SIM slot.

Figure 0-1: Slot Cover

c. Carefully remove the SIM card from the card you received from AT&T.

d. Using the tip of a PDA stylus, an unbent paperclip, or other slim blunt item

press the yellow button of the SIM tray.

Tip:

The button is between two boards.

e. Slide the tray out completely.

Figure 0-2: SIM tray button

Rev 3.0C Mar.10 25

f. Place the SIM into the tray and gently press to click it into place.

Figure 0-3: Empty SIM Tray and a Tray with a Sample SIM

g. Slide the tray back into the modem.

h. Gently press the SIM to click it into place.

Tip:

The top of the card faces the bottom of the modem.

Figure 0-4: Inserting the SIM

Replace the cover to prevent dust or other unwanted particles from entering the

PinPoint X. Once the cover is replaced, the installation is complete.

Note: The first time you power on your PinPoint X with your new SIM, there may be a

delay of up to 10 minutes for the initial network connection to occur.

PinPoint X HSUPA/HSDPA

26 20070914

Configuring the APN

The APN (Access Point Name) is the way your device knows how it will be

communicating with the network. The APN allows custom IP addressing and

tailoring your company's wireless IP solution to meet the security and IP

addressing requirements of your applications.

Note: Most accounts use the default addressing solution of Private or Public IP addresses

supplied by the Internet and Proxy APNs. Only if you have a Static or Custom IP address

should you need to configure a custom APNs.

The default APN is Internet. If you need a different APN, use ACEmanager to

configure it.

Hardware Installation

Note: During installation,

please be sure that the

cables are secure but do

not bear any additional

weight that could loosen

the connector from the

unit.

Your PinPoint X should be mounted in a position that allows easy access for the

cables so they are not bent, constricted, in close proximity to high amperage, or

exposed to extreme temperatures. The LEDs on the front panel should be visible

for ease of operational verification. You should ensure that there is adequate

airflow around the modem but that it is kept free from direct exposure to the

elements, such as sun, rain, dust, etc.

Caution:

The PinPoint X is in a hardened case and designed for use in industrial and

extreme environments. However, unless you are using cables expressly designed for such

environments, they can fail if exposed to the same conditions the PinPoint X can

withstand.

Figure 0-5: PinPoint X Connectors

Rev 3.0C Mar.10 27

Cellular

Note: This device is not

intended for use within

close proximity of the

human body. Antenna

installation should provide

for at least a 20 CM

separation from the

operator.

Antennas selected should not exceed a maximum gain of 5 dBi under standard

installation configuration. In more complex installations (such as those requiring

long lengths of cable and/or multiple connections), it’s imperative that the installer

follow maximum dBi gain guidelines in accordance with the radio communications

regulations of the Federal Communications Commission (FCC), Industry Canada,

or your country’s regulatory body (if used outside the US).

Your PinPoint X will work with most cellular antennas with a connector. Connect

the primary antenna or primary RF cable directly to the antenna connector on the

back of the PinPoint X.

Tip:

When using a cable to an antenna placed away from the modem, minimize the length

of your cable. All gain from a more advantageous antenna placement can be lost with a

long cable to the modem.

Your PinPoint X will work with most standard active GPS antennas. Connect the

GPS antenna or cable directly to the threaded SMA connector.

Mount the GPS Antenna in the vehicle. The less the cable is wrapped and bound

together, the better it will perform. Place it on the roof, or on the dash, or rear

panel where it has a good view of the sky (greater than a 90 angle view of the

sky).

There are three options for antenna mounts:

•Magnetic roof-mount

•Through glass-mount

•Permanent mount

Figure 0-6: GPS Antenna Placement for a Vehicle

Warning:

Risk of electric shock: Only use the supply voltages listed in this user guide.

PinPoint X HSUPA/HSDPA

28 20070914

Warning:

When using AC to DC adapter the ambient temperature should not exceed

Your PinPoint X can be used with either DC or AC, with the appropriate power

adapter. DC cables and AC adapters are available as optional accessories in

addition to the one included with your PinPoint X.

The DC power cable positive lead should be connected to the battery or power

source positive terminal. The power cable negative lead should be connected to

the battery or power source negative terminal.

The battery cable used for a car, truck, or other mobile connection must be less

than 3 meters in length.

The PinPoint X has an internal polysilicon circuit breaker that opens at 0.5 to 1.0

amps of current.

If you wish to use the Standby Ignition Sense (SISE) feature of your PinPoint X,

the white wire of the three wire DC power cable should be used to connect to your

ignition. When SISE is enabled in the modem and the ignition sense connector is

wired to your vehicle, the ignition sense will provide a link to the modem to enable

it to enter a low-power, standby mode when your vehicle is turned off and power

up more quickly when the ignition is started.

Figure 0-7: Ignition Sense power connector

Warning:

Explosion Hazard - Do not disconnect equipment unless power has been

switched off or the area is known to be non-hazardous.

Connecting to a Computer or other

Device

Figure 0-8: Ethernet

The Ethernet port of your PinPoint X can be connected directly to a computer or

other Ethernet device with either a cross-over cable or a straight-through cable.

The Ethernet port on the PinPoint X is auto-sensing and will auto-detect the

speed of the connecting device for 100baseTX or 10baseT. If you are connecting

the modem to a hub or switch you should use a straight through cable or use the

uplink port on the hub or switch with a cross-over cable.

Ignition Sense (white)

Power (red)Ground (black)

Not Used

Rev 3.0C Mar.10 29

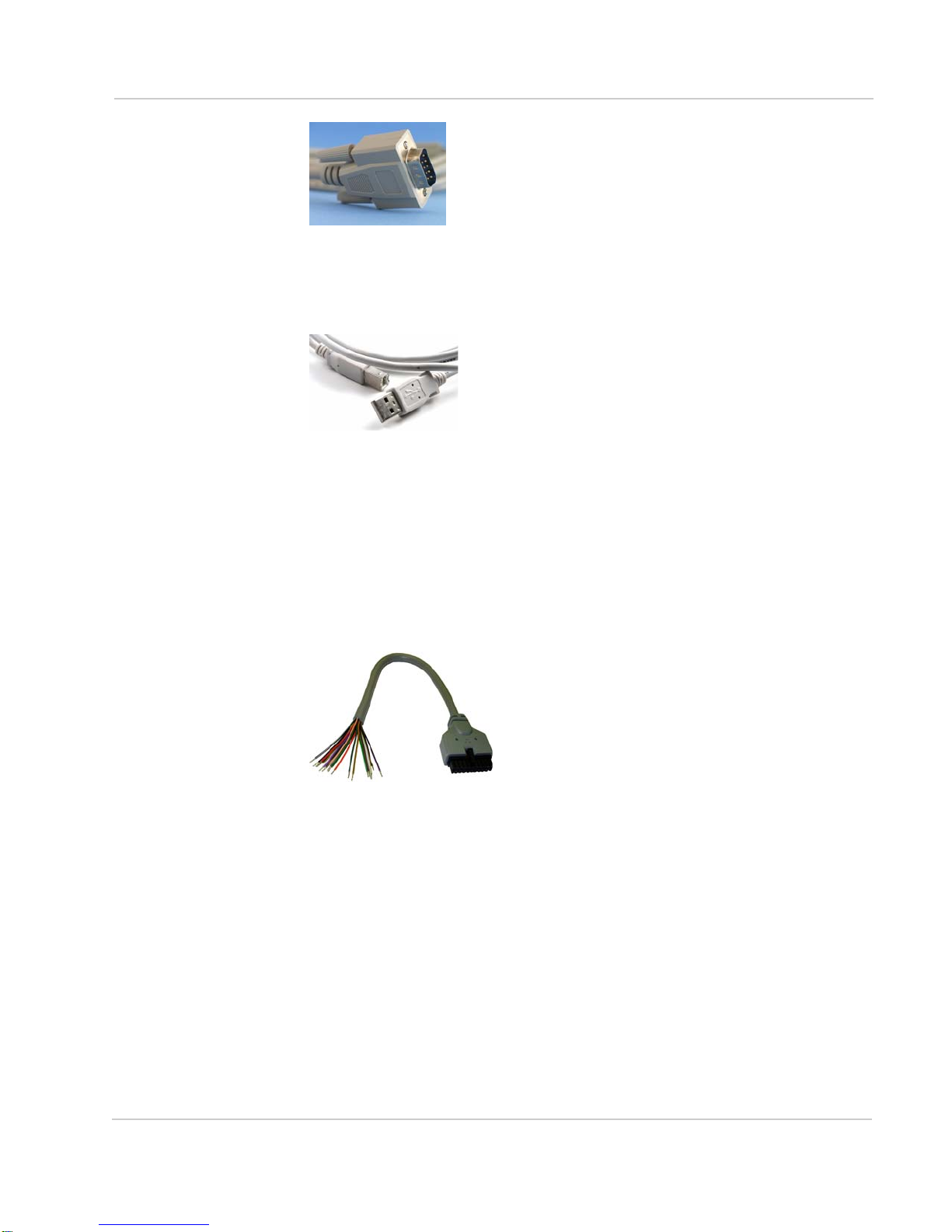

Figure 0-9: Serial

The serial port of your PinPoint X can be connected directly to most computers or

other devices using a standard straight through cable. If you have a DCE device,

you will need a null modem or null modem cable.

Figure 0-10: USB

Your PinPoint X’s full-speed (12 Mbit) USB 2.0 port can be connected directly to

most computers or other devices using a standard full-speed USB 2.0 cable. If the

computer or device you are connecting or the cable is not rated for full-speed, the

modem will communicate at a reduced speed to match. The PinPoint X functions

as a device, not a host.

When it is connected to a computer, the USB port should be seen as a COM port

or Ethernet port after the applicable driver is installed.

The PinPoint X has a standard B connector.

Figure 0-11: I/O

Your PinPoint X also has an I/O port with digital inputs, analog inputs, and relay

outputs which can be connected to external devices.

The I/O port can use an optional I/O harness available through Sierra Wireless.

Indicator Lights

When solid, PinPoint X indicates a successful connection. When your PinPoint X

is connected to power and an antenna, there is a specific pattern to the lights to

indicate its operation mode.

PinPoint X HSUPA/HSDPA

30 20070914

Figure 0-12: PinPoint X Indicator lights

•Network- Indicates a successful connection to the cellular network with an

IP address given and a channel acquired.

• Signal - Light shows the strength of the signal and may be nearly solid

(strong signal) or flashing (weaker signal). A slow flash indicates a very weak

signal.

•Activity- Lights will flash as data is transferred to and from the PinPoint

modem on the remote network.

• Service - Indicates when the connection is HSUPA/HSDPA or UMTS. Unlit

indicates EDGE or GPRS.

•GPS- Indicates a GPS fix. When lit, the PinPoint X has GPS coordinates to

report.

•Power- Indicates the power adapter is connected and there is power getting

to the PinPoint X.

•The Reset button (on the left side of the PinPoint X) has two functions. If it is

quickly depressed and released, the modem will simply power cycle the

internal hardware. If, however, the reset is depressed and held for several

seconds (count 10 slowly, and wait for the power light to go off after the light

pattern stops), the ALEOS configuration settings will return to the factory

defaults.

RSSI LED Ranges

RSSI/Signal LED

Status Ranges of RSSI (dBm)

On Solid Equal to or stronger than -69

Fast Blink -70 to -79

Normal blink -80 to -89

Slow Blink -90 to -99

Extinguished Equal to or weaker than -100

Caution:

If you reset the modem configuration using the reset button,

you may to reconfigure your APN.

Rev 3.0C Mar.10 31

Light Patterns

The LEDs on the front of the modem will respond in different patterns to indicate

modem states.

• Normal - Each LED, mentioned above, is lit as applicable.

•Startup- The LEDs will cycle from left to right.

• PassThru mode - Network and Signal LEDs will blink in tandem. The

Activity LED will blink when transmitting or receiving data.

•SOS- The Network Channel and Service Err or Service LEDs will blink

alternate to each other.

•LowPower- All LEDs will be off except the power LED which will blink every

3 seconds.

• Configuration Reset - The LEDs will cycle left to right and then right to left 4

times.

• Authentication Failure - The Network, Signal, and Activity LEDs blink every

2 seconds.

• Data Retry - The Network, Signal, and Activity LEDs blink every 3 seconds.

• Invalid MAC Address or Ethernet Initiation Fail - The Service LED will

blink.

Optional: Setting up a DUN Connection

Dial-up Networking (DUN) allows a computer or other device to use the serial port

or ethernet port on your PinPoint X to connect to the Internet or private network

using PPP just like an analog modem using a standard phone line.

Caution:

To install any driver on your computer, you may need to be logged in as Admin-

istrator or have Administrator privileges for your login.

Microsoft Windows XP is used in the examples below. The modem driver

installation and DUN setup and configuration is similar in Microsoft Windows

products. Examples are not provided here for installing the driver or configuring

DUN for any other operating system.

Standard installations of Microsoft Windows XP and 2000 include a generic

device driver which will work with your PinPoint X.

1. Connect the PinPoint X.

a. Connect the device to the computer with a DB-9 cable or the USB port in

serial mode.

b. Plug in the AC adapter, connect the antenna(s) and power on the device.

2. Install the driver.

a. Select Start > Control Panel > Phone and device Options (in Classic

View).

Autres manuels pour PinPoint X

Table des matières

Autres manuels Sierra Wireless Modem

Sierra Wireless

Sierra Wireless Sprint Manuel utilisateur

Sierra Wireless

Sierra Wireless Raven 1x Manuel utilisateur

Sierra Wireless

Sierra Wireless RavenXTV Manuel utilisateur

Sierra Wireless

Sierra Wireless AirLink MP890 Manuel utilisateur

Sierra Wireless

Sierra Wireless AirCard 800 Series Manuel utilisateur

Sierra Wireless

Sierra Wireless AirCard Manuel utilisateur

Sierra Wireless

Sierra Wireless USB Modem Manuel utilisateur

Sierra Wireless

Sierra Wireless AirPrime MC8775 Manuel utilisateur

Sierra Wireless

Sierra Wireless Raven XT Manuel utilisateur

Sierra Wireless

Sierra Wireless AirPrime AR7582 Guide de configuration rapide

Sierra Wireless

Sierra Wireless DART 200 CDPD Modem Manuel utilisateur

Sierra Wireless

Sierra Wireless iPass Compass 885 Manuel utilisateur

Sierra Wireless

Sierra Wireless MP 555 Manuel utilisateur

Sierra Wireless

Sierra Wireless AirCard 326U Manuel utilisateur

Sierra Wireless

Sierra Wireless AirCard 595 Manuel utilisateur

Sierra Wireless

Sierra Wireless compass series Manuel utilisateur

Sierra Wireless

Sierra Wireless AirLink MP895 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRCARD 595U Manuel utilisateur

Sierra Wireless

Sierra Wireless V4221-AA - Raven X EV-DO Revision A Manuel utilisateur

Sierra Wireless

Sierra Wireless UMTS Manuel d'installation

Sierra Wireless

Sierra Wireless MP 881W Manuel utilisateur

Sierra Wireless

Sierra Wireless MP 875 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRCARD 595U Manuel utilisateur

Sierra Wireless

Sierra Wireless iPASS Manuel utilisateur

Manuels Modem populaires d'autres marques

Davicom

Davicom DM562AP Manuel utilisateur

EpiValley

EpiValley TATA indicom SXC-1080 Manuel utilisateur

Zte

Zte WiMAX Manuel utilisateur

Intelimax

Intelimax MA-2060 Manuel utilisateur

SMC Networks

SMC Networks D3CM1604V Manuel d'utilisation et d'entretien

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuel utilisateur

Samsung

Samsung AceLink SAM-335A Manuel utilisateur

Enfora

Enfora Enabler-G Guide de configuration rapide

iRZ

iRZ ATM2-232 Manuel utilisateur

Zhone

Zhone 6310 Manuel utilisateur

Paradyne

Paradyne Hotwire 7976 Manuel utilisateur

US Robotics

US Robotics 3453C Manuel utilisateur

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur

Zte

Zte MF823 Manuel utilisateur

Four-Faith

Four-Faith F1403 Manuel utilisateur

Gemtek

Gemtek WiMAX WIXFBR-103 Manuel utilisateur

Zoom

Zoom 1070 Series Manuel utilisateur
