Sierra Wireless AirLink GX400 Modem Installation Guide 1 876-0238-000 Rev A1

Sierra Wireless AirLink GX400 Modem

Installation Guide

Obtaining Help for Your AgJunction Product

Modem Overview

This section lists the parts included with your modem and describes the LEDs, ports, and connections on the front and

rear of the modem.

What’s Included with Your Modem?

Your modem kit includes the following items at right:

•GX400modem

– WiFi version has an antenna port on the front

of unit (as shown at right) and includes a

detachable antenna

– Non-WiFi version has no antenna port on the

front of the unit

• DC power cable (4-pin power connector to 4-wire

unterminated)

• GPS / cellular modem antenna

The DC power cable includes four unterminated wires. You

will only use three of the wires in your installation (you will

not use the green wire). See “Connecting the Cables” on

page 4.

This guide provides the following information:

• Parts included in your kit

• Front/rear panel overview (LEDs, ports, connections)

• Steps for installing the antennas and the modem and

connecting the cables

• Contact and Technical Support information (see bottom of this

page)

Please read this manual thoroughly before beginning the

installation.

Contact your local dealer for technical assistance.

To find the authorized dealer near you:

Enter your dealer information here for quick reference:

Phone: (800) 247-3808

Email: [email protected]

Name: _______________________________________________

Phone: _______________________________________________

Email: _______________________________________________

If you need to contact AgJunction Technical Support:

Phone: (800) 247-3808

Email: suppor[email protected]

Modem Power cable

GPS / cellular modem antenna

Sierra Wireless AirLink GX400 Modem Installation Guide 2 876-0238-000 Rev A1

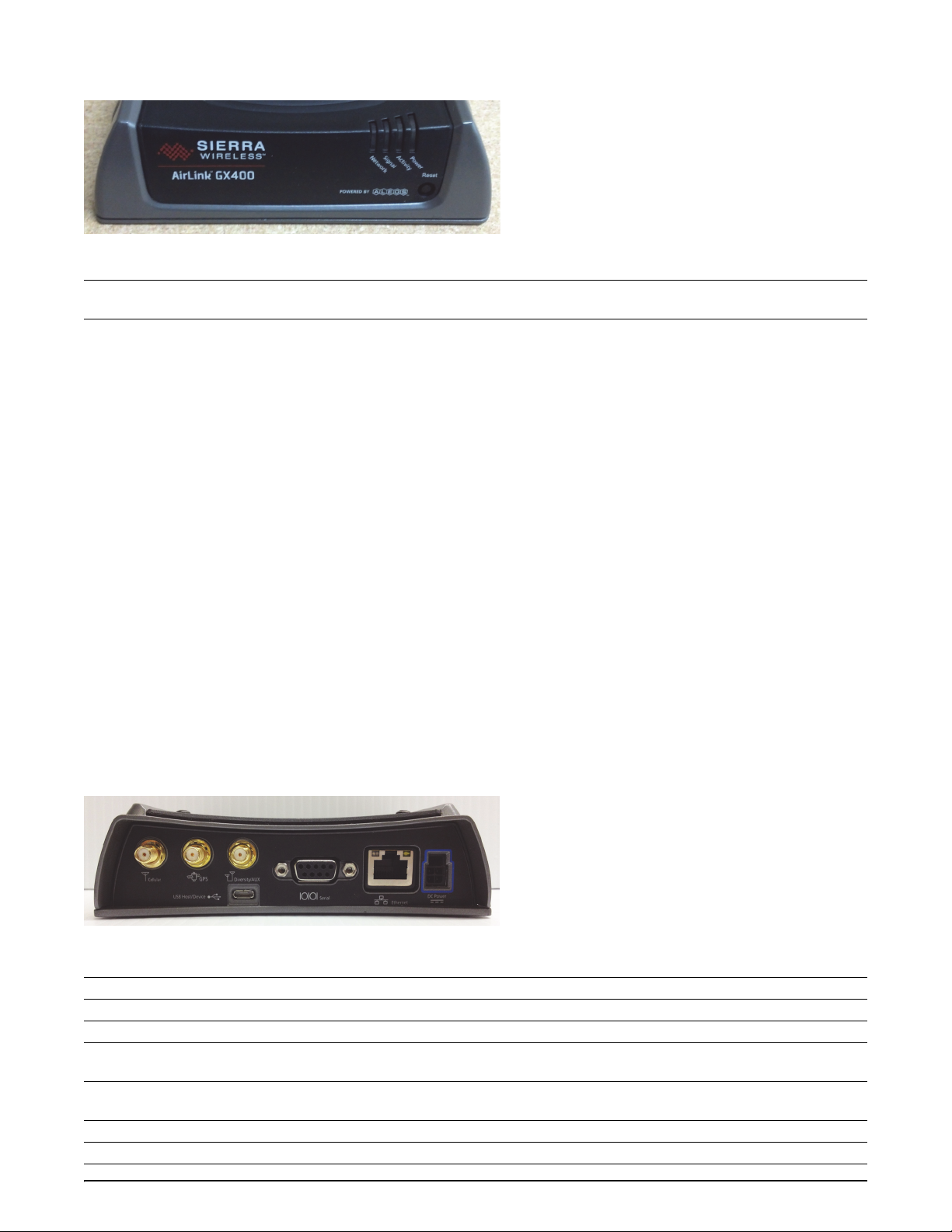

Front Panel

The following are located on the modem’s front panel:

Rear Panel

Your setup will use only the following ports on the rear panel.

Reset button Press to reset the modem using its current settings. Press and hold for 10 seconds to reset the modem

to its factory defaults. When you press the reset button all LEDs display solid red.

LEDs Modem status indicators

Network

Red (solid)

Red (flashing)

Yellow (solid)

Yellow (flashing)

Green (solid)

Green (flashing)

No cell network

Attempting to connect to cell network

Cell network found, modem attempting to connect to network

Cell network not available

Connected to the cell network

Device in roaming mode

Signal (cellular network’s signal)

Red (solid)

Red (flashing)

Yellow (solid)

Green

Bad signal

No signal

Marginal signal

Good signal

Activity

Off No activity of transmitting or receiving

Power

Off

Green (flashing)

Red (solid)

Yellow (solid)

Green (solid)

Green w/ yellow flash

No power or input voltage detected 36 VDC or 9 VDC

Radio is transmitting or receiving

Device is not operational (Low power mode)

Device is entering low power mode or system is booting

Device is connected to correct voltage and operating correctly

Device had GPS fix

Cellular port Connect cellular antenna cable

GPS port Connect GPS cable antenna

Diversity/AUX port Not used in this installation

USB port Connect directly to laptop via USB cable to configure modem (AgJunction does not provide the

cables or software for this functionality—contact Sierra Wireless for more information)

Serial port Connect directly to laptop via serial cable to configure modem (AgJunction does not provide

the cables or software for this functionality—contact Sierra Wireless for more information)

Ethernet port Connect AgJunction Link or other components for communication to this port

DC Power Connect gray power cable

Note: Non-WiFi version shown at left. WiFi

version includes antenna port on front of unit

with detachable antenna—see page 1 for photos

of port.

Sierra Wireless AirLink GX400 Modem Installation Guide 3 876-0238-000 Rev A1

Mounting the Antennas

When planning the mounting location for your antennas (GPS and cellular), make sure the antennas:

• Have an unobstructed view of the sky

• Are in an area free from moving objects

• Are at least two feet from a transmitting radio antenna (such as for a two-way or business band radio)

Note: If using a diversity antenna, make sure there is at least three feet between the cellular antenna and the diversity

antenna.

To mount each antenna:

1. Clean and dry the vehicle surface where you will attach the antenna mounting plate.

2. Remove the paper backing from the adhesive on the back of the mounting plate.

3. Position the mounting plate and press down hard for proper adhesion.

4. Attach the antenna to the antenna mounting base.

5. Place the magnetic mounted antenna on the plate.

Mounting the Modem

Note: AgJunction does not supply the mounting hardware for the modem.

The modem case is designed for use in extreme environments. If you will use the modem in extreme environments,

make sure you use cables designed and specified for this use to avoid cable failure.

Adhere to the following when mounting the modem:

• You have sufficient room to install and, if necessary, replace cables

• You can easily view the front panel LEDs

• The modem has adequate airflow for cooling

• The modem is free from direct exposure to the elements, such as sun, rain, and dust

• The modem is securely mounted so as not to come loose or be damaged by other equipment

AgJunction recommends you ground the modem case or modem mounting bracket to protect against elec-

trostatic discharge. For example, ground the case or mounting bracket to the battery or power source nega-

tive terminal using a grounding strap under one of the mounting screws.

To mount the modem:

• Using the four mounting holes

shown at right, securely fasten the

modem in your preferred location.

136.7 mm

(5.4 in)

5.2 mm

(0.2 in)

22.5 mm

(0.9 in)

62.5 mm

(2.5 in)

Mounting holes

5.3 mm (0.2 in)

4 places

Sierra Wireless AirLink GX400 Modem Installation Guide 4 876-0238-000 Rev A1

Connecting the Cables

Use the diagram at right to

connect the cables to the

modem.

(9 VDC to 36 VDC

12 VDC nominal)

Battery

Power Source

Green wire not

used in this

installation

White wire to

vehicle

ignition or VCC

Pin 4

Digital

I/O

Pin 3

Ignition

Sense

Pin 2

Ground

Pin 3

VCC

Black wire

to power

source

negative

Red wire

to power

source

positive

Gray power cable

to DC Power port

Cellular antenna cable GPS antenna cable

Wire colors shown at

left correspond to wire

colors of power cable

shown above right

Cellular antenna GPS antenna
