Siemens FT2080 Mode d’emploi
FT2080
Fire terminal (Touch)
Mounting
Installation
A6V10462660_en--_b
Building Technologies
2016-04-08 Control Products and Systems
Legal notice
2 | 24
Building Technologies
A6V10462660_en
--
_b
Fire Safety
2016
-
04
-
08
Legal notice
Technical specifications and availability subject to change without notice.
Transmittal, reproduction, dissemination and/or editing of this document as well as
utilization of its contents and communication thereof to others without express
authorization are prohibited. Offenders will be held liable for payment of damages.
All rights created by patent grant or registration of a utility model or design patent
are reserved.
Issued by:
Siemens Switzerland Ltd.
Building Technologies Division
International Headquarters
Gubelstrasse 22
CH-6301 Zug
Tel. +41 41 724-2424
www.siemens.com/buildingtechnologies
Edition: 2016-04-08
Document ID: A6V10462660_en--_b
© Siemens Switzerland Ltd, 2015
3 | 24
Building Technologies
A6V10462660_en
--
_b
Fire Safety
2016
-
04
-
08
Table of contents
1Setup of fire terminal (Touch) FT2080.....................................................5
2Installation in 19" pedestal housing of the FC2080....................................7
3Installation in housing (standard).......................................................... 10
4Installation in rear panel (FT2080) FHA2039.......................................... 11
5Installation in desktop housing (FT2080) FHA2040................................. 16
6Technical data.................................................................................... 22
Building Technologies
A6V10462660_en
--
_b
Fire Safety
2016
-
04
-
08
4 | 24
Setup of fire terminal (Touch) FT2080
1
5 |
24
Building Technologies
A6V10462660_en
--
_b
Fire Safety
2016
-
04
-
08
1Setup of fire terminal (Touch) FT2080
Figure 1: Rear panel fire terminal (Touch) FT2080
1 Support plate
2 Front indicator (Touch) FTO2010
3 PMI & mainboard FCM2027
4 4x mounting holes in the operating unit
5 Shield plate above carrier (CPU)
6 Hinges for wall housing
4
6
2
3
5
6
4
1
4
4
Setup o
f fire terminal (Touch) FT2080
1
6 | 24
Building Technologies
A6V10462660_en
--
_b
Fire Safety
2016
-
04
-
08
Arrangement of components

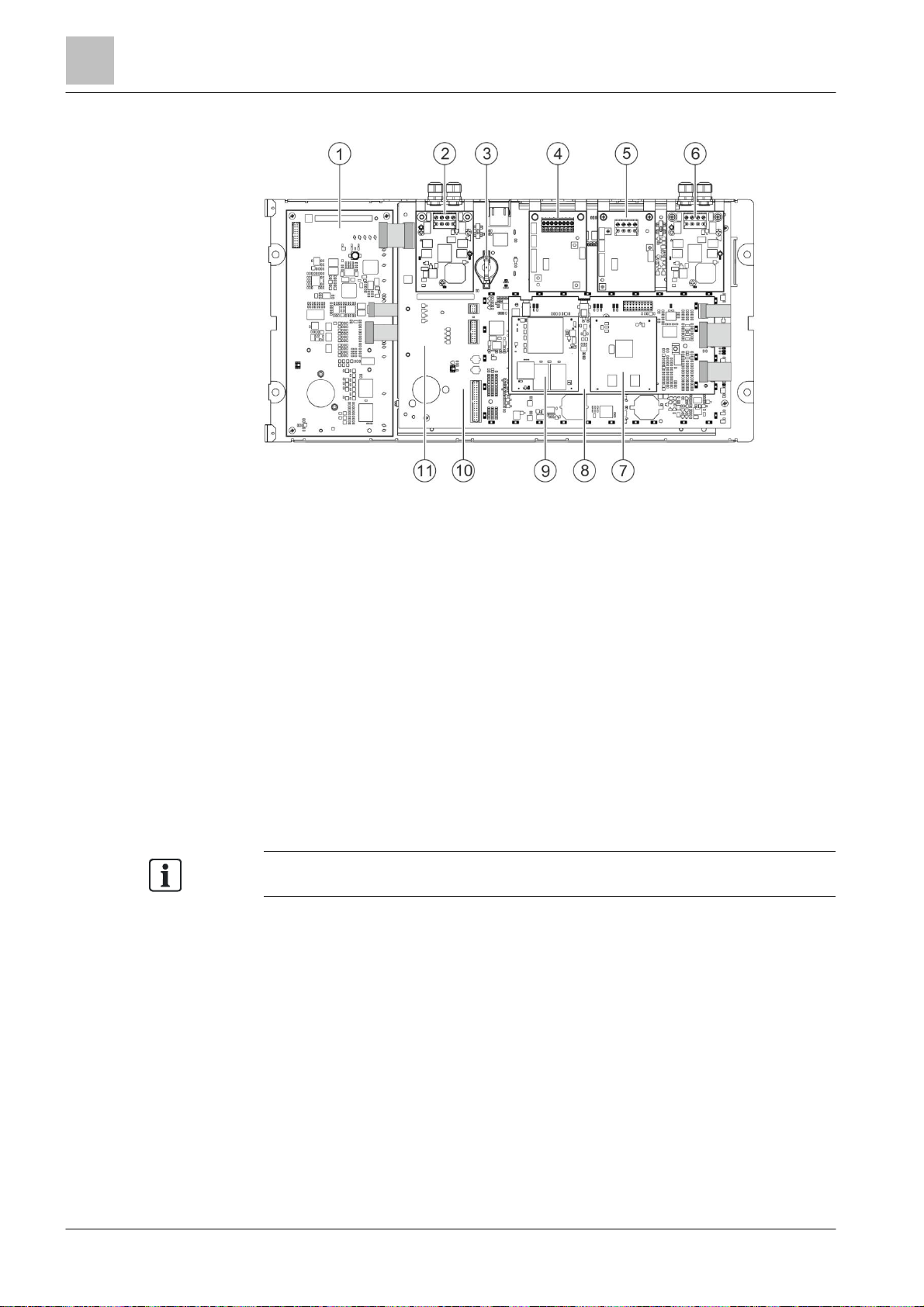

Figure 2: Components on the fire terminal (Touch) FT2080, without cover cap
1 Front indicator (Touch) FTO2010
2 Main network module (SAFEDLINK) on X13, optional
3 License key, optional
4 Slot 1 [SER_OPT1] for the first serial module at X14, optional
5 Slot 2 [SER_OPT2] for the second serial module at X19, optional
6 Degraded mode network module (SAFEDLINK) on X12, optional
7 CPU module (CORVUS) FCC2009
8 Carrier for CPU modules FTO2014
9 CPU module (MPC8248) FCC2006
10 PMI & mainboard FCM2027
11 Slot X11 for serial module. Not required for FT2080
Both slots X14 and X19 can hold the RS232 or RS485 serial
module.
Installation in 19" pedestal housing of the FC2080
2
7 |
24
Building Technologies
A6V10462660_en
--
_b
Fire Safety
2016
-
04
-
08
2Installation in 19" pedestal housing of the
FC2080
The installation instructions described below apply to all operating units.
Before an operating terminal is installed, the following components must first be
mounted on the operating unit.
●Network module (SAFEDLINK) FN2001-A1 with ES ≥12, for connecting to the
FC2080
●Adapter and connection cable for the power supply
–Supplied with processor unit (19", FC2080) FCC2002-A1
Preparing the operating unit
The network module (SAFEDLINK) FN2001-A1 must be installed on connector
X13 of the operating unit (main module slot).
Figure 3: Installing the required components, taking operating unit FCM2028-A1 as an example
1 Operating unit
2 Flange with threaded holes for securing the module
3 Connector strip X13 for network module
4 Network module (SAFEDLINK) FN2001-A1 with ES ≥12
1
23
4
5
6
7
8
Installation in 19" pedestal housing of the FC2080
2
8 | 24
Building Technologies
A6V10462660_en
--
_b
Fire Safety
2016
-
04
-
08
5 2x fixing screw
6 PMI & mainboard FCM2027
7 Adapter for power supply (including ribbon cable)
8 Connector strip X3 peripheral data bus connection
1. Plug the network module (SAFEDLINK) (4) into connector X13 (3) of the
operating unit (1).
2. Secure the module to mounting flange (2) with both screws (5). Ensure that it is
secured correctly to avoid interrupts.
3. Plug the adapter (7) into connector X3 (8) of the PMI & mainboard (6) so
inscription 'TOP' is at the top.
Installing operating unit
Figure 4: Mounting operating terminal in door, taking operating unit FCM2028-A1 as an example
1 Inside of door
2 Opening for operating unit
3 4x welded threaded bolts
4 4x mounting holes in the operating unit
5 4x fixing screws
1. Remove the cover plate (2) by removing the four nuts (5).
2. Place the mounting holes (4) of the operating unit on the four threaded bolts (3)
and screw the operating unit down with the four nuts (5).
3. The operating add-ons in the bottom window openings are installed in the
same way.
4. Wire up the operating unit and operating add-ons according to the following
wiring instructions.
12 3
4
5
Installation in 19" pedestal housing of the FC2080
2
9 |
24
Building Technologies
A6V10462660_en
--
_b
Fire Safety
2016
-
04
-
08
Wiring the fire terminal (Touch)
Figure 5: Wiring the fire terminal (Touch) with FC2080
1 Ribbon cable for FC2080 system supply to card cage (CPU) X30
2 FCnet connection to card cage (CPU) X11/X12
3X3 connection to network module (SAFEDLINK) to PMI & mainboard
FCM2027
4 Inside of door (section view)
5 Fire terminal (Touch) FT2080
6 Adapter for flat cable of the supply
Figure 6: Example of FCnet wiring of X3 on PMI & mainboard FCM2027 of the fire terminal (Touch)
* The FCnet connection from X11 to X12 on the card cage (CPU) FCC2003 is
wired up in advance at the factory.
1
2
3
4
5
6
B2A2B1A1B2A2B1A1
1234 1234
X11
X12
B2
A2
B1
A1
1234
X3
FCC2003
FCM20xx
FC2080
FCnet
FCnet
FN2010 FN2010 FN2001
Door
*
Installation in housing (standard)
3
10 | 24
Building Technologies
A6V10462660_en
--
_b
Fire Safety
2016
-
04
-
08
3Installation in housing (standard)
Figure 7: Installation of fire terminal in the housing (standard) FH2002
1 Mains connection terminals
2 Power supply unit (70 W) FP2015
3 Rear panel (standard)
4 Fire terminal board FTI2001
5 Wiring FCnet/SAFEDLINK
6 Network module (SAFEDLINK) FN2001
7 Fire terminal (Touch) FT2080
X3 Ribbon cable connection from the fire terminal (Touch) to the fire terminal
board
X1 Supply input for fire terminal board
You will find detailed information on wiring the 'fire terminal board FTI2001' and the
'network module (SAFEDLINK) FN2001' in document Product Data 008837.
