Siemens SOAM Manuel utilisateur

Fume Hood Sash Open Area Module

(SOAM)

Application 2957: Dual Bench style –

Dual Combination with 2 to 4 Horizontal

Sashes in the Vertical Carrier

Configuration Start-up Procedures

A6V10801619

Building Technologies

07.06.2016

Restricted

Siemens Industry, Inc.

A6V10801619

Restricted

07.06.2016

2 | 12

Table of Contents

Before You Begin ..................................................................................................3

Verifying Power .........................................................................................................3

Installing USB Driver .................................................................................................3

Verifying Slave Mode Application ..............................................................................3

Setting Controller Address.........................................................................................4

Setting the Application...............................................................................................4

Setting Units ..............................................................................................................4

Fume Hood Specific Sash Setup and Calibration .....................................................4

Sash Setup and Calibration ............................................................................5

Setting External Face Area Input.............................................................................10

Setting Face Area Output Range ............................................................................10

Flashing Controller Firmware ..................................................................................11

Before You Begin

Verifying Power

3 | 12

Siemens Industry, Inc.

A6V10801619

Restricted

07.06.2016

Before You Begin

WARNING

A fume hood is a safety device.

Anyone attempting to start up a Fume Hood Controller and its related equipment

must have completed Operations Training.

WARNING

DO NOT connect to the USB port of the SOAM while the fume hood is in

operation.

At the job site, locate the major control system and the mechanical and electrical

drawings. This should include any components working in conjunction with the

Sash Open Area Module (SOAM).

Verify that the SOAM input/output (I/O) points are wired per the installation

instructions.

Verifying Power

Verify that the controller has 24 Vac power and that the fuse has been

inserted into the trunk or that power to the transformer is ON.

Verify the RUN LED is green.

If any error condition exists the LED is solid red. If no error condition exists,

then the LED is solid green when not communicating and flashing 80-20

when communicating.

Installing USB Driver

1. Open Windows Explorer and navigate to Standard Apps.

2. Find the USB device/drive

(VCP_V1.3.1_Setup.exe/VCP_V1.3.1_Setup_x64.exe) in the drives list.

3. Double-click the appropriate executable to launch the application. Follow the on

screen instructions.

4. Plug in the USB on both ends (the device side to the Sash Aggregator; the host

side to the computer).

Verifying Slave Mode Application

Open WCIS and verify that Application 2950 (Slave Mode) is running at the

controller.

Before You Begin

Setting Controller Address

4 | 12

Siemens Industry, Inc.

A6V10801619

Restricted

07.06.2016

NOTES:

Only WCIS 4.1 or higher is compatible with this device.

In order to save configuration values, you must either change WCIS settings

(select Write to EEPROM only) or double-click a subpoint to open a dialog box.

Setting Controller Address

If using the sensor bus to communicate the face area:

Verify CTLR ADDRESS is correct (default is 51 and does not need to be

changed).

Setting the Application

Select the desired application.

●2950 –Slave Mode

●2951 –Bench style fume hoods –4 independent vertical sashes

●2952 –Floor Mounted style fume hoods –2 independent sets of 2

vertical sashes, one on top of the other

●2953 –Dual –Floor Mounted style fume hoods –4 independent sets of 2

vertical sashes, one on top of the other

●2954 –Bench style fume hoods –2 to 10 horizontal sashes

●2955 –Bench style fume hoods –1 vertical carrier with 2 to 9 horizontal

sashes

●2956 –Floor Mounted style fume hoods –2 vertical sashes, with top

sash having 2 to 8 horizontal sashes

●2957 –Dual Bench style fume hoods –2 vertical carries (non-

overlapping) each with 2 to 4 horizontal sashes in the vertical carrier

●2958 –Floor Mounted style fume hoods –2 vertical sashes

(overlapping), with each sash having 2 to 4 horizontal sashes

Setting Units

NOTE:

All measurements entered during the start-up sequences can either be English or

SI values (listed in parentheses after the English unit), depending on which unit

type is selected, using the Metric/English Units button, in the appropriate tool.

Fume Hood Specific Sash Setup and Calibration

This section presents the steps for calibrating the Fume Hood Sash Open Area

Module sash sensors and configuring the face area parameters.

Before You Begin

Fume Hood Specific Sash Setup and Calibration

5 | 12

Siemens Industry, Inc.

A6V10801619

Restricted

07.06.2016

Sash Setup and Calibration

NOTE:

Enter all measurements to the nearest .0.25 inch (0.635 cm).

Sash Setup 2957

Set REPORT to OVERVIEW.

Nine Combination Sash Configuration.

NOTES: Numbers on the sashes show how the sash is wired. After the

physical sashes are calibrated, the position of the sashes will display in POS

SASH 1, POS SASH 2, and so on.

The horizontal sash numbering in vertical sash 2 always starts with 7. For

example, if HZ PANEL CT = 4, then vertical sash 1 contains sashes 3 and 4

and vertical sash 2 contains sashes 7 and 8.

Determine the number of horizontal sash panels. This number includes the

horizontal sashes in both combination sashes. The segments must contain

the same number of horizontal sashes. Set HZ PANEL CNT to this value.

Measure the width of the vertical sash 1 in inches (cm). Set VSASH

WIDTHA to this value.

Measure the width of the opening in vertical sash 1 in inches (cm). Set

TRACK WIDTHA to this value.

Measure the height of the opening in vertical sash 1 in inches (cm). Set

PANEL HGHTA to this value.

Repeat steps 2 through 5 for vertical sash 2. Enter the values into VSASH

WIDTHB, TRACK WIDTHB and PANEL HGHTB.

Measure the width of the individual sash panels in inches (cm). Choose one

of the following:

Before You Begin

Fume Hood Specific Sash Setup and Calibration

6 | 12

Siemens Industry, Inc.

A6V10801619

Restricted

07.06.2016

NOTE: If segment A and segment B dimensions are the same, only

setup segment A.

–

If all the sash panels in both segments are the same width, set PANL

WDTH 03 to this value.

–

If all even horizontal panels are one size and all odd horizontal panels

are another size.

Set PANL WDTH 03 to the width of the odd sashes.

Set PANL WDTH 04 to the width of the even sashes.

–

If all panels are different sizes.

Set PANL WDTH 03 to the width of sash 3.

Set PANL WDTH 04 to the width of sash 4.

Set PANL WDTH 05 to the width of sash 5.

Repeat until all sashes are defined.

Measure the height of the top frame of sash 1 in inches (cm). The sash

frame holds the horizontal sash panels and occupies the outer edges of the

fume hood opening. Set TOP FRAME A to this measured value.

Top Frame Measurement with Air Foil Removed.

Open sash 1 until the top edge of the vertical sash is aligned with the top

edge of the bypass area. Measure the height of the sash opening in inches

(cm). Set BYPASS HGHTA to this value.

Before You Begin

Fume Hood Specific Sash Setup and Calibration

7 | 12

Siemens Industry, Inc.

A6V10801619

Restricted

07.06.2016

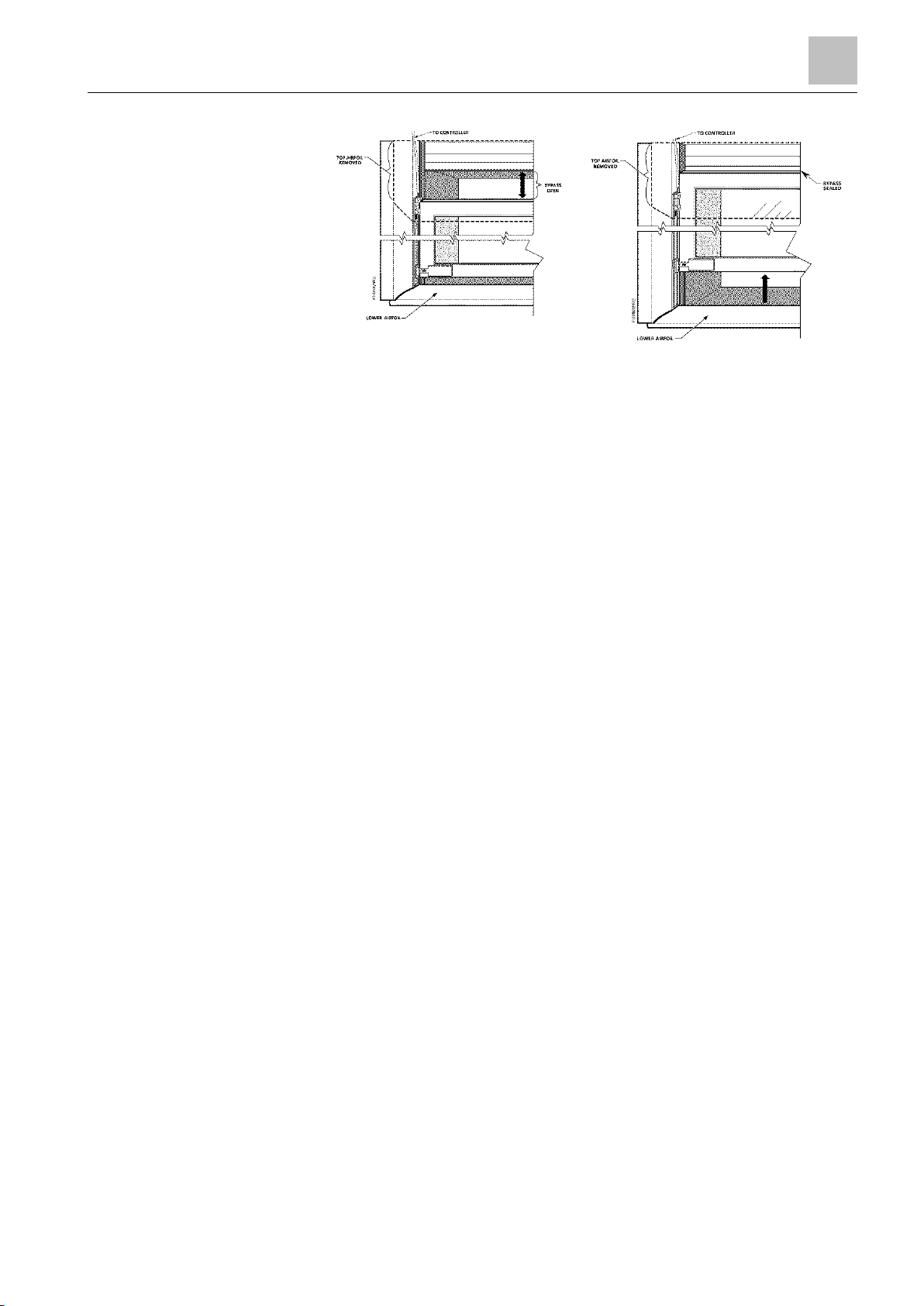

Vertical Sash Fume Hood with Bypass Area Open and Closed.

10.

If there is no restriction on the bypass, leave BYPASS OPEN at the default

(100%). If the bypass area has an airflow restrictor covering the open area,

such as a perforated grille or louvers, estimate the open percentage of the

bypass area. Set BYPASS OPEN to the appropriate value.

11.

Repeat steps 8 through 10 for vertical sash 2. Enter the values into TOP

FRAME B, BYPASS HGHTB, and BYPASS OPENB.

12.

Measure the height of vertical sash 1 in inches (cm). Set VSASH HGHT1 to

this value.

13.

Measure the height of the vertical sash 2 in inches (cm). Set VSASH

HGHT2 to this value.

14.

Measure the fixed area of the fume hood in square feet (square meters).

Any fume hood leakage must be accounted for in this measurement. Set

FIXED AREA to this value.

NOTE: The fixed area of the fume hood is an area that remains open

regardless of sash position or movement. For example, most fume hoods

have an intake gap under the lower airfoil and above the cabinet of the fume

hood (typically a 1 inch gap). Also include 1% of the maximum open face

area in this calculation for other open areas, such as the space between the

sash and the track, and leakage.

15.

If the fume hood has a fixed panel in the sash opening of Segment A, locate

the position of the panel by measuring from the bottom of the sash opening

to the bottom of the fixed panel and enter the value into FPANEL POS A.

Measure the height of the fixed panel and enter the value into FPANEL HGT

A. Repeat step 15 for Segment B.

Before You Begin

Fume Hood Specific Sash Setup and Calibration

8 | 12

Siemens Industry, Inc.

A6V10801619

Restricted

07.06.2016

Example Combination Sash Fume Hood with Fixed Area.

Sash Calibration

NOTE:

It is recommended that the vertical sash be calibrated before the horizontal

sashes.

Starting with the first side, side A.

Set CAL SASH NUM to 1. It is recommended that the vertical sash be

calibrated before the horizontal sashes.

Set CAL SASH LOC to MIN for minimum opening.

Slide the vertical sash to the closed position. Set CAL SASH POS to 0

unless a physical stop prevents the sash from fully closing. If a physical stop

is present, measure the distance from the lower end of the vertical track to

the bottom of the sash in inches (cm). Set CAL SASH POS to this value.

When the sash aggregator accepts the reading, the minimum position value

will be automatically entered into POS SASH 1.

Set CAL SASH LOC to MAX for maximum opening.

Slide the vertical sash to the open position. Measure the distance from the

lower end of the track to the bottom edge of the sash panel in inches (cm).

Set CAL SASH POS to this value. When the sash aggregator accepts the

reading, the maximum position value will be automatically entered into POS

SASH 1 and CAL SASH POS will revert back to 257.

Before You Begin

Fume Hood Specific Sash Setup and Calibration

9 | 12

Siemens Industry, Inc.

A6V10801619

Restricted

07.06.2016

Set CAL SASH NUM back to 0or to the number of the horizontal sash panel

to be calibrated (sashes 3 through 6). This locks to sash calibration into the

sash aggregator.

Set CAL SASH LOC to MIN for minimum opening.

Slide the sash panel to be calibrated to the far left. Measure the distance

from the left end of the track to the left edge of the sash panel. Set CAL

SASH POS to this value. When the sash aggregator accepts the reading,

the minimum position value will be entered into POS SASH 3.

Sash Panel Measurement (15-inch Sash Panels).

Set CAL SASH LOC to MAX for maximum opening.

10.

Slide the sash panel to be calibrated to the far right. Measure the distance

from the left end of the track to the left edge of the sash panel. Set CAL

SASH POS to this value. When the sash aggregator accepts the reading,

the maximum position value will be entered into POS SASH 3.

11.

Set CAL SASH NUM to 0or to the next number of the horizontal sash panel

to be calibrated. This locks to sash calibration into the sash aggregator.

12.

Repeat Steps 7 through 11 for the remaining sash panels.

13.

Repeat all steps for the second side of the hood, side B. The vertical sash

will be POS SASH 2 and the horizontal sashes will be POS SASH 7 through

POS SASH 10.

Sash Calibration Verification

Close the vertical sash fully and verify that the value displayed at POS

SASH 1 is at the minimum that was set during calibration. Open the sash

half way and verify that the value displayed at POS SASH 1 is equal to the

measured value. Open the sash fully and verify that the value displayed at

POS SASH 1 is at the maximum that was set during calibration. See Table

Sash/Point Wiring

Repeat this verification procedure for the second vertical sash panels using

the appropriate corresponding points. See Table

Sash/Point Wiring

Slide the horizontal sash panel 3 to the left and verify the value displayed at

POS SASH 3 is at the minimum that was set during calibration. Slide the

sash to the middle of its range and verify that the value displayed at POS

SASH 3 is equal to the measured value. Slide the sash to the right and

verify that the value displayed at POS SASH 3 is at the maximum that was

set during calibration. See Table

Sash/Point Wiring

Repeat this verification procedure for the remaining sash panels using the

appropriate corresponding points. See Table

Sash/Point Wiring

Before You Begin

Setting External Face Area Input

10 | 12

Siemens Industry, Inc.

A6V10801619

Restricted

07.06.2016

Sash Point/Wiring.

Sash Panel

Point

Descriptor

Vertical 1

POS SASH 1

Vertical 2

POS SASH 2

Horizontal 3

POS SASH 3

Horizontal 4

POS SASH 4

Horizontal 5

POS SASH 5

Horizontal 6

POS SASH 6

Horizontal 7

POS SASH 7

Horizontal 8

POS SASH 8

Horizontal 9

POS SASH 9

Horizontal 10

POS SASH 10

Setting External Face Area Input

Skip this section if you are only using one SOAM, leave values at default.

AI can be set up as an input for external face area.

1. Set MAX EXT AREA to the area corresponding to 10 volts from the input signal

source.

The next step allows the minimum voltage to bet set to a value other than 1

(default). The minimum voltage is represented when the face area is equal

to 0.

2. Set MIN EXTVOLTS to the voltage corresponding to 0 face area from the input

signal source. (default = 1.0 Vdc)

The resulting area displays in point EXTERNAL A.

NOTE:

If no external area input is be connected to the AI, make sure MAX EXT AREA =

0 (default). This disables the alarm feature that fails the FACE AREA point when

the input signal drops below 1 Vdc.

Setting Face Area Output Range

1. Set REPORT to FACE AREA OUT.

2. Set MAX FACE A to the maximum expected face area for the fume hood, plus

approximately 10%. Example: If the maximum face area is 9 sq ft, set it to 10.

FACE A OUT is now active and a proportional 1 to 10V signal can be read

on AO. 1V equals 0 sq ft and 10V = MAX FACE A.

3. Set AO DEADBAND to the desired value.

Table des matières

Autres manuels Siemens Unité de contrôle

Siemens

Siemens SINAMICS G120 Manuel utilisateur

Siemens

Siemens CP 443-5 Extended Manuel utilisateur

Siemens

Siemens Climatix POL822 Manuel utilisateur

Siemens

Siemens Simatic S7-1500 Manuel utilisateur

Siemens

Siemens SIMATIC S7-1500R/H Manuel utilisateur

Siemens

Siemens SINUMERIK MC Guide de démarrage rapide

Siemens

Siemens SIMATIC ET 200SP Manuel utilisateur

Siemens

Siemens SITOP Manuel utilisateur

Siemens

Siemens WFZ56 Series Manuel d'installation et d'exploitation

Siemens

Siemens Cerberus Pyrotronics MT-30 Manuel utilisateur

Siemens

Siemens SCALANCE W788C-2 Manuel utilisateur

Siemens

Siemens SIPROTEC Manuel utilisateur

Siemens

Siemens SIMOTION D425-2 Manuel utilisateur

Siemens

Siemens HLIM Manuel utilisateur

Siemens

Siemens SINUMERIK 840D sl Manuel utilisateur

Siemens

Siemens LFE1 Series Manuel utilisateur

Siemens

Siemens AP 641 Manuel de service

Siemens

Siemens SIRIUS 3RA2711-0DB00 Manuel utilisateur

Siemens

Siemens SINUMERIK 802D sl Manuel utilisateur

Siemens

Siemens SINUMERIK 840D Manuel de la liste des pièces

Siemens

Siemens 3KC ATC6300 Manuel utilisateur

Siemens

Siemens RM-30U Manuel utilisateur

Siemens

Siemens MM7000 Series Manuel utilisateur

Siemens

Siemens SITRANS F M MAGFLO series Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
