SICK GSE2 Flat Side Manuel utilisateur

OPERATING INSTRUCTION

GSE2 Flat Side

Miniature photoelectric sensors

OPERATING INSTRUCTION

GSE2 Flat Side

Miniature photoelectric sensors

Described product

G2F

GSE2F(S)

Manufacturer

SICK AG

Erwin-Sick-Str. 1

79183 Waldkirch

Germany

Production location

SICK Product Center Asia Pte. Ltd.

Singapore

www.sick.com.sg

Legal information

This work is protected by copyright. Any rights derived from the copyright shall be

reserved for SICK AG. Reproduction of this document or parts of this document is only

permissible within the limits of the legal determination of Copyright Law. Any modifica‐

tion, abridgment or translation of this document is prohibited without the express writ‐

ten permission of SICK AG.

The trademarks stated in this document are the property of their respective owner.

Original document

This document is an original document of SICK AG.

2006/42/EC

SAFETY

8023329 | SICK

Subject to change without notice 3

Contents

1 General safety notes......................................................................... 5

2 Notes on UL approval........................................................................ 5

3 Intended use...................................................................................... 5

4 Operating and status indicators...................................................... 5

5 Mounting............................................................................................. 6

6 Electrical installation........................................................................ 6

7 Commissioning.................................................................................. 8

8 Troubleshooting................................................................................. 10

9 Disassembly and disposal............................................................... 10

10 Maintenance...................................................................................... 11

11 Technical specifications................................................................... 11

11.1 Dimensional drawing................................................................................ 12

CONTENTS

48023329 | SICK

Subject to change without notice

1 General safety notes

■Read the operating instructions before commissioning.

■

Connection, mounting, and configuration may only be performed by trained

specialists.

■

2006/42/EC

SAFETY

Not a safety component in accordance with the EU Machinery Directive.

■

When commissioning, protect the device from moisture and contamination.

■These operating instructions contain information required during the life cycle of

the sensor.

2 Notes on UL approval

The device must be supplied by a Class 2 source of supply.

UL Environmental Rating: Enclosure type 1

3 Intended use

The GSE2F(S) is an opto-electronic through-beam photoelectric sensor (referred to as

“sensor” in the following) for the optical, non-contact detection of objects, animals, and

persons. A sender (WS) and a receiver (WE) are required for operation. If the product is

used for any other purpose or modified in any way, any warranty claim against SICK AG

shall become void.

4 Operating and status indicators

1 2

1LED indicator green: supply voltage active

2Receiver: LED indicator yellow: status of received light beam

GENERAL SAFETY NOTES 1

8023329 | SICK

Subject to change without notice 5

5 Mounting

Mount sensors (sender and receiver) using suitable mounting brackets (see the SICK

range of accessories). Align the sender and receiver with each other.

The minimum distance between sender and receiver is:

•GSE2F(S)-xxx1xx: 24 mm

•GSE2F(S)-xxx2xx: 72 mm

•GSE2F(S)-xxx5xx: 238 mm

NOTE

Swap the sender and receiver arrangement at every second through-beam photoelec‐

tric sensor and ensure that there is sufficient distance between the through-beam pho‐

toelectric sensors.

Receiver (GE)

Sender (GS)

Receiver (GE)

Figure 1: Arrangement of several through-beam photoelectric sensors

Note the sensor's maximum permissible tightening torque of 0.1 Nm.

6 Electrical installation

The sensors must be connected in a voltage-free state (UV = 0 V). The following informa‐

tion must be observed, depending on the connection type:

– Plug connection: note pin assignment: when the lid is open, the male connector

can be swiveled horizontally and vertically.

– Cable: wire color

Only apply voltage/switch on the voltage supply (UV > 0 V) once all electrical connec‐

tions have been established.

Explanation of the connection diagram (Tables pin assignment):

Q = switching outputs

n. c. = not connected

DC: 10 ... 30 V DC1

1Limit values; max. 8 A for operation in a short-circuit protected network

5 MOUNTING

68023329 | SICK

Subject to change without notice

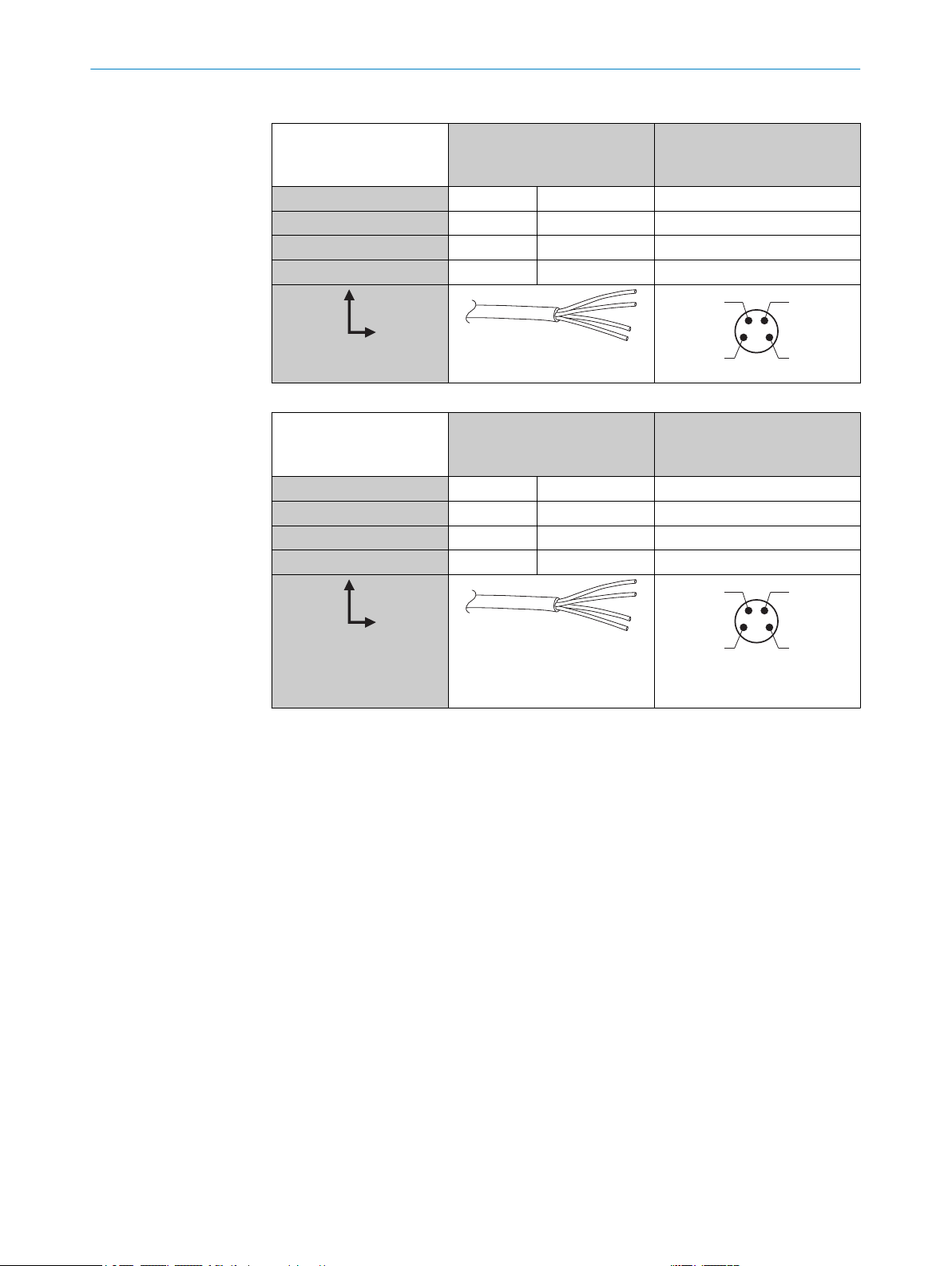

Table 1: Pin assignment

GE2F(S)

-X14xx

-X54xx

1BN + (L+) + (L+)

2- - -

3BU - (M) - (M)

4BK Q Q

BK: 0.1 mm2, AWG30

BU+BN: 0.127 mm2, AWG28

Table 2: Pin assignment

GS2F(S)

-X14xx

-X54xx

1BN + (L+) + (L+)

2- - -

3BU - (M) - (M)

4BK n. c. n. c.

BK: 0.1 mm2, AWG30

BU+BN: 0.127 mm2, AWG28

ELECTRICAL INSTALLATION 6

8023329 | SICK

Subject to change without notice 7

Table 3: Switching output

PNP Q

(≤ 50 mA)

+ (L+)

– (M)

+ (L+)

– (M)

(≤ 50 mA)

+ (L+)

– (M)

+ (L+)

– (M)

NPN Q

(≤ 50 mA)

+ (L+)

– (M)

+ (L+)

– (M)

(≤ 50 mA)

+ (L+)

– (M)

+ (L+)

– (M)

7 Commissioning

1Alignment

Align the sender with the receiver. Select the position so that the red emitted light beam

hits the receiver. Tip: Use white paper or a reflector as an alignment aid. The sender must

have a clear view of the receiver, with no object in the path of the beam. You must ensure

that the optical openings (front screen) of the sensors are completely clear.

Figure 2: Alignment GSE2F

2Sensing range

6 ELECTRICAL INSTALLATION

88023329 | SICK

Subject to change without notice

Observe the application conditions: Adjust the distance between the sender and the

receiver according to the corresponding diagram [see figure 3] (x = sensing range, y = oper‐

ating reserve).

If several through-beam photoelectric sensors which are installed next to one another are

to be used, we recommend swapping the sender/receiver arrangement at every second

through-beam photoelectric sensor and ensuring that there is sufficient distance between

the through-beam photoelectric sensors. By doing this, mutual interference can be pre‐

vented [see figure 1].

Distance in mm (inch)

(0.79) 40

(1.57) 60

(2.36) 80

(3.15)

100

Operating reserve

Figure 3: Operating reserve 50 mm

Sensing range

Sensing range max.

Distance in mm (inch)

(0.79) 40

(1.57) 80

(3.15)

(2.36)

0 40

Figure 4: Sensing range 50 mm

(1.57)

0 80

(3.15) 120

(4.72) 160

(6.3) 200

(7.87)

100

Operating reserve

Distance in mm (inch)

Figure 5: Operating reserve 150 mm

Sensing range

0 150 200

Sensing range max.

Distance in mm (inch)

(1.57) 80

(3.15) 200

(7.87)

160

(6.3)

120

(4.72)

Figure 6: Sensing range 150 mm

Distance in mm (inch)

200

(7.87) 400

(15.75) 600

(23.62) 800

(31.5)

100

Operating reserve

Figure 7: Operating reserve 500 mm

Sensing range

0 500 700

Sensing range max.

Distance in mm (inch)

200

(7.87) 800

(31.5)

600

(23.62)

400

(15.75)

Figure 8: Sensing range 500 mm

COMMISSIONING 7

8023329 | SICK

Subject to change without notice 9

Figure 9: Sensing range area

Use see table 3, page 8 to check the function. If the switching output fails to behave in

accordance with the table, check the application conditions. See section Fault diagnosis.

3Sensitivity setting

Sensor which it is not possible to set: The sensor is adjusted and ready for operation.

8 Troubleshooting

The Troubleshooting table indicates measures to be taken if the sensor stops working.

Table 4: Troubleshooting

LED indicator/fault pattern Cause Measures

Yellow LED does not light up

even though the light beam is

aligned to the receiver and

there is no object in the path of

the beam

No voltage or voltage below

the limit values

Check the power supply,

check all electrical connec‐

tions (cables and plug connec‐

tions)

Voltage interruptions Ensure there is a stable power

supply without interruptions

Sensor is faulty If the power supply is OK,

replace the sensor

Yellow LED lights up, no object

in the path of the beam

The beam of light of a photo‐

electric through-beam sensor

hits the receiver of another

(neighboring) photoelectric

through-beam sensor

Swap the sender and receiver

arrangement at every sec‐

ond through-beam photoelec‐

tric sensor and ensure that

there is sufficient distance

between the through-beam

photoelectric sensors, see

figure 1, page 6

9 Disassembly and disposal

The sensor must be disposed of according to the applicable country-specific regula‐

tions. Efforts should be made during the disposal process to recycle the constituent

materials (particularly precious metals).

8 TROUBLESHOOTING

10 8023329 | SICK

Subject to change without notice
