Shure PGXD Manuel utilisateur

PGXD

Wireless System

Shure online user guide for PGX Digital wireless systems.

Version: 2.1 (2022-E)

Shure Incorporated
2/20
Table of Contents
PGXD   Wireless System 3
Quick Start 3
General Description 6
 6
System Components 7
All systems include 7
Vocalist systems include 7
Lavalier, Headworn, and Instrument systems include 7
Guitar systems include 7
Receiver Controls and Connectors 7
Transmitter Controls and Connectors 8
Transmitter Indicator LED 9
Batteries 10
Wearing the Bodypack Transmitter 10
Adjusting Levels 11
Adjusting Gain 11
Bodypack Transmitter 11
Handheld Transmitter 12
Single System Setup 12
Multiple System Setup 13
Compatible Frequencies 13
Manual Channel and Group Selection (receiver only) 14
Locking and Unlocking Controls 14
Troubleshooting 15
Specifications 16
Certifications 19
PGXD1, PGXD2 20
PGXD4 20
LICENSING INFORMATION 20
Information to the user 20
Australia Warning for Wireless 20

Shure Incorporated

3/20

PGXD 

Wireless System

Quick Start

Shure Incorporated

4/20

Shure Incorporated

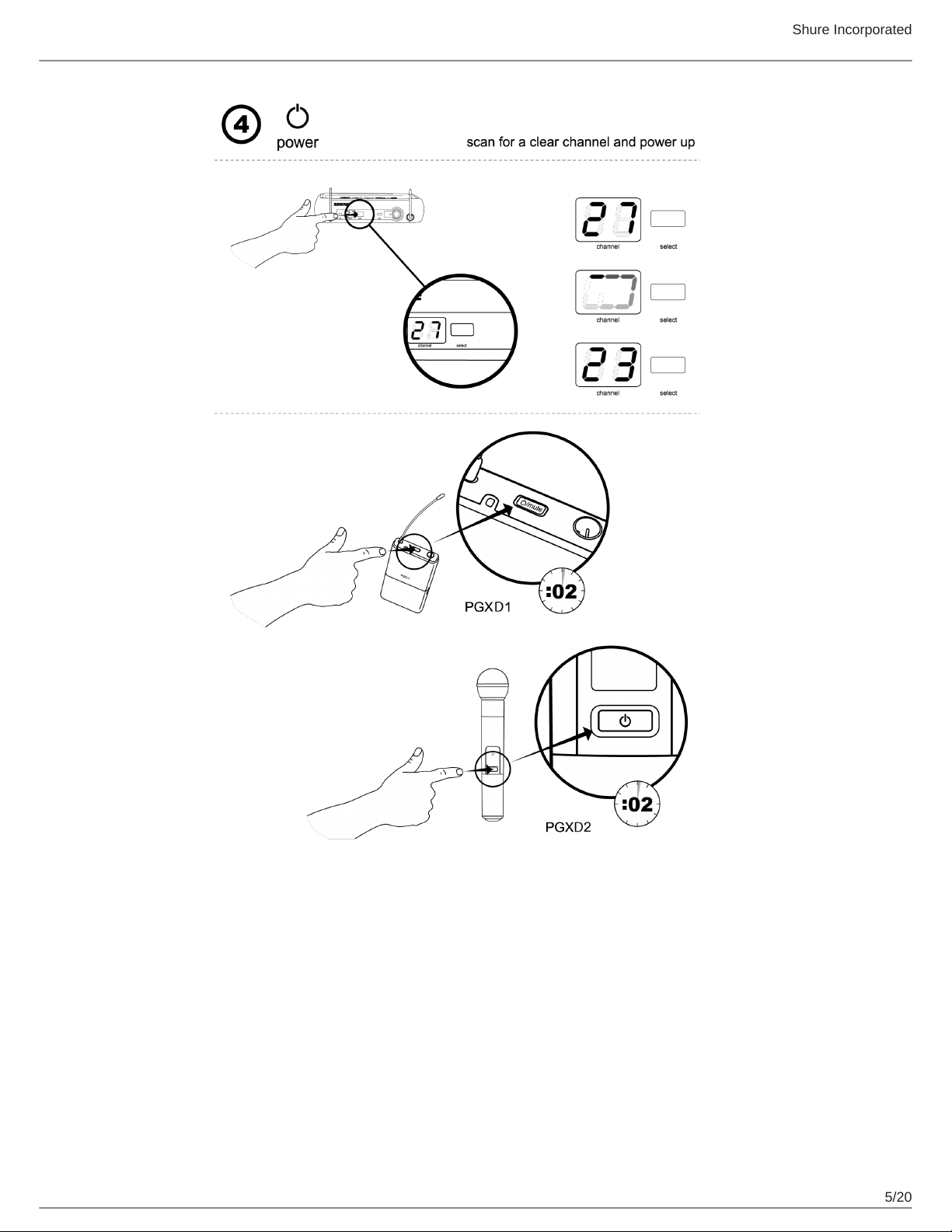

5/20

Shure Incorporated

6/20

•

General Description

Offering uniquely tailored wireless solutions for vocalists, guitarists, and presenters, PGX-Digital combines the trusted legacy of

Shure wired microphones with state-of-the-art, 24-bit digital wireless technology to deliver strong, clean RF performance. The

result is wireless audio that sounds like wired, rock-steady RF signal even at extended distances, and plug-and-play setup and

operation.

Professional quality 24-bit digital audio

Digital RF technology for rock-solid performance

Wide variety of rugged and dependable Shure microphones

Shure Incorporated

7/20

•

One-touch setup and operation

Up to 10 hours of battery life (9 hours, PGXD2)

Up to 200 foot range (line-of-sight)

900MHzoperation—freefromwhitespacesorDTVinterference

System Components

All systems include

PGXD4 receiver

2 AA alkaline batteries

Power supply

User guide

Vocalist systems include

PGXD2 handheld transmitter

Microphone head (choice of PG58, SM58 , SM86, Beta 58A or Beta 87A*)

Available only in select markets

Microphone clip

Lavalier, Headworn, and Instrument systems include

PGXD1 bodypack transmitter

Microphone (choice of WL93, WL185, PGA31 or Beta 98H/C)

Guitar systems include

PGXD1 bodypack transmitter

1/4”tomini4-pinguitarcable(WA302)

® ®

Shure Incorporated

8/20

◦

10.

Receiver Controls and Connectors

Front Panel

audio LED: Indicates strength of incoming audio signal: green for normal, amber for strong and red for clipping.

LED Screen: Displays group and channel setting. See "Single System Setup" for details.

channel button: Changes group and channel setting. See "Single System Setup" for details.

ready LED: Indicates system ready and receiving an RF signal from the transmitter. Also indicates battery level of the

transmitter:

Green = transmitter battery level normal

Red = low battery (typically less than 60 minutes with alkaline batteries)

with NiMH rechargeable batteries, when the indicator turns red there will be little to no remaining life.

Infrared (IR) port: Sends IR signal to transmitter for sync.

sync button: Press to synchronize transmitter with receiver group and channel settings.

AC adapter jack

Adapter cord tie-off

XLR microphone output jack

6.35 mm (¼") instrument level output jack

Back Panel

Shure Incorporated

9/20

Transmitter Controls and Connectors

①Indicator LED: Displays battery level, mute, and IR transmission status (see table).

②Power/Mute Switch: Press to mute or unmute. Press and hold to power on or off.

③Infrared (IR) port: Receives infrared beam to synchronize frequencies. When using multiple systems, only one transmit

ter IR port should be exposed at a time.

④4-Pin Microphone Input Jack

⑤Audio Gain Adjustment

Shure Incorporated

10/20

•

Transmitter Indicator LED

LED Indicator Status

Green Ready

Flashing green Controls locked

Amber Mute on

Solid red Battery power low

Flashing red Batteries dead (change batteries to power on transmitter)

Rapidly flashing red IR transmission in process

Flashing amber and red Battery power low and mute on

Batteries

A fresh set of alkaline batteries lasts up to 10 hours (9 hours, PGXD2).

The transmitter LED and the receiver readyLEDglowredtoindicatelowbattery(typicallylessthan60minutesremain-

ing).

NiMH rechargeable batteries may be used. However, the low battery indicator functions differently. When it turns red, there

may be little to no remaining life.

When the LED flashes red, the batteries must be replaced to power on the transmitter.

Wearing the Bodypack Transmitter

Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown.

For best results, the belt should be pressed against the base of the clip.
