Shure PGX Wireless User Guide

PGX Wireless

User Guide

ENGLISH

Shure PGX Wireless

The New Breed of Shure Wireless Systems

Created for active musicians and presenters who also manage their own

sound, Shure PGX Wireless improves your performance and simplifies your

setup.

Innovations such as automatic frequency selection and automatic

transmitter setup make wireless quicker and completely worry free. PGX

systems now feature Shure’s patented Audio Reference Companding,

delivering the crystal clear sound quality that pro audio engineers trust.

PGX gives you 9 systems to choose from and tour-tested wireless for

guitars, instruments, and vocal mics — including the legendary SM58® vocal

microphones. It’s the best-sounding, simplest choice in wireless, from the

leader in live performance sound.

Table of Contents

System Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

PGX4 Receiver Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

PGX2 Handheld Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Changing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Adjusting Gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PGX1 Bodypack Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Wearing the Bodypack Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . .5

Changing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Adjusting Gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Single System Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Multiple System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Manual Frequency Selection (receiver only). . . . . . . . . . . . . . . . . . . .7

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Locking and Unlocking Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Patent numbers 6,597,301, 5,794,125, and 5,692,057.

SHURE PGX WIRELESS

System Components

All systems include

• PGX4 receiver

• 2 AA batteries

• Power supply

• User guide

Vocalist systems include

• Microphone Head (choice of PG58, SM58

, SM86, or Beta 58A

)

• PGX2 handheld transmitter

• Microphone clip

Lavalier, Headworn, and Instrument systems include

• PGX1 bodypack transmitter

• Microphone (choice of WL93, WL185, PG30 or Beta 98H/C™)

Guitar systems include

• PGX1 bodypack transmitter

• 1/4” to mini 4-pin guitar cable

ENGLISH

PGX4 Receiver Features

Front Panel

audio LED

Indicates strength of

incoming audio signal: green

for normal, amber for strong,

red for peak.

LED screen

See “Single System Setup” on

page 6.

channel button

See “Single System Setup” on

page 6.

ready LED

Green light indicates system is

ready for use.

Infrared (IR) port

Broadcasts IR signal to transmitter.

sync button

Press to synchronize transmitter

and receiver frequencies.

Back Panel

AC adapter jack

Adapter cord tie-off XLR balanced microphone out-

put jack

1/4” unbalanced output jack

     

  



SHURE PGX WIRELESS

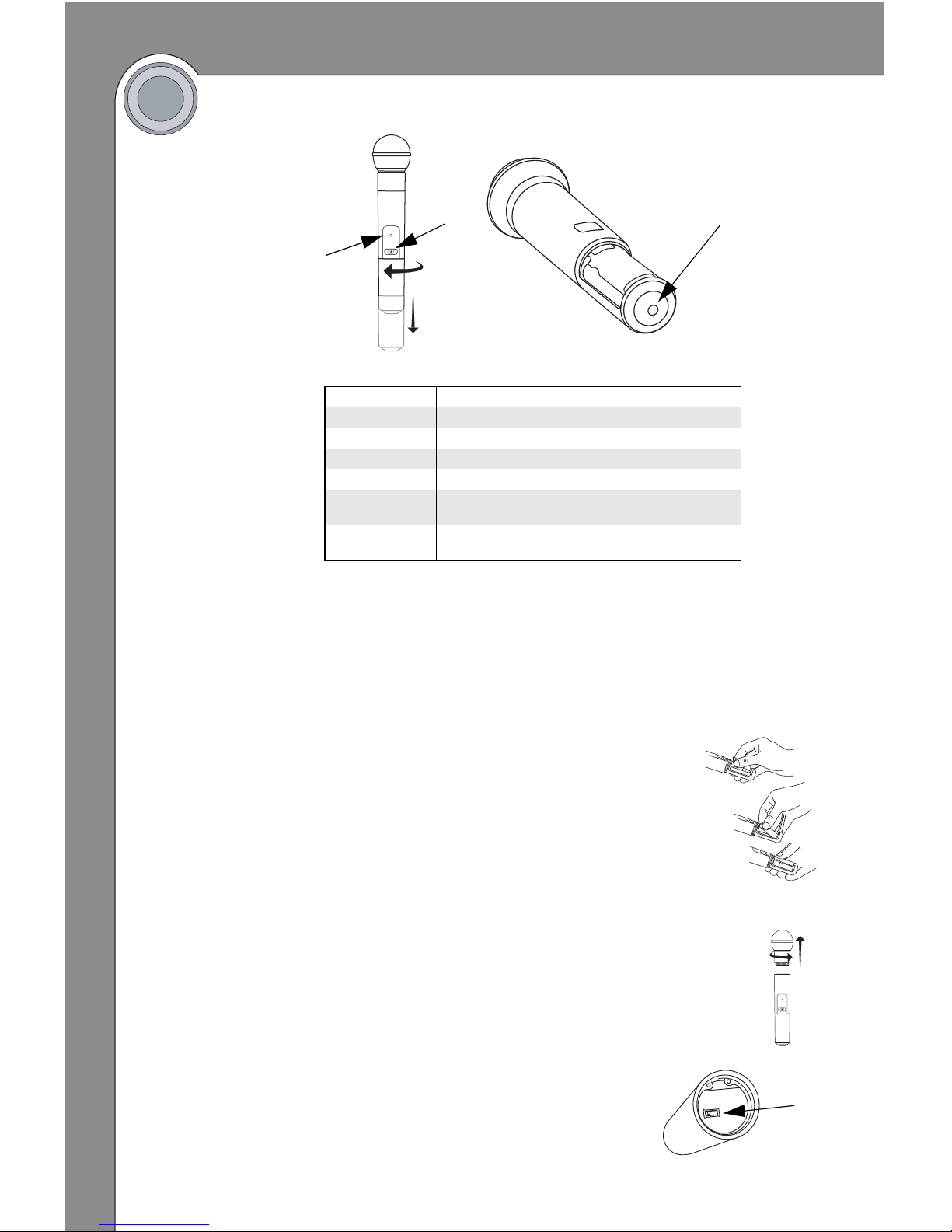

PGX2 Handheld Transmitter

Power / Infrared (IR) / Mute indicator

On-off / mute switch

Press and hold to turn on or off. Press and release to mute or unmute.

IR port

Receives infrared beam to synchronize frequencies. When using multiple

systems, only one transmitter IR port should be exposed at a time.

Changing Batteries

• Expected life for alkaline batteries is approximately

8hours.

• When the transmitter light glows red, the batteries should

be replaced immediately, as shown on the right.

Adjusting Gain

• Access the gain adjustment switch by unscrewing the

head of the microphone.

• Two gain settings



are available on the PGX2. Use

the tip of a pen or a small screwdriver to move the

switch.

•

0dB:

For quiet to normal vocal performance.

•

–10dB:

Use only if audio is distorted due to

high vocal levels.

Green Ready

Flashing green Controls locked (see page 8)

Amber Mute on

Flashing red IR transmission in process

Glowing red Battery power low

Pulsing red on

startup Batteries dead (transmitter cannot be turned on

until batteries are changed)

Pulsing red after

synchronization Transmitter and receiver incompatible; contact

your Shure reseller

PGX







PGX

BIAS

AUDIO

0dB-10dB



ENGLISH

PGX1 Bodypack Transmitter

Power / Infrared (IR) / Mute indicator

On-off / mute switch

Press and hold to turn on or off. Press and release to mute or unmute.

4-Pin Microphone Input Jack

IR port

Receives infrared beam to synchronize frequencies. When using

multiple systems, only one transmitter IR port should be exposed at

a time.

Gain adjustment switch (see below)

Wearing the Bodypack Transmitter

• Clip the transmitter to a belt



or slide a guitar strap

through the transmitter clip



as shown. If using a

belt, slide the transmitter until the belt

is pressed

against the base of the clip.

Changing Batteries

• Expected life for alkaline batteries is approx-

imately 8 hours.

• When thetransmitter light glows red, the bat-

teries should be replaced immediately,

as illustrated.

Adjusting Gain

• Three gain settings are available on the PGX1:

•

mic

: Microphone

•

: Guitar

•

-10

: Use only if audio is distorted due to high input level

Green Ready

Flashing green Controls locked (see page 8)

Amber Mute on

Flashing red IR transmission in process

Glowing red Battery power low (transmitter cannot be turned

off until batteries are changed)

Pulsing red on

startup Batteries dead (transmitter cannot be turned on

until batteries are changed)

Pulsing red after

synchronization Transmitter and receiver incompatible; contact

your Shure reseller

PGX1













PGX1

SHURE PGX WIRELESS

Single System Setup

In any wireless setup, each transmitter and receiver pair must be tuned to

the same frequency, or channel. The PGX wireless system uses automatic

transmitter setup to synchronize the transmitter and receiver channels.

Note: transmitting devices such as cellular phones and two-way radios, and

digitaldevicessuchasCDplayersandeffectsprocessors,mayinterferewith

wireless audio transmissions. Keep your PGX transmitters and receivers

away from these and other potential sources of interference.

Single System Setup

1. Automatic Frequency Selection

Press and release the channel button. This scans for a clear channel and

sets the receiver to that channel.

2. Automatic Transmitter Setup

Turn On the transmitter.

Open the transmitter battery compartment to display the infrared (IR) port

(see pages 4 and 5).

With the transmitter IR port exposed to the receiver, press sync.

Hold the sync button until the red light stops flashing on both receiver and

transmitter.

When the receiver ready light glows, the system is ready for use. Close the

transmitter battery compartment.

channel

LED screen displays

current channel press channel button

to scan for a clear

channel

system scans for

clearest available

channel

sync

ready

audiochannelselect

< 15 cm (8 in.)

sync

ENGLISH

Multiple System Setup

Seetheincluded

frequency and

channel guide

for information

on compatible

channels.

Multiple system setups require the use of groups and channels. In the

LED panel, the left digit indicates the current group; the right digit indi-

cates the current channel.

Follow these steps when using multiple PGX systems in a single installation:

1. Turn all receivers on and all transmitters off.

2. Make sure the group number is the same for all receivers. If nec-

essary, use Manual Frequency Selection (shown below) to set all

receivers to a single group.

3. Perform Automatic Frequency Selection on the first receiver

(see page 6).

4. Turn on the first transmitter.

5. Perform Automatic Transmitter Setup (see page 6).

Leave the transmitter turned on. Repeat for each system.

Be sure that only one transmitter’s IR port is exposed when

synchronizing a system.

Manual Frequency Selection (receiver only)

To manually select a group or a channel, press and hold the channel button.

The display alternates between the group number and the channel number.

Releasing the channel button while either number is displayed makes the

displayed number flash.

Pressing the channel button while either number is flashing increases the

setting by one.

To activate a newly selected group or channel, simply wait until the number

stops flashing.

left digit is group right digit is channel

hold channel

button

...then press the

channel button

to increase the

value.

to change the group

value, release the

channel button while

the first digit displays...

...then press the

channel button

to increase the

value.

to change the channel

value, release the

channel button while the

second digit displays...

SHURE PGX WIRELESS

Troubleshooting

Locking and Unlocking Controls

Locking the system controls prevents accidental muting or channel adjust-

ment during performance.

Transmitter

To lock the controls: with the transmitter off, hold the power button down

until the green LED flashes (± 5 seconds).

To unlock the controls: with the transmitter on, hold the power button

down until the green LED flashes (± 5 seconds).

Receiver

To lock the channel: hold the channel button until the numbers flash

(± 10 seconds).

To unlock the channel: hold the channel button until the numbers flash

(± 5 seconds).

Issue Indicator Status Solution

No sound or faint

sound Transmitter power

light on, receiver

LEDs on

• Perform automatic transmitter setup (see

page 6

)

• Verify all sound system connections

Receiver LED off

• Make sure AC adapter is securely plugged into electrical outlet

and into DC input connector on rear panel of receiver

• Make sure AC electrical outlet works and is supplying proper

voltage

Transmitter power

light glowing or

flashing red

• Replace transmitter batteries

• If indicator continues flashing red after batteries are replaced, the

transmitter and receiver may be from incompatible frequency

bands. Contact your Shure reseller for assistance.

Transmitter power

light off

• Turn on transmitter

• Make sure the +/– indicators on batteries match the transmitter

terminals

• Insert fresh batteries

Distortion or

unwanted noise

bursts

• Remove nearby sources of RF interference (CD players,

computers, digital effects, in-ear monitor systems, etc.)

• Change receiver and transmitter to a different frequency

• Reduce transmitter gain

• Replace transmitter batteries

• If using multiple systems, change the frequency of one of the

active systems

Distortion level

increases

gradually

Transmitter power

light glowing or

flashing red

• Replace transmitter batteries

Sound level

different from

cabled guitar or

microphone, or

when using

different guitars

• Adjust transmitter gain as necessary

Cannot turn

transmitter on Transmitter light

flashing red

• Replace transmitter batteries

ENGLISH

Specifications

System Working Range 100m (300 ft.)

Note: actual range depends on RF signal absorption,

reflection, and interference

Audio Frequency Response

+/– 2 dB Minimum: 45 Hz

Maximum: 15 kHz

(Overall system frequency depends on microphone element.)

Total Harmonic Distortion

Ref. +/– 33 kHz deviation, 1 kHz

tone

0.5%, typical

Dynamic Range >100 dB A-weighted

Operating Temperature

Range –18°C (0°F) to +50°C (+122°F)

Note: battery characteristics may limit this range

Transmitter Audio Polarity Positive pressure on microphone diaphragm (or positive

voltage applied to tip of WA302 phone plug) produces positive

voltage on pin 2 (with respect to pin 3 of low impedance output)

and the tip of the high impedance 1/4-inch output.

PGX1

Bodypack

Transmitter

Audio Input Level –10 dBV maximum at "mic" gain position

+10 dBV maximum at 0dB gain position

+20 dBV maximum at –10dB gain position

Gain Adjustment Range 30 dB

Input Impedance 1M

RF Transmitter Output 30 mW maximum (dependent on applicable country

regulations)

Dimensions 108 mm H x 64 mm W x 19 mm D (4.25 x 2.50 x 0.75 in.)

Weight 81 grams (3 oz.) without batteries

Housing Molded polycarbonate case

Power Requirements 2 “AA” size alkaline or rechargeable batteries

Battery Life >8 hours (alkaline)

PGX1

PGX2

Handheld

Transmitter

Audio Input Level +2 dBV maximum at –10dB position

–8 dBV maximum at 0dB position

Gain Adjustment Range 10dB

RF Transmitter Output 30 mW maximum (dependent on applicable country

regulations)

Dimensions

including SM58 cartridge 254 mm x 51 mm dia. (10 x 2 in.)

Weight 290 grams (10.2 oz.) without batteries

Housing Molded PC/ABS handle and battery cup

Power Requirements 2 “AA” size alkaline or rechargeable batteries

Battery Life >8 hours (alkaline)

PGX

PGX4

Receiver Dimensions 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)

Weight 327 g (11.5 oz.)

Housing ABS

Audio Output Level

Ref. +/– 33 kHz deviation with 1

kHz tone

XLR connector (into 600 load): –19 dBV

1/4 inch connector (into 3000 load): –5 dBV

Output Impedance XLR connector: 200 

1/4 inch connector: 1k

XLR output Impedance balanced

Pin 1: Ground (cable shield)

Pin 2: Audio

Pin 3: No Audio

Sensitivity –105 dBm for 12 dB SINAD, typical

Image Rejection >70 dB, typical

Power Requirements 12–18 Vdc at 150 mA, supplied by external power supply

sync

readyaudio channel select

Autres manuels pour PGX Wireless System

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Shure Système de microphone

Shure

Shure Sistema Microflex MXCW Manuel utilisateur

Shure

Shure BLX Wireless System Manuel utilisateur

Shure

Shure ULX-D Manuel utilisateur

Shure

Shure UHF-R Wireless Manuel utilisateur

Shure

Shure The Twin Pro Manuel utilisateur

Shure

Shure SLX D Series Manuel utilisateur

Shure

Shure SLX Wireless System Manuel utilisateur

Shure

Shure T series Manuel utilisateur

Shure

Shure SLX-D Manuel utilisateur

Shure

Shure UHF Wireless System Manuel du propriétaire

Shure

Shure MV88+ Manuel utilisateur

Shure

Shure QLX-D Manuel utilisateur

Shure

Shure The SM58 Vocal Artist UHF Manuel utilisateur

Shure

Shure UHF-R Wireless Manuel utilisateur

Shure

Shure 404B Manuel utilisateur

Shure

Shure UHF MD Manuel du propriétaire

Shure

Shure LEGENDARY PERFORMANCE ULX-D Manuel utilisateur

Shure

Shure SLX Wireless System Manuel utilisateur

Shure

Shure BLX24R/SM58-H10 Manuel utilisateur

Shure

Shure SCM410 Manuel utilisateur

Shure

Shure VP Manuel utilisateur

Shure

Shure GLXD14RE-SM35 Manuel utilisateur

Shure

Shure ULX Wireless System Manuel utilisateur

Shure

Shure AMS4000 Guide de l'utilisateur

Manuels Système de microphone populaires d'autres marques

Paso

Paso R824 Manuel utilisateur

Naxa

Naxa NAM-982 Manuel utilisateur

Motorola

Motorola PMNN4461 Manuel utilisateur

Xvive

Xvive U3 Manuel utilisateur

Tekon

Tekon DUOS Manuel utilisateur

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuel utilisateur

Devine

Devine WMD-IE Manuel utilisateur

LG LF-D7150 Manuel utilisateur

GE S768DAV Manuel utilisateur

LD U305 HBH 2 Manuel utilisateur

Chainway

Chainway URA8 Manuel utilisateur

ORATOR

ORATOR D860TD Manuel utilisateur

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuel utilisateur

Alpha Technologies

Alpha Technologies RBMS Manuel utilisateur

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuel utilisateur

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuel utilisateur

Pyle

Pyle PDWM5000 Manuel utilisateur

Airspan

Airspan AS4000 Mode d’emploi
