Show Tec LED Music Tube Controller Manuel utilisateur

LED Music Tube Controller

ORDERCODE 41013

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec LED Music Tube Controller brings excitement to any venue. Whether you want simple plug-&-

play action or a sophisticated show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: [email protected]

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec 19“ LED Tube Controller™Product Guide

Warning..…...................................................................................………………………………………….

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Rigging………………………………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features…….……………………………………………………………………………………….……...….

Overview………………………………………………………………………………………………………..

Installation...............................................................................…...…………………………………….…...

Set Up and Operation.....................................................................……..…………………………….……

Stand-alone LED Music Tube …………………………………………………………...….………….……

LED Tube controlled with LED Music controller………………………………………………………..…..

Connecting a series of LED Tubes………………………………………………..…...………….…………

Controller Functions...............................................................................………..….….…….……………...

Maintenance...................................................................................………..………….…….……………...

Troubleshooting............................................................................………………….………………….…..

No Light.........................................…………………………………...………………….…………………..

Product Specifications.................................................................……………….…….…………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never look directly into the light source.

•Never leave any cables lying around.

•Do not open the device and do not modify the device.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this would reduce the system’s life.

•Only use device indoor, avoid contact with water or other liquids.

•Avoid flames and do not put close to flammable liquids or gases.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

CAUTION!

Keep this device away from rain and moisture!

mains lead before o

enin

the housin

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For replacement use fuses of same type and rating only.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(

meant es

eciall

for e

ile

tics

)

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

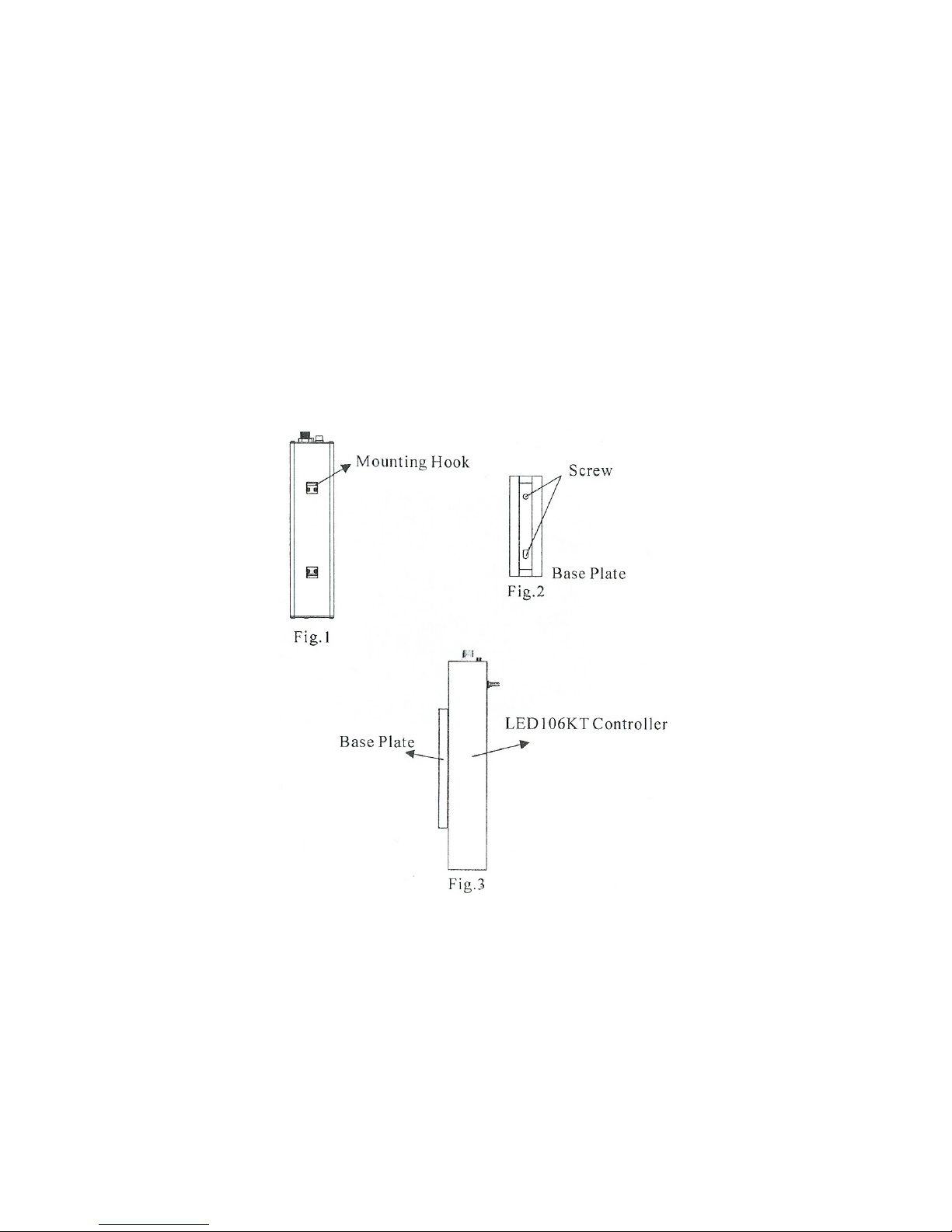

•If the LED Music Controller/LED Music Tube is lowered from the ceiling or high joists, professional

trussing systems have to be used. It can also be placed on any flat surface, vertically or horizontally.

•Attach the mounting hooks to the back of LED Music Controller/LED Music Tube and fasten the base

plate to the wall or any other surface or trussing system.

•The LED Music Controller/LED Music Tube must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

•When rigging, derigging or servicing the LED Music Controller/LED Music Tube, always make sure,

that the area below the installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Description of the device

Features

The LED Music Tube Controller is LED tube controller to create great effects.:

• Sound-controlled with adjustable audio sensitivity

• 16 music active modes

• 32 Tubes can be controlled without a signal amplifier

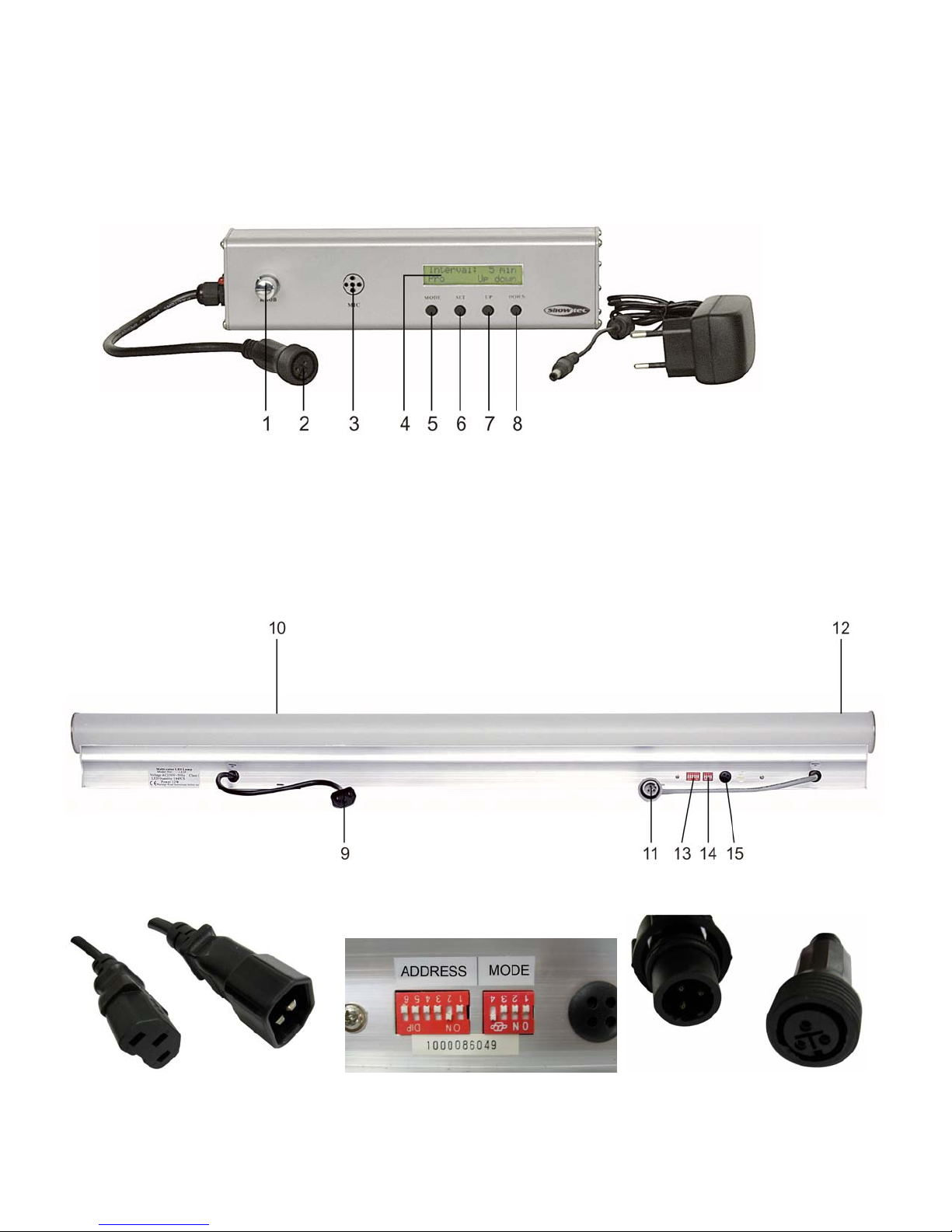

Overview

Fig. 1

1) Audio sensitivity knob

2) 3 pin Signal OUT

3) Microphone

4) LCD Display

5) Mode: Change the pre-programmed modes.

6) Set: Change the settings of the pre-programmed modes

7) Adjust Up: Increase the address or program options.

8) Adjust Down: Decrease the address or program options.

Fig. 2

10 9 13 14 15 11 12

Fig. 3

9) Mains IN (230V Input): connect the Mains IN from one LED tube to the Mains OUT of the previous tube.

10) Mains OUT (230V Output): connect the Mains OUT from one LED tube to the Mains IN of the next tube.

If there are no further tubes to be connected, the Mains OUT connector of the last tube must be sealed

to protect against humidity

11) Signal IN: Low Voltage signal input, connect the Signal IN from one tube to the Signal OUT of the

previous tube or the LED controller.

12) Signal OUT: Low Voltage signal output, connect the Signal OUT from one tube to the Signal IN of the

next tube. If there are no further tubes to be connected, the Signal OUT connector of the last tube must

be sealed to protect against humidity.

13) Address Dip Switches

14) Mode Dip Switches

15) Microphone

Installation

Remove all packing materials from the LED Tube Controller and the LED Tube. Check that all foam and

plastic padding is removed. Connect all cables.

Power supply and Signal connection

The first LED Tube is directly connected to the power source.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

You can operate the LED Tube as:

1. Stand-alone LED Music Tube (without LED Music Tube controller)

2. LED Music Tube (with LED Music Tube controller)

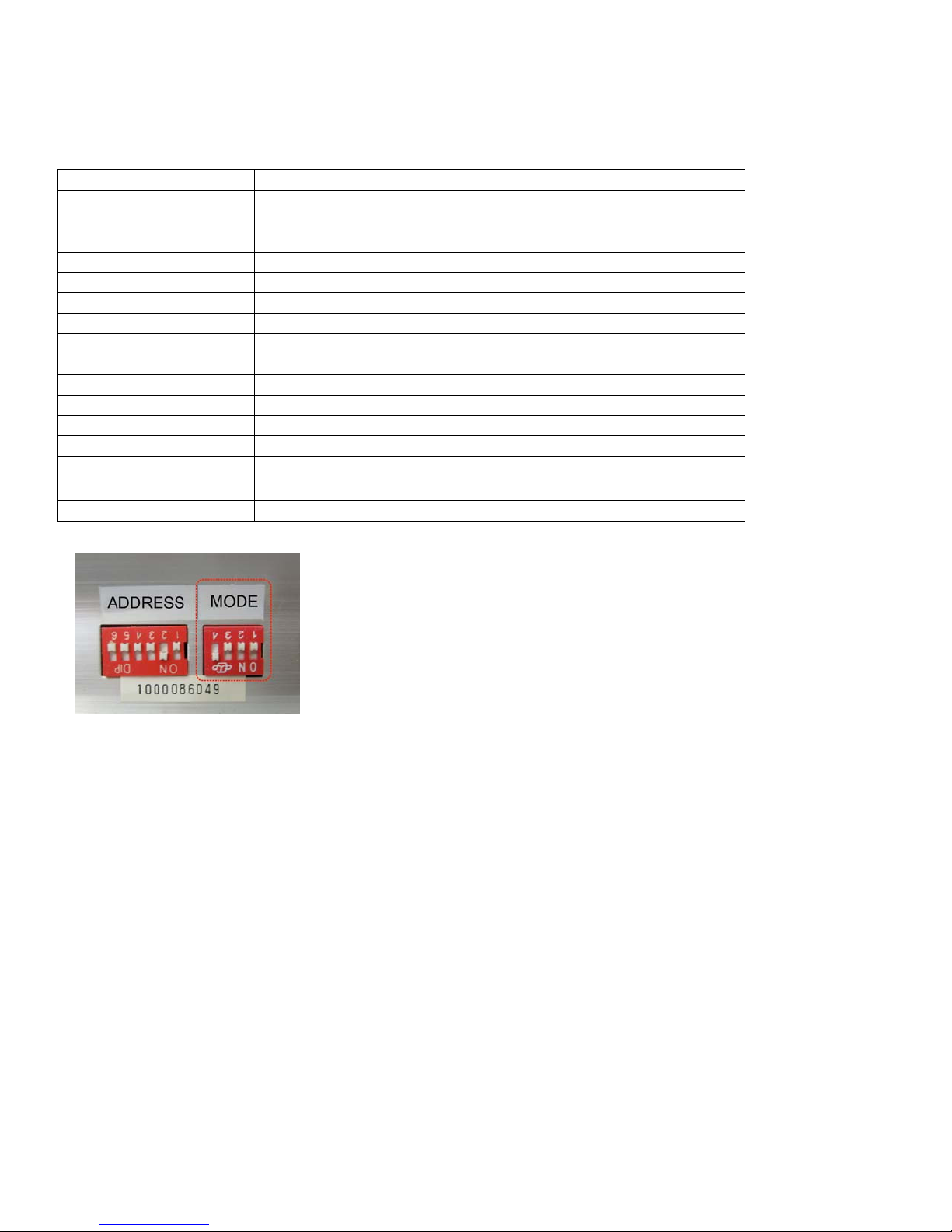

Stand-alone LED Music Tube

When operating the LED tube in automatic mode (without the LED controller), the following table shows the

corresponding MODE Dip Switch settings.

Background Color Music Active Color Mode Dip Switch Setting

Red Green 1110

Green White 1100

Blue Red 1000

White Red 0101

— Red 0100

— Green 0011

— Pink 0001

— Yellow 0110

— Green / Red 1001

— Cyan / Red 1101

— Blue / Red 1010

— Rainbow Chase 0010

— Red / Green / Cyan / Blue Chase 0111

— Dot Chase 0000

Refresh Color Refresh Chase 1011

— Automatic 1111

OFF



Fig. 4

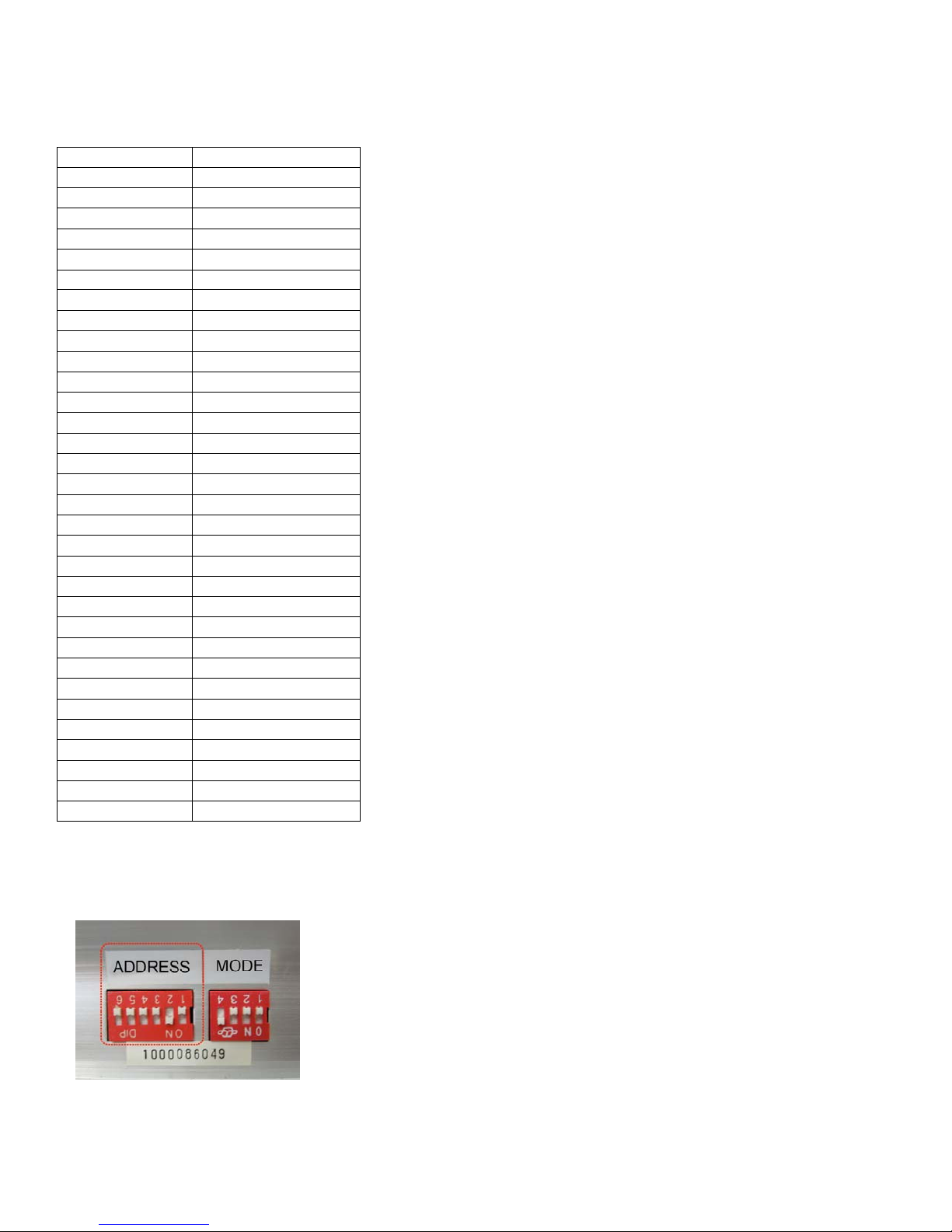

LED Tube controlled with LED Music controller

Address Dip Switch Setting

Address Dip Switch setting

0 00000

1 00001

2 00010

3 00011

4 00100

5 00101

6 00110

7 00111

8 01000

9 01001

10 01010

11 01011

12 01100

13 01101

14 01110

15 01111

16 10000

17 10001

18 10010

19 10011

20 10100

21 10101

22 10110

23 10111

24 11000

25 11001

26 11010

27 11011

28 11100

29 11101

30 11110

31 11111

Note : Dip Switch #1 is for Master/Slave mode: #1 ON Slave Mode

#1 OFF Master Mode

Dip Switches #2, #3, #4, #5 and #6 are Address DIP switches

OFF



Fig. 5
