Show Tec DDP-1220 Manuel utilisateur

Service Manual

DDP-1220

BOM:88-024-0010-00

Rev1.0

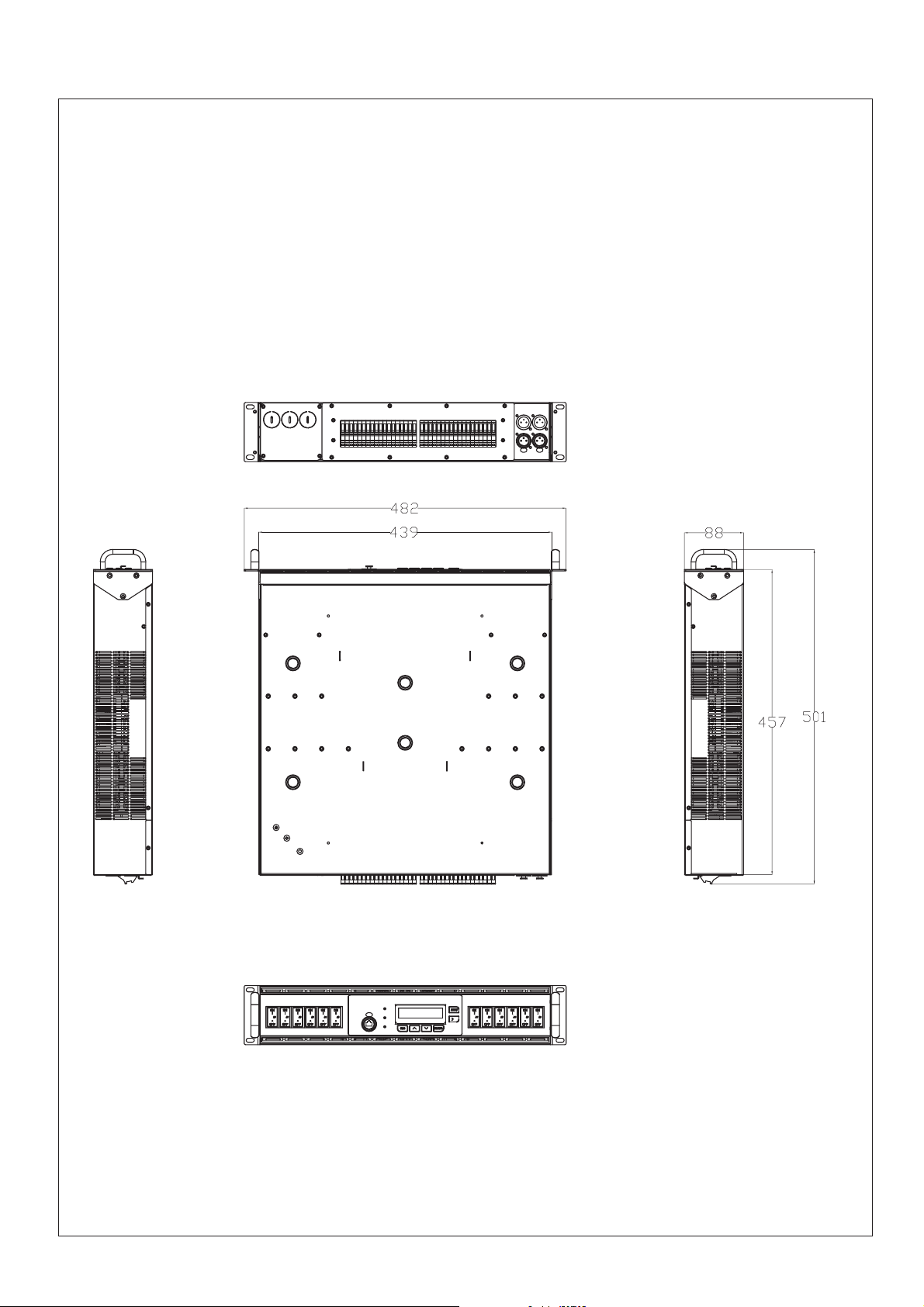

Physical Dimensions

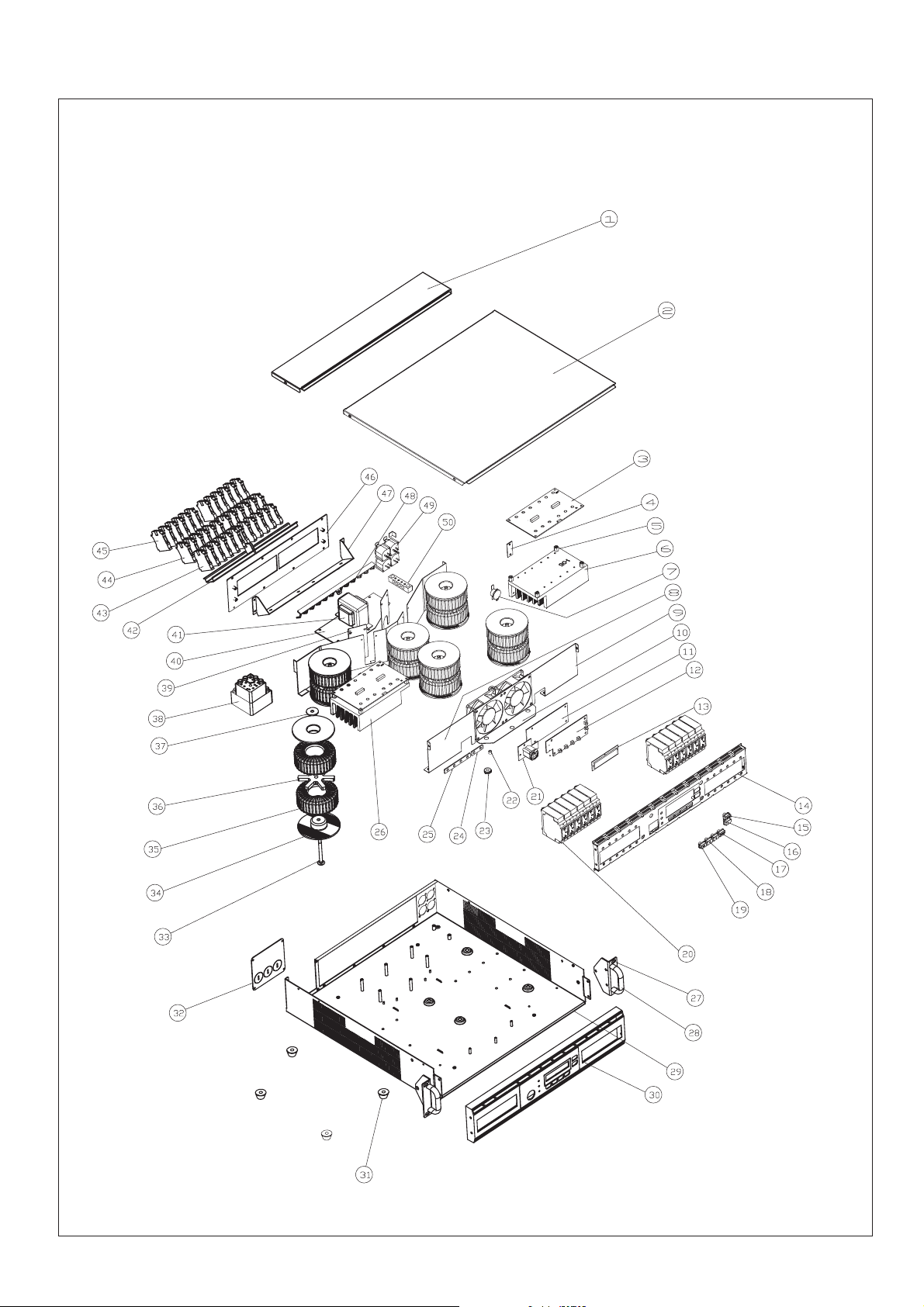

Complete Exploded View

Complete Exploded View Parts List

Item Part Number Description Qty

1 23-001-4595-00 Top Cover, Rear 1

2 23-001-4591-00 Top Cover, Front 1

3 82-240-0010-00 ASSY DPX-1220-PWR AC230V 2

4 82-290-0010-00 ASSY DPX-1220-TEMP,Right 1

4 82-290-0010-01 ASSY DPX-1220-TEMP, Left 1

5 25-005-0014-00 Copper Spacer 8

6 19-001-0156-00 Heat sink,Right 1

7 20-004-0016-00 Thermostat 2

8 23-001-4598-00 Repelling Plate,Left 1

9 23-001-4597-00 Repelling Plate,Right 1

10 23-001-4593-00 Fan Holder 1

11 82-260-0010-00 ASSY DPX-1220-DSP 1

12 82-410-0010-00 ASSY DPX-1220-Main 1

13 25-008-0301-00 Plastic cover 1

14 23-001-4592-00 Rear Panel 1

15 21-002-0194-00 Menu Button 1

16 21-002-0193-00 Forward Button 1

17 21-002-0192-00 Enter Button 1

18 21-002-0191-00 UP/Down button 2

19 21-002-0190-00 ESC Button 1

20 11-008-0019-00 Circuit Breaker 12

21 82-271-0010-00 ASSY DPX-1220-EC 1

22 25-022-1680-00 Retaining Part 3

23 25-024-0467-00 Silicon Gel Washer 3

24 25-022-1674-00 Connector for Breaker,2 Holes 2

25 25-022-1675-00 Connector for Breaker,4 Holes 2

26 19-001-0155-00 Heat sink, Left 1

27 25-022-1795-00 Side Ear 2

28 25-022-1797-00 Handle 2

29 23-001-4596-00 Chassis 1

30 23-150-0134-00 Front Panel 1

31 25-014-0023-00 Rubber Foot 4

32 23-001-4594-00 Left Tailboard 1

33 22-004-0004-00 Bakelite screws M6X73 6

34 25-024-0574-00 Coil Holder 12

35 07-002-0094-00 Coil 12

36 25-024-0575-00 Separator for Coil 6

37 22-006-0120-00 Washer 6

38 16-003-0195-00 Terminal 1

39 25-022-1796-00 Board for Fixing Wire 2

40 82-220-0010-00 ASSY DPX-1220-PSU AC230V 1

41 10-004-0064-01 Transformer 1

42 23-001-4366-00 Terminal Fixing Holder 2

43 16-003-0178-00 Terminal Block,kelly 12

44 16-003-0179-00 Terminal Block,Blue 12

45 16-003-0180-00 Terminal Block, Grey 12

46 23-001-4600-00 Terminal Tailboard 1

47 23-001-4365-00 Fixing Holder for Tailboard 1

48 25-022-1670-01 Connector for Neutral 1

49 82-270-0010-00 ASSY DPX-1220-DMX4 1

50 25-022-1671-01 Connector for Ground 1

PCB

Schematic Diagram

& Parts List

NC3F AV

A2001SJ-3

NC3MAV

NC5MAV

NC5F AV

GND

D-

D+

GND

D-

D+

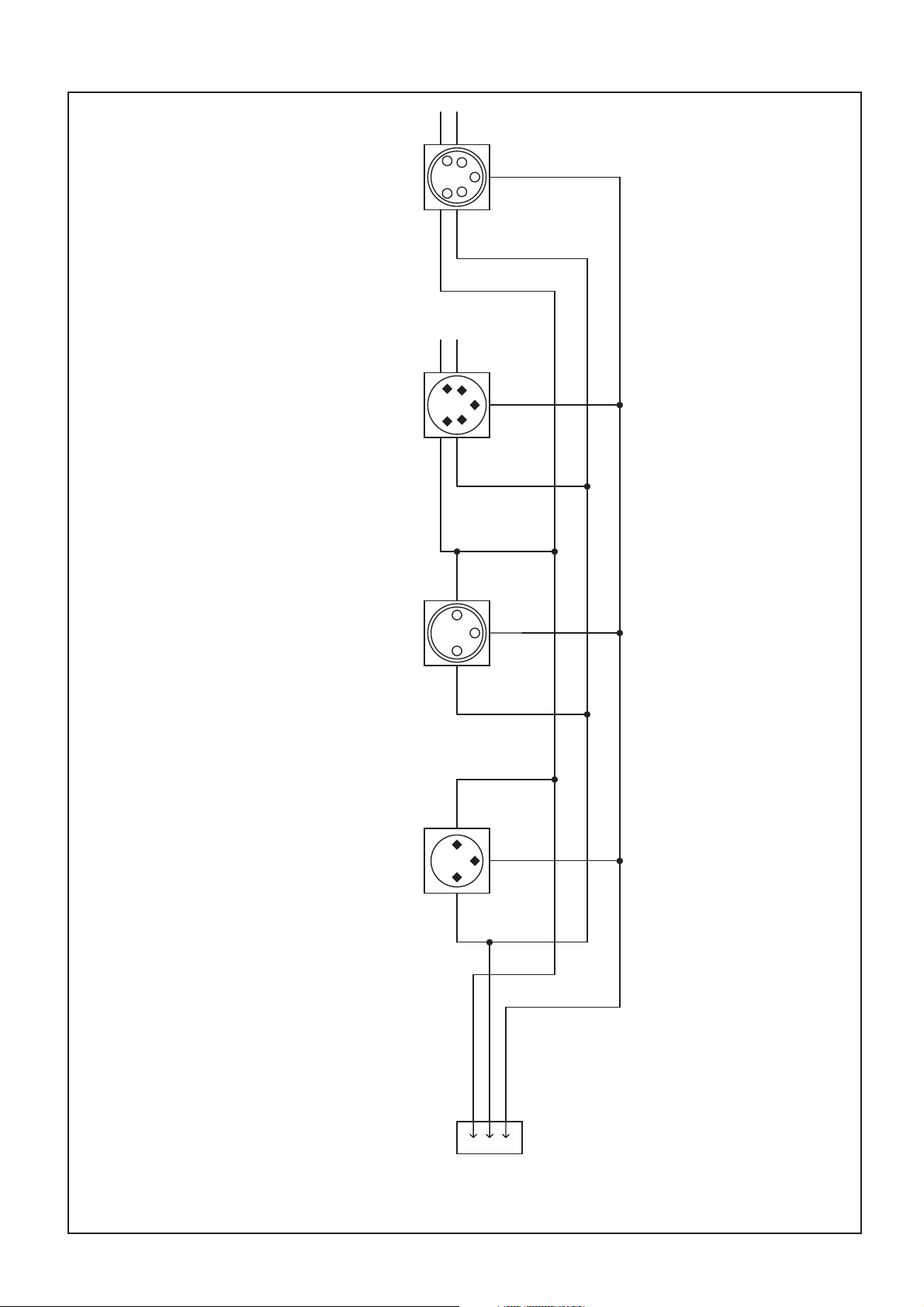

Schematic Diagram for DPX-1220-DMX4

Designator Part Number Description Qty

J5 16-001-0104-00 Header 2.00mm 3Pin 1

J1 16-001-0209-00 XLR 3Pin NC3MAV NEUTRIK 1

J2 16-001-0210-00 XLR 3Pin NC3FAAV2 NEUTRIK 1

J3 16-001-0213-00 XLR 5Pin NC5MAV NEUTRIK 1

J4 16-001-0214-00 XLR 5Pin NC5FAV NEUTRIK 1

DPX-1220-DMX4 80-270-0010-00 PCB DPX-1220-DMX4 1

Materials List for DPX-1220-DMX4 (KIT:82-270-0010-00)

R57

56R

+5V

R/S

R/W-L CD

R61

510R

R59

10K

VSS

VCC

VEE

4R/W

DB0

7DB1

8DB2

9DB3

10 DB4

11 DB5

12 DB6

13 DB7

LED+

LED-

DY- 1602ADBSWNN

+5V

LCD- D0

LCD- D1

LCD- D2

LCD- D3

LCD- D4

LCD- D5

LCD- D6

LCD- D7

SW1

SW2

SW3

SW4

SW5

SW6

D3A LED/R

D4A LED/G

D5A LED/G

R67

R68

R69

GND

U10

HCP L0600

VDD

+3V3

GND

5+5V 8

D/R 6

D/R 7

U12

SN75176

R55

R60

10K

R65

10K

C27

104

NC 1

NC 4

U11

HCP L0600

+3V3

TXD2

R/T-SEL

U13

HCP L0600

+3V3

RXD2

VDD

R62

510R

R64

R56

270R

R63

2K7

R66

270R

VDD

DOWN

LEFT

RIGHT

ESC

POWER

DMX

NET

J11

A2001RJ-3

R70 10K

R71 10K

R72 10K

R73 10K

R74 10K

R75 10K

+3V3

DOWN

LEFT

RIGHT

ESC

VDD

910

11 12

13 14

15 16

17 18

19 20

21 22

23 24

J13

PHP- 24-2

LCD- D0

LCD- D1

LCD- D2

LCD- D3

LCD- D4

LCD- D5

LCD- D6

LCD- D7

R/W-L CD

R/S

DOWN

LEFT

RIGHT

ESC

+5V

GND

910

J12

PHP- 10-2

+3V3

POWER

DMX

NET

TXD2

R/T-SEL

RXD2

VDD

+3V3

S+

S-

S+

S-

C30

104

C29

104

C28

104

VDD

+3V3

C32

100U/16V C31

104

C33

100U/16V C34

104

+3V3

R4 10K

R5 10K

R6 10K

R7 10K

R8 10K

R9 10K

R10 10K

R11 10K LCD- D0

LCD- D1

LCD- D2

LCD- D3

LCD- D4

LCD- D5

LCD- D6

LCD- D7

R3 10K

R2 10K

R1 10K

+5V

D3B LED/R

D4B LED/G

POWER

DMX

LCD- D[0..7]

Schematic Diagram for DPX-1220-DSP

Designator Part Number Description Qty

U10,U11,U13 01-006-0029-00 SMD IC HCPL-0600 (SO8) High CMR,High Speed, 3

U12 01-014-0001-00 SMD IC 75176 8PIN (RoHS)<SN75176BDR(TI)> 1

R63 02-007-0002-00 SMD Resistance 2.7K OHM 0805 1/8W 5% 1

R1~R11,R59,R60,R65,

R70~R75

02-007-0004-00 SMD Resistance 10K OHM 1/8W 0805 5% 20

R61,R62 02-007-0031-00 SMD Resistance 510 OHM 5% 2

R55,R64 02-007-0032-00 SMD Resistance 1K OHM 0805 5% 2

R67~R69 02-007-0057-00 SMD Resistance 220 OHM 0805 5% 3

R56,R66 02-007-0123-00 SMD Resistance 270 OHM 1/8W 0805 5% 2

R57 02-007-0281-00 SMD Resistance 56 OHM 1/10W 5% 0805 1

C32,C33 03-009-0049-00 SMD Electrolytic Capacitor 100uF/16V ±20% 2

C27~C31,C34 03-009-0062-00 SMD Ceramic Capacitor 104/50V 0805 ±20% Y5V 6

DPX-1220-DSP 80-260-0010-00 PCB DPX-1220-DSP 1

Designator Part Number Description Qty

SW1~SW6 11-007-0027-00 Push button 6

D2 12-005-0025-00 LCD 1

D4B 12-006-0004-00 LED Green 1

D3B 12-006-0011-00 LED Red 1

For D2 16-001-0089-00 Header 2.54mm 16Pin 1

J11 16-001-0121-00 Header 2.00mm 3pin 1

J12 16-001-0199-00 Header 2.54mm 5Pinx2 1

J13 16-001-0540-00 Header 2.54mm 12Pinx2 1

For D2 25-006-0039-00 Support 4

Part DPX-1220-DSP 81-260-0010-00 Part DPX-1220-DSP SMD-ASSY 1

Materials List for DPX-1220-DSP SMD-ASSY(KIT:81-260-0010-00)

Materials List for DPX-1220-DSP (KIT:82-260-0010-00)

J14

PHP- 12-2

TX+

TX-

RX+

RX- NC

4RX-

TX-

2TX+

RX+

SHIELD

J10

NE8F AV

R38

75R

R52

75R

C26

102/1KV

SHI EL D GND

R53

1M C27

104

D5B

LED/G R69

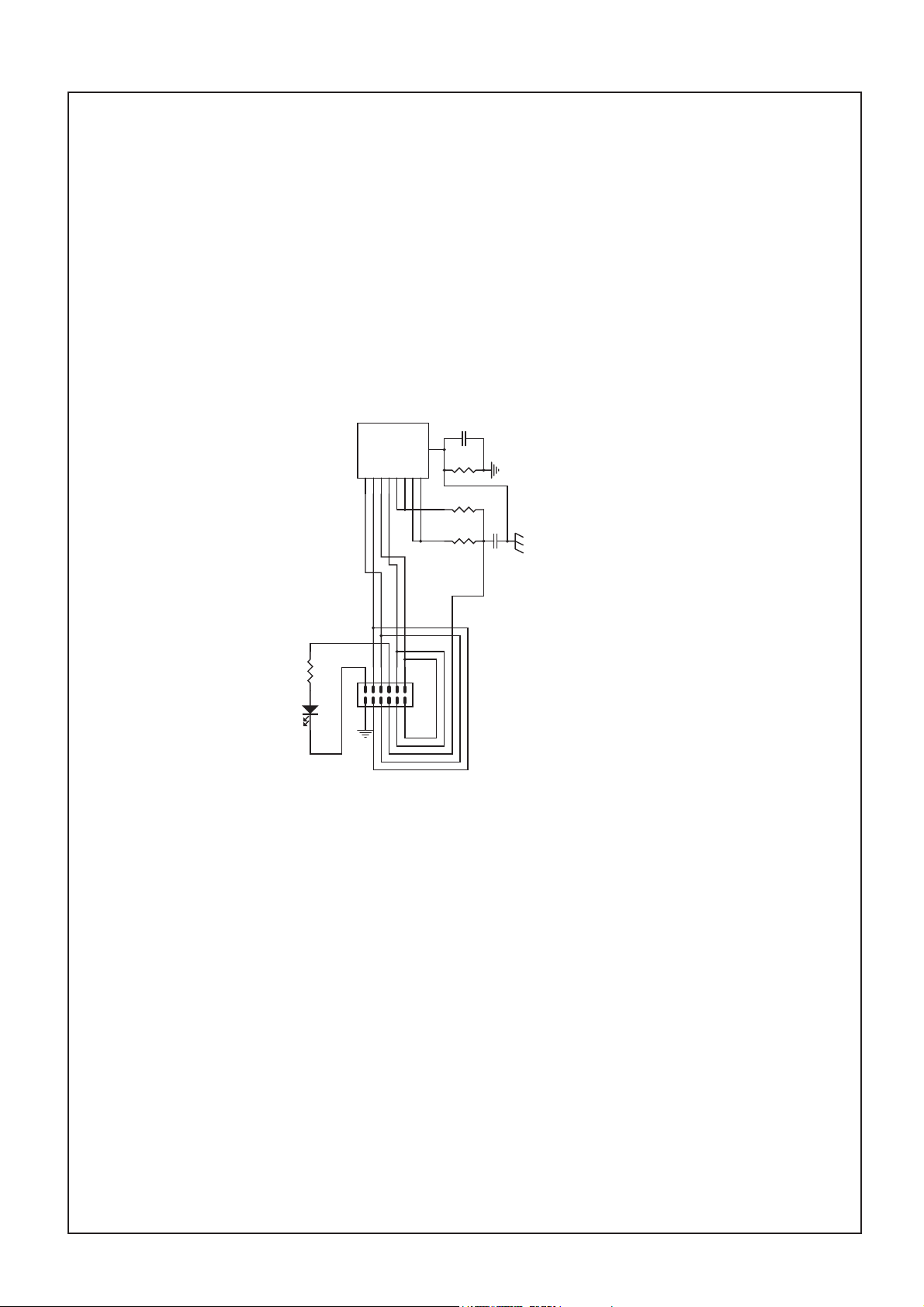

Schematic Diagram for DPX-1220-EC
