Show Tec Phantom MKII EHJ 250 Manuel utilisateur

Phantom MKII EHJ 250

ORDERCODE 40165

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Phantom brings excitement to any venue. Whether you want simple plug-&-play action or a

sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Phantom™Product Guide

Warning.................................................................................…...……………..…………………………….………..….

Safety-instructions…………………………………………………………………………………………………………

Operating Determinations.……………………………………………………………………………………………..

Rigging.……………………………………………………………………………………………………………………..

Description...............................................................................…...………………………………………….………..…

Features and Overview ………………………………...….……………….………….……….……….………………

Backside…………………………………………………...…...….……………….…………………...….………………

Installation...............................................................................…...…………………………………………………..…..

Installing the Lamp ........................................................…………………………………………………….………..

Lamp Adjustment.….......................................................………………………………………….………..………..

Set Up and Operation.....................................................................……..………………………………………………

One Phantom ............................................................................……………………………………………………..

Multiple Phantoms..............................................................................……………………………………………….

DMX-Protocol…...................................................………………………………………………………………………….

Mode 1-8 bit protocol........................................……………………………………………………………………....

Mode 2-16 bit protocol........................................………………………………………………………………….....

Control Panel….............……....................................…………………………………………………………………..

Control Mode........................................…………………………………………………………………………………

DMX addressing...................................………………………………………………………………………………….

Control panel functions...................................………………………………………………………………………..

Stand –alone mode...................................……………………………………………………………………………

Master/Slave mode...................................……………………………………………………………………………..

Slave mode...................................……………………………………………………………………….………………

DMX Configurations……………………………………………………………………………………………………....

Channel settings…………………………………………………………………………………………………………..

Maintenance...................................................................................………..………….…….……………………….….

Changing the Lamp........................................................................…………………….……………………..……

Replacing the Fuse........................................................................…………………….…………………………….

Replacing a Gobo….......................................................................…………………….……………………..……

Troubleshooting............................................................................………………….………………….………………...

No Light, No Movement - All Products............................................………………….……………………..……..

No Response to DMX ....................................................................………………….………………………..……..

Product Specifications.................................................................……………….…….…………………………….…..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never run the device without lamp!

Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may

expose and emit a high ultraviolet radiation, which may cause burns.

Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged.

Always hold the fixture at the transport handles.

Never look directly into the light source.

Never leave any cables lying around.

Never unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always replace the lamp, when it is damaged or deformed due to the heat.

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

To ensure the longest and most efficient use of the lamp always wait 15 minutes before re-

applying power after a shutdown. Failure to do so could result in premature aging of the lamp

and failure to the electronics that drive it.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due

to cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Movinghead must be installed out of the reach of children. Never leave the

unit running unattended.

For replacement use lamps and fuses of same type and rating only.

Allow time to cool down, before replacing lamp.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 1.3 meter.

The maximum ambient temperature tamust never be exceeded.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash

etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the projector is lowered from the ceiling or high joists, professional trussing systems have to be

used.

Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.

The projector must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the projector, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

The Phantom can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

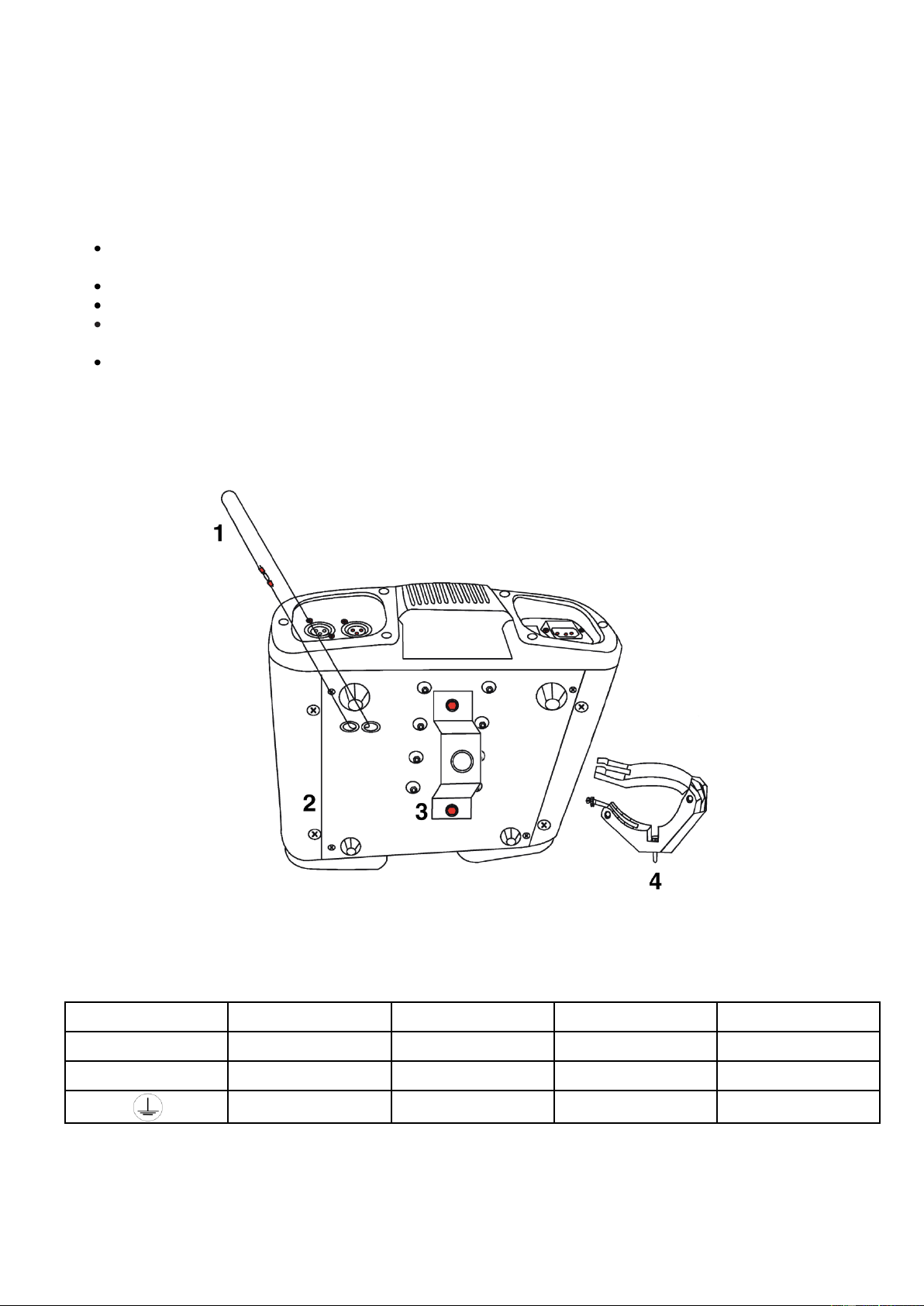

Mounting a clamp to the underside of the Phantom moving head

1) Safety-cable

2) Mounting plate

3) Eye bolt

4) Clamp

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property !

Description of the device

Features

The Showtec Phantom is a moving-head with high output and great effects.

• 1 Color-wheel with 9 colored gobos, and open

• 1 Gobo-wheel with 5 metal and 2 glass interchangeable rotating gobos plus open

• DMX-control via standard DMX-controller

• 6/9 DMX-control channels required

• Mechanical Dimmer/Shutter/Strobe

• Strobe-effect with adjustable speed (1 - 10 flashes/sec.)

• Sound-controlled via built-in microphone

• Manual focus

• Pan 0º -- 540º

• Tilt 0º -- 270º

• Pan/Tilt speed & reset control channel

• Gobo Bounce™

• Automatic Pan/Tilt correction

• User selectable 8 or 16 bit movement

• LED display menu with invert

• Pan/Tilt Invert option

• Micro-stepping motors

• Thermal switch

• Lamp HTI 150

• Fuse T3,5A / 250V

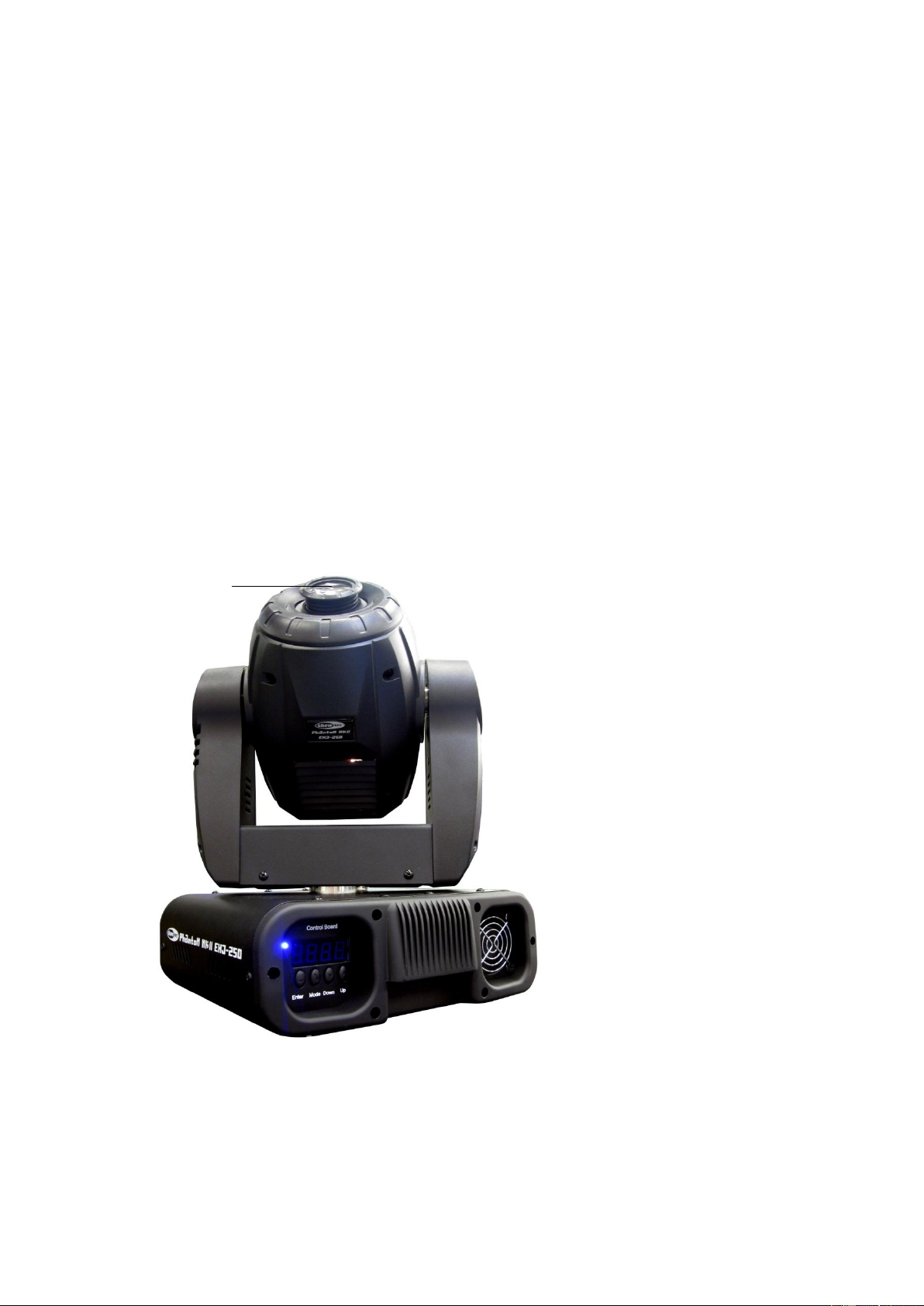

Overview 1

Fig. 1

1) Lens

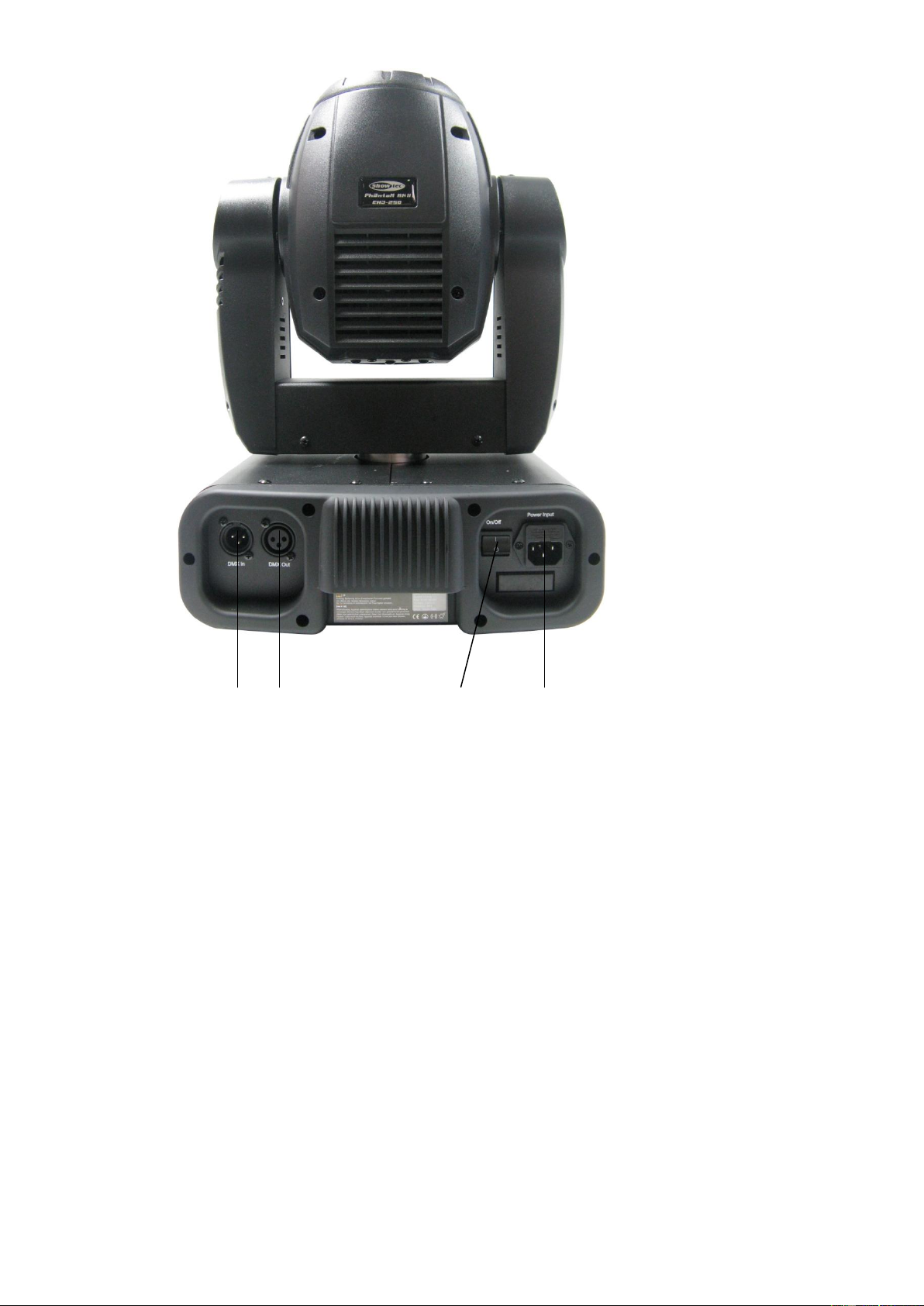

Backside

2 3 4 5 Fig. 2

2) DMX signal connector (IN)

3) DMX signal connector (OUT)

4) ON / OFF

5) IEC power connector + Fuse 3,5A 250V

Installation

Installing the Lamp

The Showtec Phantom uses the EHJ 250 (ordercode 80503) reflectorbulb as manufactured by all popular

manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the

device was not designed for.

Damages caused by non-observance are not subject to warranty.

Procedure :

1. Loosen the 2 screws on the back of the housing.

2. Gently remove the small metal housing.

3. Read lamp instructions. Do not touch the lamp bulb glass. (See Figure 3.)

Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free

towel and rubbing alcohol.).

4. Insert the lamp pins into the small holes in the lamp socket. You can adjust the distance between the

lamp and the lens on the back of the cover.

5. Put the lamp cover back and fasten the screws snugly. Then put the plastic housing back and fasten

the screws snugly.

1 2 3

Fig. 3

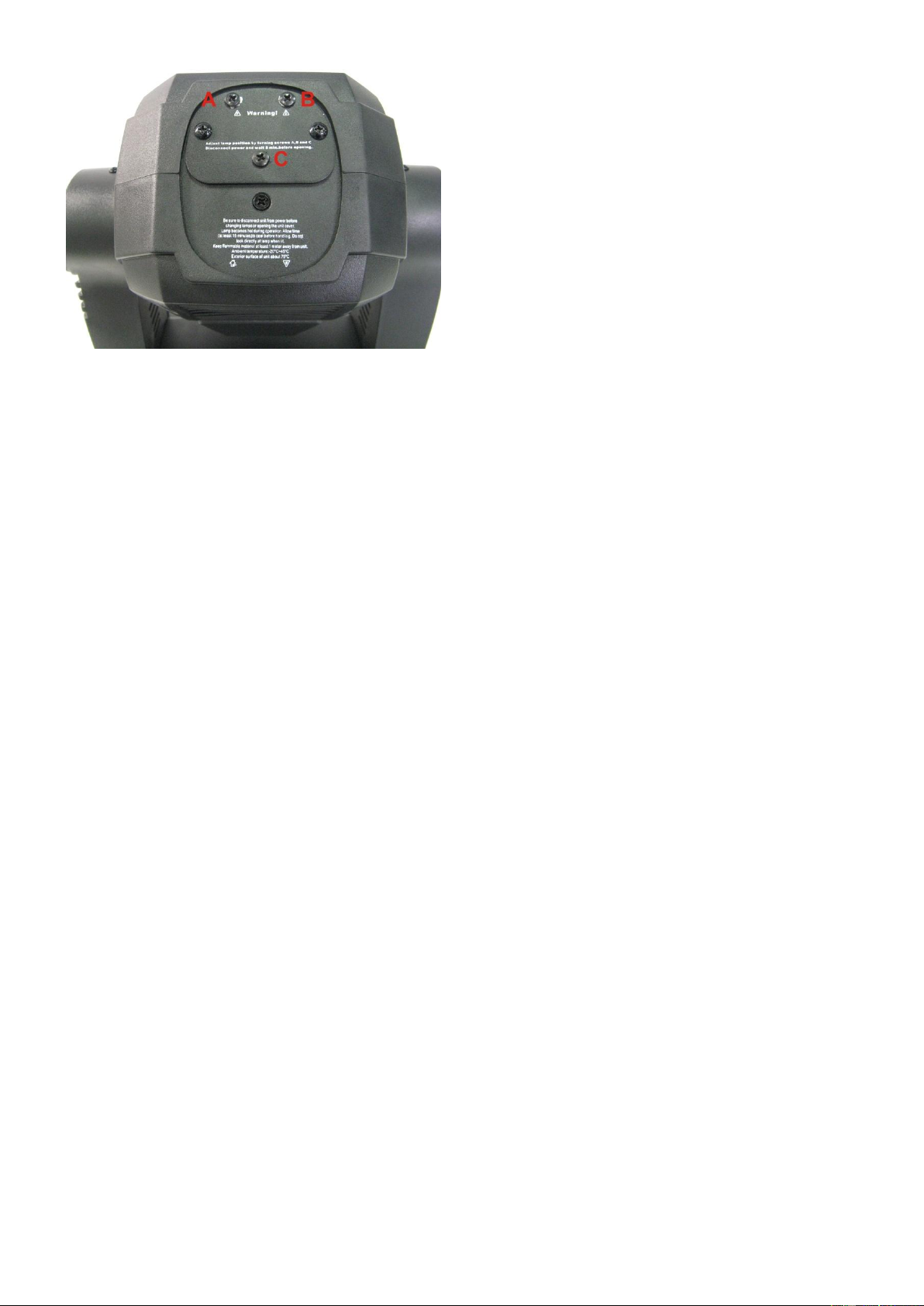

Backside Lamp Board

Fig. 4

Lamp Adjustment

You can adjust the lamp’s position by turning the screws A, B, C.

The lamp position is set in the factory. As the lamps, which can be used, differ from manufacturer to

manufacturer, it can be necessary to readjust the position. The lamp must be readjusted e.g., if the light

does not seem to be evenly distributed within the ray of light.

Ignite the lamp and focus the ray of light on an even surface (wall). As the optimal distance between the

lamp and the lens was already set during the installation with screw "A", only the "Hot Spot" ( the brightest

part of the ray of light) must be centered. Turn in addition screw "B". If the Hot Spot appears too bright,

you can weaken its intensity, by moving the lamp closer to the reflector. Turn in addition screw "A", until

the light is evenly distributed. If the light at the outside edge of the ray of light appears brighter as in the

center, the lamp is too close to the reflector. In this case move the lamp away from the reflector, until the

light is evenly distributed and the ray of light appears bright enough.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Équipement d'éclairage

Show Tec

Show Tec Showdesigner 1024 Manuel utilisateur

Show Tec

Show Tec Parcan 36 Pinspot V1 Manuel utilisateur

Show Tec

Show Tec TED Pack Single Manuel utilisateur

Show Tec

Show Tec LED Par 38 Manuel utilisateur

Show Tec

Show Tec Expression 33000 Zoom RGBWA V3 Manuel utilisateur

Show Tec

Show Tec Club Color Spot 575 MKII Manuel utilisateur

Show Tec

Show Tec 30426 Manuel utilisateur

Show Tec

Show Tec XB-Duomoon Manuel utilisateur

Show Tec

Show Tec Accent Spot SW Manuel utilisateur

Show Tec

Show Tec Centron LED DMX Manuel utilisateur

Show Tec

Show Tec Star Sky Pro II Manuel utilisateur

Show Tec

Show Tec Phantom 75 LED Spot V4 Manuel utilisateur

Show Tec

Show Tec Star LED Manuel utilisateur

Show Tec

Show Tec Performer 60 LED V2 Manuel utilisateur

Show Tec

Show Tec phantom 75 LED Manuel utilisateur

Show Tec

Show Tec 43532 Manuel utilisateur

Show Tec

Show Tec LED Wash Ultra Bright RGB Manuel utilisateur

Show Tec

Show Tec Performer Profile 600 Manuel utilisateur

Show Tec

Show Tec Bat 3 Digital Manuel utilisateur

Show Tec

Show Tec Scat Moon Manuel utilisateur

Show Tec

Show Tec Galactic GBC-120 Manuel utilisateur

Show Tec

Show Tec SharkSpot Two V1 Manuel utilisateur

Show Tec

Show Tec EventLITE 4/8 Mini Q4 V1 Manuel utilisateur

Show Tec

Show Tec Phantom HTI-150 MKII Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
