Single WDP-1

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions.........................................................................................................................................................2

Operating Determinations..........................................................................................................................................3

Connection with the mains.........................................................................................................................................3

Return Procedure..........................................................................................................................................................4

Claims..............................................................................................................................................................................4

Description of the device.................................................................................................................................................5

Overview ........................................................................................................................................................................5

HTP (Highest Takes Precedence)............................................................................................................................6

Installation...........................................................................................................................................................................6

Connection Example...................................................................................................................................................6

Set Up and Operation.......................................................................................................................................................7

Linking..............................................................................................................................................................................7

Wireless Status LED Indicator....................................................................................................................................7

Unlinking..........................................................................................................................................................................7

Control Panel.................................................................................................................................................................8

Control Mode ................................................................................................................................................................8

DMX Addressing............................................................................................................................................................8

Menu Overview.............................................................................................................................................................8

Main Menu Options......................................................................................................................................................9

1. Remote Control/Manual Control .......................................................................................................................9

2. DMX Addressing (Fun1) ........................................................................................................................................9

3. Dimmer/Switch (Fun1) ..........................................................................................................................................9

4. Dimmer Limit (Fun1)...............................................................................................................................................9

5. WDP Control (Fun1)...............................................................................................................................................9

6. Dimmer Preset (Fun2)............................................................................................................................................9

7. Full On (Fun2)........................................................................................................................................................10

DMX Channels.............................................................................................................................................................10

1 channel ..................................................................................................................................................................10

Maintenance....................................................................................................................................................................10

Replacing the Fuse.....................................................................................................................................................10

Troubleshooting ...............................................................................................................................................................10

Product Specification .....................................................................................................................................................11

Notes..................................................................................................................................................................................12

Ordercode: 50756

Single WDP-1

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

•Showtec Single WDP-1 with a power cable (1 m)

•Remote dimming fader with a power cable (1,9 m)

•User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

•be qualified

•follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 50756

Single WDP-1

IMPORTANT!

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never leave any cables lying around.

•Do not insert objects into air vents.

•Do not open the device and do not modify the device.

•Do not connect this device to a dimmer pack.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Do not switch the device on and off in short intervals, as this would reduce the system’s life.

•Only use device indoors, avoid contact with water or other liquids.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord by the plug. Never pull out the plug by tugging the power cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

•For replacement use fuses of same type and rating only.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

Operating Determinations

•This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

•The maximum ambient temperature ta= 35°C must never be exceeded.

•The relative humidity must not exceed 50 % with an ambient temperature of 35° C.

•If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property!

Ordercode: 50756

Single WDP-1

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 50756

Single WDP-1

Description of the device

Features

The Showtec Single WDP-1 is a 1-channel DMX dimmer/switch with a built-in wireless DMX receiver.

It is possible to mount the Single WDP-1 to any wall, truss or a fixture which makes it suitable for any

location.

•Input voltage: 230V AC, 50Hz

•Output: 10A Schuko output

•Connections: 3-pin DMX signal connector IN/OUT

•50 mm dimming fader

•Built-in wireless DMX receiver

•DMX channels: 1 channel

•Housing: Metal & flame retardant plastic

•Color: Grey

•Fuse: F10L/250V

•Dimensions: 100 x 95 x 273 mm (LxWxH)

•Weight: 1,4 kg

Optional accessories

50231 – W-DMX Micro F-1 Transceiver

50236 – W-DMX BlackBox F-1 MKII G4 Transceiver

Overview

Fig. 01

01) Wireless DMX antenna

02) 10A Schuko OUT

Connect a light source.

03) Manual dimming fader (HTP)

Move the fader up and down, to adjust the dimmer brightness.

04) LED display + control buttons

05) Fuse F10L/250V

06) 230V AC Schuko power cable (1 m)

07) 3-pin DMX signal connector IN

08) 3-pin DMX signal connector OUT

09) Remote dimming fader connector – 3,5 mm mini jack IN

Connect the remote dimming fader (10).

10) Remote dimming fader 1,9 m (HTP)

Move the fader up and down to adjust the dimmer brightness.

Ordercode: 50756

Single WDP-1

HTP (Highest Takes Precedence)

If the DMX input value is higher than the fader (03/10) value, then the DMX input will take precedence

over the fader input. Similarly, if the fader (03/10) value is higher than the DMX input value, then the fader

input will take precedence over the DMX input.

Installation

Remove all packing materials from the Single WDP-1. Check if all foam and plastic padding is removed.

Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

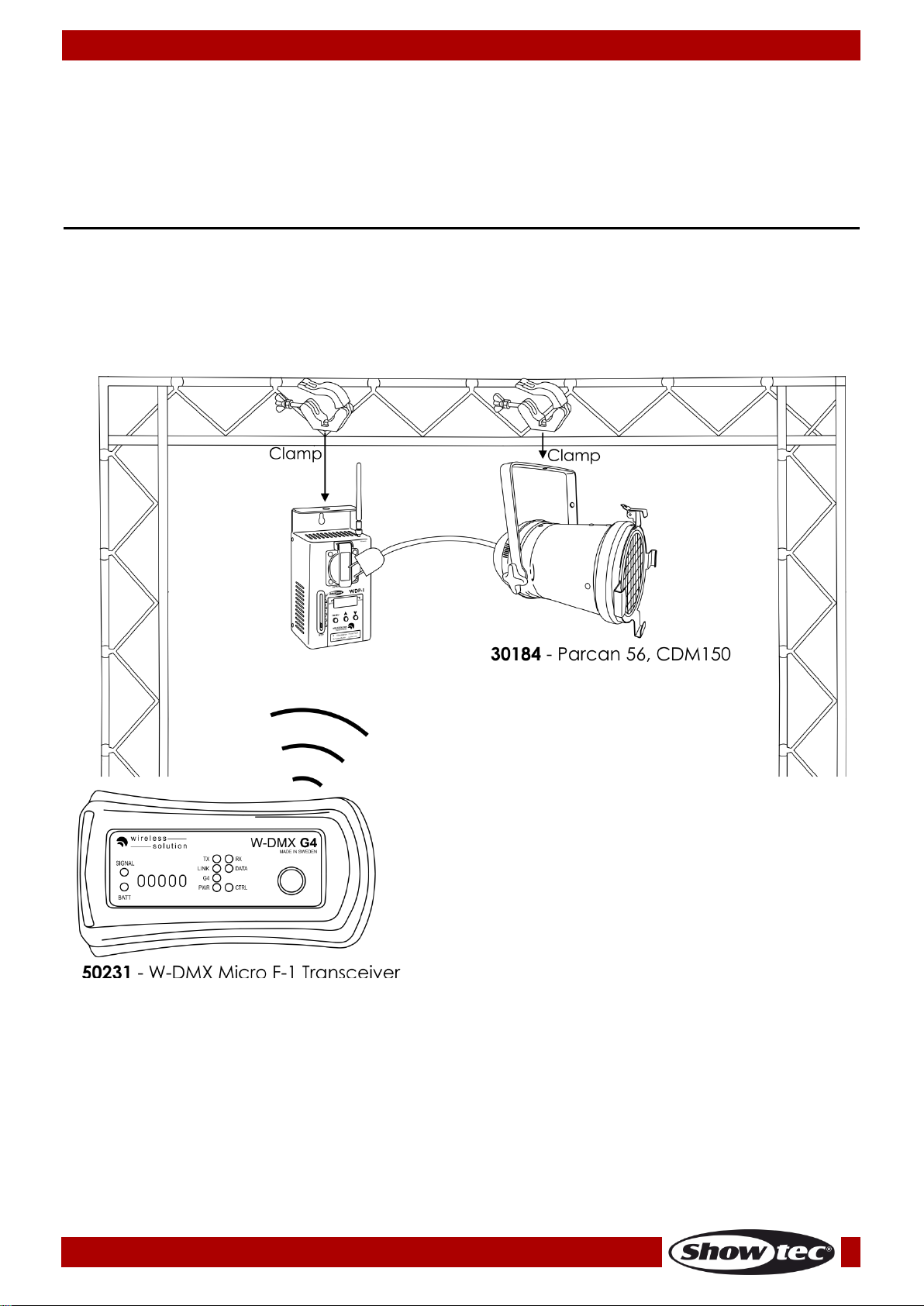

Connection Example

Fig. 02

Ordercode: 50756

Single WDP-1

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply.

The Single WDP-1 is equipped with the power failure memory. This means that the device remembers the

last active settings and operation mode and is able to restore them in case of a power shortage. The

Single WDP-1 can be used as a dimmer pack or a switch pack.

Linking

01) In order to link the Single WDP-1 to a transmitter, you should follow the instructions from your

transmitter’s user manual. It is not possible to link devices from the Single WDP-1.

02) Make sure that the device is not linked to a transmitter.

03) Check the Wireless status LED (F) (see the control panel, page 8) and compare with the chart below

(fig. 03).

Wireless Status LED Indicator

Fig. 03

Unlinking

It is possible that, before being able to use the Single WDP-1, you will need to unlink it first.

There are 2 ways of unlinking the Single WDP-1: via transmitter or via the Single WDP-1.

01) Via transmitter: Follow the instructions from your transmitter’s user manual on how to unlink the

devices.

02) Via the Single WDP-1: Press and hold down the MENU and DOWN buttons for 4 seconds. The Single

WDP-1 will now be unlinked (the wireless status LED will switch off). Now, it is possible to link your

transmitter to the Single WDP-1. To do so, follow the instructions from your transmitter’s user manual.

Ordercode: 50756

Single WDP-1

Control Panel

A) LED display

B) DMX LED indicator

C) MENU button

D) UP button

E) DOWN button

F) Wireless DMX LED indicator

Fig. 04

Control Mode

The Single WDP-1 is individually addressed on a data-link and connected to the controller.

The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,

the controller will display the saved DMX address, next time.)

DMX Addressing

The control panel on the front side of the base allows you to assign DMX fixture addresses, which is the first

channel with which the WDP will respond to the controller.

Please note, when you use the controller, the unit has 1channel.

Controlling:

After having addressed all WDP fixtures, you may now start operating these via your lighting controller.

Note: After switching on, the WDP will automatically detect whether DMX 512 data is received or not.

If there is no data received at the DMX-input, the “LED “ on the control panel will not flash.

If not, the problem may be:

•The XLR cable from the controller is not connected with the input of the Single WDP-1.

•The controller is switched off or defective, the cable or connector is detective, or the signal wires are

swapped in the input connector.

Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure

proper transmission on the DMX data link.

Menu Overview

Ordercode: 50756

Single WDP-1

Main Menu Options

1. Remote control/Manual control

2. DMX Addressing (Fun1)

3. Dimmer/Switch (Fun1)

4. Dimmer Limit (Fun1)

5. WDP Control (Fun1)

6. Dimmer Preset (Fun2)

7. Full On (Fun2)

1. Remote Control/Manual Control

01) Press the MENU button until the display shows or .

02) Press the UP/DOWN buttons to choose between (DMX/wireless DMX receiver enabled) and

(manual mode).

Note:

If you have chosen , please read sections 2-5.

If you have chosen , please read sections 6-7.

2. DMX Addressing (Fun1)

01) Press the MENU button until the display shows .

02) Press the UP/DOWN buttons to choose the desired DMX address.

The adjustment range is between 001-512. Press and hold down the UP/DOWN buttons for fast DMX

address selection.

03) The currently selected DMX address will be automatically saved.

3. Dimmer/Switch (Fun1)

01) Press the MENU button until the display shows .

02) Press the UP/DOWN buttons to choose between and .

03) If set to , then it is possible to remotely dim the light output.

04) If set to , then it is possible to switch the light output on/off.

4. Dimmer Limit (Fun1)

01) Press the MENU button until the display shows .

02) Press the UP/DOWN buttons to set the desired maximum dimming limit value. The adjustment range is

between 0-100.

5. WDP Control (Fun1)

01) Press the MENU button until the display shows .

02) Press the UP/DOWN buttons to choose between (controlled by XLR DMX) and

(controlled by wireless DMX).

6. Dimmer Preset (Fun2)

01) Once you have set the device to (see section 1 above), press the MENU button.

02) The display will show .

03) Press the UP/DOWN buttons to set the desired dimmer value. The adjustment range is between 0-100,

from dark to brightest.

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Octopod 30 Manuel utilisateur

Show Tec

Show Tec Media Panel 100 V1 Manuel utilisateur

Show Tec

Show Tec 60407 Manuel utilisateur

Show Tec

Show Tec Domotion DA-U-48 Manuel utilisateur

Show Tec

Show Tec ACT Image Spot 50 CW V1 Manuel utilisateur

Show Tec

Show Tec 437 49 Manuel utilisateur

Show Tec

Show Tec Mirrorball Motor until 50 cm V2 Manuel utilisateur

Show Tec

Show Tec Showmaster 48 Manuel utilisateur

Show Tec

Show Tec Truss Booster RDM 1-6 Manuel utilisateur

Show Tec

Show Tec Parcan 56 Short Manuel utilisateur

Show Tec

Show Tec LP-416 Manuel utilisateur

Show Tec

Show Tec Compact Par 7/15 Q4 Manuel utilisateur

Show Tec

Show Tec STAGE BLINDER 2 DMX Manuel utilisateur

Show Tec

Show Tec HIP HOP Manuel utilisateur

Show Tec

Show Tec Sunstrip Active MKII 110V V1 Manuel utilisateur

Show Tec

Show Tec Galactic RGB300 Manuel utilisateur

Show Tec

Show Tec Luna Par 120 Q4 Manuel utilisateur

Show Tec

Show Tec LED Wash Ultra Bright Compact RGB Manuel utilisateur

Show Tec

Show Tec LED PAR 64 AIRCRAFT Manuel utilisateur

Show Tec

Show Tec Performer 2000 RGBAL V1 Manuel utilisateur

Show Tec

Show Tec FX Ice Jet Manuel utilisateur

Show Tec

Show Tec Compact Power Lightset V2 Manuel utilisateur

Show Tec

Show Tec ACT Flood 100 RGBW V1 Manuel utilisateur

Show Tec

Show Tec Trackpod 90 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
