Show Tec 42498 Manuel utilisateur

Compact Studiobeam Smart White

ORDERCODE 42498

Highlite International B.V.

Vestastraat 2

6468 EX Kerkrade

The Netherlands

Phone: +31 45-5667700

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Compact Studiobeam Smart White brings excitement to any venue. Whether you want

simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Compact Studiobeam Smart White ™Product Guide

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Return Procedure..........................................................................................................................................................5

Claims..............................................................................................................................................................................5

Description of the device.................................................................................................................................................6

Overview ........................................................................................................................................................................6

Overview ........................................................................................................................................................................7

Installation...........................................................................................................................................................................7

Set Up and Operation .......................................................................................................................................................8

Control Modes...............................................................................................................................................................8

One Compact Studiobeam (Manual Mode).....................................................................................................8

One Compact Studiobeam (Sound-control) .....................................................................................................8

Multiple Compact Studiobeams (DMX Control)................................................................................................8

Fixture Linking.................................................................................................................................................................9

Data Cabling.................................................................................................................................................................9

Control Panel ...............................................................................................................................................................10

Control Mode ..............................................................................................................................................................10

Menu Overview...........................................................................................................................................................11

DMX Channels .............................................................................................................................................................12

1 DMX Channel.......................................................................................................................................................12

2 DMX Channels .....................................................................................................................................................13

3 DMX Channels .....................................................................................................................................................13

7 DMX Channels .....................................................................................................................................................14

Maintenance....................................................................................................................................................................15

Troubleshooting ...............................................................................................................................................................15

No Light.........................................................................................................................................................................15

No Response to DMX..................................................................................................................................................15

Product Specification .....................................................................................................................................................17

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

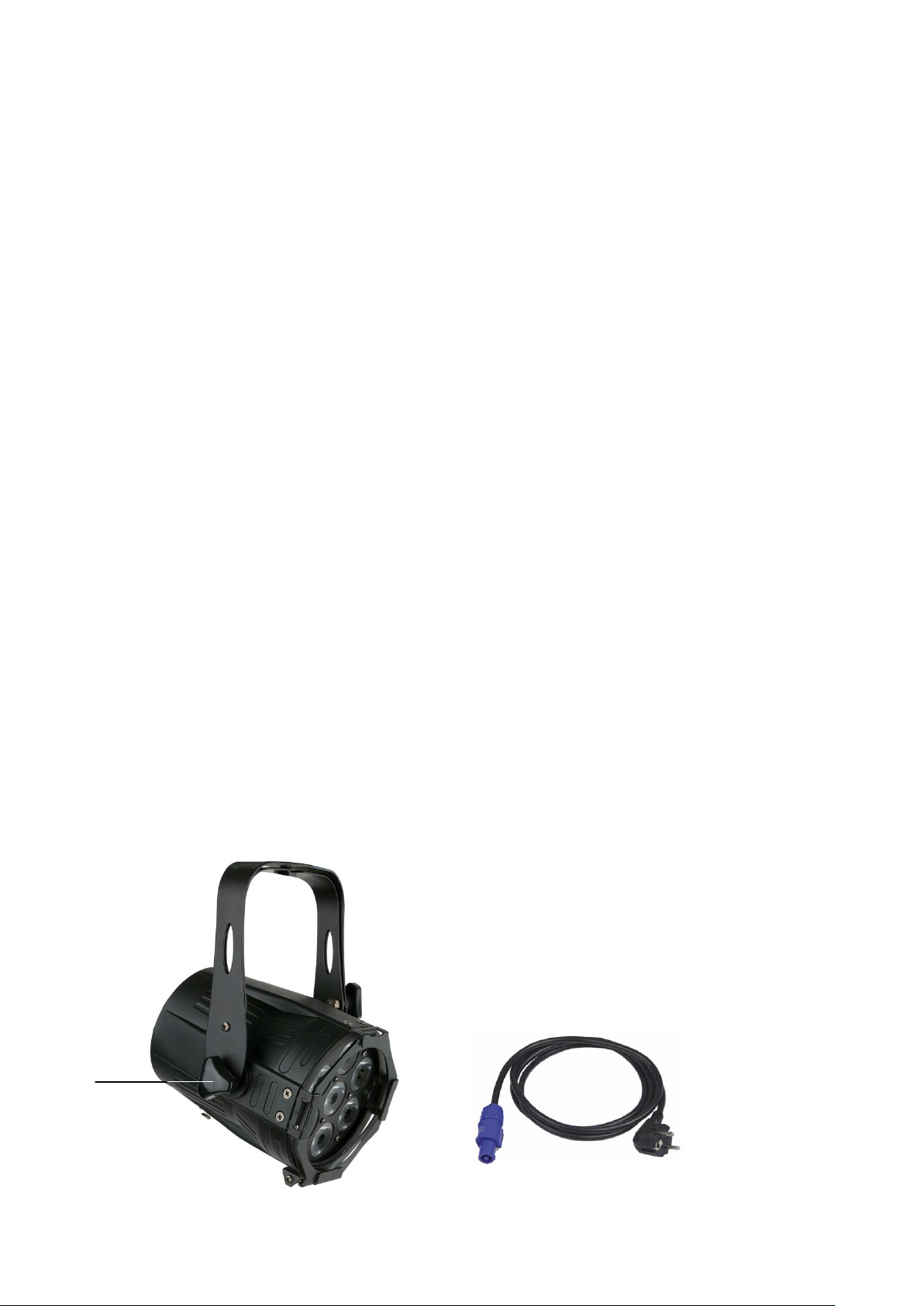

Your shipment includes:

• Compact Studiobeam Smart White

• Powercon cable 1,50m

• User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. It is estimated that a viable lifespan of 40,000 to 50,000 hours will be achieved

under normal operational conditions. If improving on this lifespan expectancy is of a higher priority, place

care in providing for lower operational temperatures. This may include climatic-environmental and the

reduction of overall projection intensity.

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up,, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Do not open the device and do not modify the device.

Never use anything to cover the ground contact.

Never look directly into the light source.

Never leave any cables lying around.

Never use the device during thunderstorms, unplug the device immediately.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always replace the lamp, when it is damaged or deformed due to the heat.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

Make sure that no side forces can impact on the truss system.

The cable insert or the female part in the device must never be strained. There must always be

sufficient cable to the device. Otherwise, the cable may be damaged which may lead to deadly

electrical shocks.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Light effect must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

This device can be installed on a flat surface or onto truss systems via the mounting bracket.

The user is responsible for correct positioning and operating of the Compact Studiobeam. The

manufacturer will not accept liability for damages caused by the misuse or incorrect installation

of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

Operating Determinations

•This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

•The minimum distance between light-output and the illuminated surface must be more than 1 meter.

•The maximum ambient temperature ta= 45°C must never be exceeded.

•The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

•If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the Compact Studiobeam is lowered from the ceiling or high joists, professional trussing systems

have to be used.

Use a clamp to mount the Compact Studiobeam, with the mounting-bracket, to the trussing

system.

The Compact Studiobeam must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the Compact Studiobeam, always make sure, that the area

below the installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The Showtec Compact Studiobeam Smart White is a LED parcan with high output and great effects.

•High light output and never change lamps again!

•Stylish design

•Convection cooling which eliminates the use of fans and noise

•Very suitable for illuminating trusses as well as background lighting.

•Equipped with a double bracket, so it is also suitable for floor use.

•Signal connector XLR 3-pole Male and Female

•Smart White control

•Multi Voltage: 100-240V ~47/63Hz

•Road Proof Design

•Neutrik connectors

•Equipped with special LED's, offering Cool White, Warm White and Amber in one package.

•Excellent white balance, therefore it is very suitable for broadcast, TV studio, theatres and events.

•LED Quantity: 7x 3-in-1 CW, WW, Amber (5W)

•Multivoltage Powersupply

•Driver current: 350mA

•Refreshrate: 400 Hz

•Dimmer: 0-100%

•Strobe: 0-20Hz

•Beam Angle: 10° degrees

•On Board: Display for easy Set Up

•Options : DMX512, Auto, Manual

•DMX personality: 1, 2, 3, 7 Channel

•Power consumption: 40W max @FO

•IP Rating: IP-20

•Housing: Die cast Aluminium

•Black Powder Coat Finish

•Cooling: Convection (no fans)

•Linkable

•Mounting bracket included

•Connections: Powercon + Neutrik XLR 3 pole

•Cooling: Forced Cooling (Fan)

•Dimensions (LxWxH): 180 x 180 x 245 mm

•Weight: 1,75 kg

NOTE: Knowledge of DMX is required to fully utilize this unit.

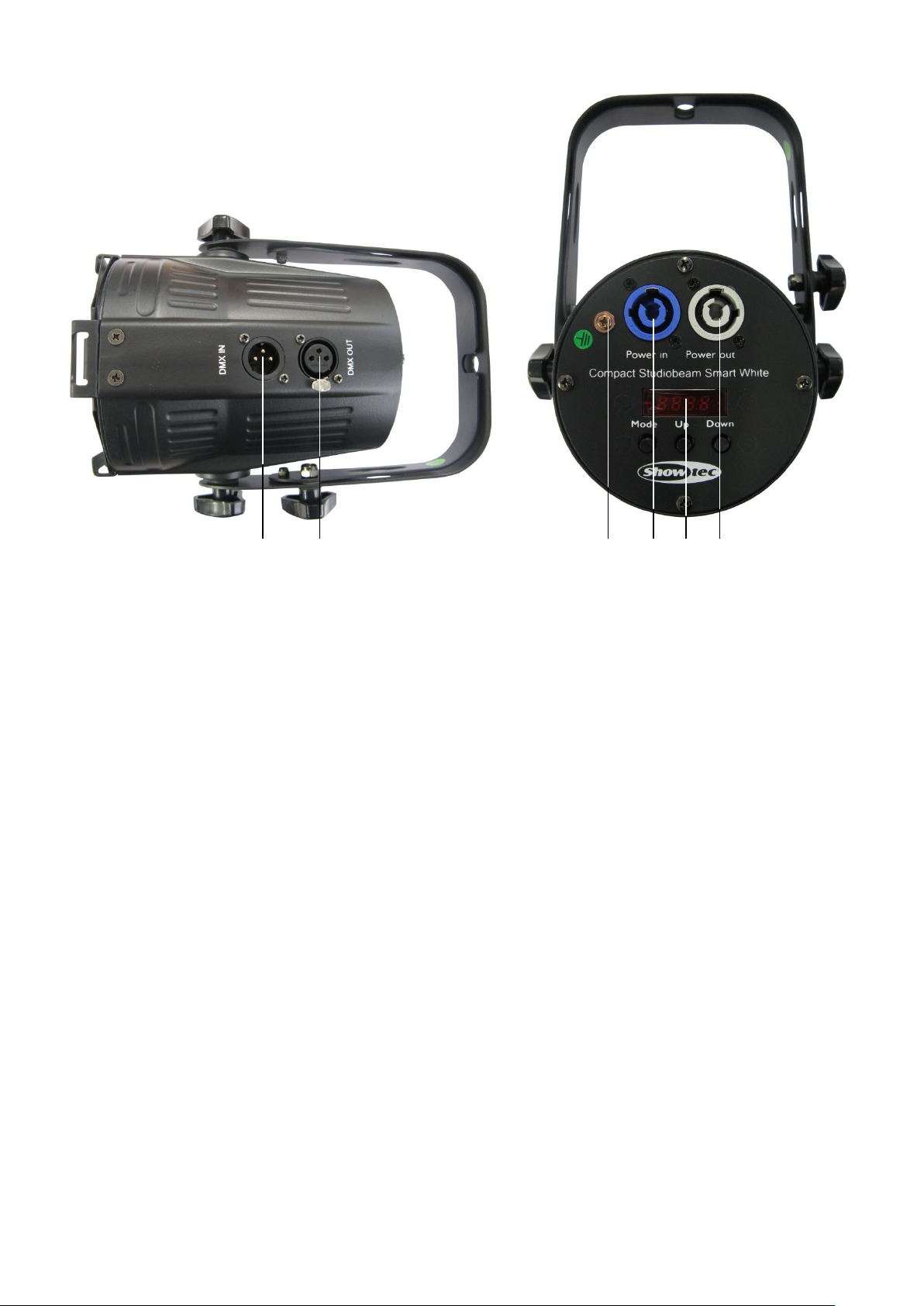

Overview

1) Fixation screw + Mounting Bracket

Overview

Fig. 1

2 3 4 5 6 7

2) DMX signal connector (IN)

3) DMX signal connector (OUT)

4) Earth connection Powercable

5) Power Input (Blue): This connector is the input power for this unit (Max 20A).

6) Mode, Up and Down Buttons

7) Power Thru (Grey): This connector sends the power to the next unit (Max 20A).

Installation

Remove all packing materials from the Compact Studiobeam. Check that all foam and plastic padding

is removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage.

Damages caused by non-observance are not subject to warranty.

Control Modes

There are 3 modes: • Manual Mode

• Sound-controlled

• DMX512

One Compact Studiobeam (Manual Mode)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Plug the end of the electric mains power cord into a proper electric power supply socket.

3. When the Compact Studiobeam is not connected by a DMX-cable, it functions as a stand-alone

device. Please see page 13 for more information about the Manual Mode.

One Compact Studiobeam (Sound-control)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Plug the end of the electric mains power cord into a proper electric power supply socket.

3. Turn on the music. If device is set to (Audio) and you have pressed enter, then the fixture

will react to the beat of the music. Please see page 14 for more information about the sound-control

options.

Multiple Compact Studiobeams (DMX Control)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Always use a safety cable (ordercode 70140 / 70141).

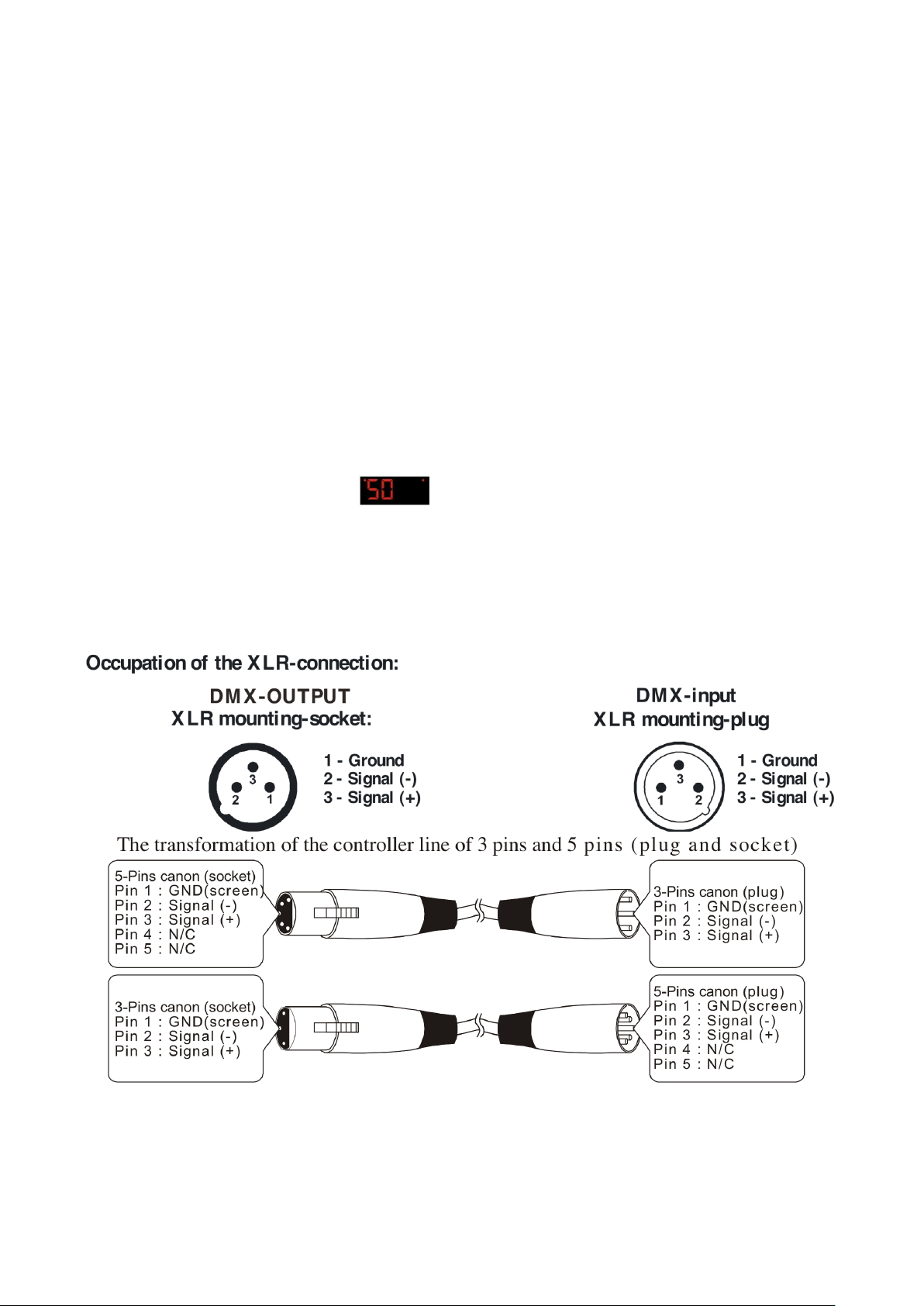

3. Use a 3-p XLR cable to connect the Compact Studiobeam and other devices.

4. Link the units as shown in (figure 3), Connect a DMX signal cable from the first unit's DMX "out" socket

to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

5. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the

other end of the mains power cord into proper electric power supply sockets, starting with the first

unit. Do not supply power before the whole system is set up and connected properly.

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Compact Par 7/15 Q4 Manuel utilisateur

Show Tec

Show Tec Data Flash Strobe V1 Manuel utilisateur

Show Tec

Show Tec Star Sky Pro Manuel utilisateur

Show Tec

Show Tec Hydrogen DMX MKII Manuel utilisateur

Show Tec

Show Tec EVENTSPOT 60 Q7 Manuel utilisateur

Show Tec

Show Tec Luna Par 60 Q4 Manuel utilisateur

Show Tec

Show Tec Tracker 300 V3 Manuel utilisateur

Show Tec

Show Tec Booster IP 1-4 3-pin V1 Manuel utilisateur

Show Tec

Show Tec RGB Studio Beam Driver Manuel utilisateur

Show Tec

Show Tec Astro 360 RGBW V1 Manuel utilisateur

Show Tec

Show Tec Blacklight 400W Manuel utilisateur

Show Tec

Show Tec Single WDP-1 Manuel utilisateur

Show Tec

Show Tec Eventlite 177IR Manuel utilisateur

Show Tec

Show Tec 40392 Manuel utilisateur

Show Tec

Show Tec Galactic RGB300 Manuel utilisateur

Show Tec

Show Tec 60407 Manuel utilisateur

Show Tec

Show Tec Performer 1500 Fresnel Daylight Manuel utilisateur

Show Tec

Show Tec LED City Painter 45 Manuel utilisateur

Show Tec

Show Tec 60409 Manuel utilisateur

Show Tec

Show Tec Edison Dot E1 V1 Manuel utilisateur

Show Tec

Show Tec Spectral 2500 Zoom Tour Manuel utilisateur

Show Tec

Show Tec 42280 Manuel utilisateur

Show Tec

Show Tec sky rose 4000 Manuel utilisateur

Show Tec

Show Tec Helix M1100 Q4 Mobile Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
