Show Tec Titan Strobe 3000 Manuel utilisateur

Titan Strobe 3000

ORDERCODE 40251

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Titan Strobe brings excitement to any venue. Whether you want simple plug-&-play action or a

sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Titan Strobe™Product Guide

Warning..…...................................................................................…………………………………………………….….

Safety-instructions……………………………………………………………………………………………………….…

Operating Determinations…………………………………………………………………………………………….…

Rigging…………………………………………………………………………………………………………………….…

Description..…..............................................................................……….…………………………………………..…..

Features and Overview ………………………………...….……………….………….………………………….….…

Backside…………………………………………………...…...….……………….…………………...….………………

Installation...............................................................................…...…………………………………….…………………

Installing the Lamp ........................................................………………………………………..…………………….

Set Up and Operation.....................................................................……..……………………………….……………..

Self-test Mode ………………………………...….……………….………….……………………………………..….…

DMX Dip Switch Setting …………………………………...…...….……………….…………………...….……………

Maintenance...................................................................................………..………….…….…………………………..

Changing the Lamp........................................................................…………………….…………………………..

Replacing the Fuse........................................................................…………………….…………………………….

Troubleshooting............................................................................………………….………………….…………………

No Light.........................................…………………………………...………………….……………………………….

No Response to DMX ....................................................................………………….……………………………….

Product Specifications.................................................................……………….…….………………………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should there

be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never run the device without lamp!

Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may

expose and emit a high ultraviolet radiation, which may cause burns.

Never look directly into the light source.

Never leave any cables lying around.

Never modify, bend, mechanically strain, put pressure on, pull or heat up the power cord.

Never strain the cable insert or the female part in the device. There must always be sufficient cable

going to the device. Otherwise, the cable will be damaged, which can cause serious damage.

Never operate the stroboscope without protective shield! When the shield is cracked, replace it

before using the device again.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

Avoid flames and do not put close to flammable liquids or gases.

Always replace the lamp, when it is damaged or deformed due to the heat.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

Make sure that the core diameter of extension cords and power cords is sufficient for the required

power consumption of the device.

If device is dropped or struck, disconnect main power supply immediately. Have a qualified engineer

inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use lamps of same type and rating only.

Allow time to cool down, before replacing lamp.

Keep away from direct insulation.

This device is only allowed for an installation via the mounting bracket.

The user is responsible for correct positioning and operating of the Titan Strobe. The manufacturer will

not accept liability for damages caused by the misuse or incorrect installation of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the device

will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 0.8 meter.

The maximum ambient temperature tamust never be exceeded.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the strobe is lowered from the ceiling or high joists, professional trussing systems have to be used.

Use a clamp to mount the strobe, with the mounting-bracket, to the trussing system.

The strobe must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

When rigging, derigging or servicing the strobe, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Showtec Titan Strobe is a dimmable, DMX-controlled strobe light with a high output.

• 1500W flash

• DMX-control via standard DMX-controller

•3 DMX channels

• Strobe-effect with adjustable speed (1 - 25 flashes/sec.)

• Lamp PX-1500W

• Fuse 20A / 250V

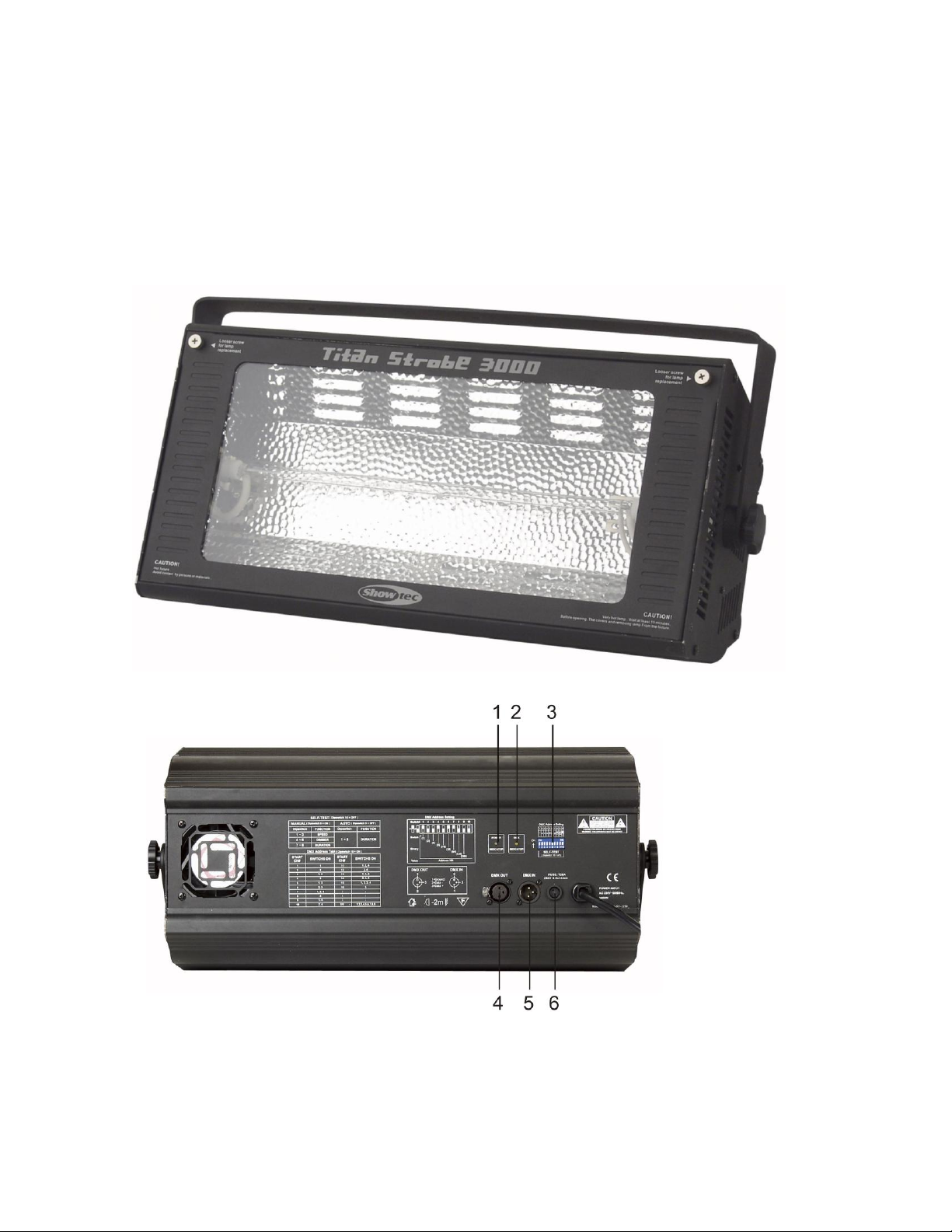

Overview

Fig. 1

Backside

Fig. 2

1) Power Indicator: Indicates when power is on.

2) DMX Indicator: Indicates when DMX signal is available.

3) Dip Switches

4) DMX signal connector (OUT): XLR female socket, to connect another unit.

5) DMX signal connector (IN): XLR male socket, to receive DMX signals.

6) Fuse: T20A 250V 6,3x32mm

Installation

Installing the Lamp

The Showtec Titan Strobe uses the PX-1500 (ordercode 82690) lightbulb as manufactured by all popular

manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the device

was not designed for.

Damages caused by non-observance are not subject to warranty.

DANGEROUS: Leave the device disconnected for 15 min before opening. Otherwise you could be

seriously injured due to a power shock !!!

Procedure :

1. Disconnect from main power supply, and leave for 15 minutes.

2. Remove the glass cover. With the left hand gently pull the lamp out the spring, while pushing the spring

back with the right hand.

3. Remove the lamp. Read lamp instructions. Do not touch the lamp bulb glass. Oil on hands shortens the

lamp life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free towel and rubbing alcohol.)

Hold the lamp with one hand and Insert the lamp into the spring. Put the glass cover back.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

1. Plug the power cable into the wall.

2. Connect a DMX controller to the Titan Strobe, using a 3-pin XLR cable.

3. Connect every unit with a 3-pin XLR cable. Every unit is set to the same DMX work mode and

the received DMX addresses are the same. When a DMX signal is received, the devices function

synchronously.

4. Please follow the dip switch setting and operating mode for the desired lighting effect (see page 7).

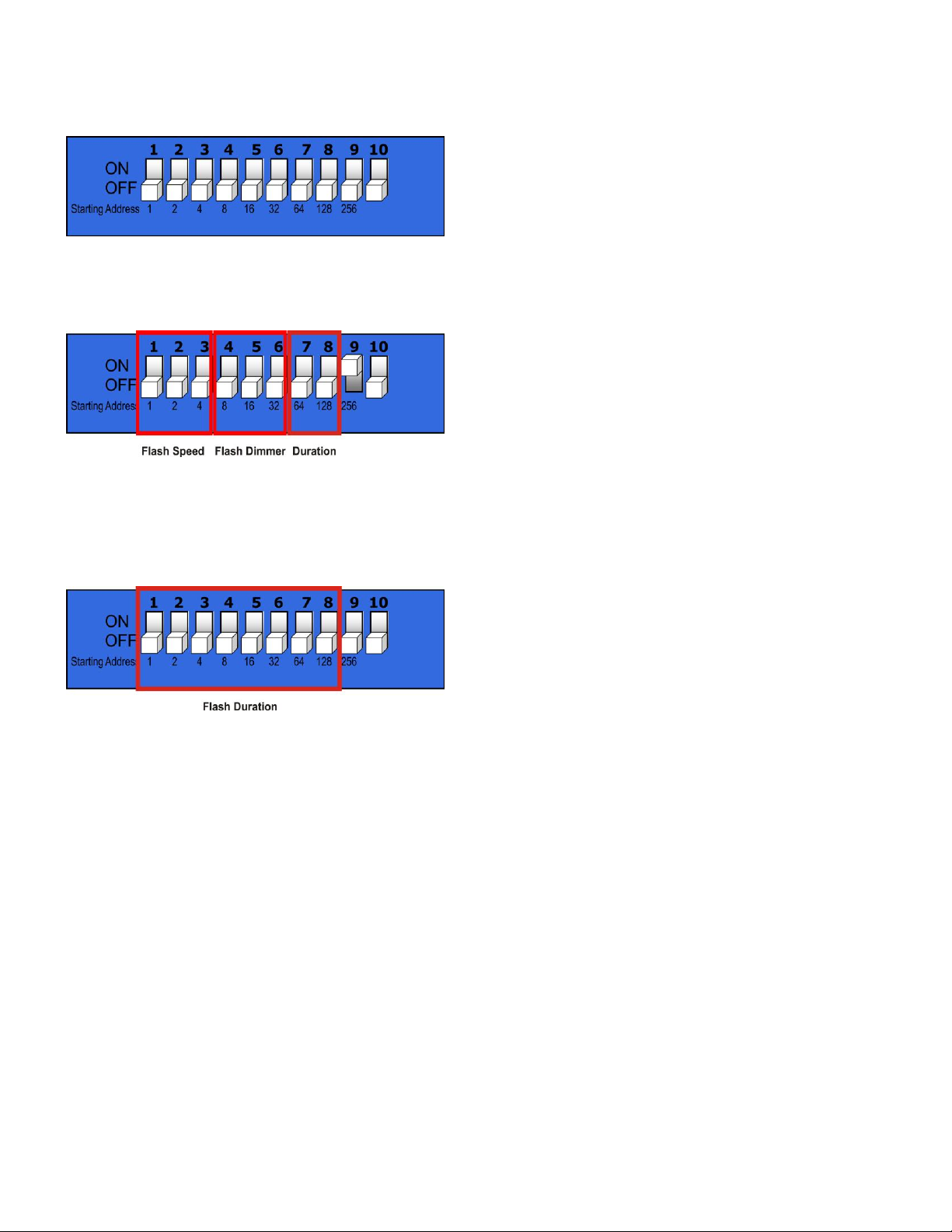

Self-test Mode

1. Set dip switch 10 to OFF, this unit is in self-test mode.

There are 2 self-test modes: MANUAL and AUTO.

Manual Self-test Mode

Set dip switch 9 to ON, it performs a MANUAL self-test.

Dip switch 1, 2, 3 are assigned to control Flash Speed.

Dip switch 4, 5, 6 are assigned to control Flash Dimmer .

Dip switch 7 and 8 are assigned to control the Flash duration.

Auto Self-test Mode

Set dip switch 9 to OFF, the strobe performs an AUTO self-test.

Dip switch 1 –8 are assigned to adjust the duration level.

DMX Dip Switch Setting

Set dip switch 10 to ON, this unit is in DMX Mode. Follow DMX address setting printed on the rear of the strobe

for the desired flash speed and dimmer.

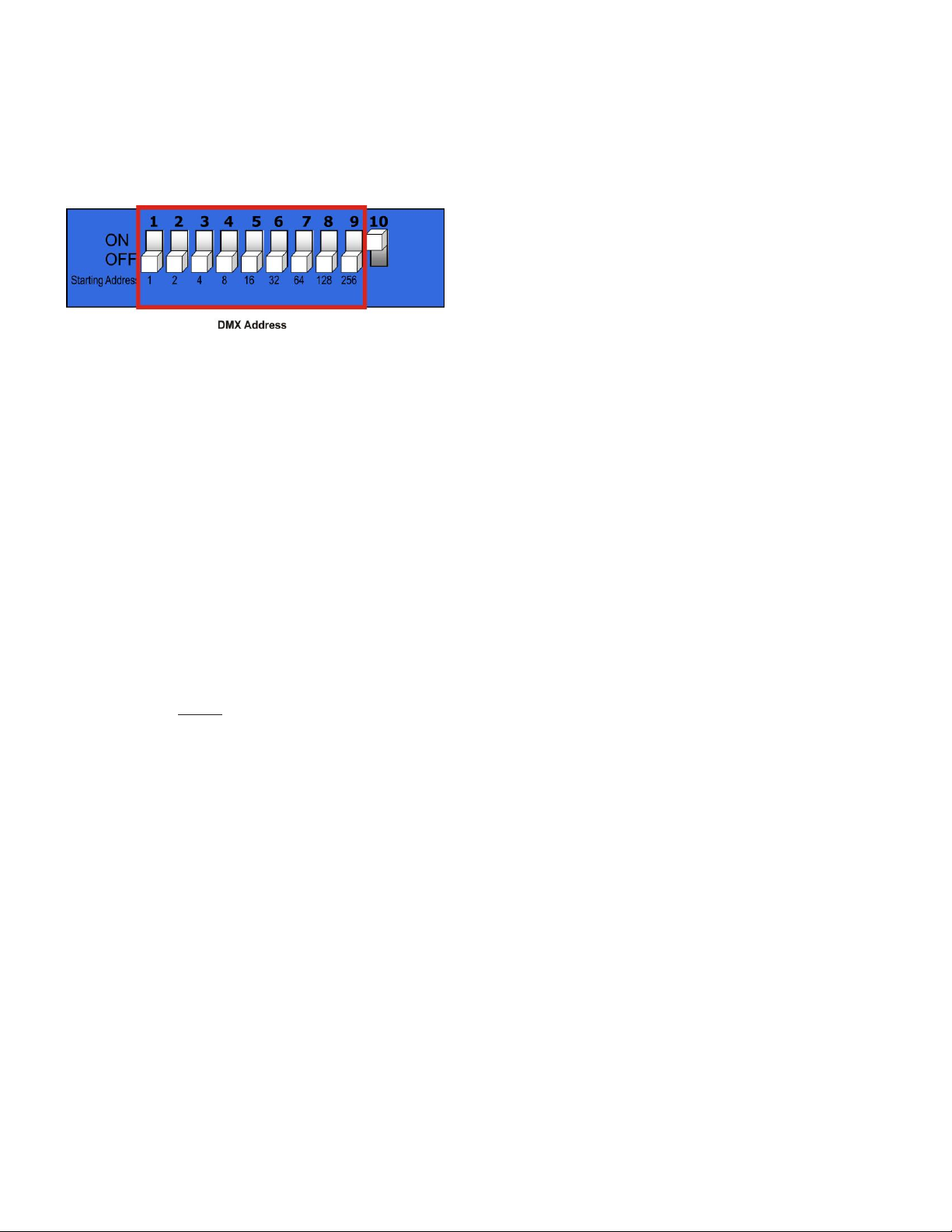

A. In DMX Mode, see the following figure for the desired Channel Setting:

Use dipswitches #1 - #9 to set the DMX address

Channel 1: Flash Speed

Channel 2: Flash Dimmer

Channel 3: Flash Duration

DMX products must have their own "address" to receive DMX signals.

Addresses on the Showtec Titan Strobe are set by flipping the appropriate DMX dip switches.

You need to know that DMX address settings are the sum of the dip switch values.

Example

Titan strobe Address Value DMX Dip Switches "ON"

Unit 1 17 #1, #5

Switch Value

#1 1

#5 16 +

Total sum 17

Once address values are determined, add DMX dip switch values to obtain the appropriate address (DMX

Dip Switches "ON") for each unit. Flip appropriate DMX dip switches on each unit.

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec LED PAR 64 AIRCRAFT Manuel utilisateur

Show Tec

Show Tec Spectral 2500 Zoom Tour Manuel utilisateur

Show Tec

Show Tec Phantom 130 Spot Manuel utilisateur

Show Tec

Show Tec White-PIX V1 Manuel utilisateur

Show Tec

Show Tec 43020 Manuel utilisateur

Show Tec

Show Tec Mirrorball Motor 30 cm V2 Manuel utilisateur

Show Tec

Show Tec Airstrike V2 Manuel utilisateur

Show Tec

Show Tec Blacklight 400W Manuel utilisateur

Show Tec

Show Tec Mirrorball 30 cm V1 Manuel utilisateur

Show Tec

Show Tec Mirrorball Motor until 50 cm V2 Manuel utilisateur

Show Tec

Show Tec Shark - The Meg - Beam One Manuel utilisateur

Show Tec

Show Tec EventSpot 1600 Q4 Manuel utilisateur

Show Tec

Show Tec sky rose 4000 Manuel utilisateur

Show Tec

Show Tec LED Powerbrick Set Manuel utilisateur

Show Tec

Show Tec Star Dream 6x4m 128 LED RGB Manuel utilisateur

Show Tec

Show Tec Performer 2000 Fresnel DDT MKII V1 Manuel utilisateur

Show Tec

Show Tec TECHNO DERBY V1 Manuel utilisateur

Show Tec

Show Tec Single DP-1 Manuel utilisateur

Show Tec

Show Tec Stage Beam MKII 300/500W Fresnel V1 Manuel utilisateur

Show Tec

Show Tec 43161 Manuel utilisateur

Show Tec

Show Tec LED Pixelboard 500/256 Manuel utilisateur

Show Tec

Show Tec 60406 Manuel utilisateur

Show Tec

Show Tec COMPACT POWER LIGHTSET RGB-UV V1 Manuel utilisateur

Show Tec

Show Tec EventDOT 15 Q4 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
