Derby LED V2

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 43041

MANUAL

ENGLISH

Ordercode: 43041

Derby LED

Table of contents

Warning ...............................................................................................................................................................................2

Unpacking Instructions.................................................................................................................................................2

LED Expected Lifespan ................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Connection with the mains.........................................................................................................................................5

Return Procedure..........................................................................................................................................................5

Claims..............................................................................................................................................................................5

Description of the device.................................................................................................................................................6

Overview ........................................................................................................................................................................6

Backside .........................................................................................................................................................................7

Installation...........................................................................................................................................................................7

Set Up and Operation .......................................................................................................................................................7

Sound-controlled ..........................................................................................................................................................8

Maintenance......................................................................................................................................................................8

Replacing the Fuse.......................................................................................................................................................8

Troubleshooting .................................................................................................................................................................9

No Light...........................................................................................................................................................................9

Product Specifications......................................................................................................................................................9

Dimensions........................................................................................................................................................................10

Ordercode: 43041

Derby LED

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• Showtec Derby LED

• User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower

operational temperatures. This may include climatic-environmental and the reduction of overall

projection intensity.

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

•be qualified

•follow the instructions of this manual

Before the initial start-up, please make sure that there is no damage caused by transportation.

Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes contained in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty. This device contains no user-serviceable parts. Refer to qualified technicians only.

Ordercode: 43041

Derby LED

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Never lift the fixture holding it by the projector-head, as the mechanics may be damaged.

Always hold the fixture by the transport handles.

•Never place any material over the lens.

•Never look directly into the light source.

•Never leave any cables lying around.

•Never loosen the screws of the gobo, otherwise you risk opening of the ball bearing.

•Do not insert objects into air vents.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this will reduce the device’s life.

•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Allow the fixture to cool for at least 5 minutes before handling.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Only use the device indoors, avoid contact with water or other liquids.

•Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly

fastened.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always keep the case closed while operating.

•Always allow a free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord holding it by the plug. Never pull out the plug by tugging the power cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

•If the lens is obviously damaged, it has to be replaced.

•If device was dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device.

Leave the device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. The moving head must be installed beyond the reach of children. Never leave the

unit running unattended.

•Never attempt to bypass the thermostatic switch or fuses.

•For replacement use fuses of same type and rating only.

•The user is responsible for correct positioning and operating of the Derby LED. The manufacturer will

not accept liability for damages caused by the misuse or incorrect installation of this device.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

Ordercode: 43041

Derby LED

Operating Determinations

•This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

•The minimum distance between light output and the illuminated surface must be bigger than 1

meter.

•The maximum ambient temperature ta= 40°C must never be exceeded.

•The relative humidity must not exceed 50 % with ambient temperature of 40° C.

•If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer!

Procedure:

•If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.

•Use a clamp to mount the projector, with the mounting bracket, to the trussing system.

•The projector must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety cable.

•When rigging, de-rigging or servicing the projector, always make sure, that the area below the

installation site is secured and that there are not any unauthorized people around.

The Derby LED can be mounted to any kind of truss with a clamp.

Improper installation can cause serious injuries to people and/or damage of property !

Ordercode: 43041

Derby LED

Connection with the mains

Connect the device to the mains with the power plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE

GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries to people and/or damage of property!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 43041

Derby LED

Description of the device

Features

The Showtec Derby LED is a light fixture with high output and great effects.

Music activated colourchanger effect

Plug & Play

Power supply: AC 100-240V - 50/60 Hz

Power consumption: 30W

DC motor：DC12V 70 rpm

LED system: 2 pcs 9 Watt RGB

Chip on board

Sound-controlled through a built-in microphone

When no music is played the LEDs and DC Motor turn off after 10 seconds

Fuse 1A / 250V

Dimensions: 430 mm x 390 mm x 210 mm (LxWxH)

Weight: 6,5 kg

Overview

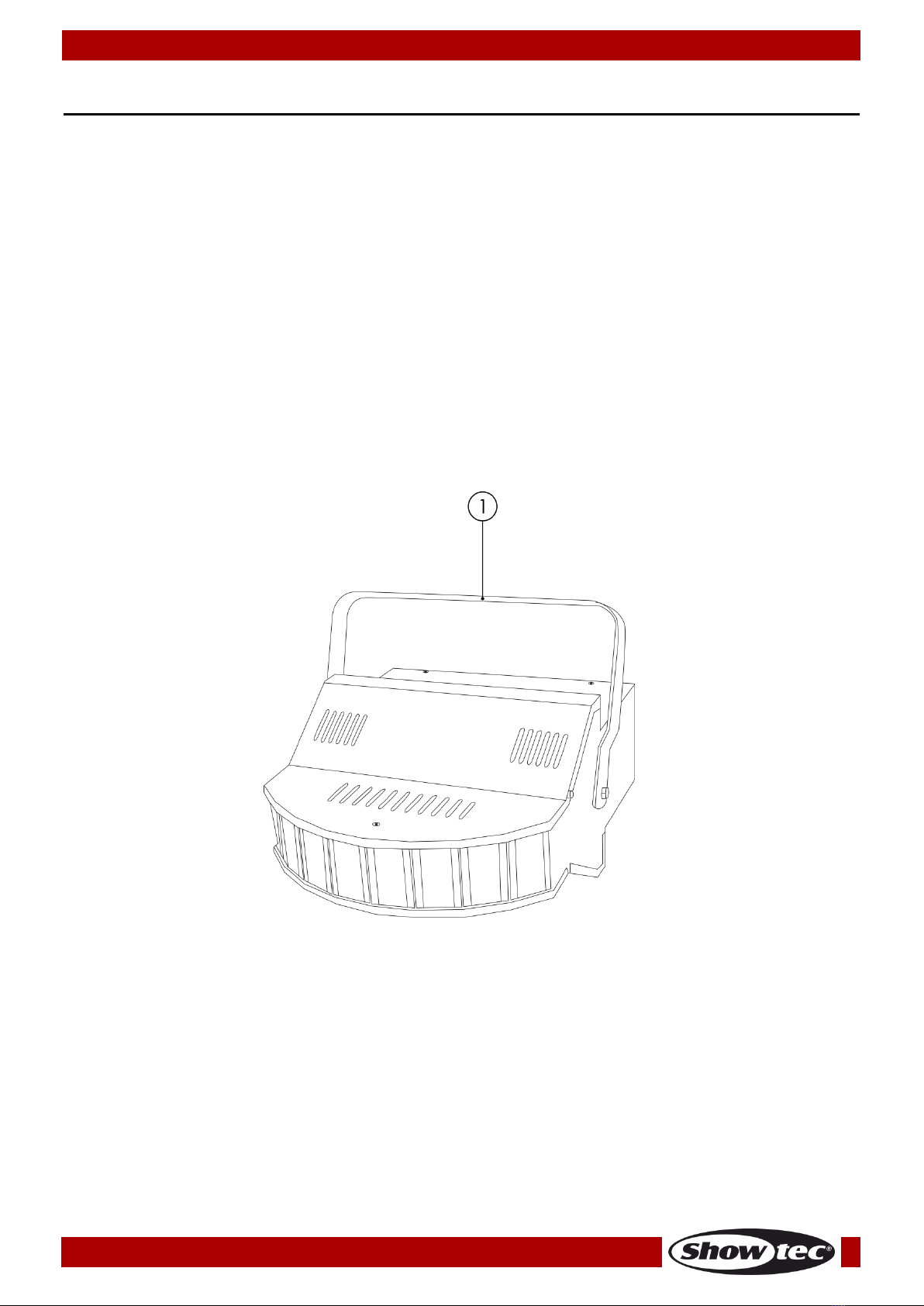

Fig. 01

01) Mountingbracket

Ordercode: 43041

Derby LED

Backside

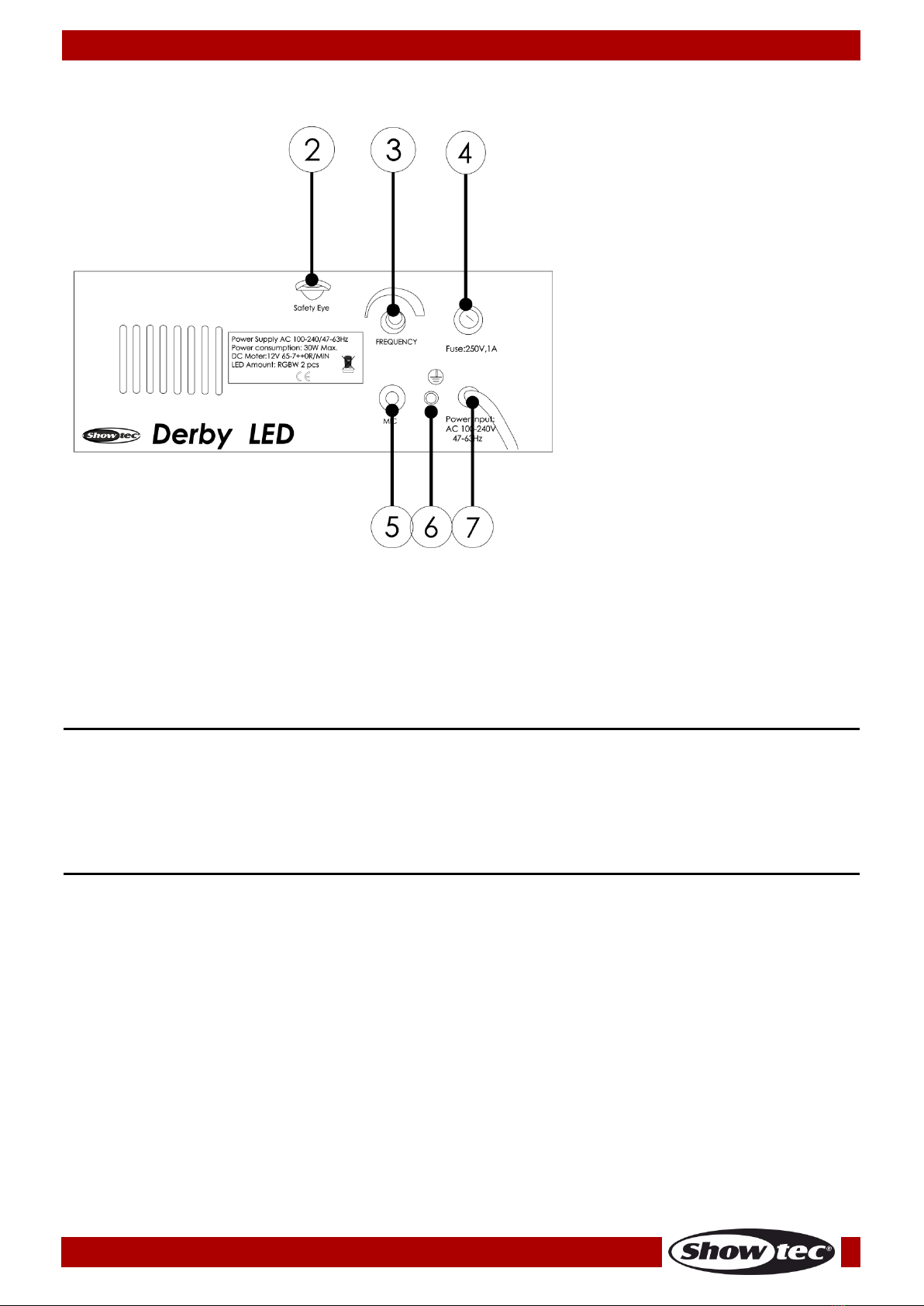

Fig. 02

02) Safety eye

03) Audio Sensitivity

04) Fuse 1A/250V

05) Built-in microphone

06) Ground/Earth connection

07) Power cable 100-240V

Installation

Remove all packing materials from the Derby LED. Check if all foam and plastic padding is removed.

Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Ordercode: 43041

Derby LED

Sound-controlled

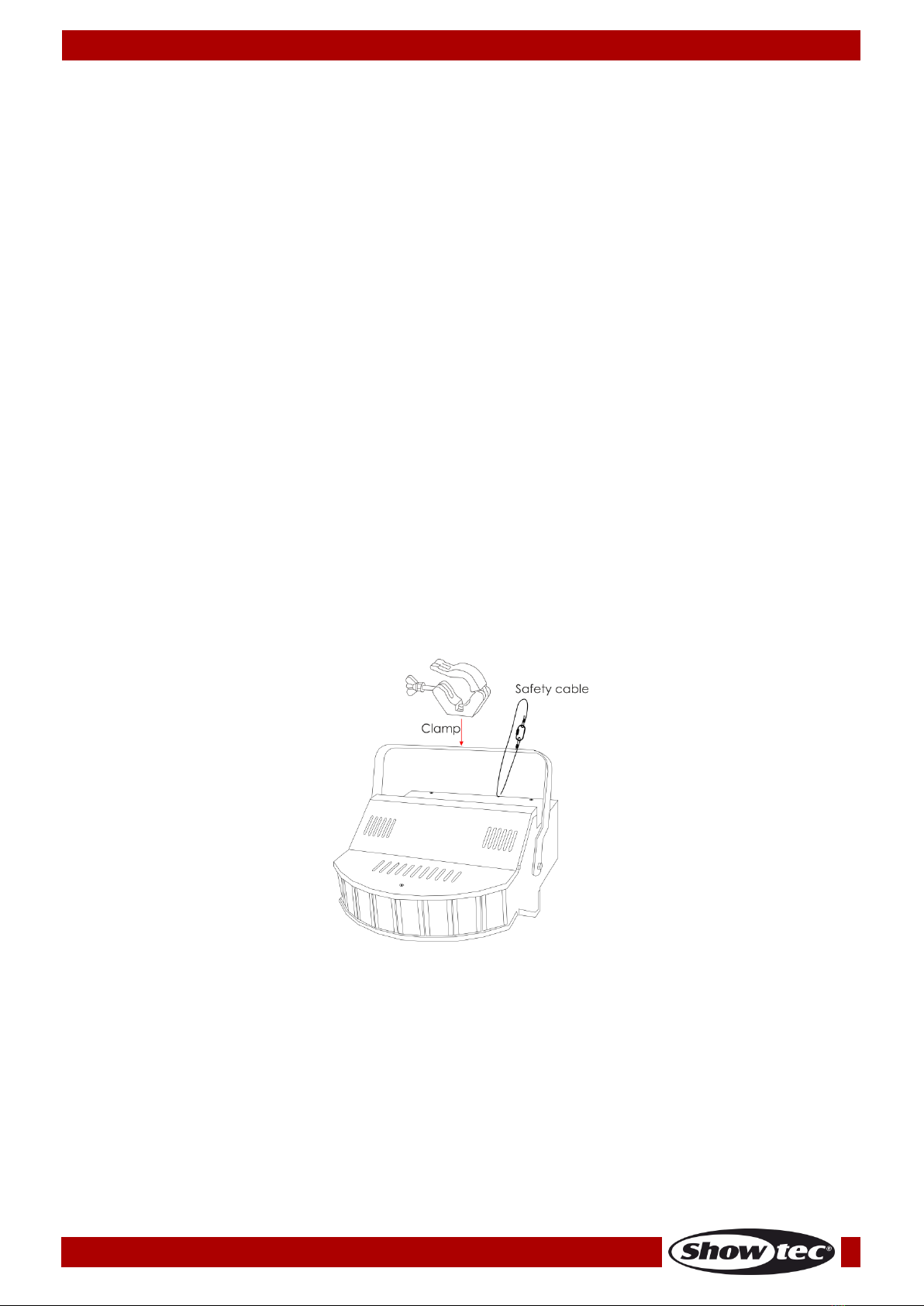

01) Fasten the effect light on to firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) The device is sound-controlled by its built-in microphone.

05) The audio sensitivity control allows you to adjust the sensitivity of the device. A clockwise movement

increases the sensitivity.

Maintenance

The operator has to make sure that safety-relating and machine-technical installations are to be

inspected by an expert after every year in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are to be

inspected by a skilled person once a year.

The following points have to be considered during the inspection:

01) All screws used for installing the device or parts of the device have to be tightly connected and must

not be corroded.

02) There may not be any deformations on housings, fixations and installation spots.

03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.

04) The electric power supply cables must not show any damages or material fatigue.

The Showtec Derby LED requires almost no maintenance. However, you should keep the unit clean.

Otherwise, the fixture’s light-output will be significantly reduced.

Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass

panel clean with glass cleaner and a soft cloth. Do not use alcohol or solvents. The front glass panel will

require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light-output very quickly.

Do not immerse in liquid.

Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections

with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying

electric power.

Replacing the Fuse

Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the

fuse burns out, the product will not function whatsoever. If this happens, follow the directions below.

01) Unplug the unit from electric power source.

02) Insert a screwdriver into the fuse holder. Turn the fuse holder counterclockwise. The fuse holder will

come out.

03) Remove the used fuse. If brown or unclear, it is burned out.

04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to

use a fuse of the same type and specification. See the product specification label for details.

Ordercode: 43041

Derby LED

Troubleshooting

This troubleshooting guide is meant to help solve simple problems.

If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit

operates properly, do not carry out following steps.

No Light

If the light effect does not operate properly, refer servicing to a technician.

Response: Suspect three potential problem areas as: the power supply, the lamp, the fuse.

01) Power supply. Check if the unit is plugged into an appropriate power supply.

02) The LEDs. Return the Derby LED to your Showtec dealer.

03) The fuse. Replace the fuse. See page 8 for replacing the fuse.

04) If all of the above appears to be O.K., plug the unit in again.

05) If you are unable to determine the cause of the problem, do not open the Derby LED, as this may

damage the unit and the warranty will become void.

06) Return the device to your Showtec dealer.

Product Specifications

Model

Showtec Derby LED

Input Voltage:

AC 100-240V - 50/60 Hz

Power consumption:

30W

Fuse:

1A/250V

DC motor：

DC 12V 70 rpm

Dimensions:

430 mm x 390 mm x 210 mm (LxWxH)

Weight:

6,5 kg

Electro-mechanical effects

●Sound-controlled through a built-in microphone

●Colors: Red, Green and Blue

●Light source: 2x 9 Watt 3 in1 RGB LED Chip

●Music activated colourchanger effect

●Plug & Play

●Chip on board

●When no music is played the LEDs and DC Motor turn off after 10 seconds

Max. ambient temperature ta:

40°C;

Max. housing temperature tB:

80°C

Minimum distance

Minimum distance from flammable surfaces:

0.5 m

Minimum distance to lighted object:

0.8 m

Design and product specifications are subject to change without prior notice

Website: www.Showtec.info

Email: service@highlite.nl

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec WTF-FZ1500 1500W DMX Fazer Manuel utilisateur

Show Tec

Show Tec Hydrogen DMX MKII Manuel utilisateur

Show Tec

Show Tec MINI STUDIOBEAM RGB Manuel utilisateur

Show Tec

Show Tec LED PAR 64 AIRCRAFT Manuel utilisateur

Show Tec

Show Tec 60409 Manuel utilisateur

Show Tec

Show Tec Galactic G30 30mW Manuel utilisateur

Show Tec

Show Tec EventLITE 4/10 Q4 Set 6x Manuel utilisateur

Show Tec

Show Tec Galactic RGB300 Manuel utilisateur

Show Tec

Show Tec Stellar FZ-1000 Fazer Manuel utilisateur

Show Tec

Show Tec Spectral 2500 Zoom Tour Manuel utilisateur

Show Tec

Show Tec Vintage Blaze 33 Value Line V2 Manuel utilisateur

Show Tec

Show Tec Single DP-1 Manuel utilisateur

Show Tec

Show Tec Performer 1000 LED MKII Manuel utilisateur

Show Tec

Show Tec Bar Cameleon Bar 16 Q4 Manuel utilisateur

Show Tec

Show Tec Showmaster 48 V5 Manuel utilisateur

Show Tec

Show Tec Compact Lightset MKII Manuel utilisateur

Show Tec

Show Tec Showmaster 24 Manuel utilisateur

Show Tec

Show Tec Creator 2048 Manuel utilisateur

Show Tec

Show Tec Shark Beam One Manuel utilisateur

Show Tec

Show Tec LED Pixelboard 500/256 Manuel utilisateur

Show Tec

Show Tec 42681 Manuel utilisateur

Show Tec

Show Tec Par 64 LED-120Z-Q4 Manuel utilisateur

Show Tec

Show Tec Aura 4 Manuel utilisateur

Show Tec

Show Tec Stage Blinder 4 DMX V2 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
