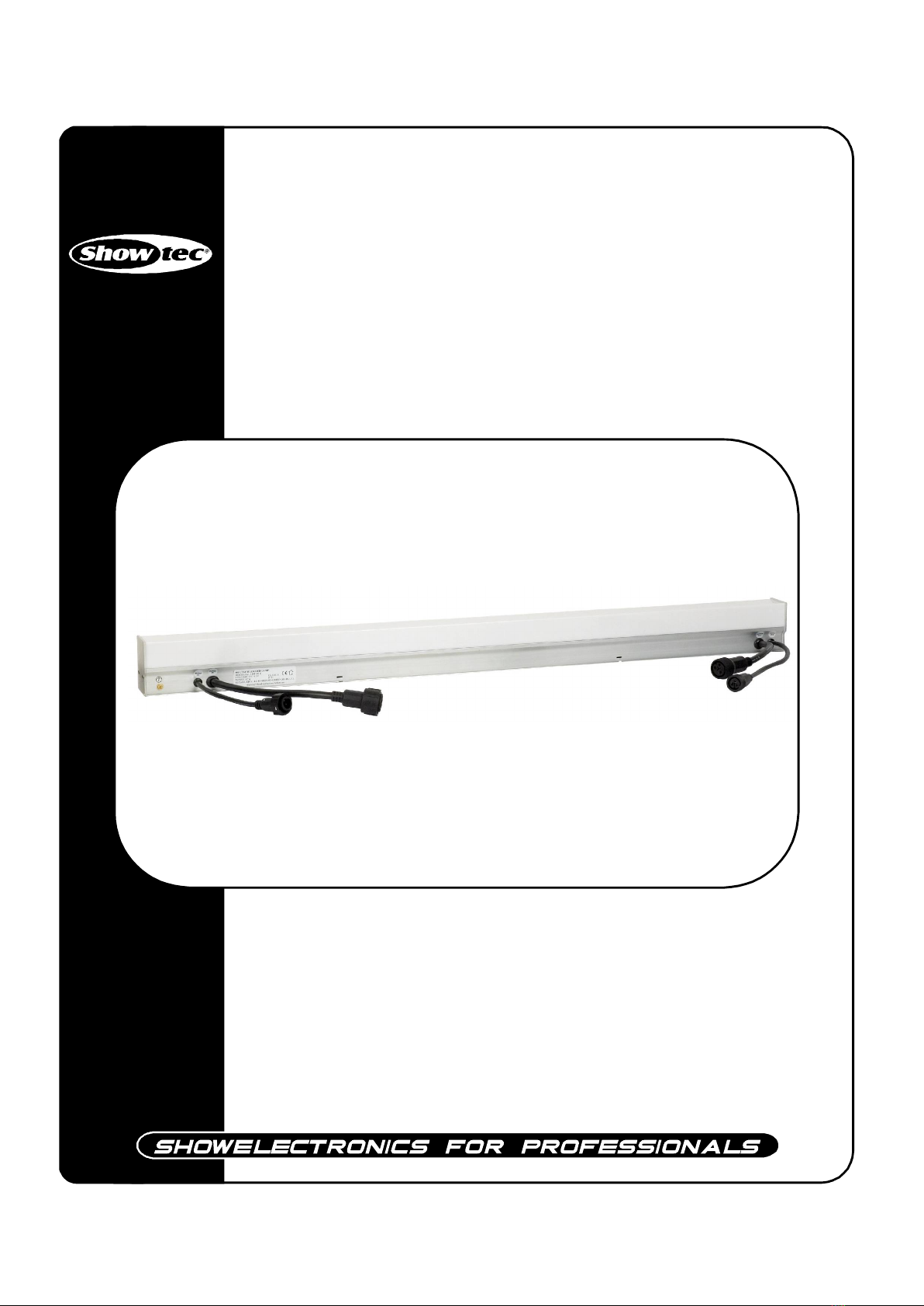

Show Tec LED Tube Basic Square Manuel utilisateur

LED Tube Basic Square

ORDERCODE 41014

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec LED Tube Basic Controller brings excitement to any venue. Whether you want simple plug-&-

play action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec LED Tube Basic Controller™Product Guide

Warning..…...................................................................................…………………………………….………….……..

Unpacking Instructions………………………………………………………………………………………………..…

Safety-instructions………………………………………………………………………………………………………..

Operating Determinations……………………………………………………………………………………………..

Rigging………………………………………………………………………………………………………………….….

Description..…..............................................................................……….………………………………………………

Features…….……………………………………………………………………………………….……...………………

Overview…………………………………………………………………………………………………………………...

Backside…………………………………………………………………………………………………………………...

41010 LED Tube Basic.…...............................................…...…………………………………….………..……………..

SPYA0058 LED PSU.…...............................................…...……………………………….………..………………………

Installation...............................................................................…...…………………………………….….…………….

Set Up and Operation.....................................................................……..…………………………….……………….

Stand-alone………..………………………………………………………………………..….………….…………..…

Set up options Controller……………………………………………………………………………………………….

DMX-controlled………………………………………………………………………..….………….…………………..

Set Up Example...................................................................................…………...….…….………….….…………….

Maintenance...................................................................................………..………….…….…………….…….……..

Replacing the Fuse........................................................................…………………….………………………….…

Troubleshooting............................................................................………………….………………….……………….

Product Specifications.................................................................……………….…….……………………………….

WARNING

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows

signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be returned

to the factory, it is important that the fixture be returned in the original factory box and packing.

General Information Highlite International B.V..

Vestastraat 2

6468 EX Kerkrade

The Netherlands

Sales Department: 0031 45-5667701

Export Department: 0031 45-5667706

Technical Support Highlite International B.V..

Vestastraat 2

6468 EX Kerkrade

The Netherlands

Technical Department: 0031 45-5667703

Internet www.highlite.nl/

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should there

be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never look directly into the light source.

Never leave any cables lying around.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Do not connect more than 16 tubes to 1 Power supply. The maximum load current of the power

cable is 16A. If the quantity of tubes exceeds 16, an extra PSU must be added for every 16 tubes.

Only use device indoor, avoid contact with water or other liquids.

Avoid flames and do not put close to flammable liquids or gases.

Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

dangerous electric shock when touching the wires!

CAUTION!

Keep this device away from rain and moisture!

For indoor use only!

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For replacement use fuses of same type and rating only.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If a LED tube is lowered from the ceiling or high joists, professional trussing systems have to be used.

Mount the LED tube to the trussing system.

The LED tube must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

When rigging, derigging or servicing the LED tube, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

Description of the device

Features

The LED Tube Basic Controller is designed for the more demanding user:

• 5 DMX Channels

• Controllable DMX or Stand-alone controller.

• 4000 Tubes can be controlled

• 38 programs

• DMX IN and DMX OUT.

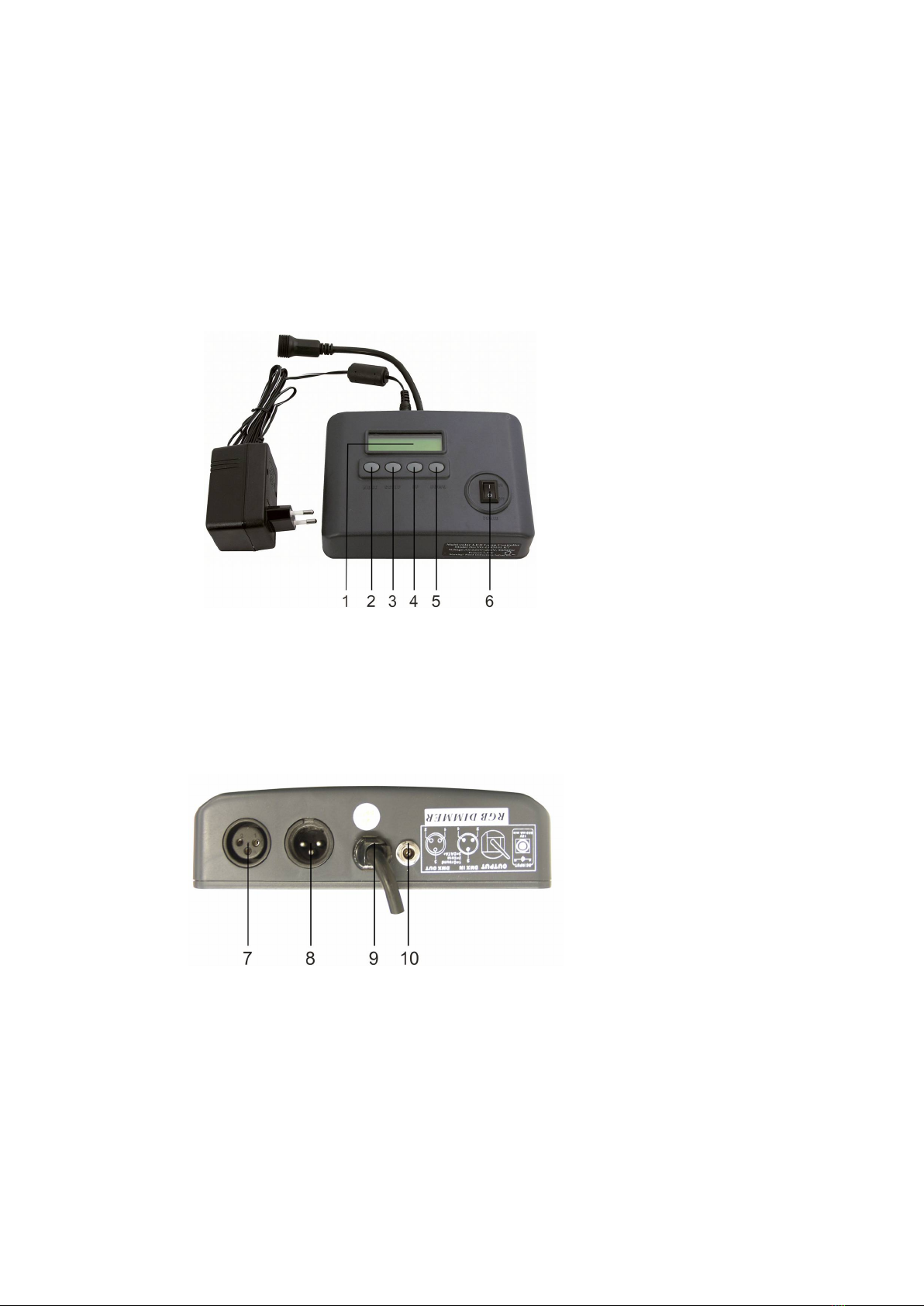

Overview

Fig. 1

1) LCD Display

2) Mode: Change the pre-programmed modes.

3) Set Up: Change the settings of the pre-programmed modes (Speed, Flash, Colors)

4) Adjust Up: Increase the DMX address or program options.

5) Adjust Down: Decrease the DMX address or program options.

6) ON / OFF

Backside

Fig. 2

7) 3 pin DMX IN connector: XLR male socket used to receive DMX signals.

8) 3 pin DMX OUT connector: XLR female socket used to send DMX signals.

9) Output to LED Tube

10) Power 12V DC

41014 LED TUBE BASIC

Fig. 3

1) Signal Input: Low voltage Signal Input must be connected to the Signal Output (6) of the previous tube or

with the Signal Output cable from the LED Tube Basic controller.

2) Ground: Be sure to ground the LED tube properly.

3) Mains Input Cable: This cable must be connected to the Mains Output (5) of the previous tube or

to any mains wall socket

4) Aluminum Tube Holder: To install the tube on a surface.

5) Mains Output Cable: This cable must be connected to the Mains Input (3) of the next tube. If there are no

further tubes to be connected, you must seal this connector against humidity if the tubes are used

outdoor.

6) Signal Output

SPYA0058 PSU 1) DC +12V Output 2

2) DC +12V Output 2

3) Ground connection

4) AC Input

5) Fuse 15A

6) ON/OFF

Output 1 Output 2

Fig. 4

Installation

Remove all packing materials from the LED Tube Basic Controller and the LED Tube. Check that all foam and

plastic padding is removed. Connect all cables.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure proper

transmission on the DMX data link.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Do not connect more than 16 tubes to 1 Power supply. The maximum load current of the power cable is 16A.

If the quantity of tubes exceeds 16, an extra PSU must be added for every 16 tubes.

1) Test each LED Tube independently before installing. Connect each LED Tube separately to the Psu +

controller ( do not connect the signal cables!). The LED Tube is ok if it lights up in white.

2) Connect the signal cables of all LED Tubes together. Make sure to fasten the plastic ring well.

3) Connect the mains cables of the LED Tubes together.

4) Test the connection between the controller and ALL LED Tubes. Switch on the controller, press the

MODE button, select TEST MODE and press the SET UP button, the screen will show Connection OK

if tubes are red ? All LED Tubes will be full red if the connection is OK.

5) LED Tube Setting: Press MODE, select ADDRESS MODE and press the SET UP button, the screen will

show Initializing addr Waiting… about 2-3 seconds. The screen will show OK! Address is done once,

thus finishing the setting.

6) Select working mode: Press MODE to select the working mode. Note: Please do as stated above in the 3

steps if you connect the LED Tubes for the first time or reconnect them, otherwise the LED Tubes will

not work correctly.

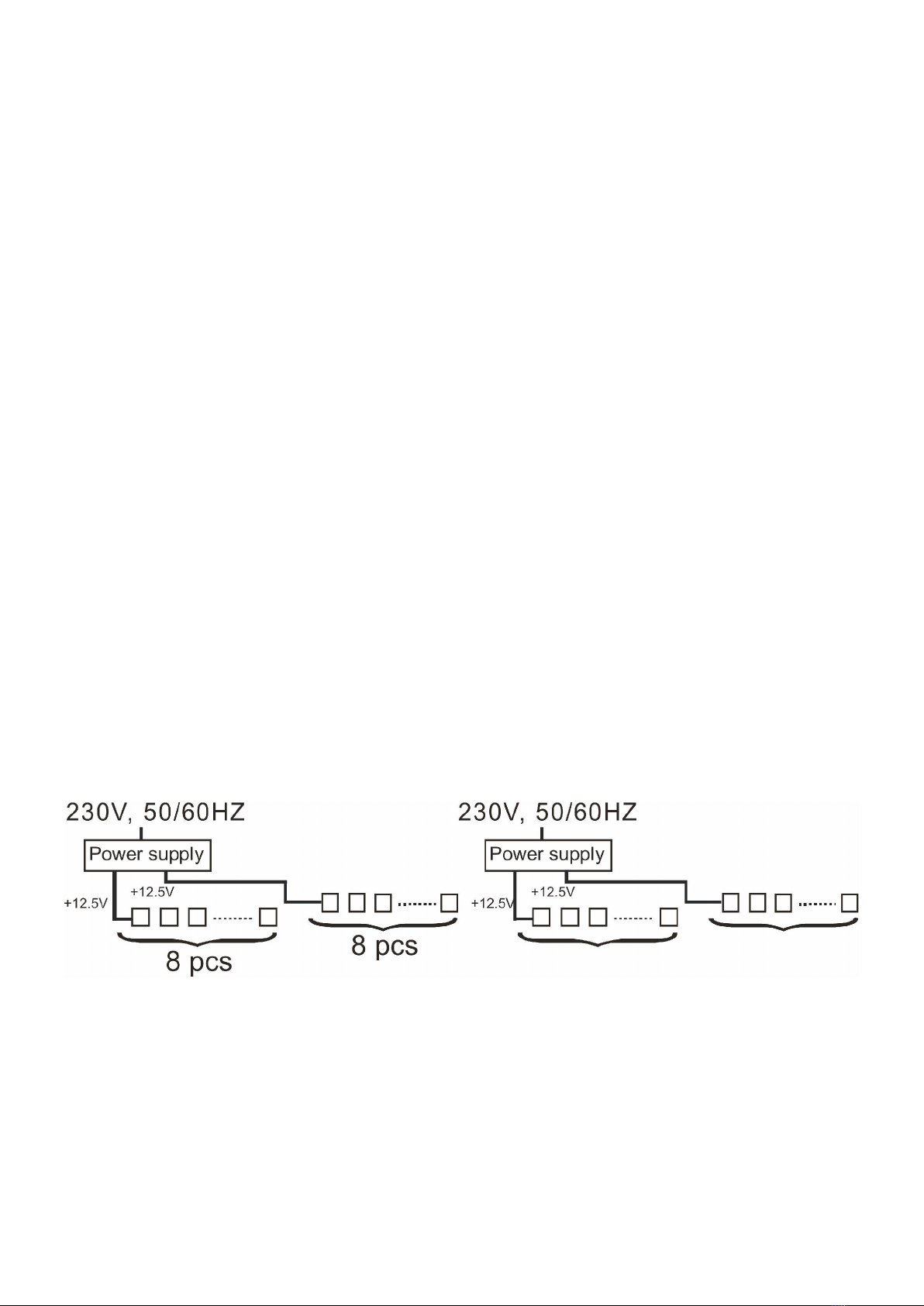

7) Installation sample

Each time you use more than 16 LED Tubes, they have to be powered by another power source

otherwise you could blow the main fuse. The External Power Supply output supplies two power

cables with each cable connecting up to a maximum of 8 tubes.

Fig. 6

8) Connect the signal input cable of the first LED Tube to the signal Output connector of the PSU.

Eventually use the optional 5m or 10m extension cables.

9) Connect the mains cable of the first tube to the wall socket.

10) Switch the controller and the PSU on.

Stand-alone

Press MODE button to enter mode setting. You can select 43 options. You will find all the pre-programmed

scenes below.

From Program 1 – 38 you can push the SET UP button and select: • Tube Quantity: 0 – 4000 Tubes

• Interval: 0 – 100

• Speed: 0 – 100

• Flash: 0 – 100

Set up options Controller

1 Blackout

2 Red

3 Green

4 Yellow

5 Blue

6 Purple

7 Cyan

8 White

9 Fast Change

10 Slow Flow 1

11 Fast Flow 1

12 Fast Flow 2

13 Black Run 1

14 Roll Chase

15 Roll Color

16 Color 1/4

17 Color1 1/4

18 Color 1/2

19 Color Flash

20 B & W Flow

21 R & G Flow

22 G & B Flow

23 R & B Flow

24 R & G Chase 1

25 R & G Chase 2

26 R & B Chase 1

27 R & B Chase 2

28 R & W Chase 1

29 R & W Chase 2

30 B & G Chase 1

31 B & G Chase 2

32 W & G Chase 1

33 W & G Chase 2

34 Rainbow Chase 1

35 Rainbow Chase 2

36 Rainbow Chase 3

37 Rainbow Chase 4

38 Rainbow Chase 8

39 AUTO Mode

40 TEST Mode

41 ADDRESS Mode

42 Factory Setting load

43 DMX Mode

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Performer 2000 Fresnel DDT MKII V2 Manuel utilisateur

Show Tec

Show Tec 437 49 Manuel utilisateur

Show Tec

Show Tec Media Panel 100 V1 Manuel utilisateur

Show Tec

Show Tec LED Aqua Painter Manuel utilisateur

Show Tec

Show Tec EventDOT 15 Q4 Manuel utilisateur

Show Tec

Show Tec QubiQ S1500 Manuel utilisateur

Show Tec

Show Tec SPECTRAL M3000 ZOOM Q4 MK II Manuel utilisateur

Show Tec

Show Tec Showmaster 48 Manuel utilisateur

Show Tec

Show Tec Solaris 5.5 incl. FB4 Manuel utilisateur

Show Tec

Show Tec StageBeam 300/500W Fresnel V2 Manuel utilisateur

Show Tec

Show Tec 41223 Manuel utilisateur

Show Tec

Show Tec COMPACT POWER LIGHTSET RGB-UV V1 Manuel utilisateur

Show Tec

Show Tec Single WDP-1 Manuel utilisateur

Show Tec

Show Tec Pinspot Bar 4 RGBW Manuel utilisateur

Show Tec

Show Tec Dreamwave V1 Manuel utilisateur

Show Tec

Show Tec Quick DMX Rack 1024 Manuel utilisateur

Show Tec

Show Tec INDOOR DMX LED BAR 8 Manuel utilisateur

Show Tec

Show Tec DJ Switch 10 Manuel utilisateur

Show Tec

Show Tec Performer 2500 Fresnel Tungsten V1 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 15 Q6 Tour V1 Manuel utilisateur

Show Tec

Show Tec Parcan 16 GU10D socket V1 Manuel utilisateur

Show Tec

Show Tec Eventlite 177IR Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 11CW V1 Manuel utilisateur

Show Tec

Show Tec 43560 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
