Show Tec Shogun Pro-500 Manuel utilisateur

Shogun Pro-500

ORDERCODE 32041

Congratulations!

You have bought a great, innovative product from Showtec.

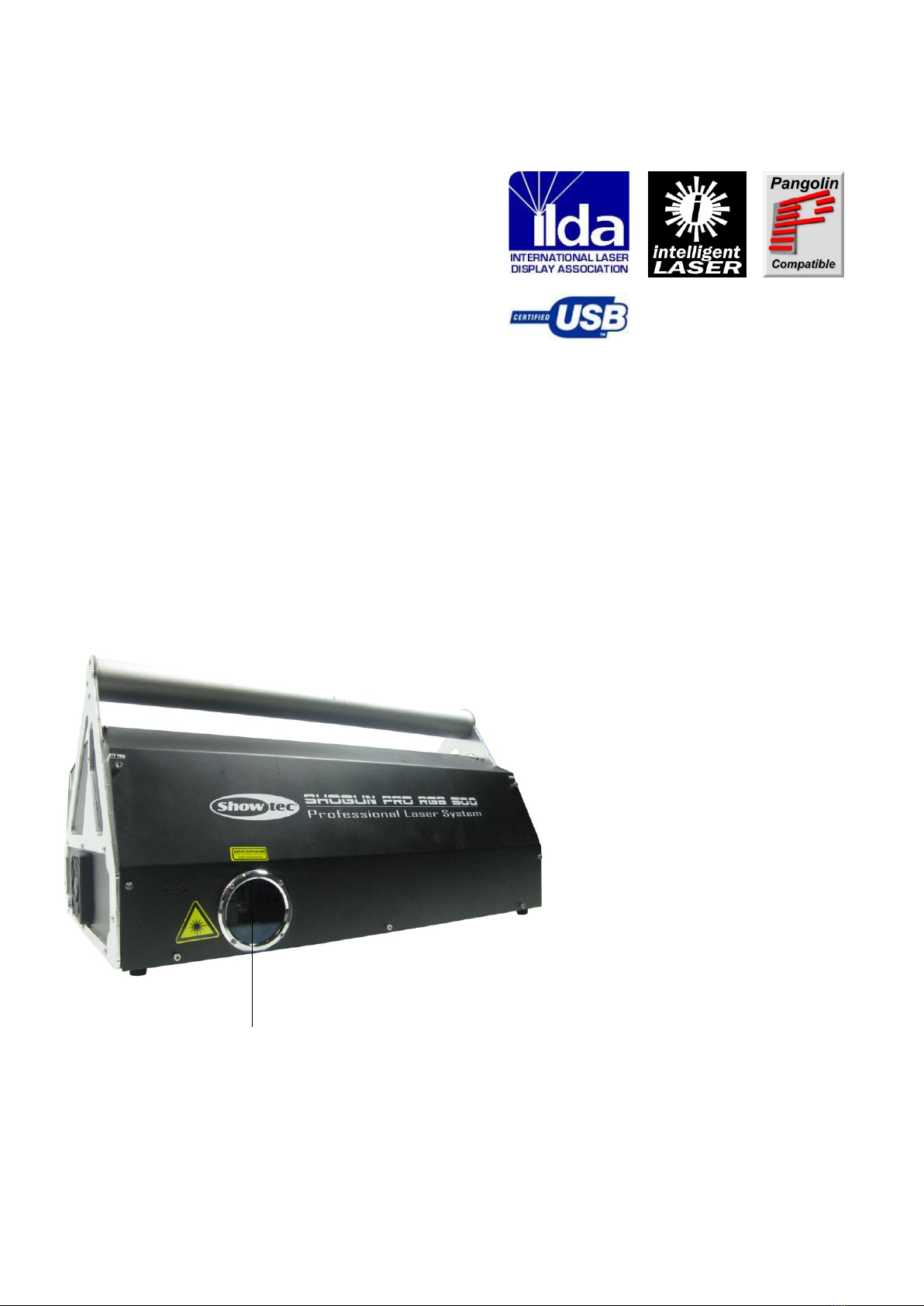

The Showtec Shogun Pro-500 brings excitement to any venue. Whether you want simple plug-&-play

action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Shogun Pro-500™ Product Guide

Warning.................................................................................…...……………..…………………………….………..…..

Unpacking Instructions……………………………………………………………………………………..…………….

Safety-instructions……………………………………………………………………………………………..…………..

Operating Determinations.……………………………………………………….……………………………………..

Laser safety for a Class 4 Laser Product……………………………………….……………………………………..

Rigging.……………………………………………………………………………………………………………………..

Description...............................................................................…...………………………………………….………..….

Features and Overview ………………………………...….……………….………….…………………..........………

Backside…………………………………………………...…...….……………….…………………...….….........……..

Set Up and Operation.....................................................................……..……………………………….….…………..

Warm-up times and storage temperature...................................……………..…………………….…………….

ILDA DB-25 Operation………………………………..……………………………………………………….........…….

DMX Control……………...................................................................……..……………………………….….…………..

Control Features...................................……………………………………………..…………………….…………….

Setting the DMX Address …………………………..……………………………………………………….........……..

DMX Dip Switch Setting.................…………………….…………………………………..………………………………..

DMX Quick Reference Chart…………………………………………………………………………………..……………

DMX Channels Chart.................…………………….…………………………………..…………………………………..

Auto Play..………………..................................................................……..……………………………….….…………..

Cleaning the Laseroptics.......…………………….…………………………………………………………………………

Maintenance...................................................................................………..………….…….…………………………..

Replacing the Fuse........................................................................…………………….…………………………….

Troubleshooting............................................................................………………….………………….…………………

No Light.…………………………………...........................................………………….……………………………….

No Response to DMX ....................................................................………………….……………………………….

Product Specifications.................................................................……………….…….………………………………...

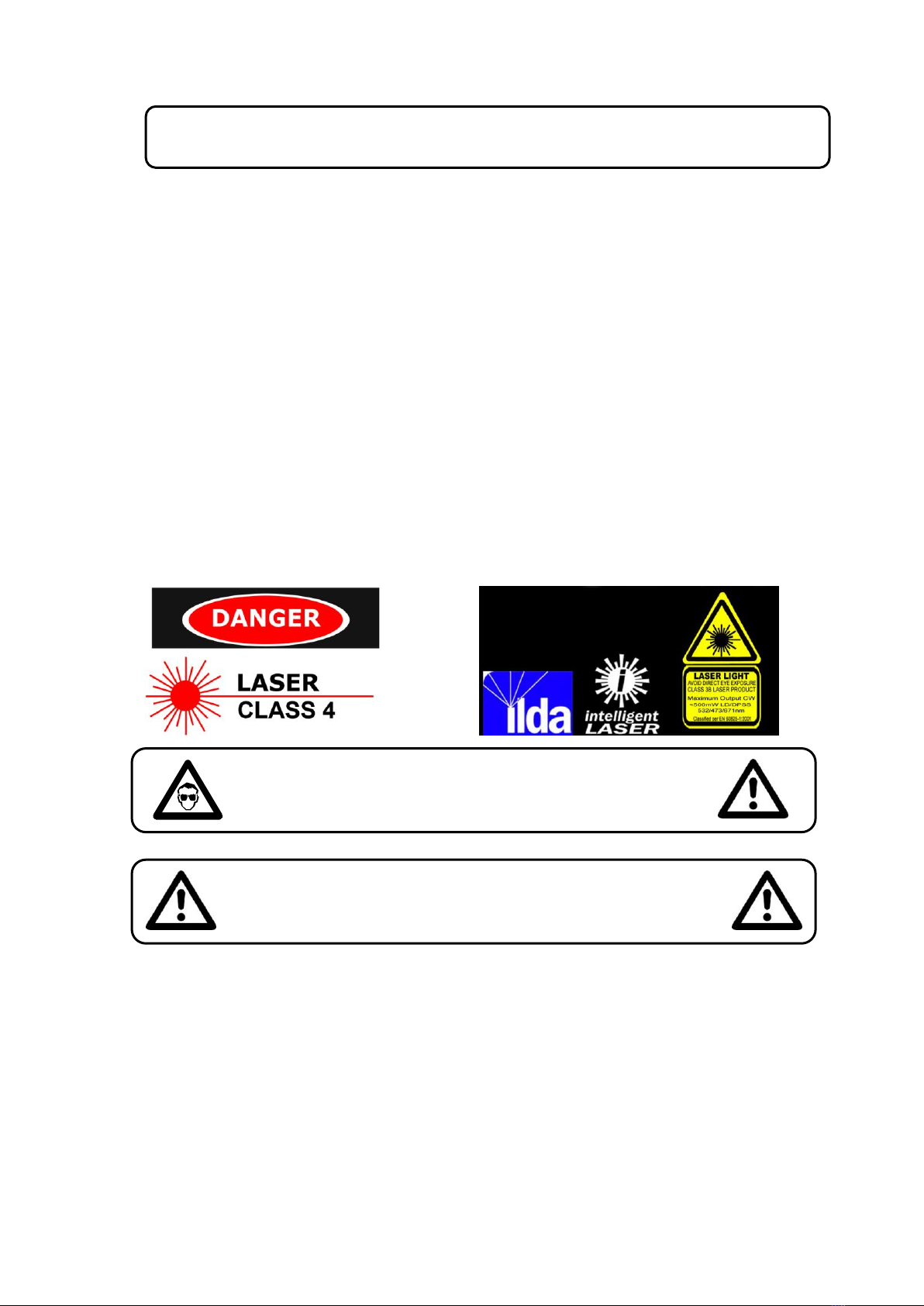

WARNING

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• Shogun Pro 500

• 1X 5m DB25 cable

• 2X Keys, please record the number on the fob and retain for future reference.

• 1X 3m, 3-pin IEC powercable

• 1X 1m USB cable

• 1X 9-pin (DB9 Male) Interlock dongle (Must be connected to the projector for the laser to operate.

• 1X 128MB SmartMedia Card

• 1X Installation CD- with Installation Manual included

• User manual

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION ! EYEDAMAGES !!!

NEVER LOOK DIRECTLY INTO THE LIGHTSOURCE !!!

NEVER PROJECT A SINGLE LASER POINT !!!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never unscrew the housing!

Never aim the laser beam at people or animals!

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never look directly into the light source.

Never leave any cables lying around.

Never bypass the thermal protection mechanism or fuse.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack or relay type system.

Do not switch the device on and off in short intervals, as this would reduce the laser’s life.

Do not shake the device. Avoid brute force when installing or operating the device.

Do not illuminate any surface within 2 meters of the Shogun laser.

Do not operate the fixture if any covers are open, missing or damaged in any way.

Only use device indoor, avoid contact with water or other liquids.

Only operate the device after having familiarized with its functions.

Only use AC power that complies with local building and electrical codes and has both overload

and ground-fault (earth fault) protection.

Avoid flames and do not put close to flammable liquids or gases.

Always check the regulations when using a class 4 laser product.

Always check and position the laser before anybody enters the room, when the laser is facing an

area with people.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Always check that all external covers and rigging hardware are securely fastened.

Always keep fingers and objects out of the holes in the mounting bracket.

Always protect your eyes with laser safety goggles when working on the Shogun laser.

Make sure that the laser is always ground (earth) electrically.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

Make sure that the cable diameter of the extension cords and powercables are sufficient for the

current consumption of the device.

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

The powercable may not be modified, broken, mechanically strained, pressed together or

heated.

The cable insert or the female part in the device must never be strained. There must always be

sufficient cable to the device. Otherwise, the cable may be damaged which may lead to deadly

electrical shocks.

If the external cable is damaged, it has to be replaced by a qualified technician.

If the laser is obviously damaged, it has to be replaced. So that its functions are not impaired, due

to cracks or deep scratches.

Never hit the laser with a hammer or other tools, as this may lead to damages.

Make sure that this product is recycled at the end of its life to protect our environment.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

The user is responsible for correct positioning and operating of the laser. The manufacturer will not

accept liability for damages caused by the misuse or incorrect installation of this laser.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

The laser will only work between 15-35ºC.

After 3 hours working, you must shut off the laser and let the laser diode cool off for 30 minutes,

otherwise the laser could be damaged and the warranty becomes void.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser

light. Never intentionally expose your eyes or others to direct laser radiation.

Compliance Statement

Your Shogun Laser has been designed to comply with FDA and IEC Standards for it classification.

The Shogun is a Class IIIB laser product.

Laser Safety and Compliance Information

The Shogun is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and Drug

Administrations (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser notices.

Further more, the Shogun manufactured to comply with Directive 2002/96/EC of the European Parliament

and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), as

amended by Directive 2003/108/EC, where applicable.

Laser Safety is made and regulated by different authorities in each country:

• In Europe, the European Norm-organization CENELEC

• In the United States of America, the Center for Devices and Radiological Health [CDRH]

• In Canada, the Radiation Protection Bureau (RPB)

Contact these authorities for detailed information, about the safety regulations that apply to your

country. Note: safety regulations can differ from those described in this manual. Always check the

required regulations before operating this laser

Product Classification and Manufacturing Label Identification

Laser Classification: Class 3B

Laser medium: wavelength 635 nm / Red (Laser Diode)

wavelength 532 nm / Green (DPSS)

wavelength 473 nm / Blue (DPSS)

Output: 500mW (300mW Red/ 150mW Green/ 100mW Blue)

Cooling: TE Cooling

CAUTION: The use of corrective eye wear or optics for viewing at distances such as

telescopes or binoculars within a distance of 100mm may pose an eye hazard.

OPERATING DETERMINATIONS

• This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

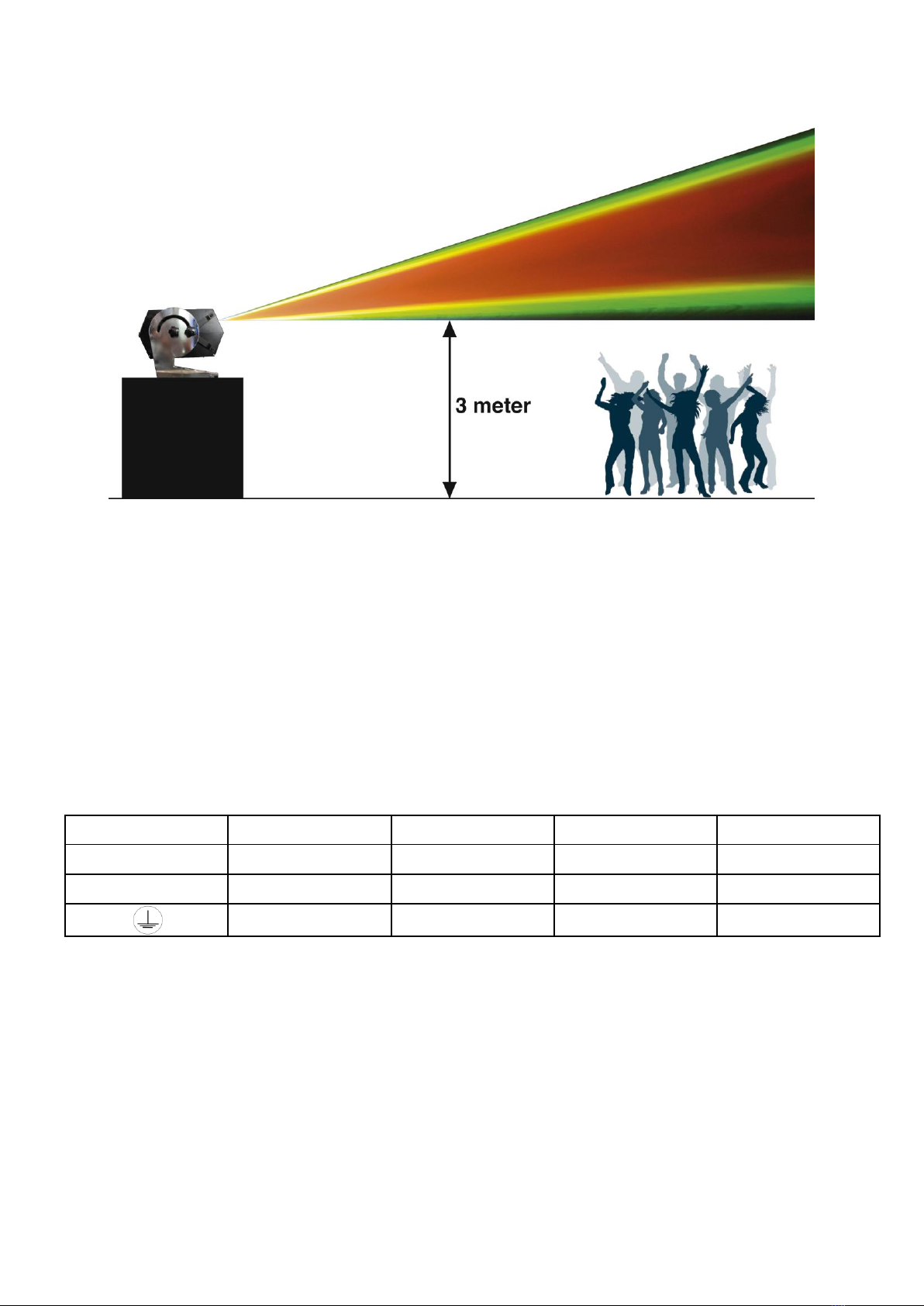

• The minimum distance between light-output and the illuminated surface must be more than 0.8 meter.

• The maximum ambient temperature tamust never be exceeded.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, skin hazards, lethal or

severe injury due to laser radiation, laser explosion, crash etc.

You endanger your own safety and the safety of others!

CAUTION! This product is for professional use only!

Laser safety for a Class 3 Laser Product

This laser system presents a hazard from direct or specular reflections. It may also produce hazardous

diffuse reflections and cause significant eye or skin hazards as well as fire hazards.

CAUTION! Only Laser Safety Officers who are officially certified by a regulatory body or authorized

training organization are allowed to use class 3 lasers in public. The Laser Safety Officer is responsible for

all aspects when using this laser, including following all locally applicable safety laws and regulations. The

manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this

laser.

There are no user serviceable parts inside. Tampering or

removing warranty seals will void your products limited

warranty.

This laser product is a Class IIIB laser and has an

Interlocked housing.

Combo label with the Product Model Number, Serial

Number, Date of Manufacturing, Laser Light Warning

Label, Warranty Void Label and Interlocked Housing

Label

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the laser is lowered from the ceiling or high joists, professional trussing systems have to be used.

Make sure that any structure used to support the machine can support at least 10 times the total

weight of all installed fixtures, clamps, cables, auxiliary equipment, etc.

Use a clamp to mount the laser, with the mounting-bracket, to the trussing system. Make sure that

all rigging clamps and fasteners are undamaged and can support at least 10 times the machine’s

weight.

The laser must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable. Attach a safety cable that can bear at least 10 times its weight.

Place the projector on a raised platform, if working above 1.5m.

When rigging, derigging or servicing the laser, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Proper Usage Safety and Compliance Information

According to FDA Regulations you should operate this product as stated below.

Placing the Laser on a horizontal surface

The Shogun Pro-500 can be placed on a level horizontal surface resting on its rubber feet.

1. Make sure that the surface is level, stable and capable of supporting at least 10 times the weight of the

machine.

2. Secure the machine so that it cannot slide, fall, or tilt, even if vibration from audio equipment or

another source is present.

3. Eliminate any risk of loss of alignment or contact by members of the public.

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Showtec Shogun Pro-500 is a laser effect with a high output and great effects.

• 300 mW Red laser Diode (635nm)

• 150 mW Green laser DPSS (532nm)

• 100 mW Blue laser DPSS (473nm)

• DMX-control via standard DMX-controller

• Analog Modulation (beams dimmable from 0-100%)

• Thermal Electric cooling

• ILDA 24k scanning

• On board memory to upload shows and/or patterns

• 128MB CF card included

• Including Cypher Pro USB software

• Including flightcase

• DMX-512 (14 channels)

• Power: 230V Switching Power supply

• Laser life-time: 6000-10000 hours

• Full colour spectrum (56.000 colours)

• USB connection for control by computer and uploading programs

• ILDA 25 pole sub-D connector

• Compliance to IEC 60825-1

• Remote interlock

• Key Switch

• Emission Indicator

• Class 4 laser product

Overview

Fig. 1

1) 500mW RGB Laser

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Spectral PC 400Z IP65 V2 Manuel utilisateur

Show Tec

Show Tec Star Dream 6x4m 192 LED White Manuel utilisateur

Show Tec

Show Tec Phantom 3R Beam V1 Manuel utilisateur

Show Tec

Show Tec Showmaster 24 Manuel utilisateur

Show Tec

Show Tec Stage Blinder 4 DMX Black Manuel utilisateur

Show Tec

Show Tec Performer Profile 700 Q6 Manuel utilisateur

Show Tec

Show Tec 34014 Manuel utilisateur

Show Tec

Show Tec Cameleon Spot Q4 Manuel utilisateur

Show Tec

Show Tec Airstrike V2 Manuel utilisateur

Show Tec

Show Tec Unicorn Manuel utilisateur

Show Tec

Show Tec Media Panel 100 V1 Manuel utilisateur

Show Tec

Show Tec 60413 Manuel utilisateur

Show Tec

Show Tec Titan Strobe Manuel utilisateur

Show Tec

Show Tec 51329 Manuel utilisateur

Show Tec

Show Tec 43161 Manuel utilisateur

Show Tec

Show Tec 50387 Manuel utilisateur

Show Tec

Show Tec Compact Power Lightset V2 Manuel utilisateur

Show Tec

Show Tec LED Bar DMX Manuel utilisateur

Show Tec

Show Tec Atmos 2000 Manuel utilisateur

Show Tec

Show Tec Jumbo Strobe MKIII DMX Manuel utilisateur

Show Tec

Show Tec Performer 1500 Fresnel Q6 Manuel utilisateur

Show Tec

Show Tec Mad Mood Manuel utilisateur

Show Tec

Show Tec Cameleon Spot 12 Q6 Manuel utilisateur

Show Tec

Show Tec 44050 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
