Show Tec POWERBOX 3 Manuel utilisateur

PowerBOX 3 V1

Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Ordercode: 90660

MANUAL

ENGLISH

Ordercode: 90660

PowerBOX 3

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions.........................................................................................................................................................2

Operating Determinations..........................................................................................................................................4

Connection with the mains.........................................................................................................................................4

Return Procedure..........................................................................................................................................................5

Claims..............................................................................................................................................................................5

Description of the device.................................................................................................................................................6

Frontside..........................................................................................................................................................................6

Backside .........................................................................................................................................................................7

Installation...........................................................................................................................................................................7

Set Up and Operation.......................................................................................................................................................7

Power ON.......................................................................................................................................................................7

Linking..............................................................................................................................................................................7

Unlinking..........................................................................................................................................................................8

LED Status Indicator......................................................................................................................................................8

Maintenance......................................................................................................................................................................8

Troubleshooting .................................................................................................................................................................8

Product Specification .......................................................................................................................................................9

Ordercode: 90660

PowerBOX 3

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

•

Showtec PowerBOX 3

•Pro power cable 1,5 m

•User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

•be qualified

•follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 90660

PowerBOX 3

IMPORTANT!

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Do not open the device and do not modify the device.

•Never use anything to cover the ground contact.

•Never leave any cables lying around.

•Never use the device during thunderstorms, unplug the device immediately.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this would reduce the device’s life.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Only use device indoors, avoid contact with water or other liquids.

•Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly

fastened.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always keep case closed while operating.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord by the plug. Never pull out the plug by tugging the power cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

•The cable insert or the female part in the device must never be strained. There must always be

sufficient cable to the device. Otherwise, the cable may be damaged which may lead to deadly

electrical shocks.

•If the device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. Device must be installed out of the reach of children. Never leave the unit running

unattended.

•For replacement use fuses of same type and rating only.

•The user is responsible for correct positioning and operating of the PowerBOX 3. The manufacturer will

not accept liability for damages caused by the misuse or incorrect installation of this device.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

Ordercode: 90660

PowerBOX 3

Operating Determinations

•This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

•The maximum ambient temperature ta= 35°C must never be exceeded.

•The relative humidity must not exceed 50 % with an ambient temperature of 35° C.

•If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property!

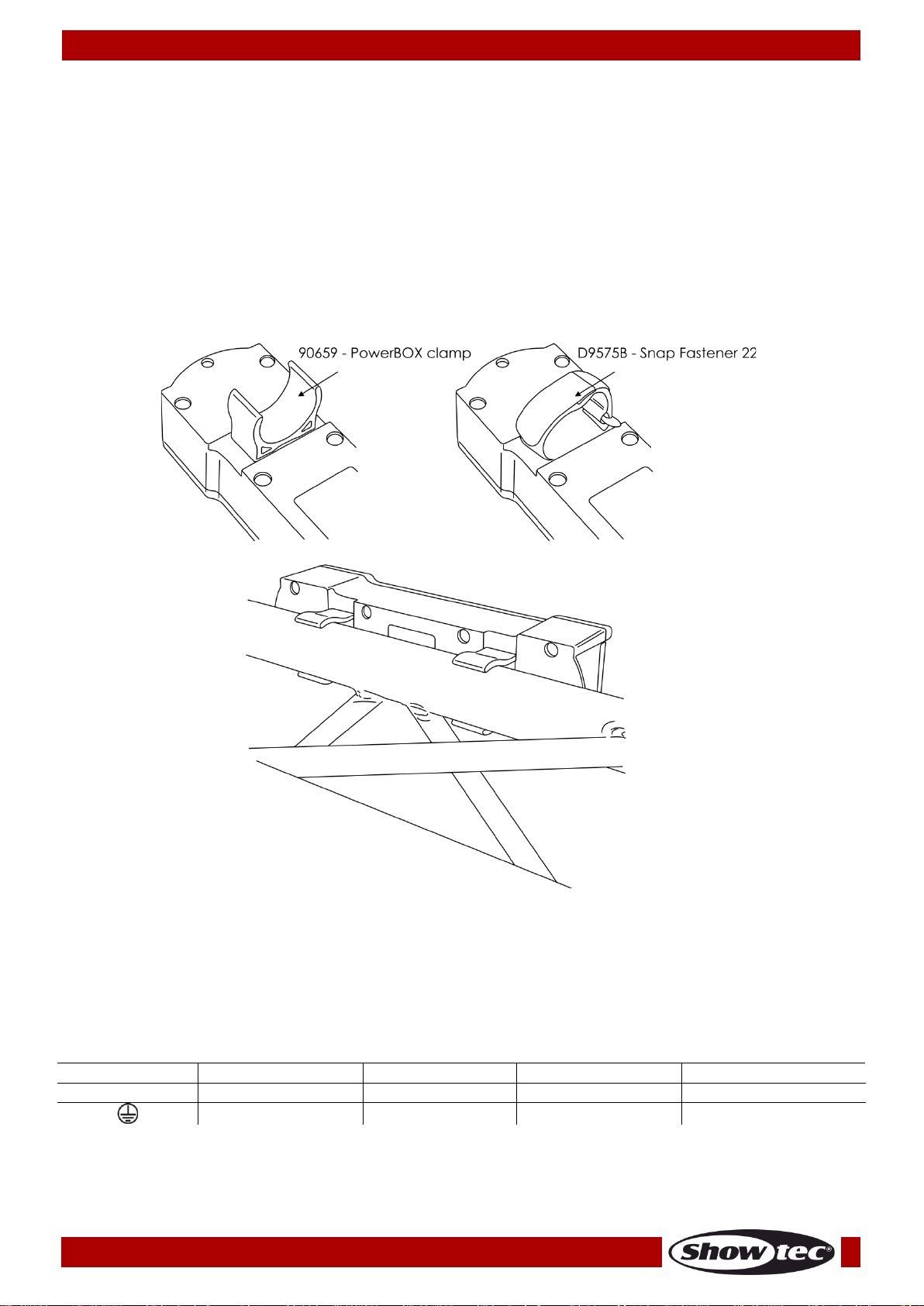

The PowerBOX 3 can be placed on a flat stage floor or attached to any kind of truss, with the 90659 –

PowerBOX clamp or the D9575B – Snap Fastener 22.

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property!

Ordercode: 90660

PowerBOX 3

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 90660

PowerBOX 3

Description of the device

Features

The Showtec PowerBOX 3 can be used as a power supply for lighting or back-line equipment. The

PowerBOX 3 is equipped with 1 x Pro power connector IN and 2 x Pro power connector OUT. Apart from

that, there are also 3 x Schuko power outputs, and a built-in Wireless 2,4GHz DMX receiver.

•Input voltage: 220-240V AC, 50Hz

•Power consumption: 6W

•Power output: 10A RMS/16A peak

•Power connections: Pro power connector IN/OUT, 3 x Schuko OUT

•Data connections: 3-pin DMX signal connector OUT

•Wireless DMX: 2,4GHz Wireless Solutions Sweden

•Housing: high-impact ABS plastic

•Tunnel width: 30 mm

•Color: Black

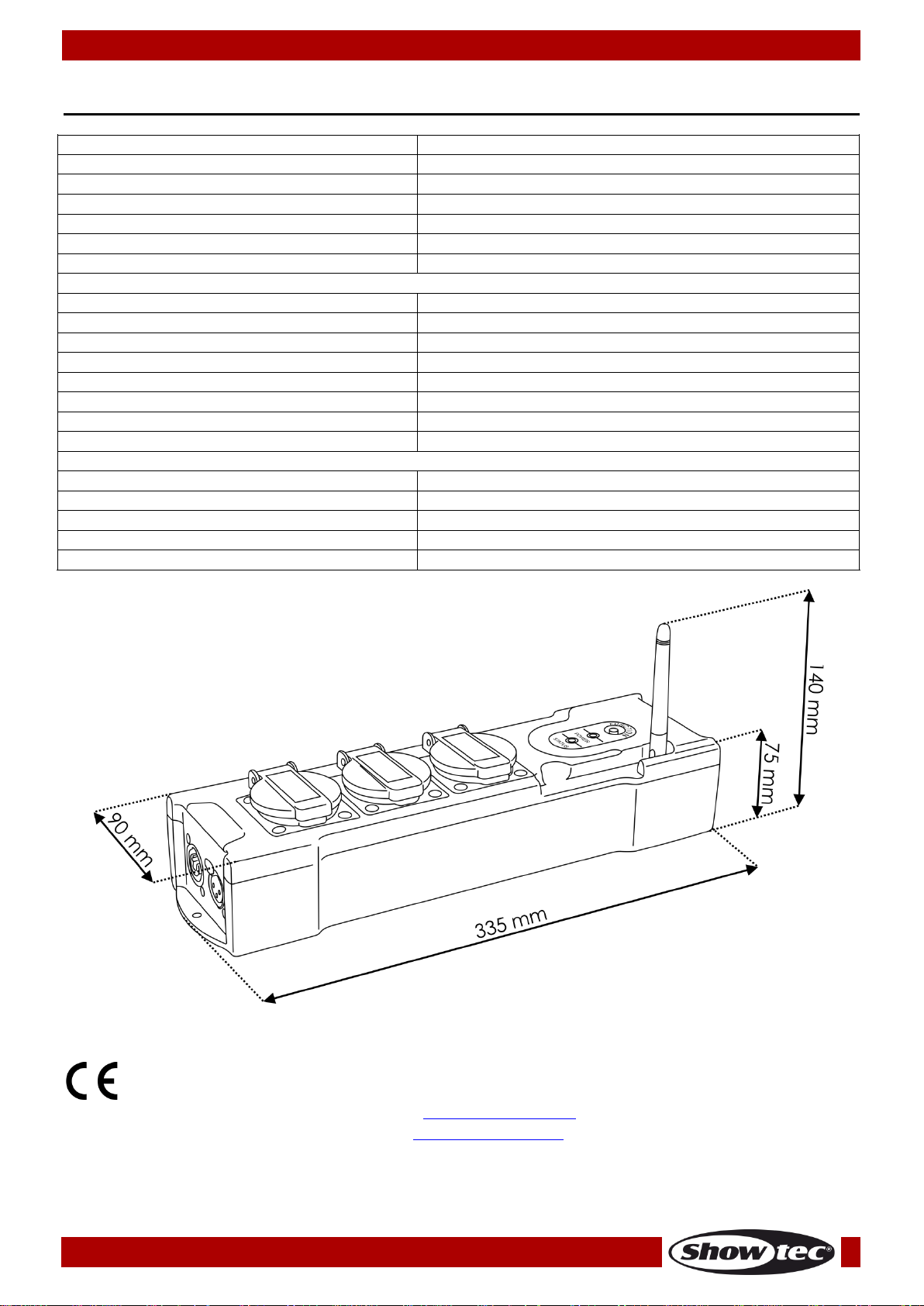

•Dimensions: 335 x 90 x 140 mm (LxWxH)

•Weight: 0,9 kg

Optional accessories:

•90659 – PowerBOX clamp

•D9575B – Snap Fastener 22

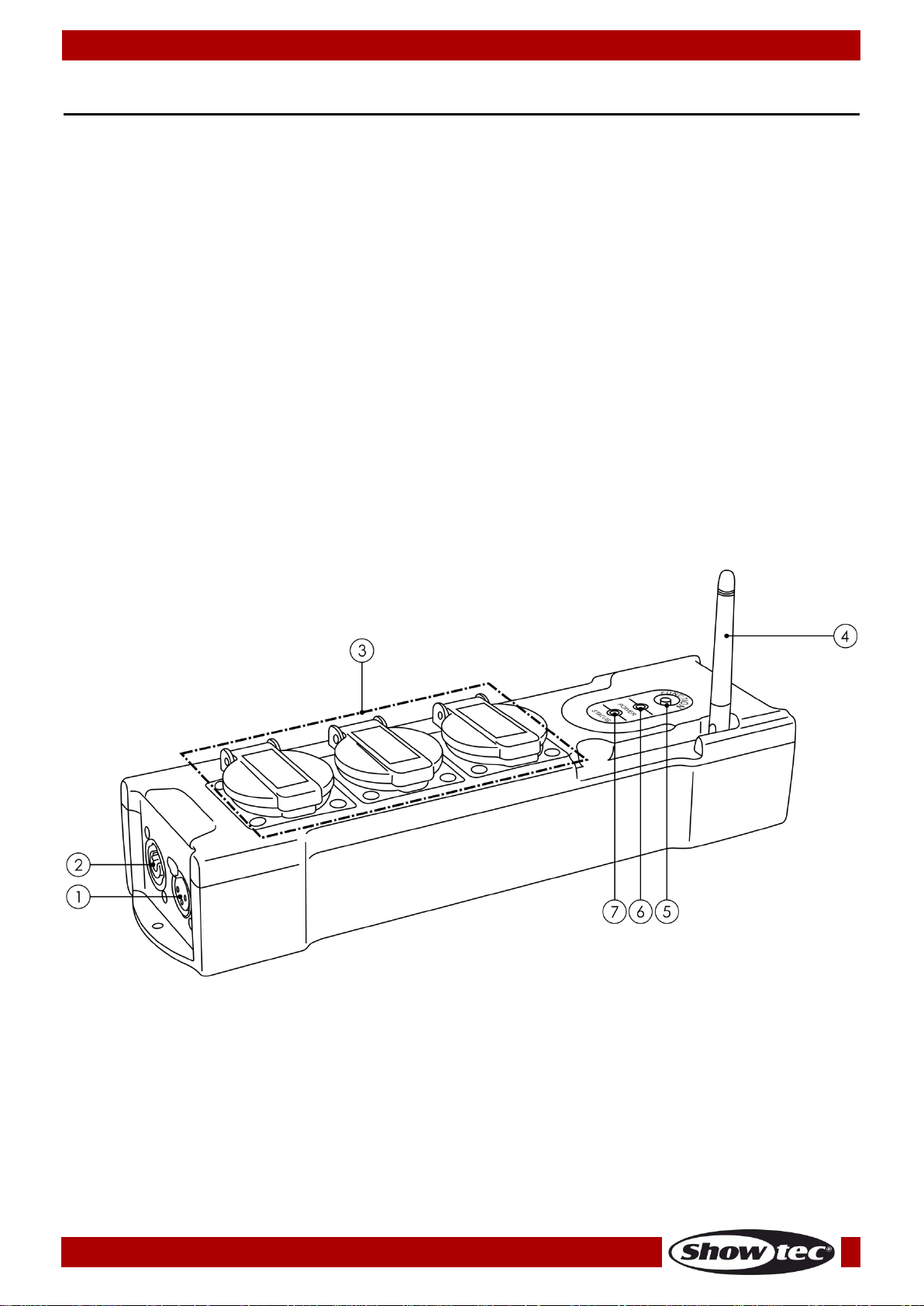

Frontside

Fig. 01

01) 3-pin DMX signal connector OUT

02) 220-240V Pro power connector OUT

03) 3 x Schuko power connector OUT

04) Wireless DMX receiver antenna

05) Function button

06) LED power indicator

07) LED status indicator

Ordercode: 90660

PowerBOX 3

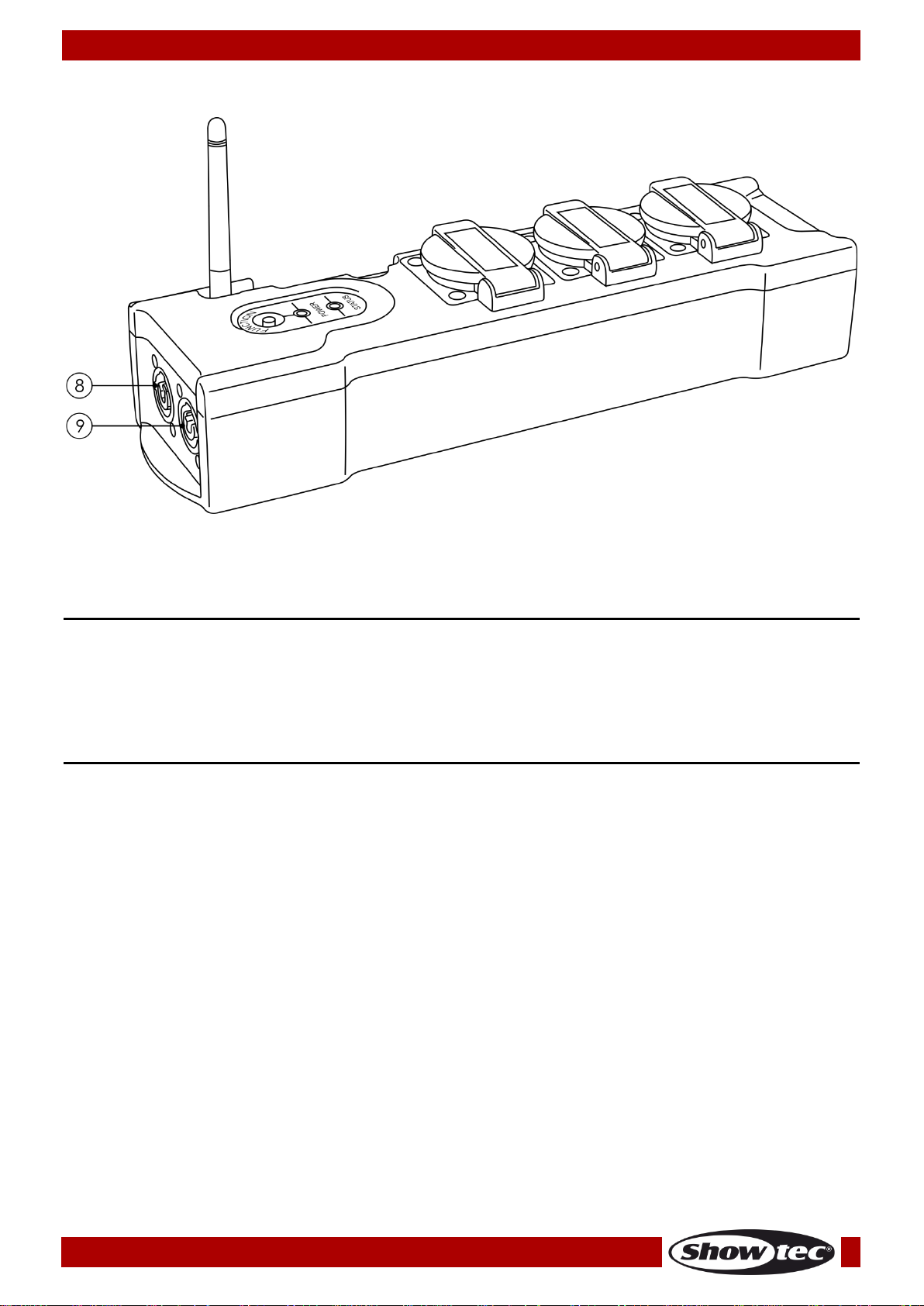

Backside

Fig. 02

08) 220-240V Pro power connector IN

09) 220-240V Pro power connector OUT

Installation

Remove all packing materials from the PowerBOX 3. Check if all foam and plastic padding is removed.

Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply.

Power ON

01) Plug one end of the included Schuko to Pro power cable to the appropriate 220-240V AC power

supply and the other end to the power IN connector (08) on the device.

02) Plug other devices into the remaining 3 x Schuko outputs (03) or 2 x Pro power outputs (02/09).

03) Using a DMX cable, connect your DMX devices to the 3-pin DMX connector (01).

Linking

01) Power on the PowerBOX 3.

02) Make sure that the PowerBOX 3 is not linked to any transmitter. If the PowerBOX 3 is linked, it needs to

be unlinked (see below).

03) If you want to link the PowerBOX 3 to a transmitter, please read the manual of the transmitter in

question.

04) You can link receivers at any time, also during operation. Bear in mind that DMX transmission will then

be interrupted.

Ordercode: 90660

PowerBOX 3

Unlinking

01) Press the Function button (05) to unlink the PowerBOX 3 receiver.

02) The PowerBOX 3 is now ready to be linked to another DMX transmitter.

LED Status Indicator

While linking/unlinking, observe the LED status indicator (07).

01) When the LED is OFF, the PowerBOX 3 is not linked to any transmitter.

02) When the LED is blinking slowly, the PowerBOX 3 is linked to a transmitter but does not receive any

DMX signal.

03) When the LED is continuously ON, the PowerBOX 3 is linked to a transmitter and receives a DMX

signal.

04) When the LED is blinking quickly, the linking process is in progress or the connection is weak/lost.

Maintenance

The operator has to make sure that safety-related and machine-technical installations are to be

inspected by an expert after every year in the course of an acceptance test.

The operator has to make sure that safety-related and machine-technical installations are to be

inspected by a skilled person once a year.

We strongly advise you to let a qualified technician give the unit a maintenance check twice a year.

The following points have to be considered during the inspection:

01) All screws used for installing the device or parts of the device have to be tightly connected and

must not be corroded.

02) There may not be any deformations on housings, fixations and installation spots.

03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.

04) The electric power supply cables must not show any damages or material fatigue.

The PowerBOX 3 requires almost no maintenance. However, you should keep the unit clean. Disconnect

the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not

use alcohol or solvents.

Keep connections clean. Disconnect electric power, and then wipe the DMX and power connections

with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying

electric power.

Troubleshooting

This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps

below in sequence until a solution is found. Once the unit operates properly, do not carry out following

steps.

01) If the device does not operate properly, unplug the device.

02) Check power from the wall, all cables, the settings (return to default), etc.

03) If all of the above appears to be O.K., plug the unit in again.

04) If nothing happens after 30 seconds, unplug the device.

05) Return the device to your Showtec dealer.

Ordercode: 90660

PowerBOX 3

Product Specification

Model:

Showtec PowerBOX 3

Input voltage:

220-240V AC, 50Hz

Power consumption:

Power output:

10A RMS/16A peak

Dimensions:

335 x 90 x 140 mm (LxWxH)

Weight:

0,9 kg

Operating and Programming:

Signal pin OUT:

Pin 1 (earth), pin 2 (-), pin 3 (+)

Signal output:

3-pin XLR OUT

Power connections:

Pro power connector IN/OUT, 3 x Schuko OUT

Wireless DMX:

2,4GHz Wireless Solutions Sweden

Housing:

High-impact ABS plastic

Tunnel width:

30 mm

Color:

Black

Connections:

Dedicated Schuko to Pro power

Max. ambient temperature ta:

35°C

Max. housing temperature tB:

80°C

Minimum distance:

Minimum distance from flammable surfaces:

0,5 m

Design and product specifications are subject to change without prior notice.

Website: www.showtec.info

Email: service@highlite.nl

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Blacklight 400W Manuel utilisateur

Show Tec

Show Tec LED BLINDER 2 COB Manuel utilisateur

Show Tec

Show Tec Quick DMX Rack 1024 Manuel utilisateur

Show Tec

Show Tec Aura 4 Manuel utilisateur

Show Tec

Show Tec Phantom 280 Hybrid Manuel utilisateur

Show Tec

Show Tec Candela Pix 100 Manuel utilisateur

Show Tec

Show Tec Club Par Dizzy 3/8 Manuel utilisateur

Show Tec

Show Tec ColorCue 3 Manuel utilisateur

Show Tec

Show Tec Performer 2000 RGBAL Manuel utilisateur

Show Tec

Show Tec Phantom 130 Spot Manuel utilisateur

Show Tec

Show Tec Galactic B1000 Manuel utilisateur

Show Tec

Show Tec LED Octostrip Set MKII 100 cm Manuel utilisateur

Show Tec

Show Tec Energetic V1 Manuel utilisateur

Show Tec

Show Tec Solar FL-280 V1 Manuel utilisateur

Show Tec

Show Tec Creator 1024 pro Manuel utilisateur

Show Tec

Show Tec Followspot LED 120W Manuel utilisateur

Show Tec

Show Tec Spectral D5000 Manuel utilisateur

Show Tec

Show Tec Galactic TXT Manuel utilisateur

Show Tec

Show Tec Stage Blinder 4 DMX Black Manuel utilisateur

Show Tec

Show Tec 60407 Manuel utilisateur

Show Tec

Show Tec Stage Blinder 2 Blaze Manuel utilisateur

Show Tec

Show Tec SPECTRAL M3000 ZOOM Q4 MK II Manuel utilisateur

Show Tec

Show Tec Polarscan Manuel utilisateur

Show Tec

Show Tec Performer Pendant Q6 V1 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
