Show Tec FX Drop Manuel utilisateur

FX Drop V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Order code: 61040

MANUAL

ENGLISH



 1

Order code: 61040
FX Drop
Table of contents

Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................3
Rigging ............................................................................................................................................................................4
Connection with the Mains.........................................................................................................................................4
Return Procedure..........................................................................................................................................................5
Claims..............................................................................................................................................................................5

Description of the Device ................................................................................................................................................6
Front View.......................................................................................................................................................................6
Back View.......................................................................................................................................................................7

Installation...........................................................................................................................................................................8
Multiple Fixtures Power Linking ...................................................................................................................................8
Setup with One FX Drop ..............................................................................................................................................8
Setup with Multiple FX Drops.......................................................................................................................................9
Suspending Objects ...................................................................................................................................................10

Operation..........................................................................................................................................................................11
Without a Switch Pack ...............................................................................................................................................11
With a Switch Pack .....................................................................................................................................................11
Releasing Suspended Objects Manually ...............................................................................................................11

Maintenance....................................................................................................................................................................11

Troubleshooting ...............................................................................................................................................................11

Product Specifications....................................................................................................................................................12

Dimensions........................................................................................................................................................................13



Order code: 61040

FX Drop

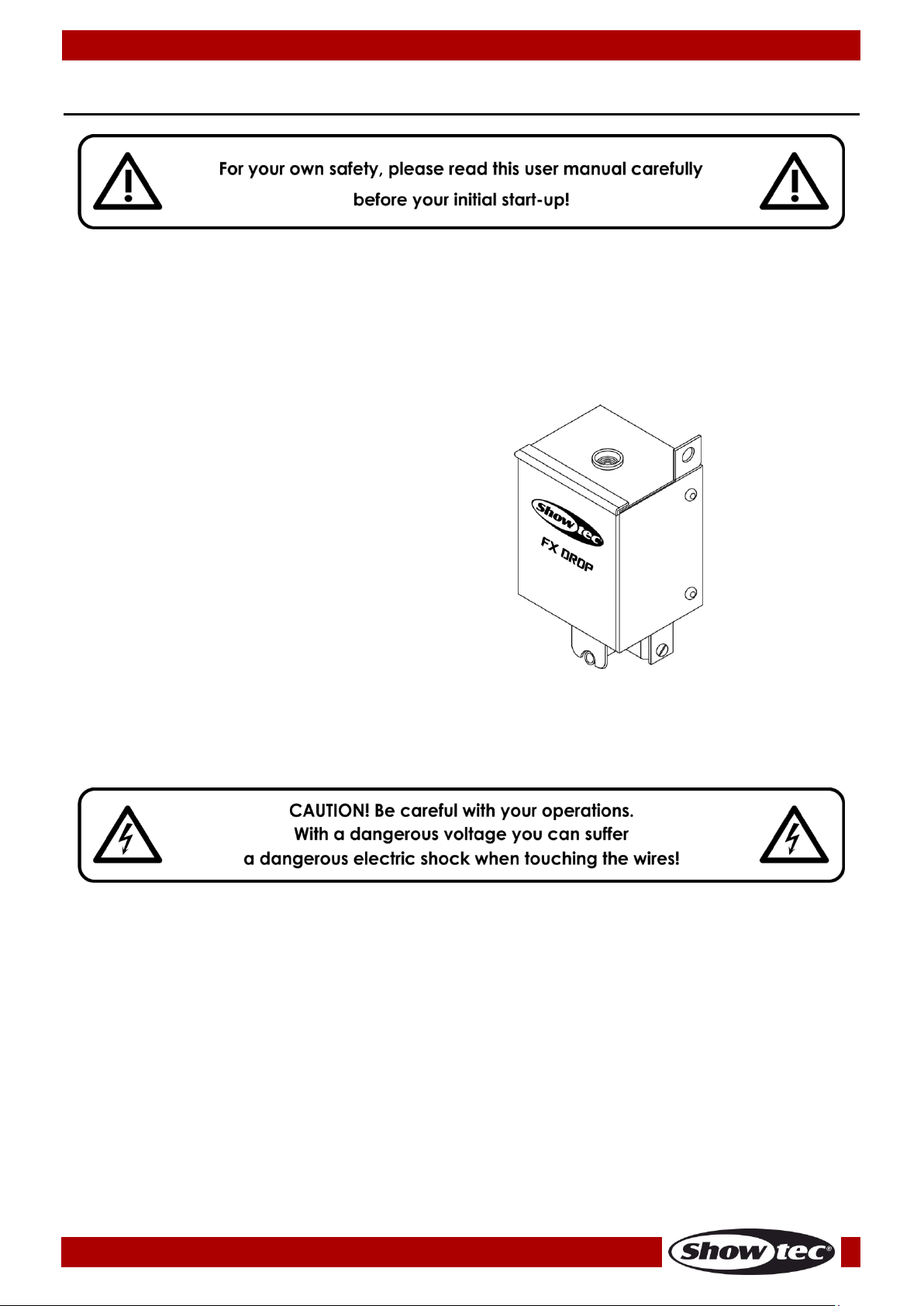

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture will be returned in the original factory box and

packing.

Your shipment includes:

●Showtec FX Drop

●User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be qualified

●follow the instructions of this manual

Before the initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes contained in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Order code: 61040

FX Drop

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

●Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

●Never remove warning or informative labels from the unit.

●Never leave any cables lying around.

●Do not exceed the loading capacity of 20 kg.

●Do not open the device. It does not contain user-serviceable parts.

●Only operate the device after having familiarized with its functions.

●Avoid flames and do not put close to flammable liquids or gases.

●Always disconnect power from the mains, when device is not used or before cleaning!

●This product is not intended for permanent installation.

●Make sure that the available voltage is not higher than stated on the information label.

●Make sure that the cables are never crimped or damaged. Check the device and the cables from

time to time.

●If device was dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

●If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

●For adult use only. The fixture must be installed beyond the reach of children. Never leave the unit

running unattended.

●The user is responsible for correct positioning and operating of the FX Drop. The manufacturer will not

accept liability for damages caused by the misuse or incorrect installation of this device.

●Repairs, servicing and electric connection must be carried out by a qualified technician.

●WARRANTY: Till one year after date of purchase.

Operating Determinations

●This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

●The minimum ambient temperature ta = 0 °C and the maximum ambient temperature ta = 30 °C

must never be exceeded.

●In order to eliminate wear and improve the device’s lifespan, during periods of non-use, completely

disconnect from power source via breaker or by unplugging.

●The relative humidity must not exceed 75 % with an ambient temperature of 30 °C.

●The device must not be installed in the vicinity of a source of vibration.

●If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Order code: 61040

FX Drop

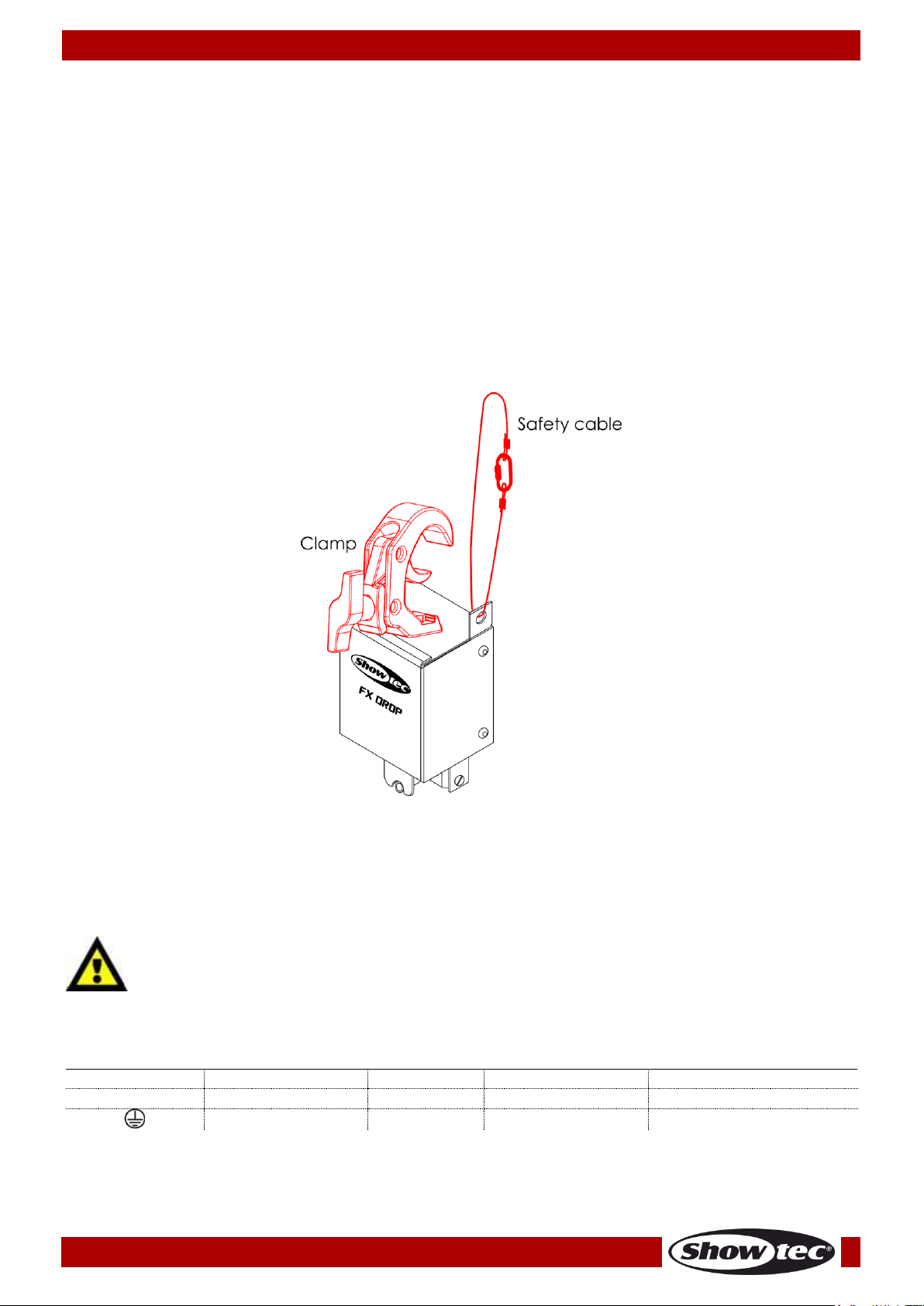

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself!

Always let the installation be carried out by an authorized dealer!

Procedure:

●Use a clamp to mount the FX Drop to the trussing system.

●Mount the FX Drop vertically under the truss construction.

●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety cable, see Fig. 01.

●When rigging, derigging or servicing the FX Drop, always make sure, that the area under the

installation place is blocked and staying in the area is forbidden.

Fig. 01

Improper installation can cause serious injuries and/or damage of property!

Connection with the Mains

Connect the device to the mains with the power plug. For more information, see Operation on page 11.

When the FX Drop is powered, it will release the suspended object immediately.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Order code: 61040

FX Drop

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the

fixture. Be prepared to provide the model number, serial number and a brief description of the cause for

the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is

the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

agreed otherwise in writing.

Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of

the invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement from which the obligation is resulting.

Order code: 61040

FX Drop

Description of the Device

Features

The Showtec FX Drop is a plug-and-play curtain drop tool. Once the FX Drop is powered, it will release the

hook. The maximum load capacity is 20 kg. The FX Drop features powerCON in- and outputs which

makes it easy to daisy-chain multiple FX Drops in a single power line.

The Showtec FX Drop is suitable for creating Kabuki drop effect using curtains, drapes, cloths, backdrops

or for releasing balloons, banners, and other similar objects.

●Power input: 230 V AC, 50 Hz

●Power output: 230 V AC, 50 Hz

●Power consumption: 30 W

●Power connections: PowerCON IN/OUT

●Load capacity: 20 kg

●Rigging: M10 screw thread

●Dimensions: 156 x 80 x 78 mm (L x W x H)

●Weight: 0,92 kg

Front View

Fig. 02

01) M10 screw thread

02) Safety eye

03) Drop hook

Order code: 61040

FX Drop

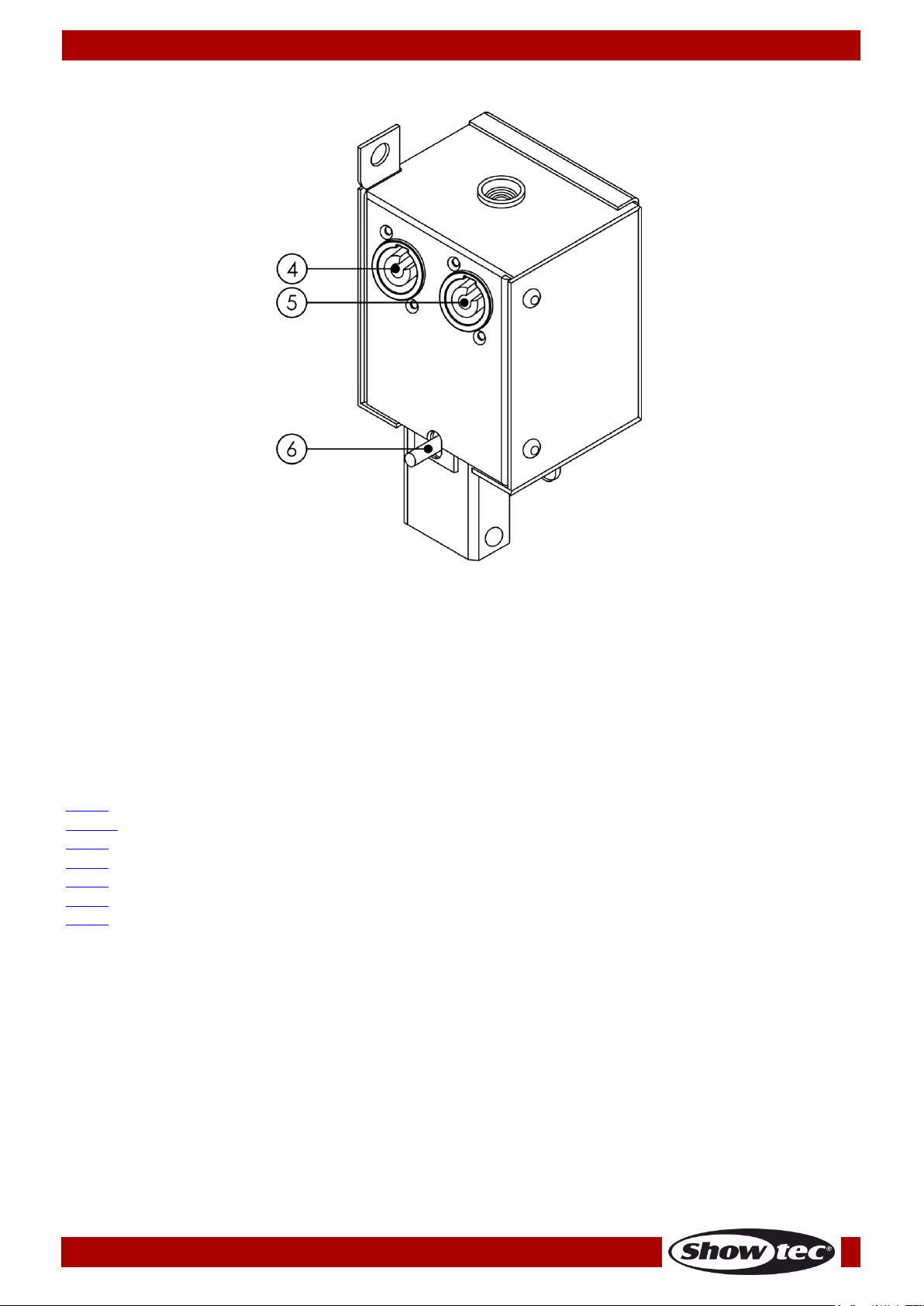

Back View

Fig. 03

04) PowerCON connector IN

05) PowerCON connector OUT

06) Release pin

Note: In order to control multiple FX Drops, you will need a switch pack or a similar ON/OFF controller. You

can purchase one from Highlite International.

The FX Drop is delivered without power cable and without mounting clamp.

Accessories

50753 –Showtec RP-405 MKII Relay Pack (switch pack)

75007B –Showtec 50 mm Q-trigger coupler, SWL: 100 kg

70315 –Quick Trigger Slimline Basic

90601 –Showtec power cable Pro Power connector to Schuko, 3 m, 3 x 1,5 mm2

90527 –Showtec power cable Neutrik powerCON to Schuko, 1,5 m, 3 x 2,5 mm2

90812 –DAP power cable blue/white Pro Power Connector, 1,5 m, 3 x 1,5 mm2

90536 –Showtec power cable Neutrik powerCON M/F, 1,5 m, 3 x 1,5 mm2

Order code: 61040

FX Drop

Installation

Remove all packing materials from the FX Drop. Check if all foam and plastic padding is removed.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Multiple Fixtures Power Linking

The FX Drop supports power linking. Power can be relayed to another device via the power OUT

connector. Note that the input and the output connectors have different designs: one type cannot be

connected to the other.

To link fixtures in a chain, a hard usage cable with appropriate cable jacket must be used. Power linking

cables are available for purchase from Highlite International.

To prevent power overload and damage to the fixture, do not link more fixtures in one chain than

recommended. After you have reached the maximum number of fixtures, use a new power outlet.

Maximum recommended number of fixtures on a power link @ 230 V: 25 fixtures

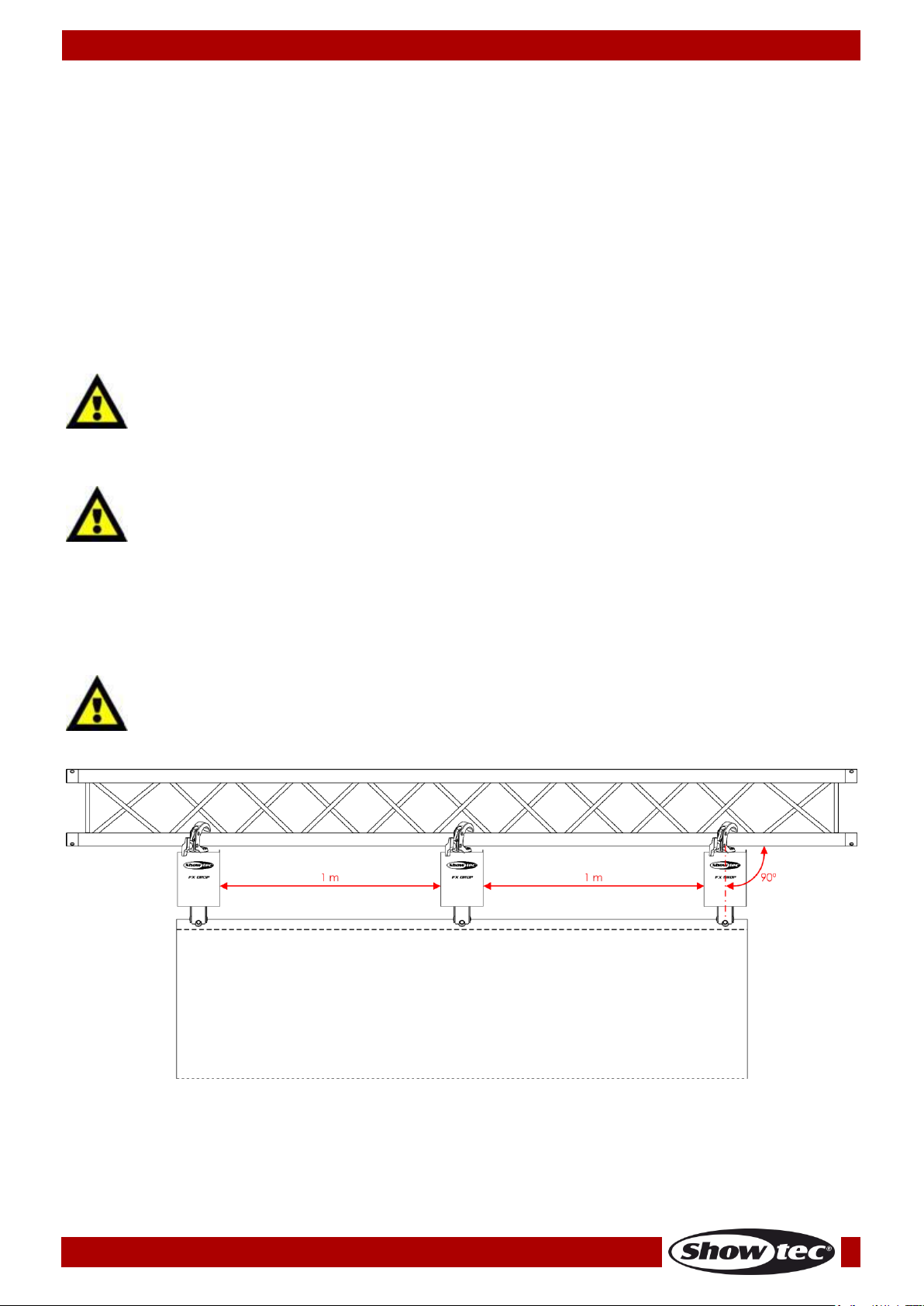

Setup with One FX Drop

01) Fasten the FX Drop to a firm trussing using a clamp. See Rigging on page 4. Make sure the FX drop is

mounted vertically under the truss construction.

02) Use a safety cable to secure the FX Drop to the trussing.

03) Hang the object that will be released. See Suspending objects on page 10.

The maximum load capacity is 20 kg. Do not to exceed the maximum load capacity.

04) Connect the FX Drop to a switch pack. Make sure the switching device is suitable for switching the

electricity.

Note: You can connect the FX Drop directly to a power outlet using a power cable but this will

immediately release the suspended object.

When the FX Drop is powered, it will release the suspended object immediately.

Order code: 61040

FX Drop

Setup with Multiple FX Drops

01) Determine the position of the first and the last FX Drops based on the width of the cloth/object that

needs to be suspended.

02) Fasten the first FX Drop to a firm trussing using a clamp. See Rigging on page 4. Make sure the FX

drop is mounted vertically under the truss construction.

03) Use a safety cable to secure the FX Drop to the trussing.

04) Repeat steps 1 and 2 above to mount the last FX Drop.

05) Place the rest of the FX Drops at equal intervals between the first and the last FX Drop. Make sure the

distance between the FX Drops is not bigger than 1 m. This will prevent the cloth from sagging and

will provide enough stability. See Fig. 04

06) Repeat steps 1 and 2 above to mount the remaining FX Drops.

07) Plug an electric power cord into the first unit’s IN socket. Do not supply power yet.

08) Link the FX Drops in a daisy-chain using appropriate power linking cables. See Multiple Fixtures Power

Linking on page 8.

Maximum recommended number of fixtures on a power link @ 230 V: 25 fixtures

09) Hang the object that will be released. See Suspending objects on page 10.

The maximum load capacity is 20 kg. Do not to exceed the maximum load capacity.

10) Connect the first FX Drop to a switch pack. Make sure the switching device is suitable for

disconnecting the power suppply.

Note: You can connect the FX Drop directly to a power outlet using a power cable but this will

immediately release the suspended object.

When the FX Drop is powered, it will release the suspended object immediately.

Fig. 04

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Phantom 25MKII Spot LED Manuel utilisateur

Show Tec

Show Tec Mirrorball Motor until 50 cm V2 Manuel utilisateur

Show Tec

Show Tec spectral 260 white Manuel utilisateur

Show Tec

Show Tec Trackpod 90 Manuel utilisateur

Show Tec

Show Tec Spectral CYC650 Manuel utilisateur

Show Tec

Show Tec Tracker 300 V3 Manuel utilisateur

Show Tec

Show Tec D-Pack 6 Classic Manuel utilisateur

Show Tec

Show Tec LED Wall Wash Manuel utilisateur

Show Tec

Show Tec LED Tube Basic Square Manuel utilisateur

Show Tec

Show Tec LED City Painter 45 Manuel utilisateur

Show Tec

Show Tec Spectral 2500 Zoom Tour Manuel utilisateur

Show Tec

Show Tec 44050 Manuel utilisateur

Show Tec

Show Tec PAR 46 Warm-On-Dim V1 Manuel utilisateur

Show Tec

Show Tec ACT Image Spot 50 CW V1 Manuel utilisateur

Show Tec

Show Tec Star Dream 6x4m 128 LED RGB Manuel utilisateur

Show Tec

Show Tec DB-1-8/RDM V1 Manuel utilisateur

Show Tec

Show Tec Performer 2000 RGBAL Manuel utilisateur

Show Tec

Show Tec 43552 Manuel utilisateur

Show Tec

Show Tec Helix M1100 Q4 Mobile Manuel utilisateur

Show Tec

Show Tec LED Commander Pro Manuel utilisateur

Show Tec

Show Tec Blacklight Set 120cm Manuel utilisateur

Show Tec

Show Tec Explorer 575 Wash MKII Manuel utilisateur

Show Tec

Show Tec Galactic RGB-2000 Manuel utilisateur

Show Tec

Show Tec Data Flash Strobe Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
