Blacklight Set 120cm

ORDERCODE 80310

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Blacklight Set brings excitement to any venue.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: [email protected]

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Blacklight Set™Product Guide

Warning..…...................................................................................…………………………………………..

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Rigging………………………………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features……………………….………………………………………………………….………………….….

Installation...............................................................................…...…………………………………….……

Set Up and Operation.....................................................................……..……………………………….…

Maintenance...................................................................................………..………….…….………………

Troubleshooting............................................................................………………….………………….…..

Product Specifications.................................................................……………….…….…………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Do not open the device and do not modify the device.

•Do not insert objects into air vents.

•Do not connect this device to a dimmerpack.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Never look directly into the light source.

•Never leave any cables lying around.

•Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

•Never use the device during thunderstorms, unplug the device immediately.

•Do not touch the device’s housing bare-handed during its operation (housing becomes hot).

•Only use device indoor, avoid contact with water or other liquids.

•Avoid flames and do not put close to flammable liquids or gases.

•Only operate the device after having familiarized with its functions.

•Always replace the lamp, when it is damaged or deformed due to the heat.

•Always keep case closed while operating.

•Always allow free air space of at least 50 cm around the unit for ventilation.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

•If the external cable is damaged, it has to be replaced by a qualified technician.

•If the lens or glass is obviously damaged, it has to be replaced. So that its functions are not

impaired, due to cracks or deep scratches.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit

running unattended.

•Allow time to cool down, before replacing lamp.

•This device falls under protection-class II, therefore the electrical connection must be carried out by

a qualified technician

•During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•For replacement use lamps and fuses of same type and rating only.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the device

will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 0,5 meters.

The maximum ambient temperature ta= 45°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(

meant es

eciall

for e

ile

tics

)

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•The Blacklight must never be fixed swinging freely in the room.

•When rigging, derigging or servicing the device, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

Cable Pin International

BROWN FASE L

BLUE NUL N

YELLOW/GREEN EARTH

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Blacklight Set is a blacklight from Showtec.

• 120 cm. Blacklight

• Plug-&-Play

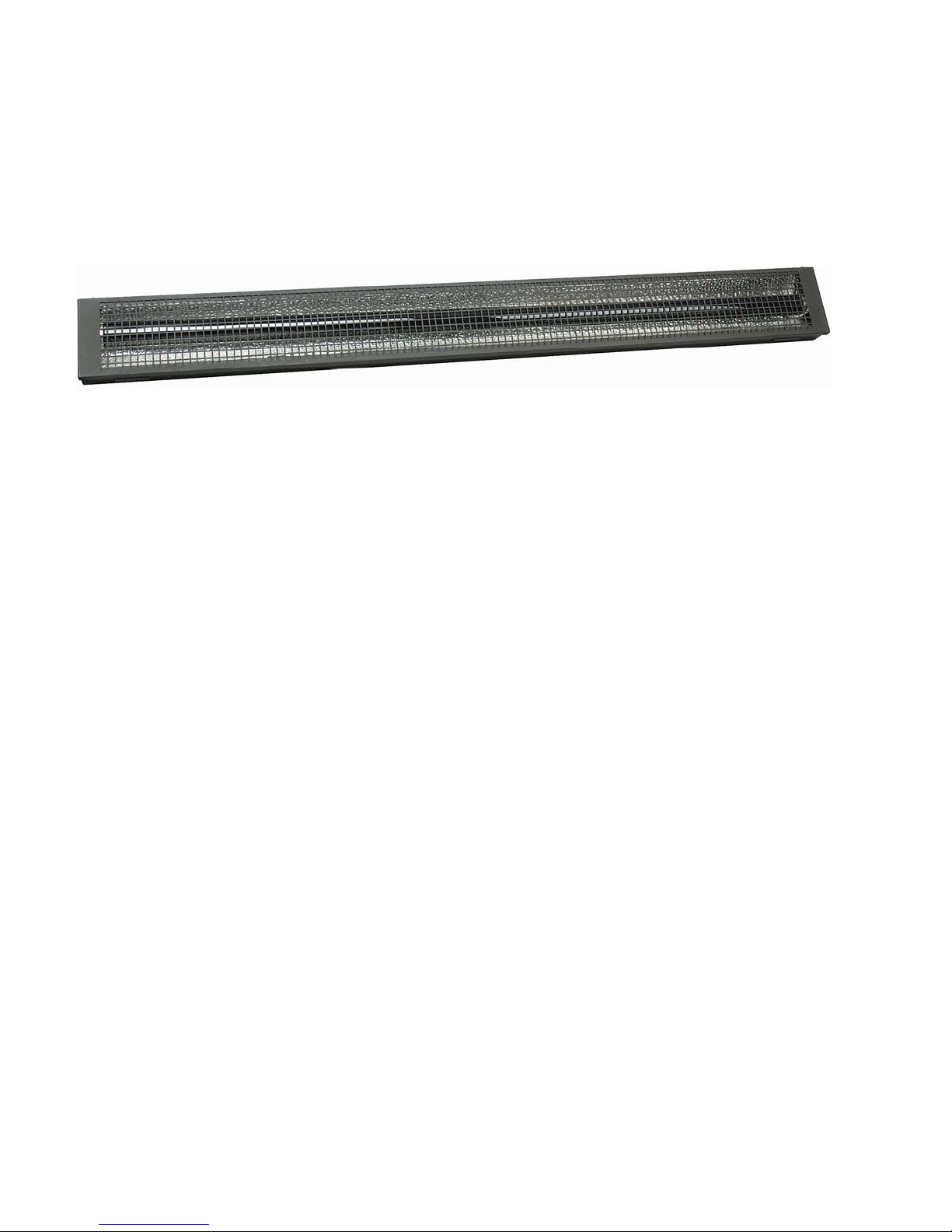

Overview

Fig. 1

Installation

Installing the Lamp

The Blacklight Set uses the 240V/36W TL (ordercode 80302P / 80302G) tube, as manufactured by all

popular manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the

device was not designed for.

Damages caused by non-observance are not subject to warranty.

Procedure :

1. Turn the old TL-tube 90 degrees and remove the tube.

2. Take the new TL-tube. Read lamp instructions. Do not touch the lamp bulb glass. Oil on hands shortens

the lamp life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free towel and rubbing

alcohol).

3. Insert the new tube with the lamp pins into the socket, then turn the tube 90 degrees.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Use a ruler to measure the distance between the two assembly holes of the device. Mark the correct

position for the two assembly screws and make two 1,6mm holes. Use a screwdriver and 2 screws, in order

to fasten the equipment. Tighten the screws carefully.

Maintenance

The Showtec Blacklight Set requires almost no maintenance. However, you should keep the unit clean.

Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and

then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe glass clean with glass cleaner and a

soft cloth. Do not use alcohol or solvents. Keep connections clean. Disconnect electric power, and then wipe

the connections with a damp cloth. Make sure connections are thoroughly dry before linking equipment or

supplying electric power.

The operator has to make sure that safety-relating and machine-technical installations are to be inspected

by an expert after every four years in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are to be inspected

by a skilled person once a year.

The following points have to be considered during the inspection:

1. All screws used for installing the device or parts of the device have to be tightly connected and must

not be corroded.

2. There may not be any deformations on housings, fixations and installation spots.

3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing.

4. The electric power supply cables must not show any damages or material fatigue.

Changing the Lamp

1. Disconnect mains power supply.

2. Turn the old TL-tube 90 degrees and remove the tube.

3. Follow directions for installing a new lamp, page 5.

Troubleshooting

This troubleshooting guide is meant to help solve simple problems.

If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates

properly, do not carry out following steps.

1. If the device does not operate properly, unplug the device.

2. Check the fuse, power from the wall, all cables, etc.

3. If all of the above appears to be O.K., plug the unit in again.

4. If you are unable to determine the cause of the problem, do not open the AquaLed, as this may damage

the unit and the warranty will become void.

5. Return the device to your Showtec dealer.

No Light

This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps

below in sequence until a solution is found. Once the unit operates properly, do not carry out following

steps.

If the light effect does not operate properly, refer servicing to a technician.

Response: Suspect two potential problem areas: the power supply or the lamp.

1. Power supply. Check that the unit is plugged into an appropriate power supply.

2. The lamp. Replace the old lamp with a new one with the same specifications. See page 5 for replacing

lamps.

Product Specification

Model: Showtec Blacklight Set

Voltage: AC 230V-50Hz (CE)

Power: 36W

Maximum ambient temperature ta: 25°C

Maximum housing temperature tB: 60°C

Minimum distance from flammable surfaces: 0.5m

Dimensions: 1310 x 130 x 100 mm (LxWxH)

Weight: 5,4 kg

Lamps

Allowed lamp models*:

Philips 240V 36W G13 (3000hr) ordercode 80302P

GE 240V 40W G13 (20000hr) ordercode 80302G

*: Versions for other lamps may be produced. Please check the specification label on your product.

Design and product specifications are subject to change without prior notice.

2005 Showtec.

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Lightset PRO 9/10 RGBM Manuel utilisateur

Show Tec

Show Tec RGB Par Manuel utilisateur

Show Tec

Show Tec Performer 1500 Fresnel Q6 Manuel utilisateur

Show Tec

Show Tec Performer 2000 Fresnel DDT MKII V2 Manuel utilisateur

Show Tec

Show Tec SC-2412 Manuel utilisateur

Show Tec

Show Tec ACT Flood 100 RGBW V1 Manuel utilisateur

Show Tec

Show Tec LED Versatrack Manuel utilisateur

Show Tec

Show Tec Mini Q-Strobe Manuel utilisateur

Show Tec

Show Tec Festoonlight Q4 String Manuel utilisateur

Show Tec

Show Tec Performer Profile Mini MKII 3200K Manuel utilisateur

Show Tec

Show Tec QubiQ S1500 Manuel utilisateur

Show Tec

Show Tec Spectral M800 Q4 Tour Manuel utilisateur

Show Tec

Show Tec ACT Fresnel 150 WW Manuel utilisateur

Show Tec

Show Tec LED Design Par18 RGB Manuel utilisateur

Show Tec

Show Tec Stage Blinder 4 DMX V2 Manuel utilisateur

Show Tec

Show Tec Spectral PC 400Z IP65 V2 Manuel utilisateur

Show Tec

Show Tec ACT Profile 50 RGBAL Manuel utilisateur

Show Tec

Show Tec ColorCue 1 AIR Manuel utilisateur

Show Tec

Show Tec Polar 100 Beam Manuel utilisateur

Show Tec

Show Tec Spectral ZP-5 Manuel utilisateur

Show Tec

Show Tec Phantom 100 Spot Manuel utilisateur

Show Tec

Show Tec Performer 2500 Fresnel Tungsten V1 Manuel utilisateur

Show Tec

Show Tec Derby LED V2 Manuel utilisateur

Show Tec

Show Tec 50387 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
