Show Tec 60409 Manuel utilisateur

Mirrorball 75 cm V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 60409

MANUAL

ENGLISH

Ordercode: 60409

Mirrorball 75 cm

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................3

Rigging ............................................................................................................................................................................4

Connection with the mains.........................................................................................................................................4

Return Procedure..........................................................................................................................................................5

Claims..............................................................................................................................................................................5

Description of the device.................................................................................................................................................6

Features ..........................................................................................................................................................................6

Overview ........................................................................................................................................................................6

Installation...........................................................................................................................................................................7

Setup and Operation ........................................................................................................................................................7

Installing the Mirrorball .................................................................................................................................................7

Maintenance......................................................................................................................................................................8

Troubleshooting .................................................................................................................................................................8

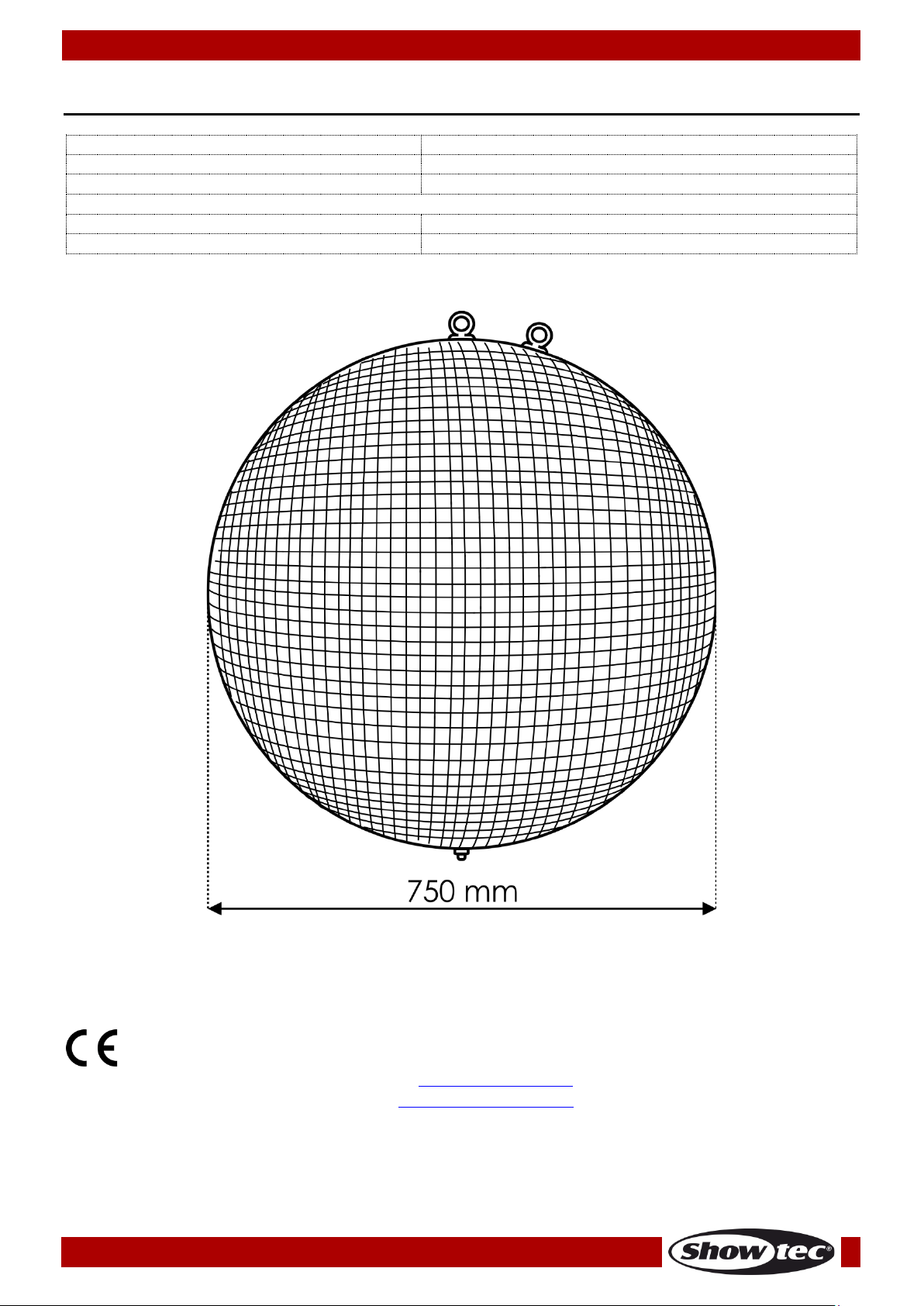

Product Specifications......................................................................................................................................................9

Ordercode: 60409

Mirrorball 75 cm

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

●Showtec Mirrorball 75 cm

●User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be qualified

●follow the instructions of this manual

Before the initial start-up, please make sure that there is no damage caused by transportation.

Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes contained in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 60409

Mirrorball 75 cm

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

●Never remove warning or informative labels from the unit.

●Never leave any cables lying around.

●Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within

children’s reach, as they are potential sources of danger.

●Do not open the device and do not modify the device.

●Do not shake the device. Avoid brute force when installing or operating the device.

●Only use the device indoors, avoid contact with water or other liquids.

●Only operate the device after having checked if the housing is firmly closed and all screws are tightly

fastened.

●Only operate the device after having familiarized with its functions.

●Avoid flames and do not put close to flammable liquids or gases.

●Make sure that the device is not exposed to extreme heat, moisture or dust.

●Make sure that the rotation of the mirror ball is not interrupted in any way by decoration parts, etc.

●Make sure that the mirror ball cannot start to swing due to air streams, etc. The mirror ball and the

motor should be hanged and operated absolutely vibration-free.

●Regularly examine whether the keyring or the chain has any deformations. If you find any,

immediately detach the mirror ball.

●The length of the chain with the mirror ball may never exceed 100 cm.

●If device was dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

●If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

●For adult use only. The device must be installed beyond the reach of children. Never leave the unit

running unattended.

●The user is responsible for correct positioning and operating of the device. The manufacturer will not

accept liability for damages caused by the misuse or incorrect installation of this device.

●WARRANTY: Till one year after date of purchase.

Operating Determinations

●This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

●To eliminate wear and improve lifespan, during periods of non-use, completely disconnect from

power via breaker or by unplugging.

●The maximum ambient temperature ta= 40 °C must never be exceeded.

●The relative humidity must not exceed 50 % with an ambient temperature of 40 °C.

●If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.

You endanger your own safety and the safety of others!

Ordercode: 60409

Mirrorball 75 cm

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

●If the device is lowered from the ceiling or high joists, professional trussing systems have to be used.

●The device must never be fixed swinging freely in the room.

●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

a safety cable.

●Make sure that the installation area can hold a minimum point load of 10 times the device’s load

(e.g. maximum load: 10 kg = point load: 100 kg).

●When rigging, derigging or servicing the device, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious injuries and/or damage of property!

Connection with the mains

Connect the device to the mains with the power-plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE

GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Ordercode: 60409

Mirrorball 75 cm

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the

fixture. Be prepared to provide the model number, serial number and a brief description of the cause of

the return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging

is the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

agreed otherwise in writing.

Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of

the invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement from which the obligation is resulting.

Ordercode: 60409

Mirrorball 75 cm

Description of the device

Features

The Mirrorball 75 cm should be used with a mirror ball control system (60416).

●Dimensions: ø 75 cm

●Weight: 18,5 kg

Optional accessories

60416 –Mirrorball Motor until 100 cm

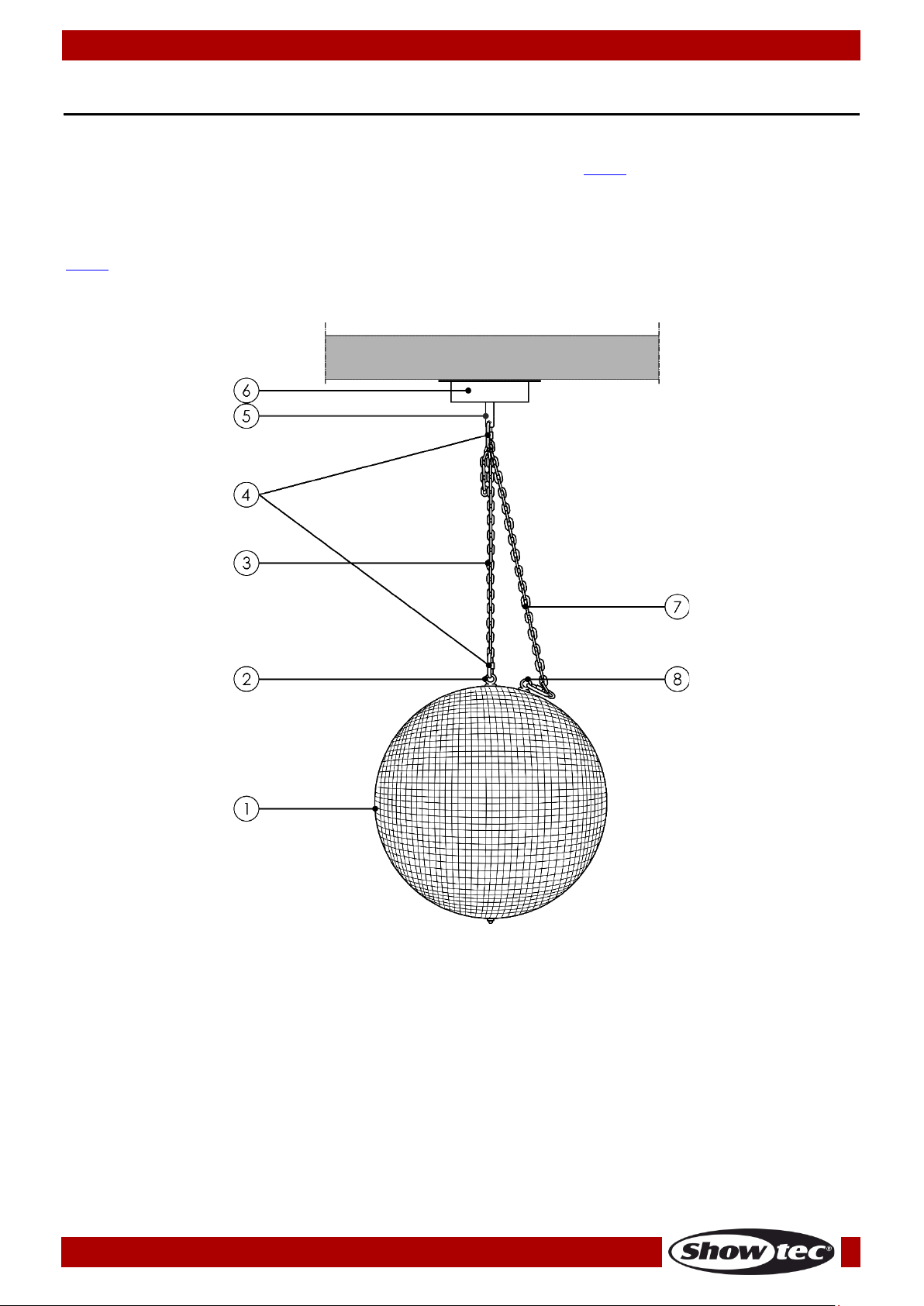

Overview

Fig. 01

01) Mirror ball

02) Installation eyelet

03) Mirror ball chain

04) Screw-on chain link

05) Motor axle

06) Mirrorball Motor until 100 cm

07) Safety chain

08) Safety eyelet

Ordercode: 60409

Mirrorball 75 cm

Installation

Remove all packing materials from the Mirrorball 75 cm. Check if all foam and plastic padding is

removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Setup and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply.

●Install the mirror ball in a horizontal position at a vibration-free, oscilation-free and fire-resistant

location. Use a water-level to make sure that the mirror ball is installed absolutely horizontally and

that the motor axle points are facing the bottom.

●Perform a hazard analysis based on the location and application if the mirror ball is to be operated

above persons, in order to ensure dimensioning and measures for a safe operation. The mirror ball

meets the professional safety regulations regarding safety and operation.

●The installation of the mirror ball has to be carried out in a way that it can hold 10 times the device’s

weight for 1 hour, without any harming deformation.

●The installation must always be secured with a safety attachment, constructed in a way that no part

of the installation can fall down if the main attachment fails.

●When rigging, derigging or servicing the fixture, staying in the area below the installation place, on

bridges, under high working places and other endangered areas is forbidden.

●Make sure that safety-related and machine-technical installations are approved by an expert before

taking into operation.

●Make sure that safety-related and machine-technical installations are approved by an expert after

every four year in the course of an acceptance test.

●Make sure that safety-related and machine-technical installations are approved by a skilled person

once a year.

Installing the Mirrorball

●The installation materials may never include abrading material e.g. steel cables, in order to avoid

material wearing.

●The chain must never be longer than 100 cm.

01) Connect the mirror ball chain with the screw-on chain link to the installation eye of the mirror ball

and tighten the fixation screw.

02) Insert the fourth chain link of the mirror ball chain, with the mirror ball in the screw-on chain link and

tighten the fixation screw.

Ordercode: 60409

Mirrorball 75 cm

Maintenance

The operator has to make sure that safety-related and machine-technical installations are to be

inspected by an expert after every year in the course of an acceptance test.

The operator has to make sure that safety-related and machine-technical installations are to be

inspected by a skilled person once a year.

The following points have to be considered during the inspection:

01) All screws used for installing the device or parts of the device have to be tightly connected and

must not be corroded.

02) There may not be any deformations on housings, fixations and installation spots.

03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.

04) The electric power supply cables must not show any damages or material fatigue.

The Mirrorball 75 cm requires almost no maintenance. However, you should keep the unit clean.

Wipe the device with a damp cloth.

Troubleshooting

This troubleshooting guide is meant to help solve simple problems.

If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit

operates properly, do not carry out following steps.

If the mirror ball control system does not operate properly, refer servicing to a technician.

Suspect three potential problem areas as: the power supply, the motor and the mirror ball.

01) Power supply. Check if the unit is plugged into an appropriate power supply.

02) The motor. Return the motor to its dealer.

03) The mirror ball. Return the Mirrorball to your Showtec dealer.

04) If all appears to be O.K., plug the unit in again.

05) If you are unable to determine the cause of the problem, do not open the Mirrorball, as this may

damage the unit and the warranty will become void.

06) Return the device to your Showtec dealer.

Ordercode: 60409

Mirrorball 75 cm

Product Specifications

Model:

Showtec Mirrorball 75 cm

Dimensions:

ø 75 cm

Weight:

18,5 kg

Max. ambient temperature ta:

From -5 °C to 40 °C

Max. housing temperature tB:

80 °C

Design and product specifications are subject to change without prior notice.

Website: www.Showtec.info

Email: [email protected]

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Dancefloor Sparkle RGB V1 Manuel utilisateur

Show Tec

Show Tec 43552 Manuel utilisateur

Show Tec

Show Tec Dreamwave V1 Manuel utilisateur

Show Tec

Show Tec Performer Profile Zoom 150 Q6 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 15 Q4 Manuel utilisateur

Show Tec

Show Tec Stage Blinder 2 Blaze Manuel utilisateur

Show Tec

Show Tec Illumilift RGBW Turbo Manuel utilisateur

Show Tec

Show Tec Floodlight 1 kW Symmetric Manuel utilisateur

Show Tec

Show Tec INDOOR DMX LED BAR 8 Manuel utilisateur

Show Tec

Show Tec spectral 260 white Manuel utilisateur

Show Tec

Show Tec COMPACT POWER LIGHTSET RGB-UV V1 Manuel utilisateur

Show Tec

Show Tec 42668 Manuel utilisateur

Show Tec

Show Tec Creator 1024 pro Manuel utilisateur

Show Tec

Show Tec Performer 2500 Fresnel Tungsten Manuel utilisateur

Show Tec

Show Tec EventLITE 4/10 Q4 Set 6x Manuel utilisateur

Show Tec

Show Tec Luna Par 120 Q4 Manuel utilisateur

Show Tec

Show Tec Stage Beam MKII 300/500W Fresnel V1 Manuel utilisateur

Show Tec

Show Tec Spectral CYC650 Manuel utilisateur

Show Tec

Show Tec Shogun Pro-500 Manuel utilisateur

Show Tec

Show Tec Eventlite 177IR Manuel utilisateur

Show Tec

Show Tec Performer 1500 Fresnel Daylight Manuel utilisateur

Show Tec

Show Tec Galactic RGB-2000 Manuel utilisateur

Show Tec

Show Tec Net-8/5 Manuel utilisateur

Show Tec

Show Tec EventLITE 4/10 Q4 Set 6x Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
