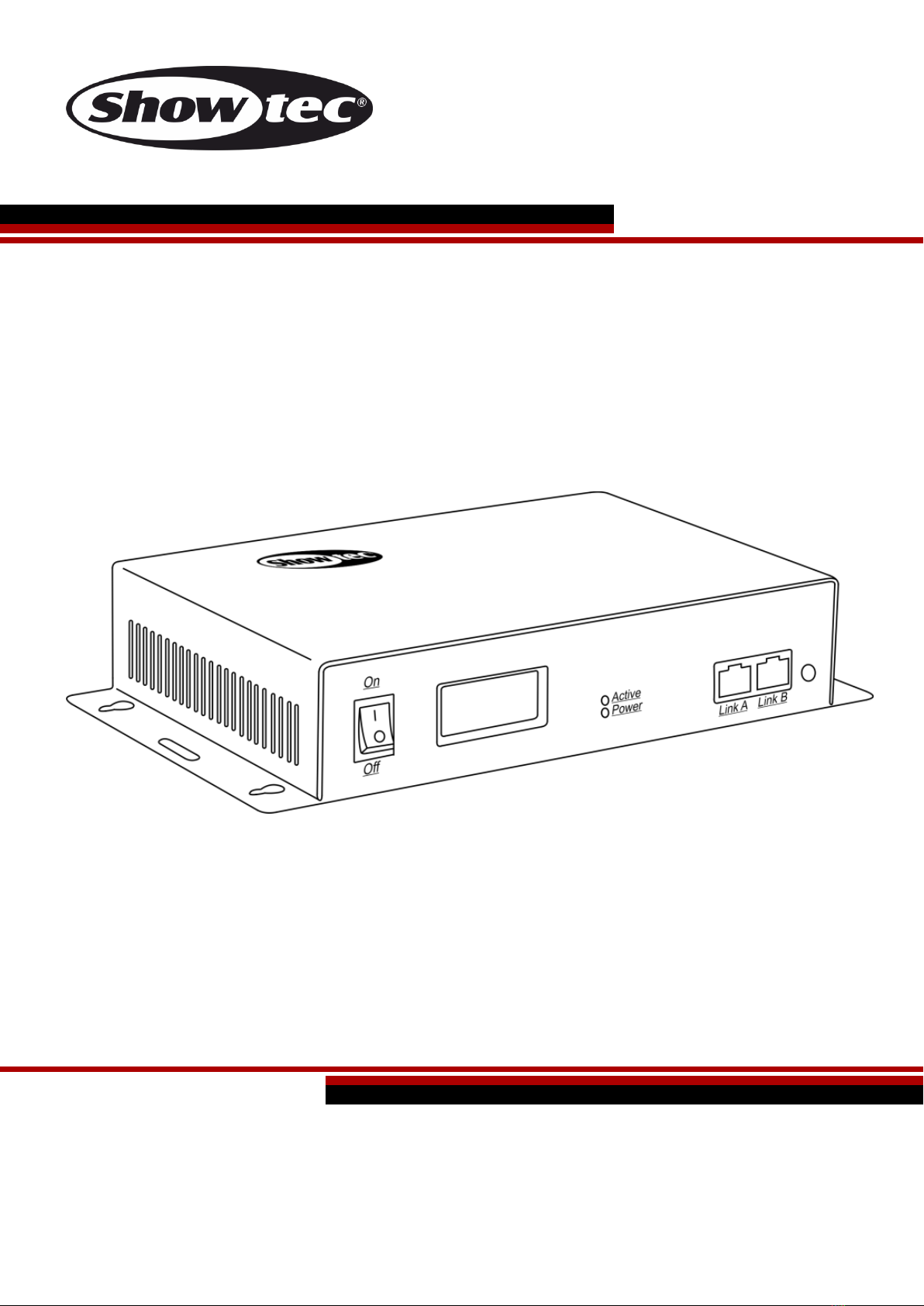

Show Tec 40392 Manuel utilisateur

Pixel Sky Pro Controller V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 40392

MANUAL

ENGLISH

Ordercode: 40392

Pixel Sky Pro Controller

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Connection with the mains.........................................................................................................................................6

Return Procedure..........................................................................................................................................................7

Claims..............................................................................................................................................................................7

Description of the device.................................................................................................................................................8

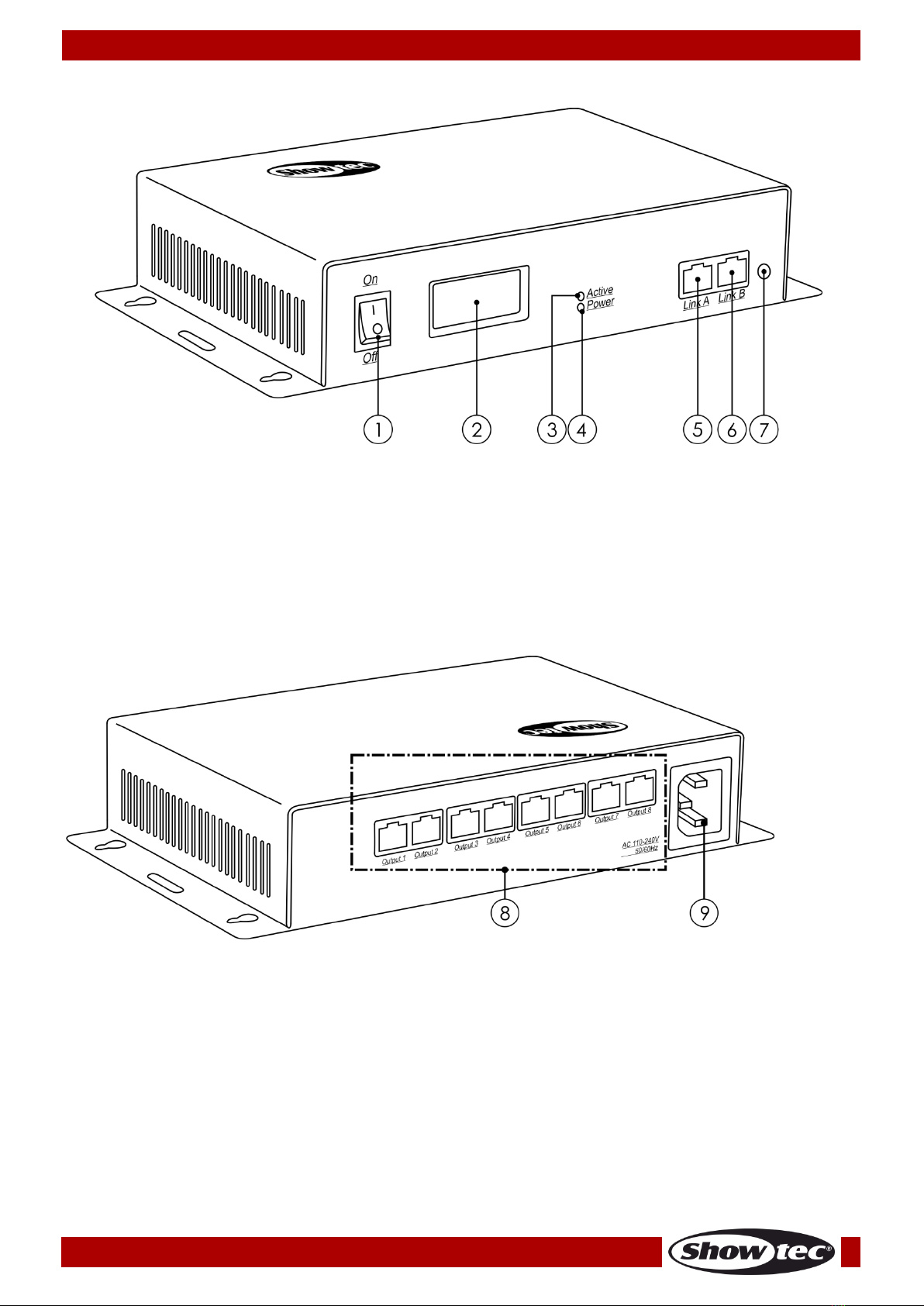

Pixel Sky Pro Controller - Frontside .............................................................................................................................9

Pixel Sky Pro Controller - Backside .............................................................................................................................9

Pixel Sky Pro Power Box ..............................................................................................................................................10

Pixel Sky Pro Curtain....................................................................................................................................................10

Installation.........................................................................................................................................................................11

Cable connection ......................................................................................................................................................11

Set Up and Operation .....................................................................................................................................................12

Software Setup ............................................................................................................................................................12

Screen Grabbing ........................................................................................................................................................15

Maintenance....................................................................................................................................................................17

Replacing the Fuse (Power Box) ..............................................................................................................................17

Troubleshooting ...............................................................................................................................................................17

No Light.........................................................................................................................................................................17

Product Specifications....................................................................................................................................................19

Dimensions........................................................................................................................................................................20

Notes ..................................................................................................................................................................................21

Ordercode: 40392

Pixel Sky Pro Controller

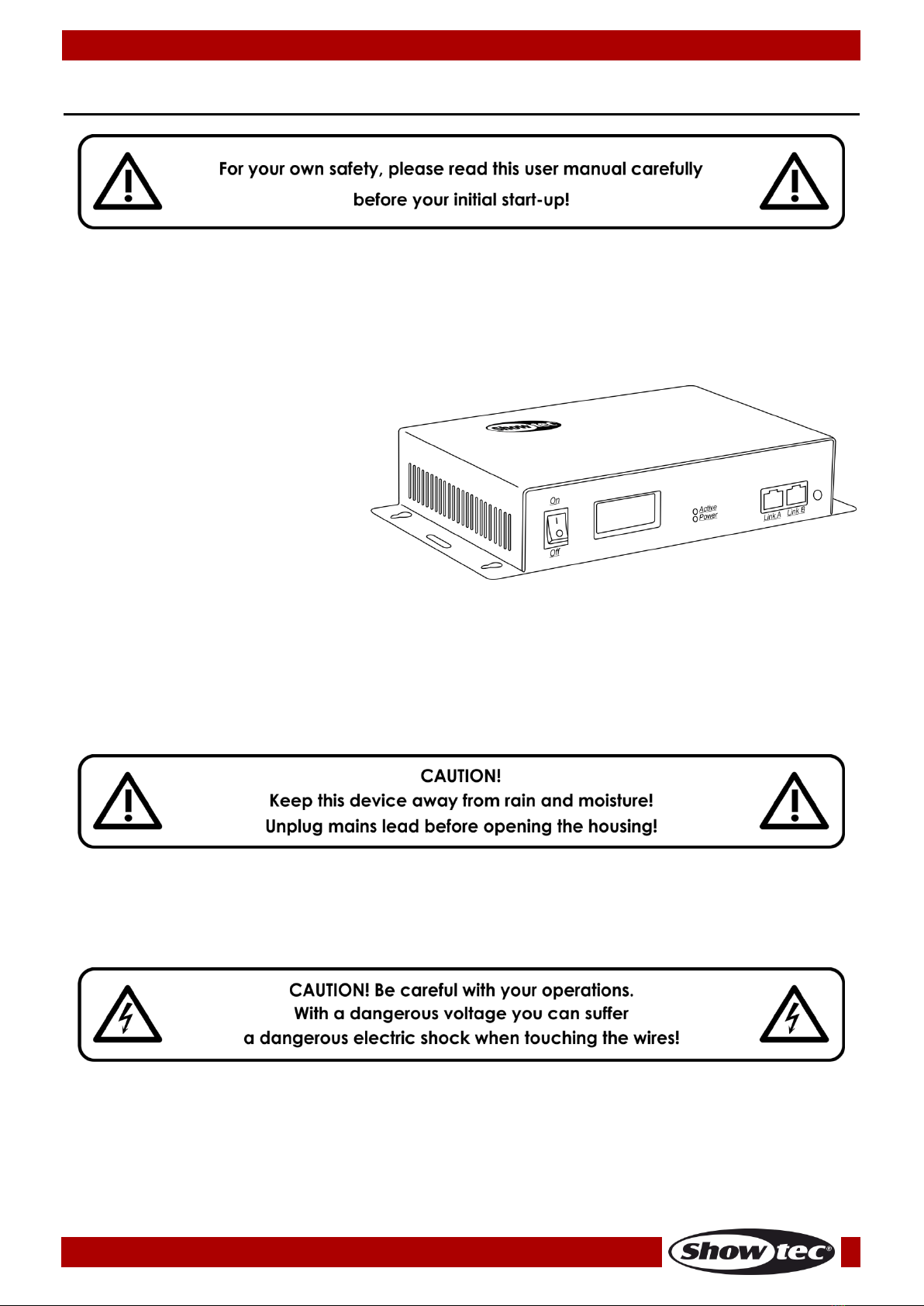

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

Showtec Pixel Sky Pro controller

IEC power cable (1,5 m)

CAT5 cable (2,8 m)

Easy Player software (CD)

User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower

operational temperatures. This may include climatic-environmental and the reduction of overall

projection intensity.

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

be qualified

follow the instructions of this manual

Ordercode: 40392

Pixel Sky Pro Controller

Before the initial start-up, please make sure that there is no damage caused by transportation.

Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes contained in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Never place any material over the LEDs.

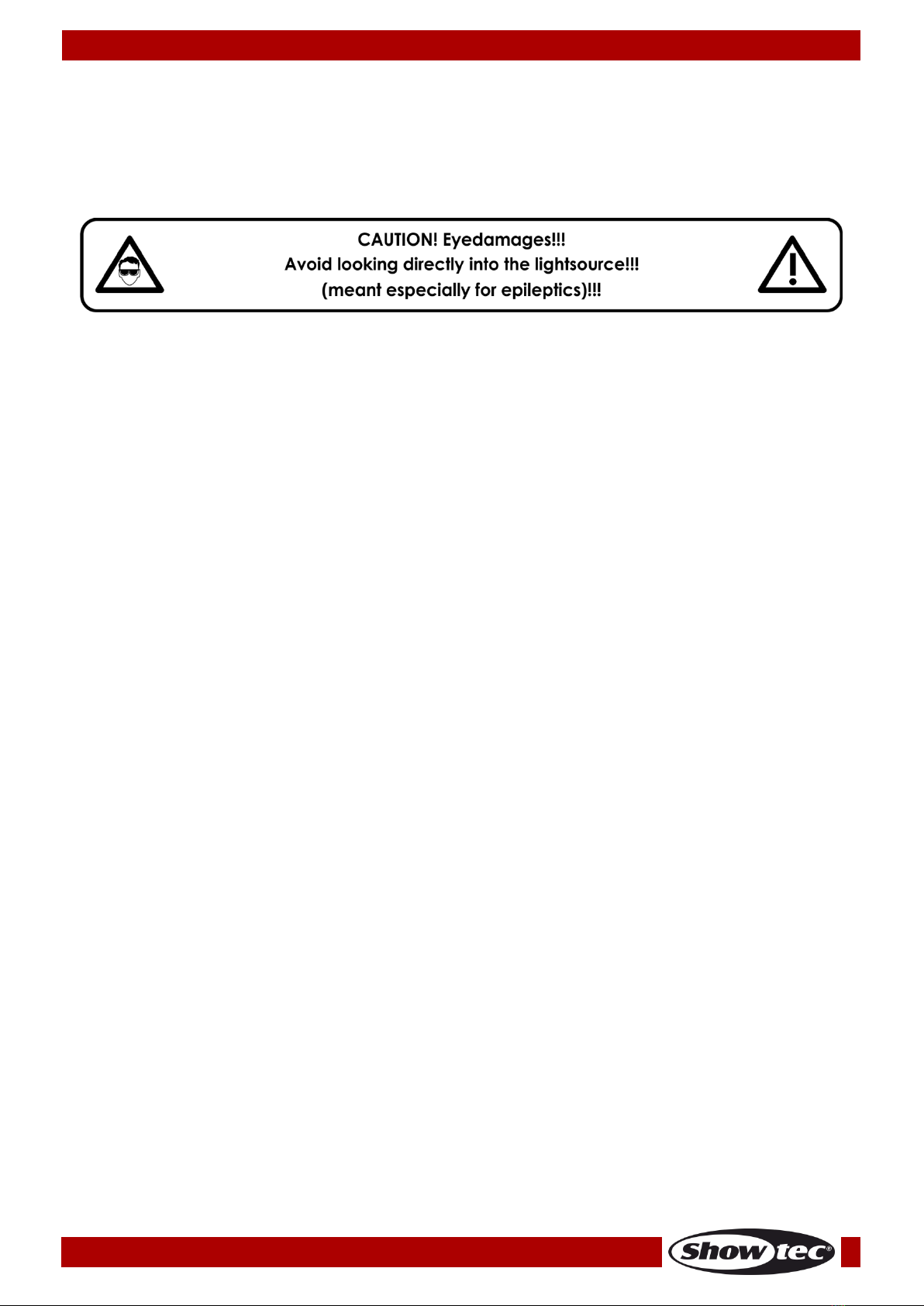

•Never look directly into the light source.

•Never leave any cables lying around.

•Do not insert objects into air vents of the controller.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this will reduce the device’s life.

•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Allow the fixture to cool for at least 5 minutes before handling.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Only use the device indoors, avoid contact with water or other liquids.

•Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly

fastened.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always keep the case closed while operating.

•Always allow a free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord holding it by the plug. Never pull out the plug by tugging the power cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

•If the LEDs are obviously damaged, they need to be replaced.

•If device was dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. The fixture must be installed beyond the reach of children. Never leave the unit

running unattended.

•Never attempt to bypass the thermostatic switch or fuses.

•For replacement use fuses of same type and rating only.

Ordercode: 40392

Pixel Sky Pro Controller

•The user is responsible for correct positioning and operating of the Pixel Sky Pro. The manufacturer will

not accept liability for damages caused by the misuse or incorrect installation of this device.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

Operating Determinations

•This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

•The minimum distance between light output and the illuminated surface must be bigger than 1

meter.

•The maximum ambient temperature ta= 40°C must never be exceeded.

•The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

•If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•If the Pixel Sky Pro is lowered from the ceiling or high joists, professional trussing systems have to be

used.

•Use the textile hook and loop fastener strips (Velcro) or tie-wraps/shock cords to install the Pixel Sky

Pro.

•The controller must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety cable.

•When rigging, derigging or servicing the Pixel Sky Pro, always make sure, that the area below the

installation site is secured and that there are not any unauthorized people around.

Ordercode: 40392

Pixel Sky Pro Controller

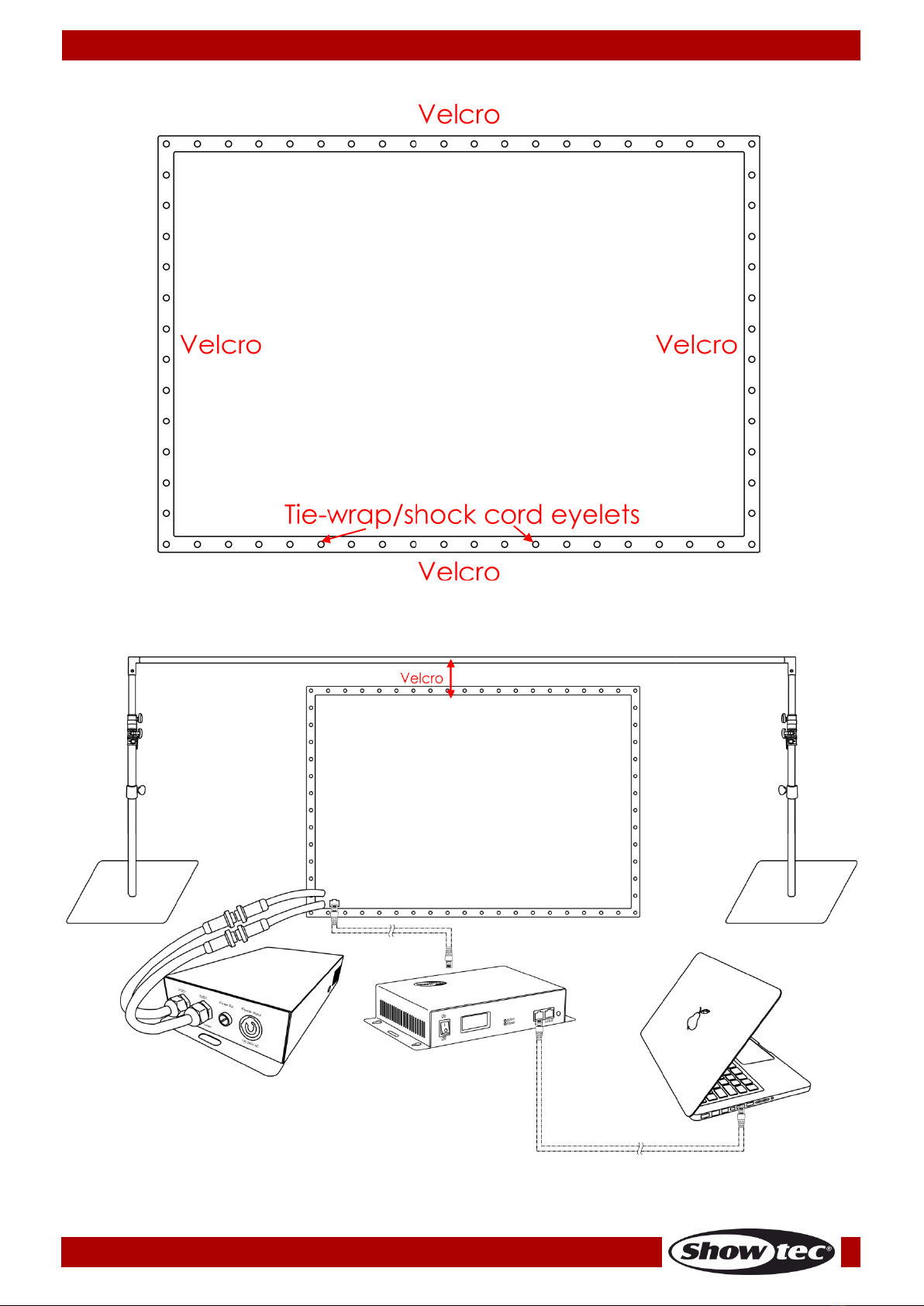

Pixel Sky Pro LED Curtain

One Pixel Sky Pro –Wentex

Ordercode: 40392

Pixel Sky Pro Controller

Multiple Pixel Sky Pros

The Pixel Sky Pro can be mounted to any kind of truss with hook and loop fasteners (Velcro) and/or tie-

wraps/shock cords.

Improper installation can cause serious injuries and/or damage of property!

Connection with the mains

Connect the device to the mains with the power-plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Ordercode: 40392

Pixel Sky Pro Controller

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

agreed otherwise in writing.

Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of

the invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement from which the obligation is resulting.

Ordercode: 40392

Pixel Sky Pro Controller

Description of the device

Features

The Pixel Sky Pro is a sky curtain system controller. In order for the whole system to work, you need to

purchase both: the Pixel Sky Pro controller (ordercode: 40392) and the Pixel Sky Pro II black LED curtain,

including the necessary power box (ordercode: 40395).

Controller (ordercode: 40392)

Input voltage: 100-240V AC 60/50Hz

Power consumption: 5W

Data connector: RJ45 IN/OUT

Dimensions: 240 x 140 x 45 mm (LxWxH)

Weight: 1 kg

Curtain (ordercode: 40395)

Light source: 672 x 5 mm RGB LEDs

Pixel pitch: 187,5 mm

Connections: RJ45 data connector & dedicated power cables

Color: Black

Material: Flame retardant heavy duty cloth

Assembly: Velcro and tie-wraps/shock cords

Dimensions: 6000 x 4000 mm (LxW)

Weight: 32 kg

Power box (ordercode: 40395)

Input voltage: 100-240V AC 60/50Hz

Power consumption: 150W

Connections: Pro power connector & dedicated power cable

Output voltage: 5V

Fuse: F6AL/250V

Dimensions: 320 x 175 x 64 mm (LxWxH)

Weight: 1,8 kg

Flight case (ordercode: 40395)

Dimensions: 820 x 657 x 430 mm (LxWxH)

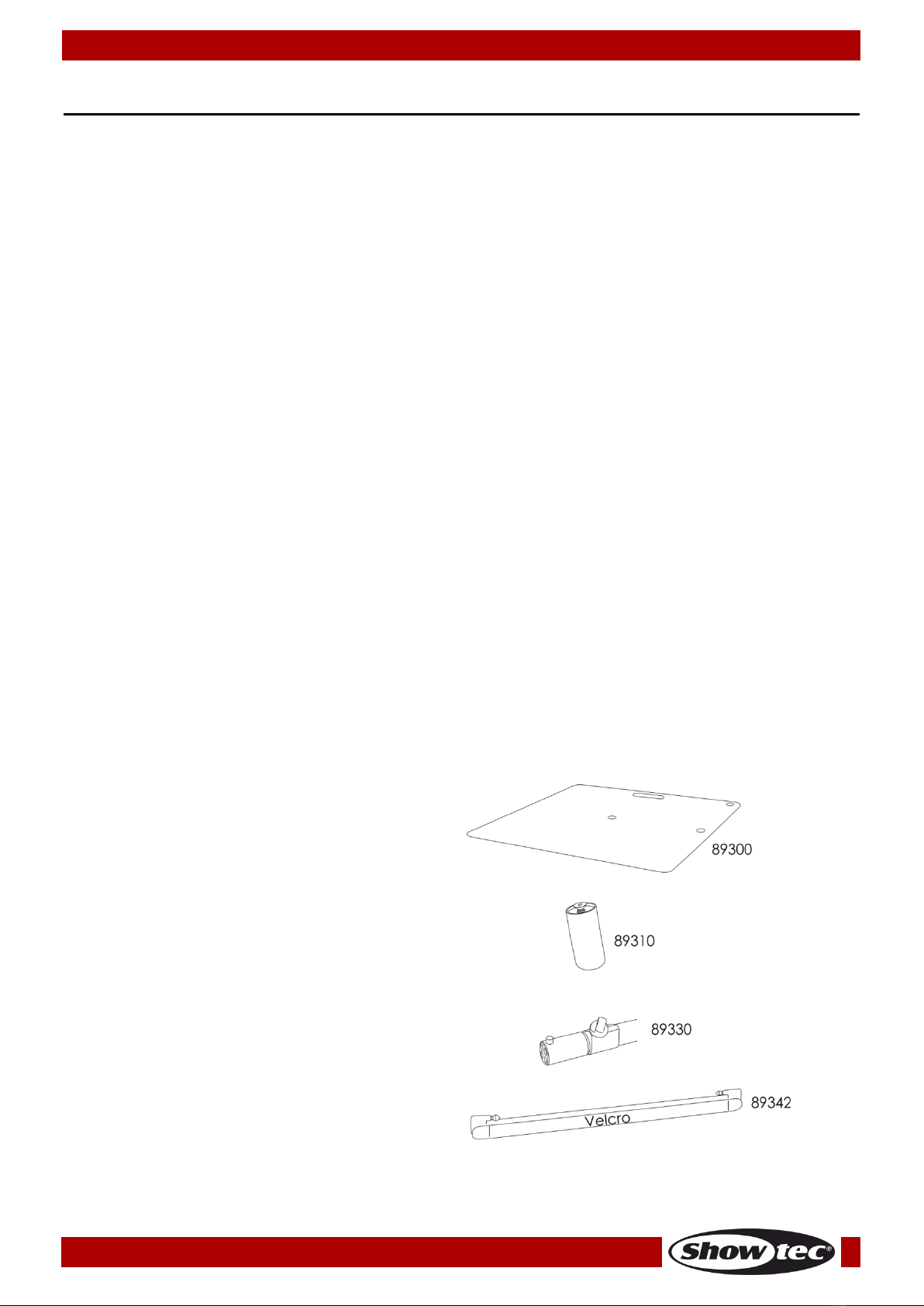

Optional accessories (Wentex):

89300 –2 x Baseplate

89310 –2 x Baseplate pin

89330 –2 x Telescopic upright –2-way

89342 –1 x Telescopic drape support

Ordercode: 40392

Pixel Sky Pro Controller

Pixel Sky Pro Controller - Frontside

Fig. 01

01) Power switch ON/OFF

02) LCD display

03) Signal LED indicator

04) Power LED indicator

05) RJ45 connector A –IN

06) RJ45 connector B –OUT

07) Signal LED indicator

Pixel Sky Pro Controller - Backside

Fig. 02

08) RJ45 curtain connectors 1-8 OUT

09) IEC power connector 100-240V IN

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec LED Octostrip Set MKII V1 Manuel utilisateur

Show Tec

Show Tec Bar Cameleon Bar 16 Q4 Manuel utilisateur

Show Tec

Show Tec Shark Beam One Manuel utilisateur

Show Tec

Show Tec RGB Par Manuel utilisateur

Show Tec

Show Tec 33036 Manuel utilisateur

Show Tec

Show Tec Performer 2500 Fresnel Tungsten V1 Manuel utilisateur

Show Tec

Show Tec Candela Pix 100 Manuel utilisateur

Show Tec

Show Tec Net-8/5 Manuel utilisateur

Show Tec

Show Tec Galactic G-30 Manuel utilisateur

Show Tec

Show Tec Polar 340 WashFX Manuel utilisateur

Show Tec

Show Tec Mini Q-Strobe Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 6 Q4 Tour Manuel utilisateur

Show Tec

Show Tec FX Shot MK II Manuel utilisateur

Show Tec

Show Tec 42486 Manuel utilisateur

Show Tec

Show Tec Single DP-1 Manuel utilisateur

Show Tec

Show Tec Wipe Out 3W Manuel utilisateur

Show Tec

Show Tec MINI STUDIOBEAM RGB Manuel utilisateur

Show Tec

Show Tec EVENTSPOT 60 Q7 Manuel utilisateur

Show Tec

Show Tec Galactic B1000 Manuel utilisateur

Show Tec

Show Tec Phantom 3R Beam V1 Manuel utilisateur

Show Tec

Show Tec Dancefloor Sparkle RGB V1 Manuel utilisateur

Show Tec

Show Tec SnowStorm Manuel utilisateur

Show Tec

Show Tec LED Pinspot Q4 Manuel utilisateur

Show Tec

Show Tec Phantom 280 Hybrid Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
