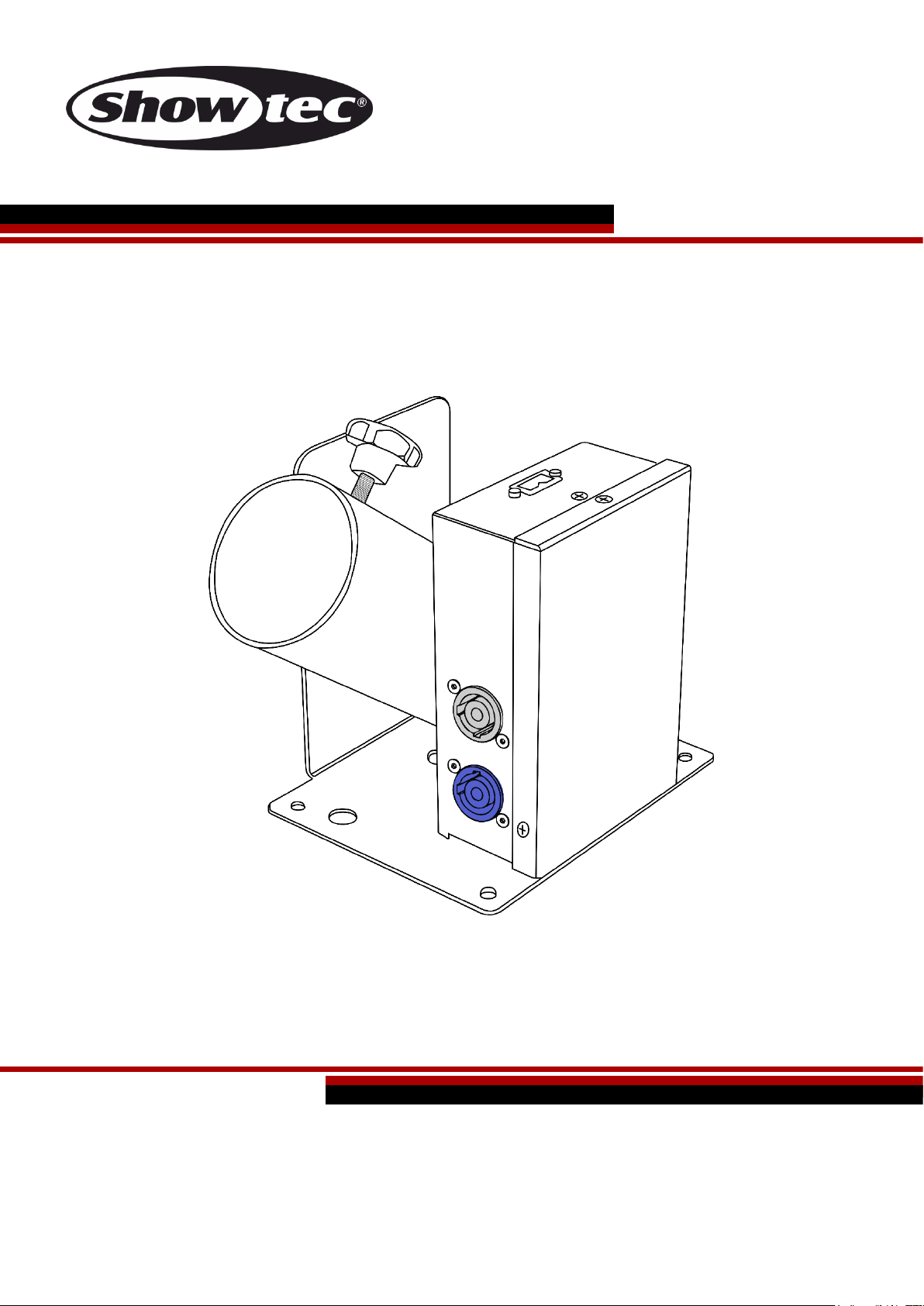

Show Tec FX Shot MK II Manuel utilisateur

FX Shot MKII V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 60906

MANUAL

ENGLISH



 1

Ordercode: 60906
FX Shot MKII
Table of contents

Warning ...............................................................................................................................................................................2
Unpacking Instructions.................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................4
Rigging ............................................................................................................................................................................5
Connection with the mains.........................................................................................................................................5
Return Procedure..........................................................................................................................................................6
Claims..............................................................................................................................................................................6

Description of the device.................................................................................................................................................7

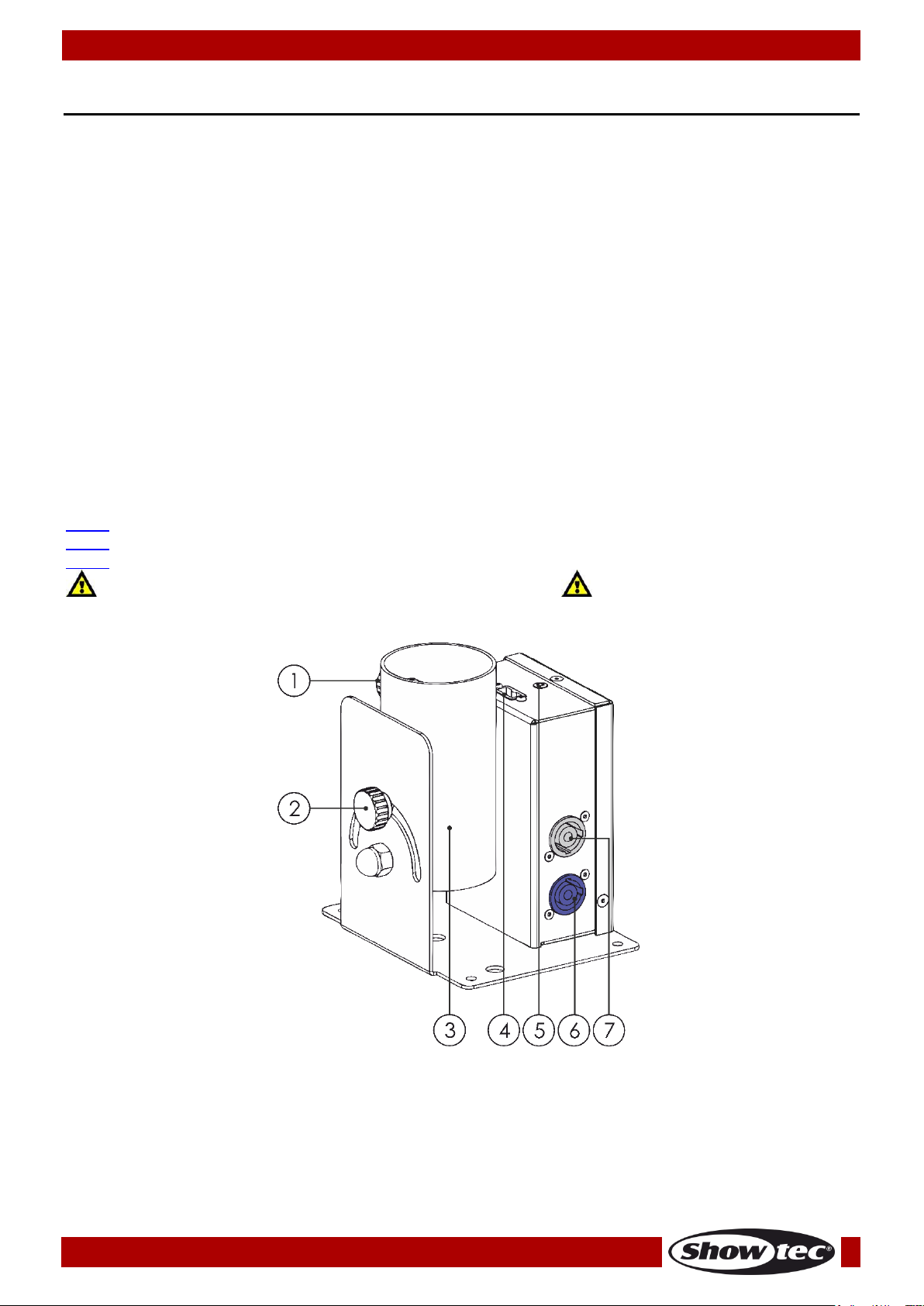

Overview ........................................................................................................................................................................7

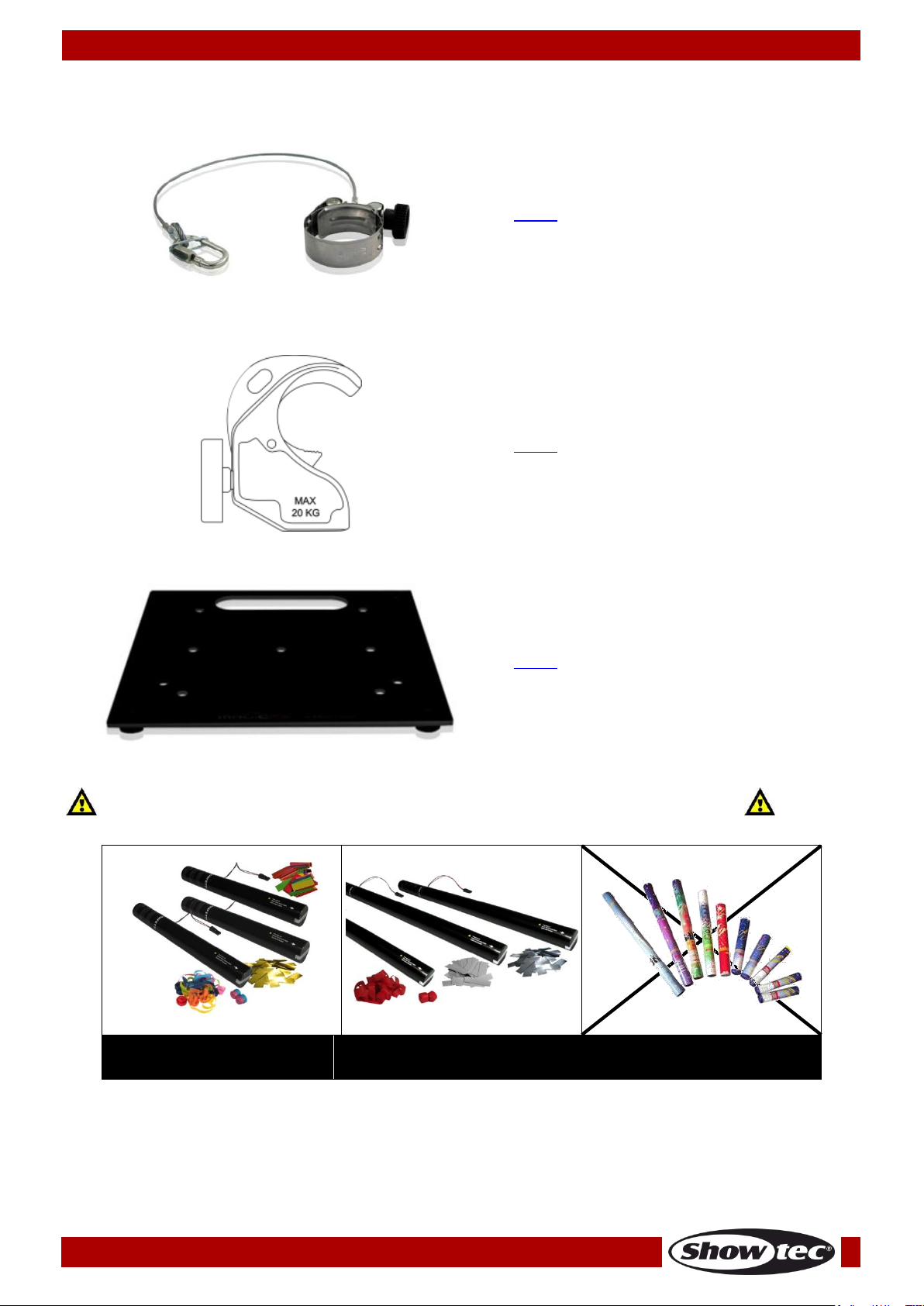

Optional accessories....................................................................................................................................................8

Installation.........................................................................................................................................................................10

Testing................................................................................................................................................................................13

Set Up and Operation .....................................................................................................................................................14
Setup 1 ..........................................................................................................................................................................14
Setup 2 ..........................................................................................................................................................................15
Disconnection .............................................................................................................................................................15

Maintenance....................................................................................................................................................................16

Troubleshooting ...............................................................................................................................................................16
No blue LED Indicator ................................................................................................................................................16
No Response to DMX from your controller.............................................................................................................16

Product Specification .....................................................................................................................................................17

Dimensions........................................................................................................................................................................18



Ordercode: 60906

FX Shot MKII

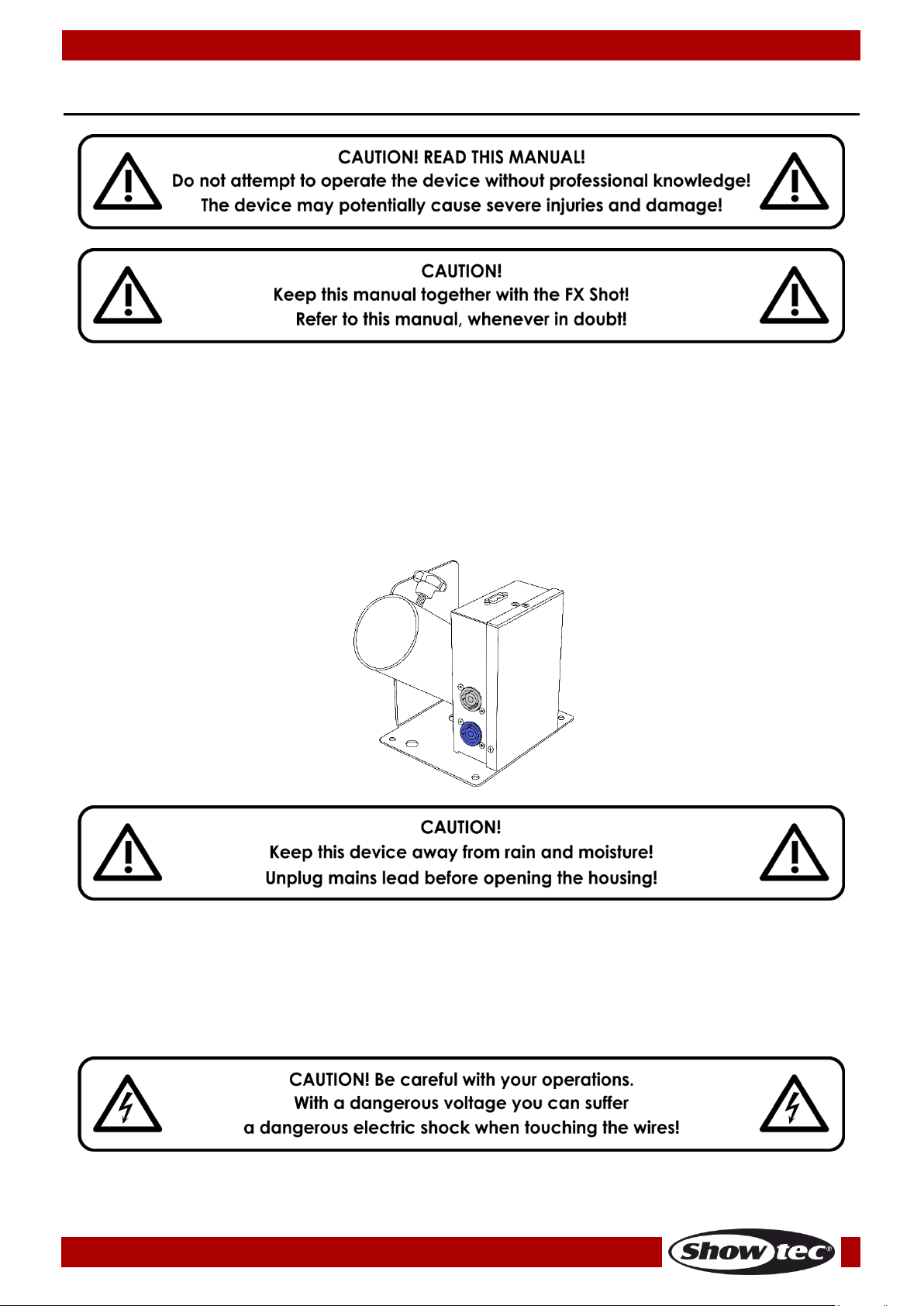

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

●Showtec FX Shot with Neutrik power cable (1,5 m)

●User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be authorized

●follow the instructions of this manual

●We also insist that all new users (operators, installers, maintenance workers and cleaners) receive a

training course during which they become thoroughly familiarized with this user manual.

Ordercode: 60906

FX Shot MKII

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

●Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

●Never remove warning or informative labels from the unit and, on regular basis, make sure that they

remain clearly visible and legible.

●Never place any material over the cannon tube.

●Never use anything to cover the ground contact.

●Never use the device during thunderstorms, unplug the device immediately.

●Never look directly into the cannon tube.

●Never leave any cables lying around.

●Never replace parts by yourself.

●Do not open the device and do not modify the device.

●Do not insert objects into air vents.

●Do not expose the device to any source of vibration.

●Do not insert objects into the cannon tube.

●Do not switch the device on and off in short intervals, as this would reduce the device’s life.

●Do not touch the FX Shot while working or if it is connected to the mains power. Even if the FX Shot is

not in operation, the electric cannons can still be filled and cause harm.

●Do not remove or disable the safety devices.

●Do not shake the device. Avoid brute force when installing or operating the device. The FX Shot

reacts very sensitive to movement.

●All required safety equipment must be in good condition and must be working properly.

●Use the device ONLY if there ARE NOT ANY people, animals or other objects in the direction of the

output within the output range. The shooting direction is the direction in which the output pipe on

the FX Shot is pointed.

●Only use the device indoors, avoid contact with water or other liquids.

●Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

●Only use the FX Shot according to the instructions in this manual.

●Only operate the device after having familiarized with its functions.

●Avoid flames and do not put close to flammable liquids or gases.

●Always allow free air space of at least 50 cm around the unit for ventilation.

●Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord by the plug. Never pull out the plug by tugging the power cord.

●Always keep the workplace clean and provide adequate ambient lighting.

●Make sure that the device is not exposed to extreme heat, moisture or dust.

●Make sure that the available voltage is not higher than stated on the rear panel.

●Make sure that all the required safety devices are in good condition and function properly.

●Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

●If text and/or icons are missing, damaged or illegible on the FX Shot, they should be replaced.

●If the cannon tube is obviously damaged, it needs to be replaced, so that its functions are not

impaired.

●If the device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

Ordercode: 60906

FX Shot MKII

●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

●If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

●For adult use only. Device must be installed out of the reach of children and unauthorized persons.

Never leave the unit running unattended.

●Never attempt to bypass the thermostatic switch or fuses.

●For replacement use fuses of same type and rating only.

●Provide sufficient lighting of the surroundings, when operating the FX Shot.

●The FX Shot may only be used if there are no persons, animals or other objects in the direct “line of

fire” of the electric cannon within the output distance. The shooting direction is the direction, in

which the electric cannon of the FX Shot is pointing. The output distance is dependent on the

content and length of the electric cannons.

●The user is responsible for correct positioning and operating of the FX Shot. The manufacturer will not

accept liability for unsafe situations, accidents, damages caused by:

- The misuse or incorrect installation of this device.

- Ignoring warnings or instructions as shown in this manual.

- Using the FX Shot for purposes or conditions other than specified in this manual.

- Changes to the FX Shot. This includes the use of other than original spare parts.

- Inadequate maintenance.

- The unauthorized removal of safety covers and / or guards.

- The improper use of the FX Shot.

●This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

●Repairs, servicing and electric connection must be carried out by a qualified technician.

●WARRANTY: Till one year after date of purchase.

Operating Determinations

●This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

●The maximum ambient temperature ta = 35°C must never be exceeded.

●Do not expose this device to relative humidity degree higher than 75%.

●Do not expose this device to any source of vibration.

●Operate the device in a reasonably stable temperature of between 0 and 35ºC

●If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●If any unauthorized alterations or repairments are performed on the device, the warranty becomes

void.

●Any operation different to the ones described in this manual may lead to dangers like frostbite,

short-circuit, burns, electric shock, crash etc.

Ordercode: 60906

FX Shot MKII

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

●If the FX Shot is lowered from the ceiling or high joists, professional trussing systems have to be used.

●Use a clamp to mount the FX Shot, with the mounting bracket, to the trussing system.

●The FX Shot must never be fixed swinging freely in the room.

●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety cable.

●When rigging, derigging or servicing the FX Shot, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

We presume that you, your employees and others who come into contact with the FX Shot

are familiar with how the machine must be dealt with. This includes the correct use,

maintenance and repair of the FX Shot as described in this user manual. The employees

should be familiar with the use of the device through training and/or experience.

Showtec excludes liability for unsafe situations, accidents and damage that are the result of:

●Disregard for the warnings or regulations as set out on the FX Shot or in this manual.

●Use for other purposes or under other circumstances than those set out in this documentation.

●Alterations to the FX Shot. This also includes the use of replacement parts other than the original ones.

●Insufficient maintenance.

●Unauthorised removal of safety caps and/or safeguards.

●Incompetent operation of the machine.

Showtec is not liable for any consequential loss in the event of an FX Shot breakdown.

This user manual has been drawn up with the utmost care. Showtec cannot be held responsible for any

mistakes made in this publication or for any consequences thereof.

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property!

Ordercode: 60906

FX Shot MKII

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the

fixture. Be prepared to provide the model number, serial number and a brief description of the cause for

the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is

the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 60906

FX Shot MKII

Description of the device

Features

●Designed to fire prefilled single-use electric cannons, length 50cm or 80cm

●Specifically designed for stage and truss installations

●The FX Shot can be used with electric confetti cannons and electric streamer cannons

●Confetti or streamers in various colors, even Fluor, UV and metallic colors are an option

●The cannons contain a pressurized nitrogen cartridge which launches confetti up to 12 meters and

streamers even 20 meters wide

●Suited for 50cm and 80cm shooters

●Plug-and-play

●Power supply: 230V

●Peak power: 100W

●Indoor use

●Operation: 230V on/off or DMX controlled by using a Relay Pack (50752) see page 12

●FX Shot will be activated by a 230V power source and can therefore be operated by a 230V power

switch like the Showtec DJ-Switch (50363) see page 15

●Fuse: Circuit protection

●Dimensions: 150 x 145 x 166 mm (LxWxH)

●Weight: 1,7 kg without cannon

Optional Accessories

60907 FX Shot base plate for 1, 2 or 4

60909 FX Shot Cannon clamp with certified safety cable

70332 Twenty Clamp SWL20 kg, TÜV 28 mm

These accessories are essential when using the FX shot safely.

Overview

Fig. 01

01) Cannon screw

02) Inclination screw

03) Cannon tube

04) Cannon ignition connector

05) LED indicator

06) Neutrik Powercon connector 230 V IN (Blue)

07) Neutrik Powercon connector 230 V OUT (Gray)

Ordercode: 60906

FX Shot MKII

Optional accessories

60909 - Cannon clamp with safety cable

70332 - Twenty Clamp SWL 20 kg, TÜV 28 mm

60907 –Base Plate for 1, 2 or 4 FX Shots

The FX Shot only works with approved electric confetti and streamer cannons.

The FX Shot is not suitable for other than the 50 and 80mm cannons shown below.

50cm Electric cannon

80cm Electric cannon

Other confetti cannons

Ordercode: 60906

FX Shot MKII

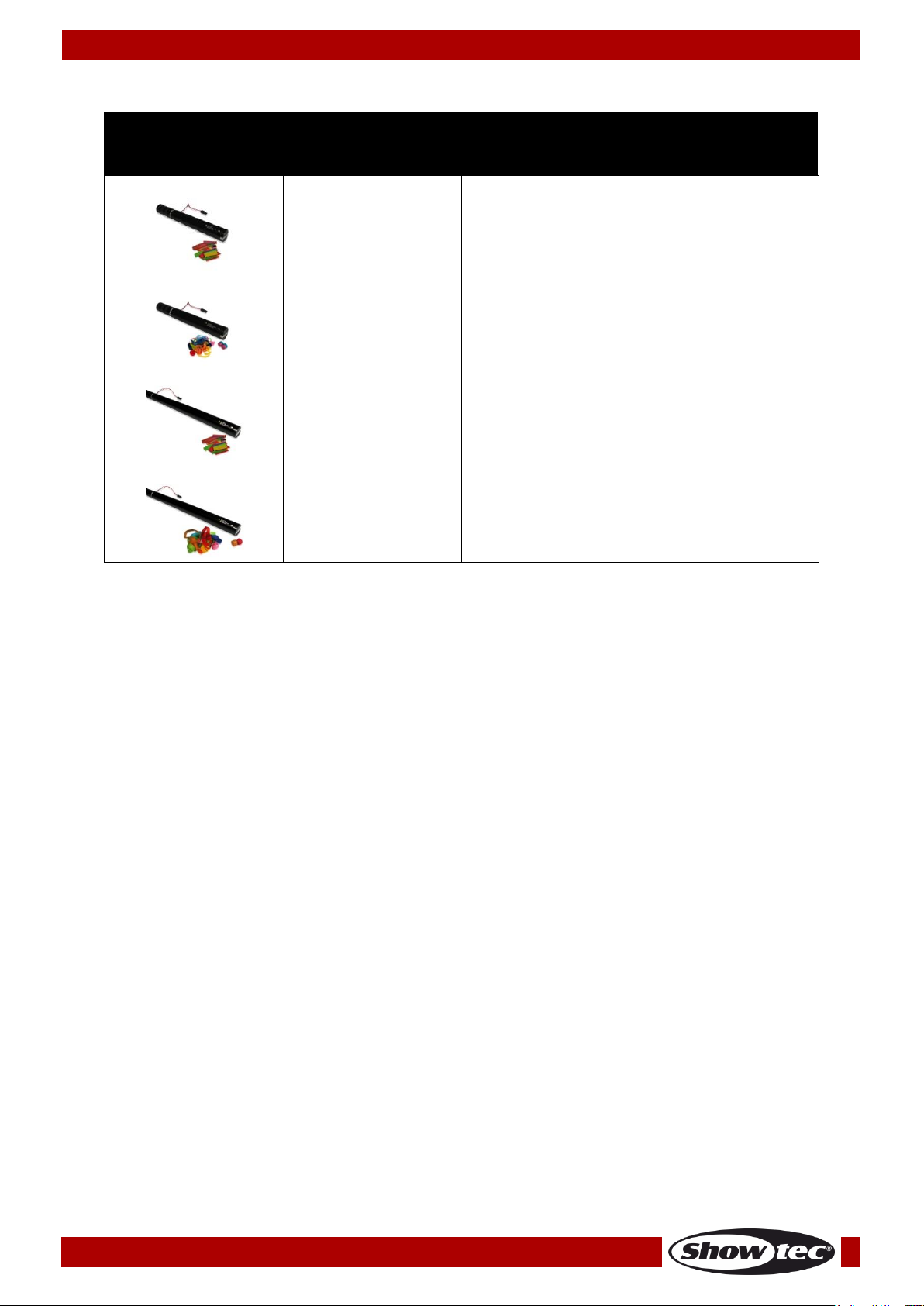

The following types of electric cannons can be used:

Type Cannon

Contents

Cannon Length

Output

CONFETTI (150g)

50cm

8m.

STREAMERS (150g)

50cm

12m.

CONFETTI (300g)

80cm

12m.

STREAMERS (300g)

80cm

20m.

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Helix S5000 10 IP65 Manuel utilisateur

Show Tec

Show Tec GALACTIC BEAM G40 V1 Manuel utilisateur

Show Tec

Show Tec Sustrip II Stageblinder Manuel utilisateur

Show Tec

Show Tec Illumisphere 50 Manuel utilisateur

Show Tec

Show Tec Luna Par 60 Q4 Manuel utilisateur

Show Tec

Show Tec Parcan 64 Short Incl. Parsafe Manuel utilisateur

Show Tec

Show Tec 60409 Manuel utilisateur

Show Tec

Show Tec ACT Fresnel 150 WW Manuel utilisateur

Show Tec

Show Tec Compact Power Lightset V2 Manuel utilisateur

Show Tec

Show Tec Data Flash Strobe Manuel utilisateur

Show Tec

Show Tec LED Par 64 36x3W Manuel utilisateur

Show Tec

Show Tec 33036 Manuel utilisateur

Show Tec

Show Tec ACT Flood 100 RGBW V1 Manuel utilisateur

Show Tec

Show Tec Beacon 360 V2 Manuel utilisateur

Show Tec

Show Tec Helix M1000 Q4 Mobile Manuel utilisateur

Show Tec

Show Tec LED Roto Flower Manuel utilisateur

Show Tec

Show Tec Creator 2048 Manuel utilisateur

Show Tec

Show Tec Stardrape White LED WhiteCloth V1 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 15 Q4 V4 Manuel utilisateur

Show Tec

Show Tec Indigo 5500 Manuel utilisateur

Show Tec

Show Tec Sunstrip Active DMX Manuel utilisateur

Show Tec

Show Tec PAR 46 Warm-On-Dim V1 Manuel utilisateur

Show Tec

Show Tec SPECTRAL M3000 ZOOM Q4 MK II Manuel utilisateur

Show Tec

Show Tec Starzone Gobo Quake DMX Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
