Show Tec Single DP-1 Manuel utilisateur

Single DP-1 V2

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 50396

MANUAL

ENGLISH



 1

Ordercode: 50396

Single DP-1


Table of contents

Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................3
Connection with the mains.........................................................................................................................................3
Return Procedure..........................................................................................................................................................4
Claims..............................................................................................................................................................................4

Description of the device.................................................................................................................................................5
Overview ........................................................................................................................................................................5
HTP (Highest Takes Precedence) ............................................................................................................................5

Installation...........................................................................................................................................................................6
Connection Example ...................................................................................................................................................6

Set Up and Operation .......................................................................................................................................................6
Control Panel .................................................................................................................................................................7
Control Mode ................................................................................................................................................................7
DMX Addressing ............................................................................................................................................................7
Menu Overview.............................................................................................................................................................8
Main Menu Options......................................................................................................................................................8
1. DMX Addressing.....................................................................................................................................................8
2. Dimmer/Switch.......................................................................................................................................................8
3. Dimmer Limit ...........................................................................................................................................................8
4. Dimmer Preset ........................................................................................................................................................8
5. Power not Stable (AC-0) ......................................................................................................................................8
DMX Channels ...............................................................................................................................................................9
1 channel ....................................................................................................................................................................9

Maintenance......................................................................................................................................................................9
Replacing the Fuse.......................................................................................................................................................9

Troubleshooting .................................................................................................................................................................9

Product Specification .....................................................................................................................................................10

Dimensions........................................................................................................................................................................10



Ordercode: 50396

Single DP-1

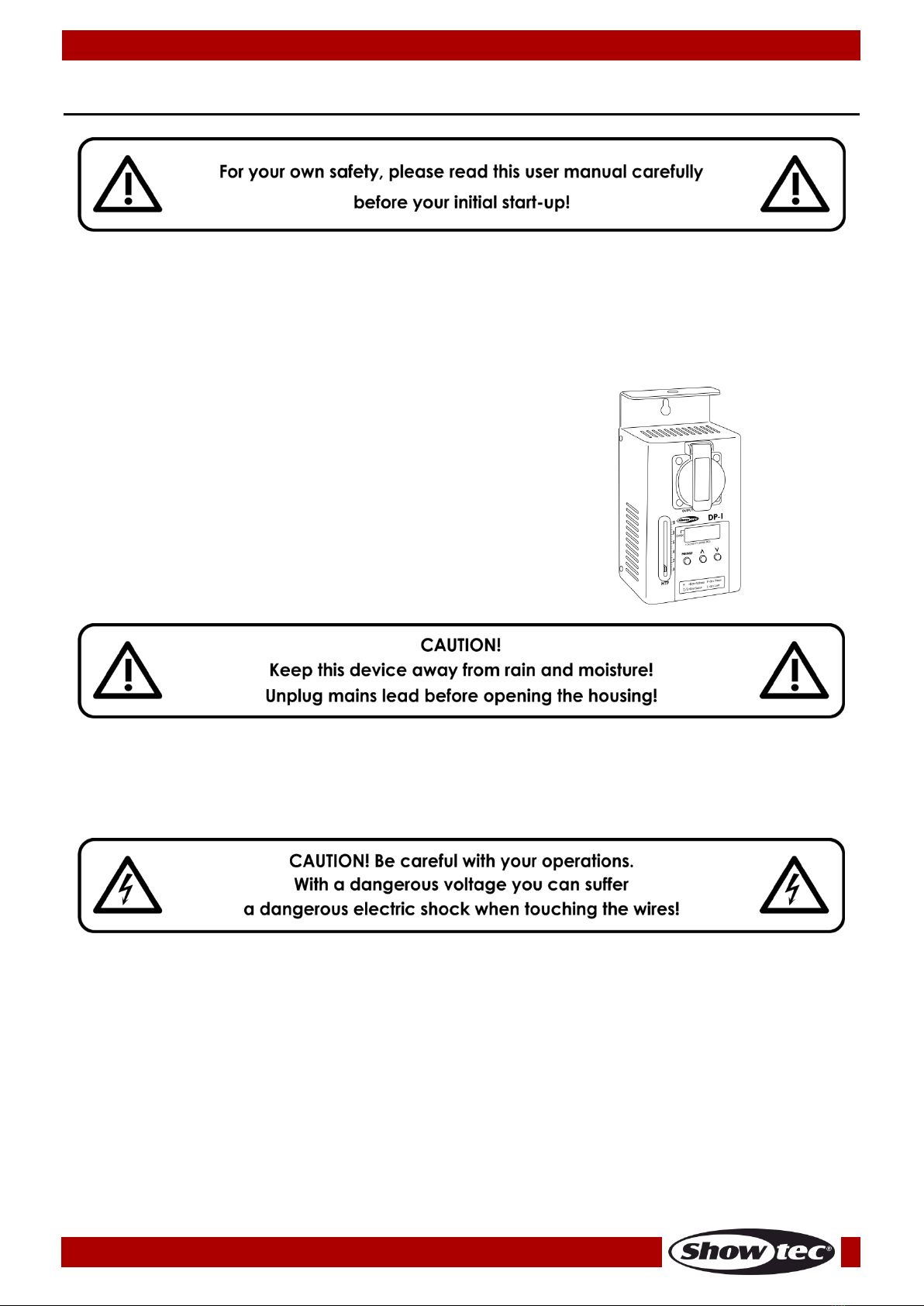

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

●Showtec Single DP-1 with a power cable (1,25 m)

●User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be qualified

●follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 50396

Single DP-1

IMPORTANT!

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

●Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

●Never remove warning or informative labels from the unit.

●Never leave any cables lying around.

●Do not insert objects into air vents.

●Do not open the device and do not modify the device.

●Do not connect this device to a dimmer pack.

●Do not shake the device. Avoid brute force when installing or operating the device.

●Do not switch the device on and off in short intervals, as this would reduce the system’s life.

●Only use device indoors, avoid contact with water or other liquids.

●Only operate the device after having familiarized with its functions.

●Avoid flames and do not put close to flammable liquids or gases.

●Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord by the plug. Never pull out the plug by tugging the power cord.

●Make sure that the device is not exposed to extreme heat, moisture or dust.

●Make sure that the available voltage is not higher than stated on the rear panel.

●Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

●If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

●If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

●For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

●For replacement use fuses of same type and rating only.

●The user is responsible for correct positioning and operating of the Single DP-1. The manufacturer will

not accept liability for damages caused by the misuse or incorrect installation of this device.

●Repairs, servicing and electric connection must be carried out by a qualified technician.

●WARRANTY: Till one year after date of purchase.

Operating Determinations

●This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

●The maximum ambient temperature ta= 35°C must never be exceeded.

●The relative humidity must not exceed 50 % with an ambient temperature of 35° C.

●If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property!

Ordercode: 50396

Single DP-1

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the

fixture. Be prepared to provide the model number, serial number and a brief description of the cause for

the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is

the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 50396

Single DP-1

Description of the device

Features

The Showtec Single DP-1 is a 1-channel DMX dimmer/switch. It is possible to mount the Single DP-1 to any

wall, truss or a fixture which makes it suitable for any location.

●Input voltage: 230V AC, 50Hz

●Output: 10A Schuko output

●Connections: 3-pin DMX signal connector IN/OUT

●50 mm dimming fader

●DMX channels: 1 channel

●Housing: Metal & flame retardant plastic

●Color: Gray

●Fuse: F10L/250V

●Dimensions: 100 x 80 x 195 mm (LxWxH)

●Weight: 1,4 kg

Overview

Fig. 01

01) 10A Schuko OUT

Connect a light source.

02) Manual dimming fader (HTP)

Move the fader up and down, to adjust the dimmer brightness.

03) LED display + control buttons

04) Fuse F10L/250V

05) 230V AC Schuko power cable (1,25 m)

06) 3-pin DMX signal connector IN

07) 3-pin DMX signal connector OUT

HTP (Highest Takes Precedence)

If the DMX input value is higher than the fader (02) value, then the DMX input will take precedence over

the fader input. Similarly, if the fader (02)value is higher than the DMX input value, then the fader input

will take precedence over the DMX input.

Ordercode: 50396

Single DP-1

Installation

Remove all packing materials from the Single DP-1. Check if all foam and plastic padding is removed.

Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

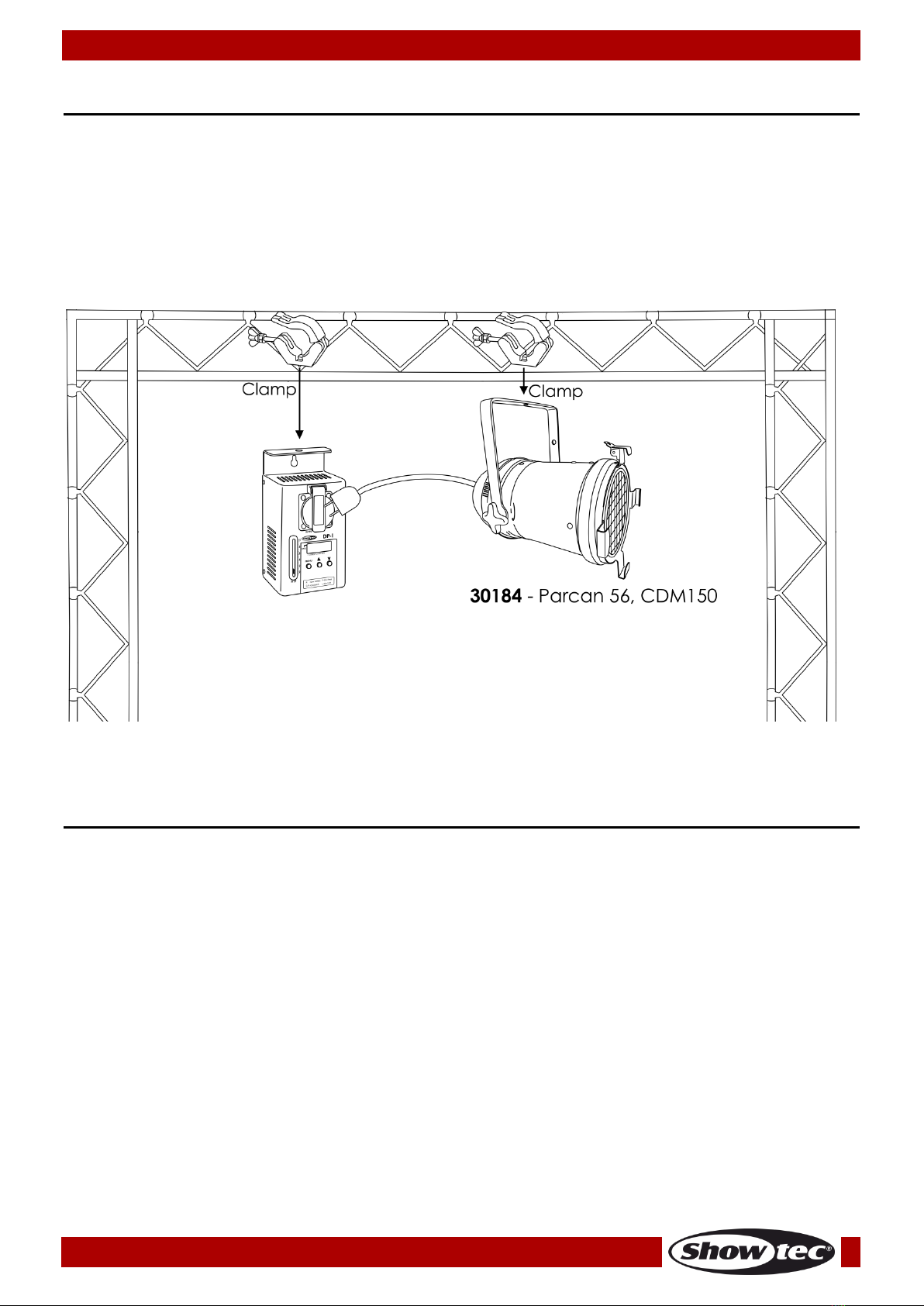

Connection Example

Fig. 02

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply.

The Single DP-1 is equipped with the power failure memory. This means that the device remembers the

last active settings and operation mode and is able to restore them in case of a power shortage. The

Single DP-1 can be used as a dimmer pack or a switch pack.

Ordercode: 50396

Single DP-1

Control Panel

A) LED display

B) DMX LED indicator

C) MENU button

D) UP button

E) DOWN button

Fig. 03

Control Mode

The Single DP-1 is individually addressed on a data-link and connected to the controller.

The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,

the controller will display the saved DMX address, next time.)

DMX Addressing

The control panel on the front side of the base allows you to assign DMX fixture addresses, which is the first

channel with which the DP will respond to the controller.

Please note, when you use the controller, the unit has 1channel.

Controlling:

After having addressed all DP fixtures, you may now start operating these via your lighting controller.

Note: After switching on, the DP will automatically detect whether DMX 512 data is received or not.

If there is no data received at the DMX-input, the “LED “ on the control panel will not flash.

If not, the problem may be:

●The XLR cable from the controller is not connected with the input of the Single DP-1.

●The controller is switched off or defective, the cable or connector is detective, or the signal wires are

swapped in the input connector.

Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure

proper transmission on the DMX data link.

Ordercode: 50396

Single DP-1

Menu Overview

Main Menu Options

1. DMX Addressing

2. Dimmer/Switch

3. Dimmer Limit

4. Dimmer Preset

1. DMX Addressing

01) Press the MENU button until the display shows .

02) Press the UP/DOWN buttons to choose the desired DMX address.

03) The adjustment range is between .

04) Press and hold down the UP/DOWN buttons for fast DMX address selection.

05) The currently selected DMX address will be automatically saved.

2. Dimmer/Switch

01) Press the MENU button until the display shows .

02) Press the UP/DOWN buttons to choose between and .

03) If set to , then the device is a dimmer.

04) If set to , then the device is a switch.

05) In the switch mode you can choose between and .

06) If set to , you can switch on the connected light fixture.

07) If set to , you can switch off the connected light fixture.

3. Dimmer Limit

01) Press the MENU button until the display shows .

02) Press the UP/DOWN buttons to set the desired maximum dimming limit value. The adjustment range is

between .

4. Dimmer Preset

01) Press the MENU button until the display shows .

02) Press the UP/DOWN buttons to set the desired dimmer value. The adjustment range is between

, from dark to brightest.

5. Power not Stable (AC-0)

01) If the power frequency is not stable, the display will show . You will have to connect the

device to a stable power source or wait until the power becomes stable at the currently used outlet.

Ordercode: 50396

Single DP-1

DMX Channels

1 channel

Channel 1 –Dimmer intensity

0-255

Gradual adjustment, from dark to brightest

Maintenance

The operator has to make sure that safety-related and machine-technical installations are to be

inspected by an expert after every year in the course of an acceptance test.

The operator has to make sure that safety-related and machine-technical installations are to be

inspected by a skilled person once a year.

The following points have to be considered during the inspection:

01) All screws used for installing the device or parts of the device have to be tightly connected and

must not be corroded.

02) There may not be any deformations on housings, fixations and installation spots.

03) The electric power supply cables must not show any damages or material fatigue.

The Single DP-1 requires almost no maintenance. However, you should keep the unit clean.

Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in

liquid. Keep connections clean. Disconnect electric power, and then wipe the DMX connections with a

damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric

power.

Replacing the Fuse

Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the

fuse burns out, the product will not function whatsoever. If this happens, follow the directions below.

01) Unplug the unit from electric power source.

02) Insert a flat-headed screwdriver into a slot in the fuse cover. Turn the screwdriver to the left, at the

same time gently push a bit (Turn and Push). The fuse will come out.

03) Remove the used fuse. If brown or unclear, it is burned out.

04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse holder. Be sure

to use a fuse of the same type and specification. See the product specification label for details.

Troubleshooting

This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps

below in sequence until a solution is found. Once the unit operates properly, do not carry out the

following steps. Suspect two potential problem areas as: the power supply and the fuse.

01) Power supply. Check if the unit is plugged into an appropriate power supply.

02) The fuse. Replace the fuse. See page 9 for replacing the fuse.

03) If both appear to be O.K., plug the unit in again.

04) If you are unable to determine the cause of the problem, do not open the Single DP-1, as this may

damage the unit and the warranty will become void.

05) Return the device to your Showtec dealer.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Lightset PRO 9/10 RGBM Manuel utilisateur

Show Tec

Show Tec LED Sphere Direct Control 100 V2 Manuel utilisateur

Show Tec

Show Tec Sunstrip Active DMX Manuel utilisateur

Show Tec

Show Tec Mirrorball 30 cm V1 Manuel utilisateur

Show Tec

Show Tec 40466 Manuel utilisateur

Show Tec

Show Tec 51329 Manuel utilisateur

Show Tec

Show Tec Solar FL-550 Manuel utilisateur

Show Tec

Show Tec ColorCue 3 Manuel utilisateur

Show Tec

Show Tec Polar 100 Beam Manuel utilisateur

Show Tec

Show Tec Spectral CYC650 Manuel utilisateur

Show Tec

Show Tec EventLITE 4/10 Q4 Set 6x Manuel utilisateur

Show Tec

Show Tec FX Shot Manuel utilisateur

Show Tec

Show Tec StageBeam 300/500W Fresnel V2 Manuel utilisateur

Show Tec

Show Tec Mad Mood Manuel utilisateur

Show Tec

Show Tec 30907 Orion Chase set Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 15 Q4 Manuel utilisateur

Show Tec

Show Tec SHARK SPOT ONE Manuel utilisateur

Show Tec

Show Tec 60413 Manuel utilisateur

Show Tec

Show Tec LED Bar DMX Manuel utilisateur

Show Tec

Show Tec Galactic RVP-250 Manuel utilisateur

Show Tec

Show Tec Dataflower Manuel utilisateur

Show Tec

Show Tec HIP HOP Manuel utilisateur

Show Tec

Show Tec ACT Flood 80 RGBW Manuel utilisateur

Show Tec

Show Tec Edison Dot E1 V1 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
