Show Tec Mini Q-Strobe Manuel utilisateur

Mini Q-Strobe V2

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 40225

MANUAL

ENGLISH

Ordercode: 40225

Mini Q-Strobe

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Connection with the mains.........................................................................................................................................5

Return Procedure..........................................................................................................................................................5

Claims..............................................................................................................................................................................5

Description of the device.................................................................................................................................................6

Features ..........................................................................................................................................................................6

Frontside..........................................................................................................................................................................6

Backside .........................................................................................................................................................................7

Installation...........................................................................................................................................................................7

Set Up and Operation .......................................................................................................................................................7

Maintenance......................................................................................................................................................................8

Troubleshooting .................................................................................................................................................................8

No Light...........................................................................................................................................................................8

Product Specifications......................................................................................................................................................9

Ordercode: 40225

Mini Q-Strobe

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

Showtec Mini Q-Strobe with a fixed CEE 7/16 Europlug (0,75 m)

User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

•be qualified

•follow the instructions of this manual

Before the initial start-up, please make sure that there is no damage caused by transportation.

Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes contained in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 40225

Mini Q-Strobe

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not connect this device to a dimmer pack.

Do not open the device and do not modify the device.

Never use the device during thunderstorms, unplug the device immediately.

Never look directly into the light source.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoors, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Avoid flames and do not put close to flammable liquids or gases.

Only operate the device after having familiarized with its functions.

The cable insert in the device must never be strained. There must always be sufficient cable to the

device. Otherwise, the cable may be damaged which may lead to deadly electrical shocks.

If the external cable is damaged, it has to be replaced by a qualified technician.

Never switch the lamp on if the housing cover is open.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord by the plug. Never pull out the plug by tugging the power cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

If the housing cover is obviously damaged, it has to be replaced, so that its functions are not

impaired, due to cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. The fixture must be installed out of the reach of children. Never leave the unit

running unattended.

The user is responsible for correct positioning and operating of the Mini Q-Strobe. The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of this device.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

Ordercode: 40225

Mini Q-Strobe

Operating Determinations

•This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

•The minimum distance between light output and the illuminated surface must be bigger than 1

meter.

•The maximum ambient temperature ta= 40°C must never be exceeded.

•The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

•If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•If the Mini Q-Strobe is lowered from the ceiling or high joists, professional trussing systems have to be

used.

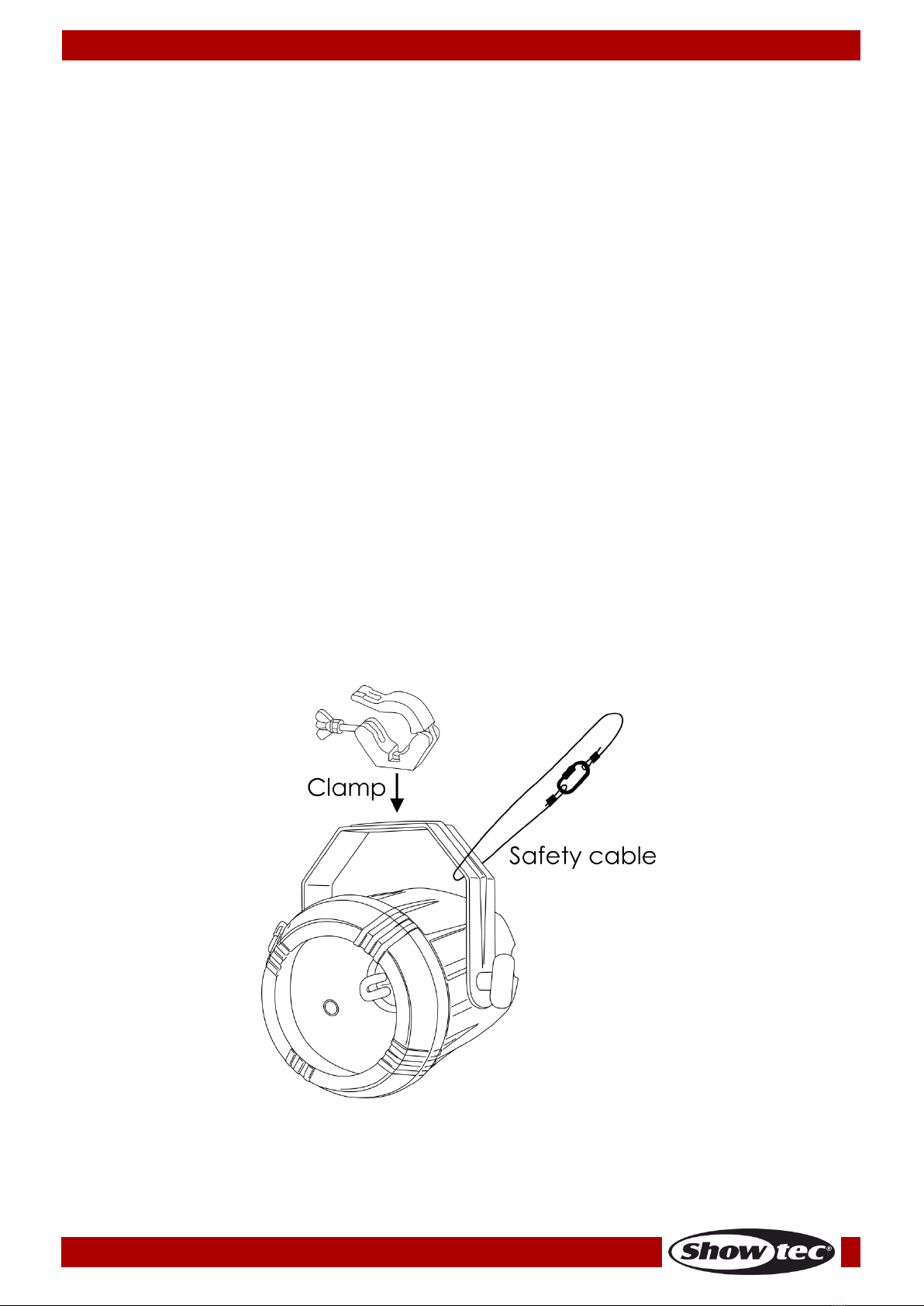

•Use a clamp to mount the Mini Q-Strobe, with the mounting bracket, to the trussing system.

•The Mini Q-Strobe must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety cable.

•When rigging, derigging or servicing the Mini Q-Strobe, always make sure, that the area below the

installation site is secured and that there are not any unauthorized people around.

The Mini Q-Strobe can be mounted to any kind of truss with a clamp.

Improper installation can cause serious injuries and/or damage of property!

Ordercode: 40225

Mini Q-Strobe

Connection with the mains

Connect the device to the mains with the power-plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

agreed otherwise in writing.

Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of

the invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement from which the obligation is resulting.

Ordercode: 40225

Mini Q-Strobe

Description of the device

Features

The Mini Q-Strobe is a 10W compact strobe fixture.

Input voltage: 220-240V AC, 50/60Hz

Power consumption: 10W

Strobe frequency: 1-15 flashes/sec

Housing: Flame retardant plastic

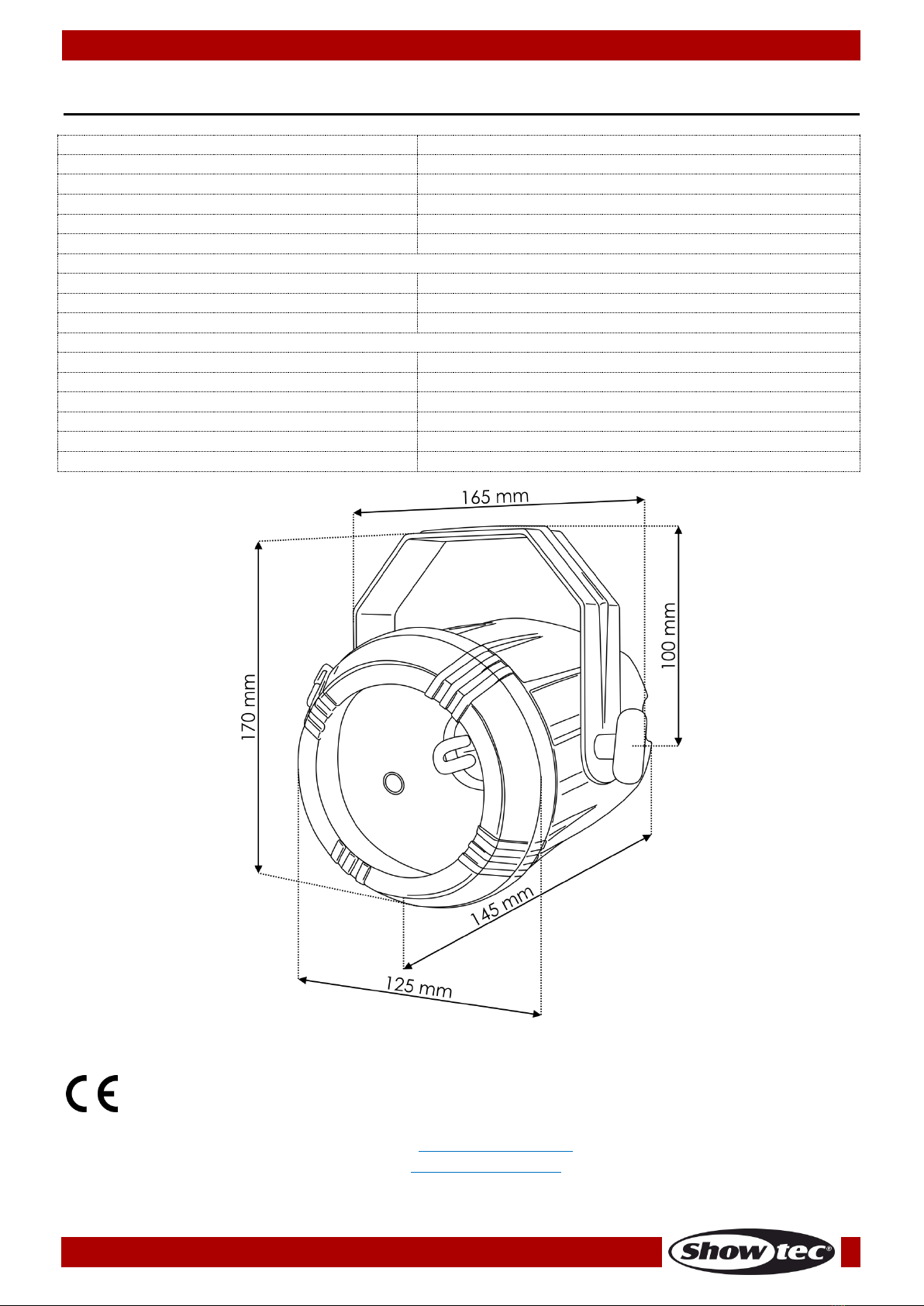

Dimensions: 145 x 165 x 170 mm (LxWxH)

Weight: 0,5 kg

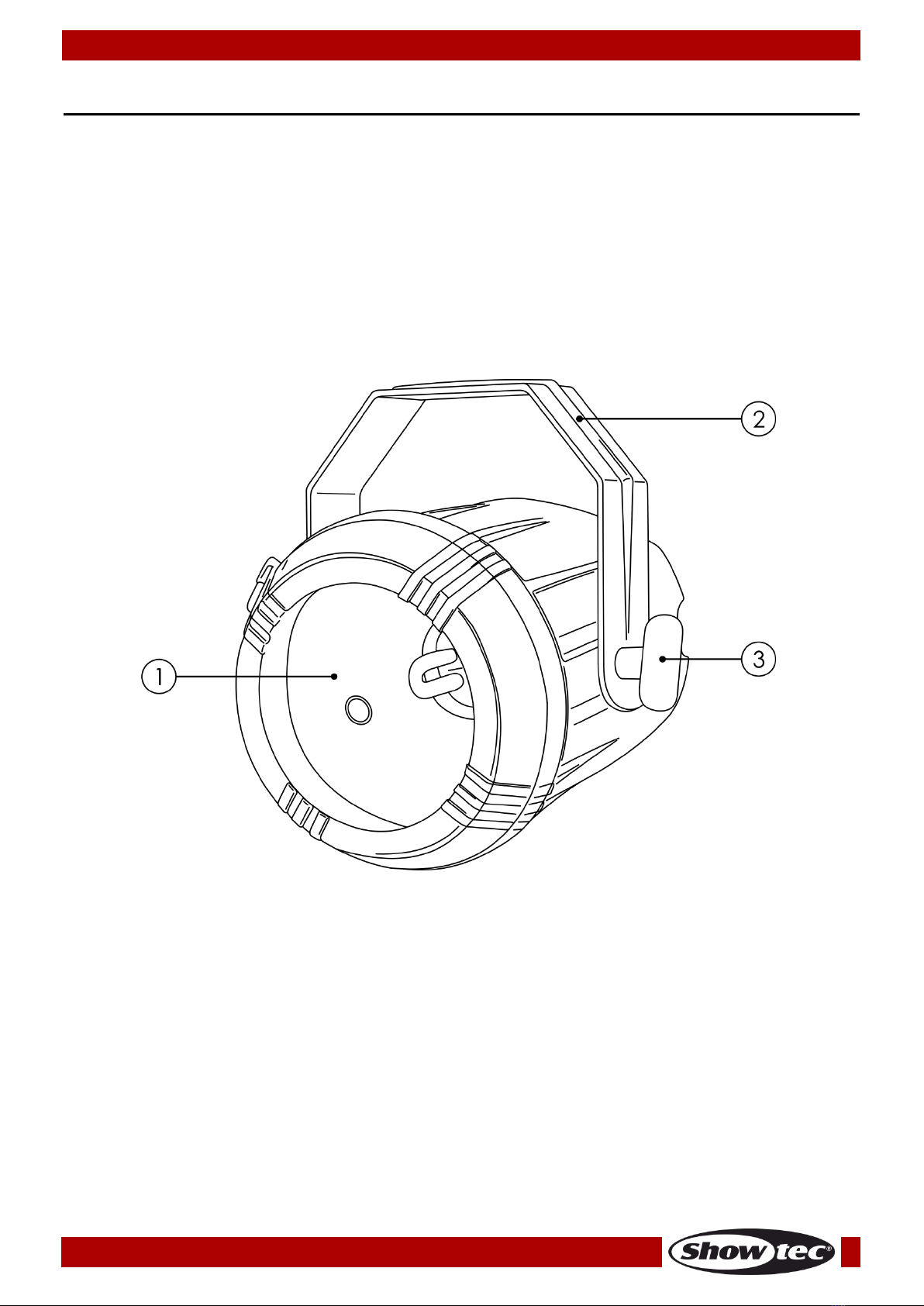

Frontside

Fig. 01

01) Lens

02) Mounting bracket with inclination screw

03) Adjustment screw

Ordercode: 40225

Mini Q-Strobe

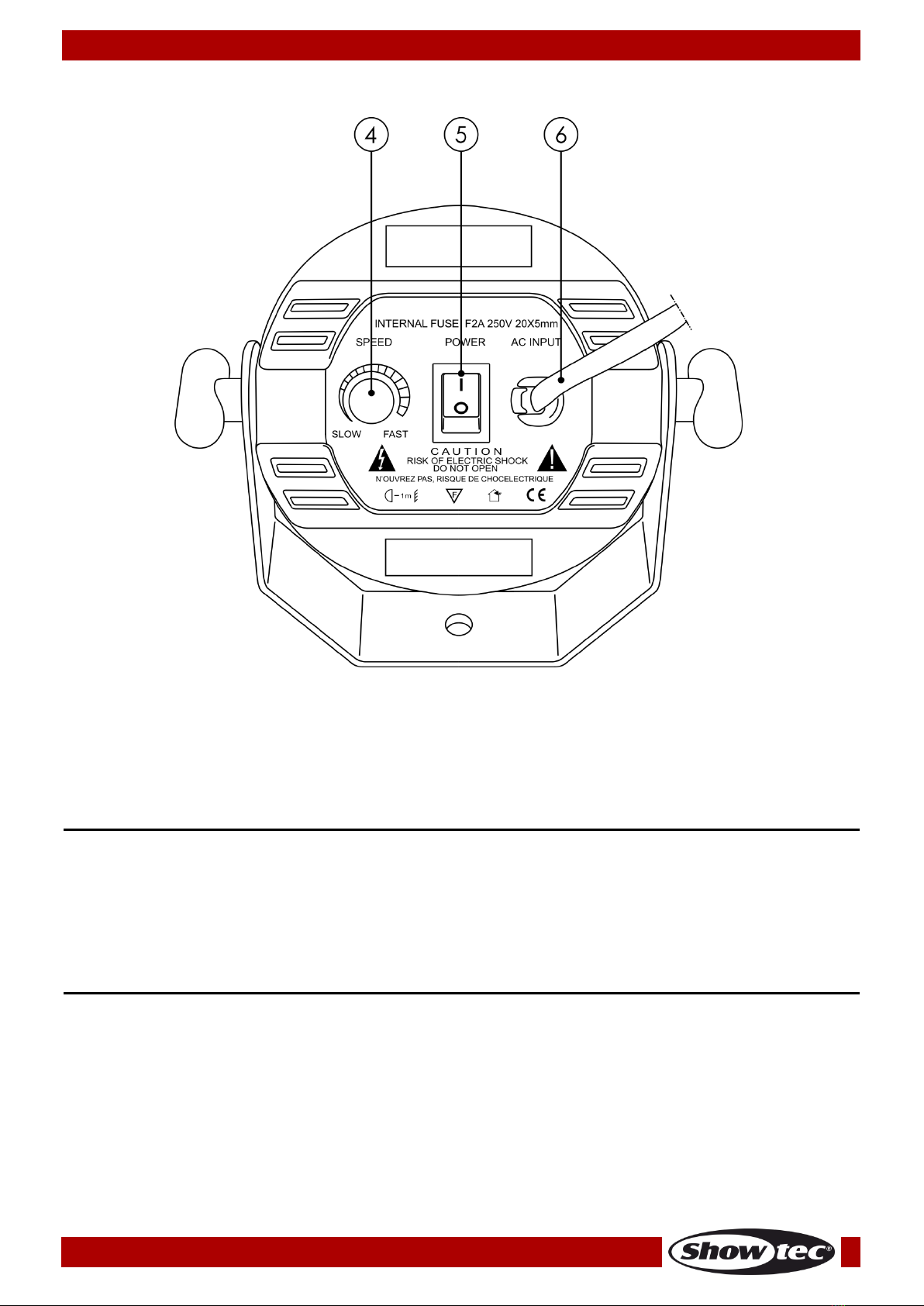

Backside

Fig. 02

04) Strobe frequency control

05) Power switch ON/OFF

06) 220-240V AC, CEE 7/16 Europlug power cable IN (0,75 m)

Installation

Remove all packing materials from the Mini Q-Strobe. Check if all foam and plastic padding is removed.

Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

01) Make sure that the mains power supply matches the fixture’s requirements.

02) Plug the power cable (06) into an appropriate power supply.

03) Flick the power switch (05) to ON position.

04) Turn the control (04) to the left/right to decrease/increase the strobe frequency. The adjustment

range is between 1-15 flashes/sec.

05) In order to switch the device off, flick the power switch (05) to OFF position and unplug the power

cable (06).

Ordercode: 40225

Mini Q-Strobe

Maintenance

The operator has to make sure that safety-related and machine-technical installations are to be

inspected by an expert after every year in the course of an acceptance test.

The operator has to make sure that safety-related and machine-technical installations are to be

inspected by a skilled person once a year.

The following points have to be considered during the inspection:

01) All screws used for installing the device or parts of the device have to be tightly connected and

must not be corroded.

02) There may not be any deformations on housings, fixations and installation spots.

03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.

04) The electric power supply cables must not show any damages or material fatigue.

The Mini Q-Strobe requires almost no maintenance. However, you should keep the unit clean.

Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and

then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and

a soft cloth. Do not use alcohol or solvents.

The front lens will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light

output very quickly.

Please clean internal components once a year with a light brush and vacuum cleaner.

Make sure connections are thoroughly dry before supplying electric power.

Troubleshooting

This troubleshooting guide is meant to help solve simple problems.

If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit

operates properly, do not carry out following steps.

No Light

If the light effect does not operate properly, refer servicing to a technician.

Suspect three potential problem areas as: the power supply, the lamp, the internal fuse.

01) Power supply. Check if the unit is plugged into an appropriate power supply.

02) The lamp. Return the Mini Q-Strobe to your Showtec dealer.

03) The internal fuse. Return the Mini Q-Strobe to your Showtec dealer.

04) If all appears to be O.K., plug the unit in again.

05) If you are unable to determine the cause of the problem, do not open the Mini Q-Strobe, as this may

damage the unit and the warranty will become void.

06) Return the device to your Showtec dealer.

Problem

Probable cause(s)

Solution

The fixture does

not function at all

No power to the fixture

•Check if power is switched on and

cables are plugged in

Internal fuse blown

•Return the device to your Showtec

dealer

No light or lamp

cuts out

intermittently

Fixture is too hot

•Allow the fixture to cool down

•Make sure air vents are not

blocked

•Turn up the air conditioning

Lamp damaged

•Disconnect the fixture and return it

to your dealer

The power supply settings do not

match local AC voltage and

frequency

•Disconnect fixture. Check settings

and correct if necessary

Ordercode: 40225

Mini Q-Strobe

Product Specifications

Model:

Showtec Mini Q-Strobe

Input voltage:

220-240V AC, 50/60Hz

Power consumption:

10W

Dimensions:

145 x 165 x 170 mm (LxWxH)

Weight:

0,5 kg

Electro-mechanical effects:

Strobe frequency:

1-15 flashes/sec

Housing:

Flame retardant plastic

Connections:

CEE 7/16 Europlug power cable IN

Max. ambient temperature ta:

-5 - +40°C

Max. housing temperature tB:

80°C

Minimum distance:

Minimum distance from flammable surfaces:

0,5 m

Minimum distance to lighted object:

1 m

Design and product specifications are subject to change without prior notice.

Website: www.Showtec.info

Email: [email protected]

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec LED Foot 4 Manuel utilisateur

Show Tec

Show Tec LED Powerbrick Set Manuel utilisateur

Show Tec

Show Tec Tracker 300 V3 Manuel utilisateur

Show Tec

Show Tec Maniac FX 7 Manuel utilisateur

Show Tec

Show Tec MINI MAX LED RGB 40363 Manuel utilisateur

Show Tec

Show Tec 50787 Manuel utilisateur

Show Tec

Show Tec Spectral CYC650 Manuel utilisateur

Show Tec

Show Tec STAGE BLINDER 2 DMX Manuel utilisateur

Show Tec

Show Tec Dance Cube 40401 Manuel utilisateur

Show Tec

Show Tec STAGEBEAM MKII 2000W FRESNEL V1 Manuel utilisateur

Show Tec

Show Tec EventLITE 7/4 Manuel utilisateur

Show Tec

Show Tec Followspot LED 120W Manuel utilisateur

Show Tec

Show Tec Spectral M950 Q4 Tour Manuel utilisateur

Show Tec

Show Tec LED Sphere Direct Control 100 V2 Manuel utilisateur

Show Tec

Show Tec LED City Painter 45 Manuel utilisateur

Show Tec

Show Tec EVENTLITE 6/3 Manuel utilisateur

Show Tec

Show Tec LED Octostrip Set MKII 100 cm Manuel utilisateur

Show Tec

Show Tec Parcan 64 Floorspot V1 Manuel utilisateur

Show Tec

Show Tec Pixel Square 16 COB Manuel utilisateur

Show Tec

Show Tec Spectral Revo Tungsten V1 Manuel utilisateur

Show Tec

Show Tec LED Design Par18 RGB Manuel utilisateur

Show Tec

Show Tec Helix M1000 Q4 Mobile Manuel utilisateur

Show Tec

Show Tec Kanjo Scan 60 Manuel utilisateur

Show Tec

Show Tec Astro 360 XL Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
