SEWOO LK-P24 Guide d'installation

P24 Rev. A 04/18

J. STEPHEN Co., Ltd.

MOBILE PRINTER

MODEL : LK-P24

Wi-Fi & Bluetooth

All specifications are subject to change without notice

28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea

TEL : +82-31-8077-5000 FAX : +82-31-459-8880

http://www.miniprinter.com

For better safety and reliability, adhere to the following precautionary measures.

Read and follow the instructions carefully before operation of the product.

Safety Precautions

WARNING

Failure to follow these instructions could result in re, electric shock,

other injuries, or property damage.

Indication

Prohibition

(Potential risk of electric shock or re)

Must follow

Do not disassemble Unplug the power from the

outlet

Grounding to prevent electric

shock

Do not handle the product

with wet hands

Do not pull or touch the power plug with

wet hands.

Do not bend the wire and do not allow the

wire to be pinched or crushed by heavy

objects.

If a power plug is broken or a plug is cut or

worn, do not use it.

Do not overload an electrical outlet.

WARNING

Failure to follow these instructions could result in re, electric shock, other

injuries, or property damage.

Failure to follow these instructions could result in re, electric shock, other

injuries, or property damage.

(Turn off the power using the power button)

(May cause damage or injury)

(Potential risk of re or unit malfunction)

(Potential risk of re or property damage)

(Potential risk of electric shock or damage)

(Potential risk of malfunction, electric shock,

or re. When the product needs to be repaired,

please contact your reseller)

Dealer

Do not unplug the power cable to turn off

the product.

Do not install the product on an unstable

or inclined surface.

If the product needs to be repaired,

please contact your reseller.

Avoid excessive shock or drops.

Keep product away from the water and

other material.

Do not disassemble, repair or modify the

product.

CAUTION

Table of Contents

PERIPHERAL CONNECTION

9. PERIPHERAL CONNECTION 18

9-1. BLUETOOTH CONNECTION (OPTIONAL) 18

9-2. Wi-Fi CONNECTION (OPTIONAL) 18

9-3. NFC CONNECTION (OPTIONAL) 19

9-4. INTERFACE CABLE CONNECTION 20

MAINTENANCE

10. CLEANING THE PRINTER 21

11. JAM ERROR 22

SPECIFICATION

12. ROLL MEDIA SPECIFICATION 23

13. BLACK MARK 24

14. PRINTER SPECIFICATION 25

PRODUCT OVERVIEW

1. UNPACKING 2

2. PRODUCT OVERVIEW 3

3. AMC(ADVANCED MANUAL CUTTER) BUTTON 4

4. CONTROL PANEL USAGE 5

SET UP

5. PAPER INSTALLATION 6

6. BATTERY 7

6-1. BATTERY INSTALLATION 7

6-2. BATTERY REMOVAL 8

6-3. BATTERY CHARGING 9

6-3-1. CHARGING USAGE 9

6-3-2. CHARGING CRADLE (OPTIONAL) 10

6-4. SET CRADLE USAGE (OPTIONAL) 11

7. BELT CLIP & STRAP, LEATHER CASE 12

7-1. BELT STRAP+BRACKET USAGE 12

7-2. BELT CLIP USAGE (OPTIONAL) 14

7-3. LEATHER CASE USAGE (OPTIONAL) 15

8. SELF TEST 16

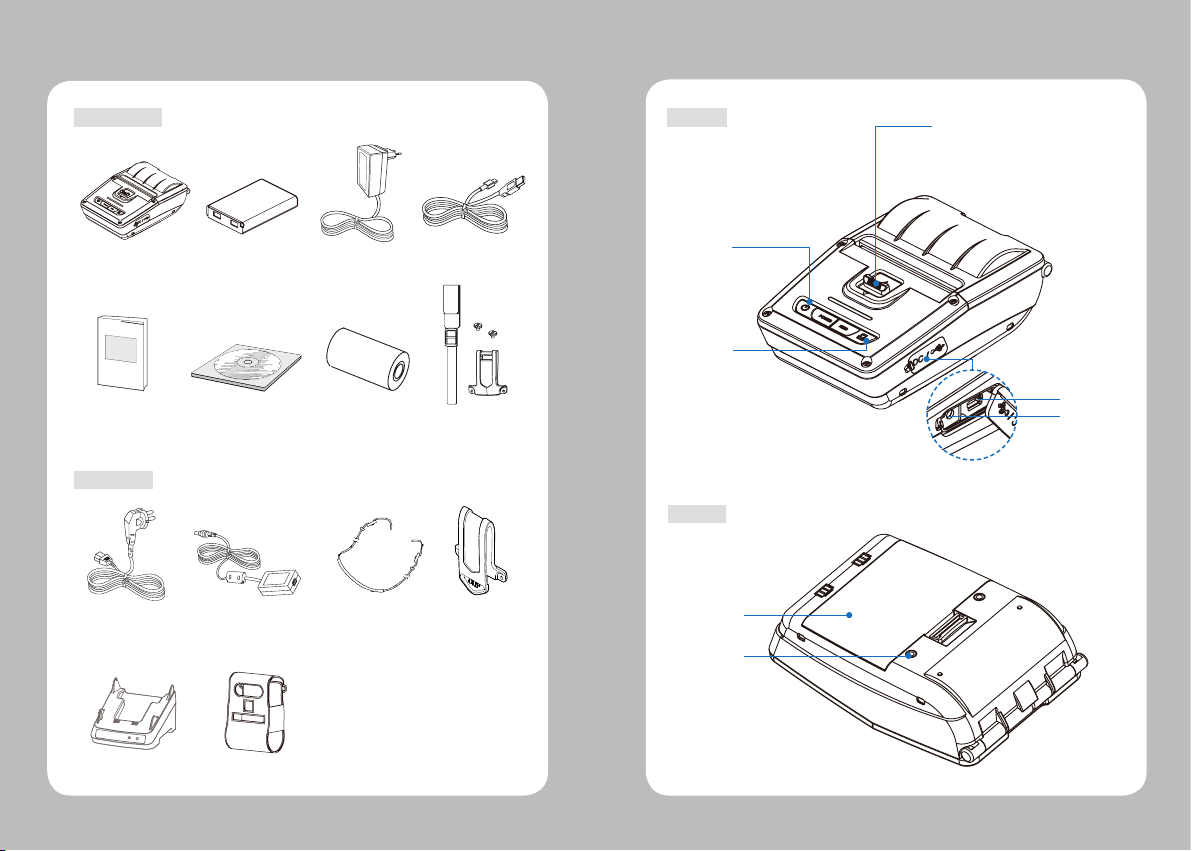

1. UNPACKING 2. PRODUCT OVERVIEW

- Button Up:Cutting the paper

- Button down:Opening the cover

USB

DC POWER

Printer

Quick Manual

AC Cord

Set Cradle

(Charging Cradle)

Charger

Roll Paper

Shoulder Strap

Battery

CD (Manual)

Adaptor

Leather Case

USB Cable

Belt Strap+Bracket

Belt Clip

Front

Rear

Power

Button

AMC Button

Paper

feed Button

Battery

Belt clip

hole

Optional

Standard

3. AMC(Advanced Manual Cutter) BUTTON

AMC function gives the convenient

way for users to cut papers.

CAUTION

When using the AMC function, do not put fingers into the printer

head where the paper comes out. This may cause injury.

Button

Press the button up to cut the paper.

Press the button down to open the cover.

Please press the button down and open the

cover in situations such as cleaning

the head, replacing a paper, and

having a paper jam error.

Button Up

Button Down

4. CONTROL PANEL USAGE

Button

Name

function

Power

Button

This button is used to turn the printer on and off.

When the printer is off,press this button for approximately 3 seconds

and the printer will power on.When you press this button while the

printer is powered on, the printer will turn off.

Paper

Feed

Button

This button can be used to manually feed the paper.

Additionally, this button is also used to initiate self-tests and

Hexadecimal Dumping.

1.Refer to the SelfTest section of this manual for information

regarding self-tests.

2. Refer to the Note in Self Test section of this manual for information

regarding Hexadecimal Dumping.

Battery

Status

Lamp

1.If the Batt LED is lit,the battery is fully charged.

2. If you can hear a beeping sound and LED light is turned off, the

battery is at the lowest level.

3. If the battery is not charged at all, the printer turns off

automatically.

Error

Lamp If the red light is turned on, there is no paper or the

paper cover is open.

LINK/

Power

Light

- LINK: LED BLINK

- POWER ON:GREEN LED ON

- POWER OFF:LED OFF

5. PAPER INSTALLATION

1 2

Press the AMC button down

to open the paper cover.

Place the paper roll as shown. Make

sure the paper is placed in the right

direction.

Pull a short length of paper out of

the printer and close the cover.

Press the AMC button up to cut

the unnecessary paper.

**If the cover is not shut down completely,

the printer may not work properly**

CAUTION

Make sure to be careful of

the HOT head

Please make sure you hear

the closing sound of

the upper cover.

AMC BUTTON

6. BATTERY

1. Align battery hook as shown in the picture

2. Push the battery into the printer until it locks in place.

6-1. Battery Installation

OPEN

Please make sure you hear

the closing sound of

the upper cover.

HOOK

NOTE

As the battery is not charged at the time of your purchase, charge the

battery prior to using the printer

(Battery charger or Cradle can be used to charge)

CAUTION

Risk of explosion if the battery is replaced by an incorrect type.

Dispose of used batteries according to local regulations.

1. Remove the battery as shown.

1. Make sure the printer is turned o.

2. After opening the DC JACK cover, connect the DC JACK to the printer.

3. Plug the power cord into the electrical outlet.

6-2. Battery Removal 6-3. Battery Charging

LAMP

6-3-1. Charging Usage

OPEN

REMOVE

The charging status LED

Status charging charging complete

Charging Lamp Red

Green

NOTE

1. If the charger provided by the manufacturer is not used, the printer can be

damaged, and the manufacturer is not liable for the consequential damage.

2. Before removing the battery, make sure that power is turned o.

3. The printer does not work when only connected to the charger.

4. The battery needs to be installed to operate the printer.

5. While charging, do not turn on the power.

6. Do not operate the printer while charging the battery.

7. Do not connect the charger while the printer is operating.

10 11

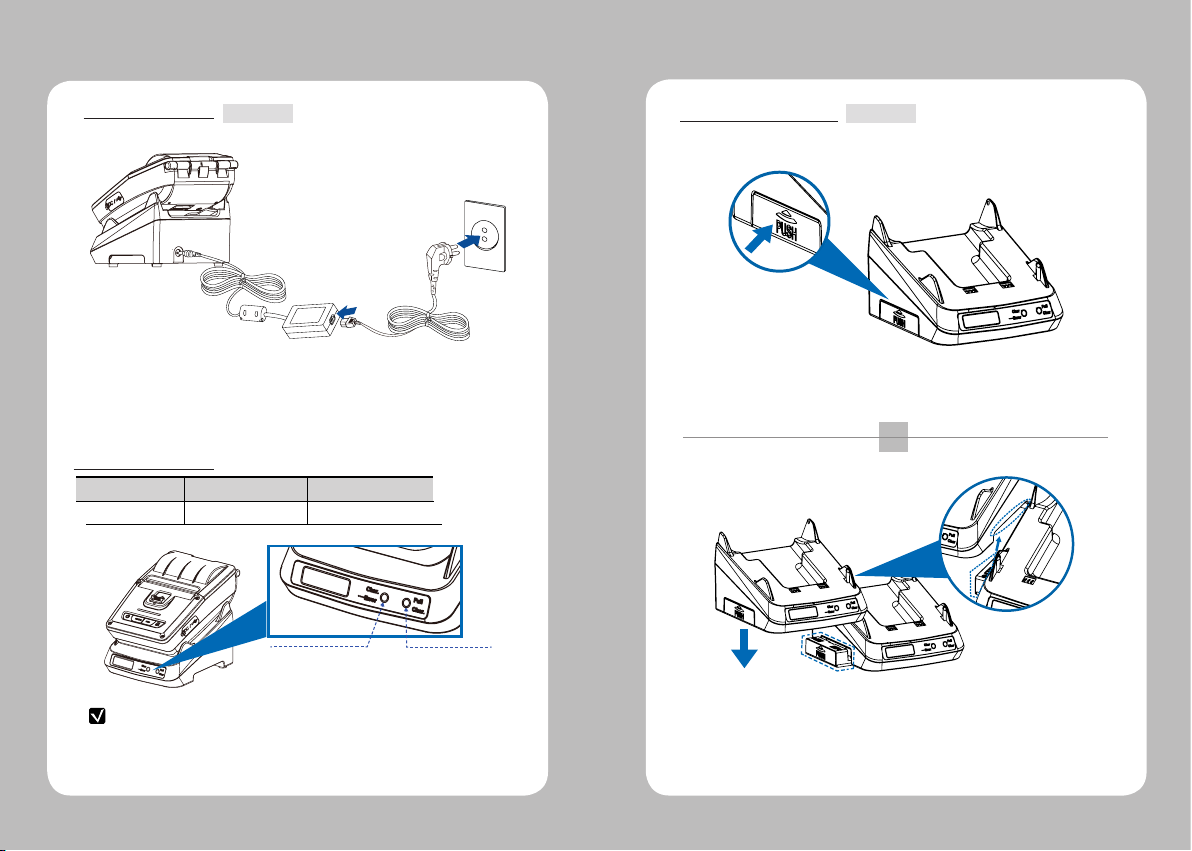

6-3-2. Charging Cradle

The charging status LED

Optional

Status charging charging complete

Charging Lamp Red

Green

1. Place the printer into the charging cradle as shown above.

2. Connect the DC JACK to the charging cradle.

3. Plug the power cord into an electrical outlet.

4. Once the charging is completed, remove the printer from the charging cradle.

CHARGING (RED ON)

ERROR (RED Flicker)

CHARGING COMPLETE

(GREEN ON)

NOTE

If the printer is not properly mounted on the charging cradle,

the red lamp will blink. Remove and reinsert the battery.

6-4. Set Cradle Usage

Optional

Press the PUSH button to pop out

the cradle connector.

Align the second cradle with the connector of the existing cradle,

and connect the cradles by pressing down.

(To disassemble, repeat these steps in reverse order)

12 13

1 2

7. BELT CLIP & STRAP, LEATHER

7-1. Belt Strap+bracket Usage

Prepare the belt strap, bracket,

and 2 screws.

Slide the strap into the loop on

the back side.

Put the strap into the hole on the

top of the belt bracket.

Make sure the strap is fastened

tight enough.

After connecting the strap and bracket, insert the screws

into the bracket hole.

Use a screw driver to tighten

the bracket.
