SEWOO LK-P43W Manuel utilisateur
All specifications are subject to change without notice
USER’S MANUAL
MODEL : LK-P43W (Peeler)
SEWOO TECH CO.,LTD.
374-2, Gajang-dong, Osan-si, Gyeonggi-do, 447-210, Korea
TEL : +82-31-459-8200 FAX : +82-31-459-8880
www.miniprinter.com
P43W(Peeler) Rev. D 10/14
1
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION
23
Table of Contents
1. Safety Caution 4
2.
Unpacking
6
3. Product Overview 7
4. Installation & Usage 8
4-1. Display 8
4-2. Installing the Battery 9
4-3. Removing the Battery 10
4-4. Charging the Battery 11
4-5. Battery charger usage 12
4-6. Usage of Cigar Jack Charger 13
4-7. Installing Belt Clip 14
4-8. Interface Cap Installation 15
4-9. Roll Paper Installation 16
4-10. Install / Uninstall the External Paper Guides 18
4-11. Peel Mode 20
4-12. Shoulder Strap Installation 22
4-13. Diagnostic Test 23
5. Peripherals Connection 25
5-1. Wi(802.11a/b/g) Connection 25
5-2. Interface Cable Connection 26
6. Printer Cleaning 27
6-1. Print-Head Cleaning 27
6-2. Platen Roller Cleaning 28
7. Pritner Specication 29
7-1. Specication 29
8. CPCL Command Compatibilit
y
31
9. ESC/POS Command Compatibilit
y
34
10. ZPL Command Compatibilit
y
36
45
For higher reliability and safety, consider the following precautionary measures.
Read and follow the instructions carefully before running of the product.

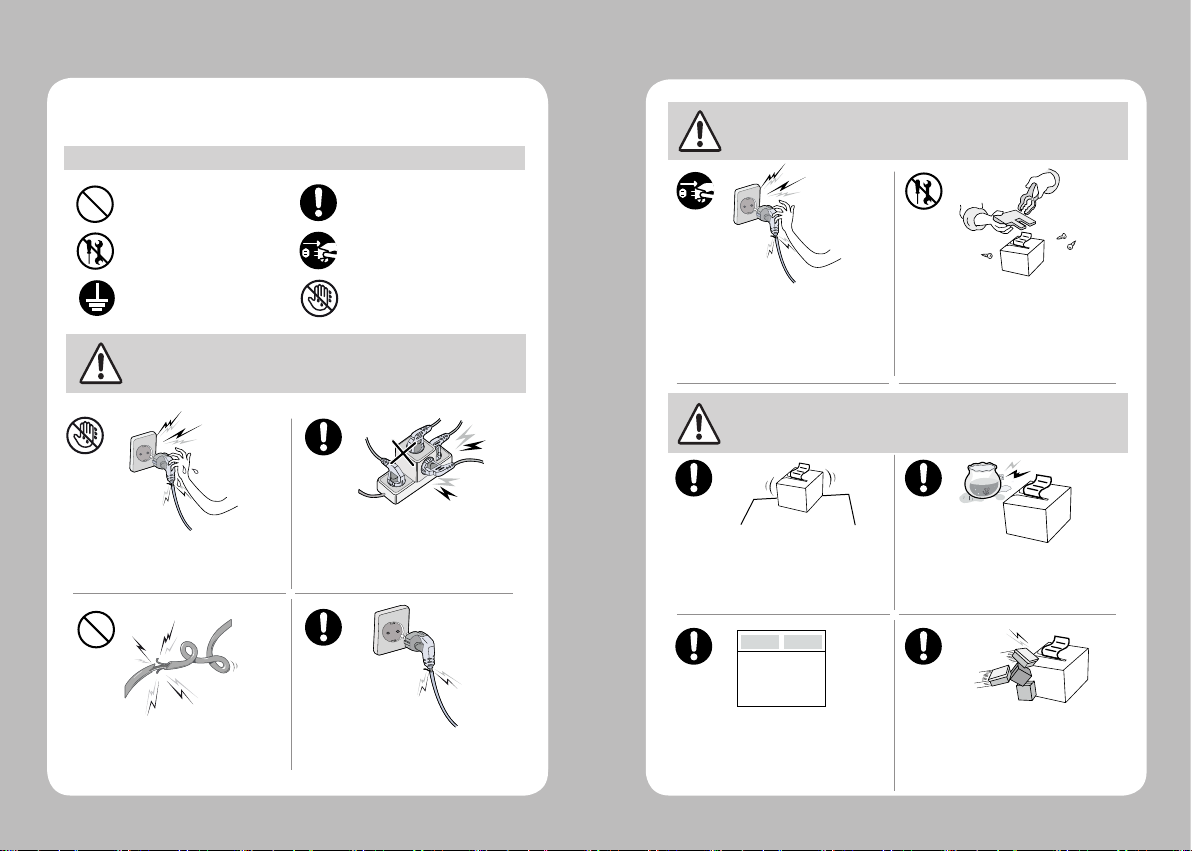

1. Safety Caution
WARNING
Failure to follow these instructions could result in re, electric shock,
or other injuries, or property damage
Indication
Prohibition
(Potential risk of electric shock or re)
(Potential risk of electric shock or re) (Potential risk of electric shock or re)
(Potential risk of electric shock or re)
Must follow
Do not disassemble Unplug the power from the
outlet
Grounding to prevent electric
shock
Do not handle the product
with wet hands
Do not pull or touch the power plug with
wet hands.
Do not bend the wire and do not allow the
wire to be pressed by heavy object.
If a power plug is broken or a plug is cut or
worn, do not use it.
Do not overload the power plug into one
outlet.
WARNING
Failure to follow these instructions could result in re, electric shock,
or other injuries, or property damage
Failure to follow these instructions could result in re, electric shock,
or other injuries, or property damage
(Turn off the power at installation,
transportation, wiring and inspection.)
(You may get hurt and it can be broken
when it falls)
(Potential risk of re or unit malfunction)
(Potential risk of re or unit malfunction)
(Potential risk of discoloration or
electric shock)
(Potential risk unit malfunction, electric
shock or re. When the product needs
to be repaired, please contact in place
where you ordered.inspection.)
Dealer
Do not pull out the power plug to turn off
the product.
Do not install the product in uneven or
inclined surface.
If the product that needs to be repaired,
please contact in place where you ordered.
Please do not give excessive shock.
Keep product away from the water and
other material.
Do not disassemble, repair or modify the
product.
CAUTION
67
2. Unpacking
SHOULDER
STRAP RING
3. Product Overview
CHARGER
CONNECTOR
COVER OPEN
BUTTON
Front
Bottom
PEELER BODY
PEELER WING
BATTERY
BELT CLIP
CONNECTOR
SERIAL
USB
DISPLAY
Printer Battery Belt Clip
AC cord
Optional
Standard
CD
USB Cable
Quick Reference
Adaptor
Paper
Shoulder Strap
Serial Cable
Battery Cradle
Cigar Jack
89
4-1. Display
4. Setting Up the Product
Button
Name
F
unction
Paper Feed /
Down Button
Advances the supply. Clears error message.
Moves down through menu options.
1. Refer to 4-9 for Diagnostic Test information.
2. Refer to the service manual regarding Hexadecimal
Dumping.
Enter Button Selects the highlighted menu option.
Up Button Moves up through menu options.
Power Button
Turns the printer on and off. Press to turn
power on. Press for three seconds to turn power off.
Wakes the printer from sleep mode.
NOTE
1. The battery status LEDs indicate amount of power remaining.
Actual run-time remaining depends on factors such as the contents of output,
distance to computer, etc.
2. When the battery level is very low, high density printing can result in the printer
switching off during printing resulting in possible loss of data.
4-2. Installing the Battery
NOTE
Remove the battery. Insert the battery as shown.
Replace the battery.
You must fully charge the battery when you receive the printer.
Batteries can be charged in the printer or in an optional external cradle.
10 11
4-3. Removing the Battery
Remove the battery. Lift out the battery.
4-4. Charging the Battery
1. Be sure that the printer is turned off
2. After open the DC JACK cover, insert DC JACK into the printer.
3. Plug the power code to electrical outlet.
4-4-1 The status of lamp in charging
Status Charging Charging Completed
Charging Lamp
Red
Green
If there is trouble while charging the battery, the charge indicator LED blinks green.
Try unplugging and reconnecting charger, charging should resume.
Charging is complete when the LED changes to solid green.
NOTE
12 13
4-5-1 The status of lamp in charging
Status charging charging complete
Charging Lamp
Red
Green
NOTE
4-5 Battery charger usage
DC Jack
1. Insert the battery into the battery holder as shown above
2. Connect the DC JACK to the power electrical outlet.
3. Plug the power code into the electrical outlet.
4. Once the charging is completed, remove the battery from the holder.
Optional
Lamp
In the case the battery is not xed properly in the holder, the red lamp will be blinking,
Then, extract and reinsert the battery.
Connect the vehicle charger to the printer.
4-6. Usage of Cigar Jack Charger
Printer
Optional
Input 12V ~ 24V
9.5V / 3A
Output
Connect the vehicle charger to the printer.
NOTE
14 15
The belt clip is included with the printer but is not required to be used or installed!
4-7. Belt Clip Usage
Insert screw into belt clip.
Tighten the screw with driver as shown.
1
2
NOTE
4-8. Interface Cap Installation
1 2
34
When Interface Cap separated from
the printer, try to array the Cap Hook in
horizontal direction as shown in the image.
Using a sharp tool, insert the Cap Hook
to the hole which is located in the right
side of Interface Cap.
When Cap Hook inserted, install the Cap
Cover in direction of an arrow as shown
in the image.
Close the Interface Cap cover.
16 17
NOTE
If the users close the cover with one hand,
it would not be closed completely.
Please use both hands to close.

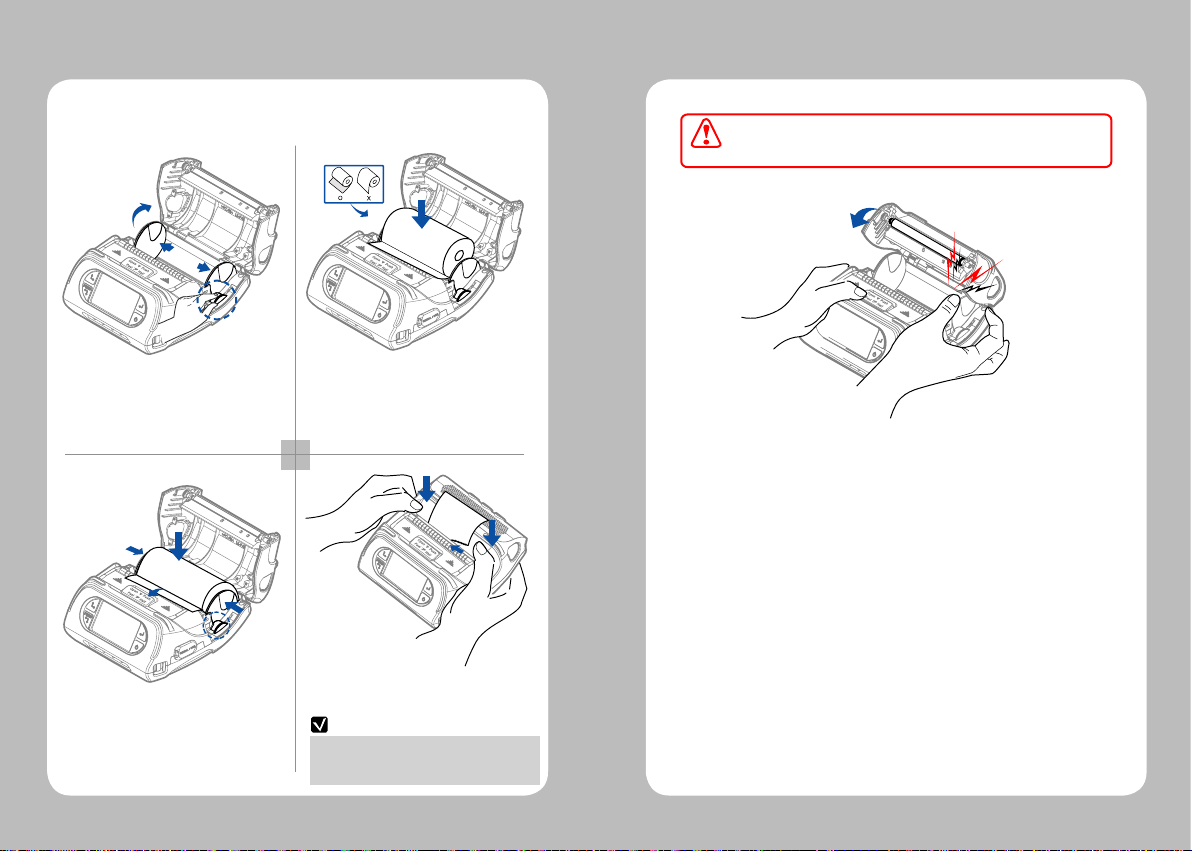

4-9. Roll Paper Installation
1 2
34
Put the stock in so it unrolls from the
bottom. Remove the stock core when it
is empty. Pull a short length of stock out
of the printer.
Open the Paper cover by pressing the
Open button and set the width of paper
guide by turning the knob with nger.
After inserting the paper, adjust the
paper guide to little wider than paper size.
Then pull the paper out and close the
paper cover.
Close the Paper cover with both hands
and run the paper line up by pressing
the Feed button.
Be cautious to handle the product when Printer Cover is an open position.
You may have a potential risk of injury when Paper Cover closes
CAUTION
