Sennheiser XSW IEM Series Manuel utilisateur
XS Wireless IEM
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com
XS Wireless IEM - v1.0, 02/2022
Instruction Manual
(PDF export of the original HTML manual)
This PDF document is a PDF export of an interactive manual in HTML format.
When displayed in PDF format, it is possible that not all content and interactive
elements in the HTML instructions are included, as these cannot be displayed in
PDF format.
We recommend using the complete and interactive HTML instructions.
You can find these in the Sennheiser Documentation App, which is available free of
charge for iOS and Android. Alternatively, the HTML instructions are also available
in the download area of the product page:
www.sennheiser.com/xsw-iem
XSW IEM series products
2
XSW IEM series products
The XSW IEM series of products includes the rack-mounted
XSW IEM SR transmitter in a sturdy metal housing, the light-
weight XSW IEM EK bodypack receiver, and the IE 4 in-ear
monitoring headphones with natural sound and excellent pro-
tection against background noise.
XSW IEM SR – stereo transmitter
XSW IEM EK – bodypack receiver
XSW IEM SR – stereo transmitter
The XSW IEM SR is a sturdy stereo transmitter for in-ear mon-
itoring with half-rack width, all-metal housing and a high-con-
trast LC display. The stereo transmitter is designed for
interference-free operation with the wireless microphones of
the XS Wireless series.
▷Starting up the XSW IEM SR
▷Using the XSW IEM SR
▷Specifications of XSW IEM SR
MONO
AUDIO
PRESET
TUNE
SYNC
L
PEAK
STEREO
RB
00 00 -00dB
CH GAIN
PEAK
572.200
MHz
PHONE VOLUME
SET
SYNC
XSW IEM
RF
AF
LIM EQ FOCUS ON
B U1 CH 16 PAN00 OFF
MHz
548.100
MONO
AUDIO
PRESET
TUNE
SYNC
L
PEAK
STEREO
RB
00 00 -00
dB
CH GAIN
PEAK
572.200
MHz
PHONE VOLUME
SET
SYNC
XSW IEM
XSW IEM EK – bodypack receiver
3
XSW IEM EK – bodypack receiver
The XSW IEM EK is a sturdy bodypack receiver for in-ear mon-
itoring with reliable IE 4 in-ear monitoring earphones. The re-
ceiver has an infrared connection for easy and versatile
synchronization with the XSW IEM transmitter.
▷Starting up the XSW IEM EK
▷Using the XSW IEM EK
▷Specifications of XSW IEM SR
RF
AF
LIM EQ FOCUS ON
B U1 CH 16 PAN 00 OFF
MHz
548.100
Accessories
4
Accessories
A variety of accessories are available for the XSW IEM series.
Earphones
IE 4
Art. no. 500432
Earphones for use with wireless monitor systems. The IE 4
feature excellent sound and dynamic range. They have inter-
changeable earpieces to fit different sized ear canals. This
provides good insulation against background noise and excep-
tionally good bass response for this type of receiver.
Removable earpieces in three different sizes for universal fit
• Natural sound and dynamic range
• Extremely resilient at high sound pressures
• Superior bass response
• Sturdy cable
Earphones
5
Other compatible earphones
IE 100 PRO
For the demanding requirements of the live stage: With a new-
ly developed dynamic driver, the IE 100 PRO guarantees pre-
cise acoustic reproduction for live sessions and sets. The
innovative new membrane delivers powerful, warm and detail-
rich sound. Every detail remains undistorted and clear, even at
the highest levels. Because of its exceptional sound and un-
matched comfort, musicians and DJs choose the IE 100 PRO
for live sessions, for producing and for everyday listening.
The in-ear earphones fit any ear shape. Their low-profile, com-
pact design ensures a secure fit and unmatched comfort. They
have a sturdy, stage-proof design, from the connector to the
cable sheath.
• Newly developed 10 mm dynamic wideband transducer for
powerful, accurate monitoring sound
• Dynamic driver system delivers homogeneous and distor-
tion-free sound for less strain on the listener
• Secure fit, unmatched comfort: new low-profile and ergo-
nomic design
• Optimized earpiece shape and flexible silicone and foam at-
tachments for excellent protection against background
noise
• Stage-proof cable connection
Earphones
6
IE 400 PRO
The warm sound and rich punch of the IE 400 PRO in-ear mon-
itors make them the right choice for professionals who want
studio-quality sound on the stage. The IE 400 PRO delivers
warm sound without artifacts or distortion even at high sound
pressure levels.
With newly developed TrueResponse technology, the 7 mm
dynamic driver delivers outstanding resolution and reduces
strain on the listener, even over long periods of time. The dis-
tortions, overlapping frequencies and resonance peaks com-
mon in other headphones are now a thing of the past.
The total harmonic distortion has been reduced to a previously
unthinkable 0.08%. The earphones also have an ultra compact
design, which can be tailored to any ear shape using the in-
cluded silicone and memory foam adapters. Easy to use, bril-
liant sound, sturdy even under extreme conditions, and
comfortable in the ear canal even after hours of listening.
• Newly developed 7 mm dynamic wideband transducer for
powerful, high-resolution monitoring sound
• Noticeable punch with transparent midranges and clear
highs
• TrueResponse driver system delivers homogeneous and
low-distortion sound for less strain on the listener
• Compact, ergonomic housing provides excellent comfort
and good fit
• Optimized earpiece shape and flexible silicone and foam at-
tachments for unmatched protection against background
noise
• Stage-proof cable concept with innovative new sheath (pat-
ent pending)
Earphones
7
IE 500 PRO
High-resolution sound down to the finest details and precise
imaging, even at extreme sound pressure levels: the low im-
pedance IE 500 PRO combines enormous power with un-
matched clarity for any venue or stage in the world. The
double-stranded cable allows it to handle extremely high vol-
umes. The dynamic 7 mm driver uses newly developed TrueR-
esponse technology to enable audio professionals to control
even the smallest details. This technology reinforces the nat-
ural strengths of the membrane and eliminates the listening
strain caused by other driver systems. Distortion, resonance
peaks and overlapping frequency ranges are a thing of the
past.
The total harmonic distortion has been reduced to a previously
unthinkable 0.08%. The miniaturized design also allows for a
previously unthinkable low-profile shape that fits comfortably
and securely into any ear canal. The included silicone and
memory foam adapters improve fit and protect against back-
ground noise, so that the earphones feel almost custom made.
The IE 500 PRO sits securely in your ear, even if you make
sharp movements—while still being easy enough to insert or
remove in seconds. And the innovative, unbreakable cable
sheath (patent pending) is designed to be completely replace-
able.
• Newly developed 7 mm dynamic wideband transducer with
extremely fine resolution and neutral sound image
• Detachable, double-stranded cable provides excellent ab-
sorption of impact noise
• TrueResponse driver system delivers homogeneous and
low-distortion sound for less strain on the listener
• Compact, ergonomic housing provides excellent comfort
and good fit
• Optimized earpiece shape and flexible silicone and foam at-
tachments for unmatched protection against background
Earphones
8
noise
• Stage-proof cable concept with innovative new sheath (pat-
ent pending)

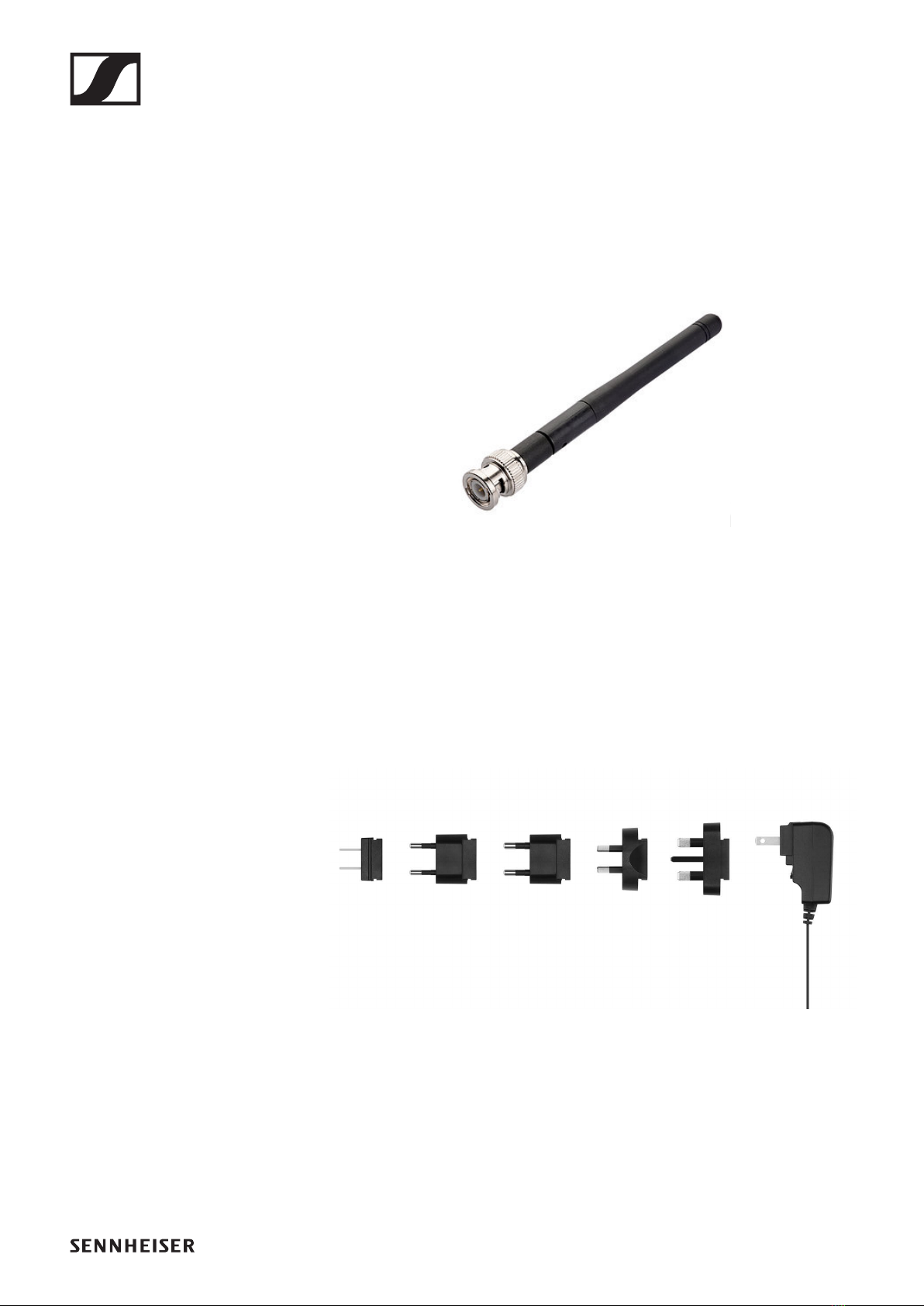

Antennas
9
Antennas
BNC antenna
Art. no. 522419
Power supply unit
NT 12-5-CW
Art. no. 507352
Power supply unit for the XSW 1, XSW 2, XSW IEM and
ew G4 100 series. All adapters included (EU, US, UK, Korea,
Australia, China).
