FEATURES

Sturdy metal housing



42 MHz bandwidth: 1680 tunable UHF



frequencies for interference-free reception

Enhanced frequency bank system with up



to 16 compatible frequencies

Ethernet port for connecting to the Wire-



less Systems Manager (WSM) software for

control via computer – this delivers a good

overview of monitoring and professio-

nal data management for multi-channel

systems

Pilot tone squelch for eliminating RF inter-



ference when transmitter is turned off

Enhanced AF frequency range



Increased range for audio sensitivity



Wireless synchronization of receiver para-



meter from transmitter

User-friendly menu operation with more



control options

Illuminated graphic display



Auto-Lock function avoids accidental



changing of settings

HDX compander for crystal-clear sound



Mute function



Integrated 5-band graphic Equalizer



Wide range of accessories adapts the



system to any requirement

Optimized PLL synthesizer and micro-



processor technology

Stereo/mono selection



Easy setup of a multi-channel system



using the Easy Setup Sync function

You can only sound better if you hear yourself better. Wireless monitoring is taken

to the next level of perfection with the Sennheiser G3 monitoring system. Added

features of this stereo transmitter include the valuable integrated 5 band equali-

zer for extra control of the sound. New pass-through sockets for the audio signal

enable the audio feed from a console to be routed to other devices in the chain,

simplifying setup. The enhanced audio frequency response of 25 to 15,000 Hz

means the sound the performers hear is the most realistic and life-like a wireless

monitor system has

ever had to offer.

TECHNICAL DATA

Frequency ranges....................................................516–558, 566–608, 626–668,

734–776, 780–822, 823– 865 MHz

Transmission frequencies .....................................1,680 frequencies, tuneable in steps

of 25 kHz

20 frequency banks, each with up to

16 factory-preset channels

6 frequency banks with up to 16

user programmable channels

Switching bandwidth.............................................42 MHz

Frequency stability.................................................±10 ppm (–10°C to +55 °C)

Antenna output.......................................................BNC socket, 50 O

RF output power at 50 O......................................typ. 10/30 mW (Low/Standard),

switchable

Modulation ................................................................wideband FM stereo (MPX pilot tone)

Compander system.................................................Sennheiser HDX

Nominal/peak deviation .......................................±24 kHz/±48 kHz

MPX pilot tone (frequency/deviation) ..............19 kHz/±5 kHz

AF frequency response..........................................25 Hz to 15 kHz

AF input.....................................................................2 x XLR-3/¼“ (6.3 mm) jack combo

socket, electronically balanced

Max. input level .......................................................+22 dBu

THD (at 1 kHz and nominal deviation)..............< 0.9 %

Signal-to-noise ratio

at nominal load and peak deviation...................> 90 dB

Continued on page 2

SR 300 IEM G3

Wireless

stereo transmitter

SR 300 IEM G3 Wireless stereo transmitter

TECHNICAL DATA

AF output..................................................................¼’’ (6.35 mm) stereo jack socket,

balanced

Temperature range.................................................–10 °C to +55 °C

Power supply............................................................12 V

Current consumption .............................................max. 350 mA

Dimensions...............................................................approx. 202 mm x 212 mm x 43 mm

Weight.......................................................................approx. 980 g

DELIVERY INCLUDES

1 SR 300 IEM G3 rack-mount

transmitter

1 NT 2–3 mains unit with one country

adapter

1 Rod antenna

1 GA 3 rack adapter

1 Instruction manual

1 Frequency information sheet

1 RF licensing information sheet

4 Device feet

ARCHITECT’S

SPECIFICATIONS

The wireless stereo rack-mount transmitter shall be for use with a companion receiver as part of a wireless RF monitoring system.

he transmitter shall operate within six UHF frequency ranges, each with a 42 MHz switching bandwidth: 516–558 MHz, 566 – 608 MHz,

626–668 MHz, 734–776 MHz, 780– 822 MHz, 823 – 865 MHz; transmission frequencies shall be 1,680 per range and shall be tun-

able in 25 kHz steps. The transmitter shall feature 20 ﬁxed frequency banks with up to 16 compatible frequency presets and 6 user

banks with up to 16 user programmable frequencies.

Frequency stability shall be +10 ppm at −10°C to +55°C (+14°F to +131°F).

RF output power at 50 Oshall be switchable between 10 mW (Low) and 30 mW (Standard).

The stereo audio input shall utilize two discrete (left/right) electronically balanced 1⁄4“ (6.3 mm) jack/XLR-3F combo sockets; the

audio output shall utilize a balanced 1⁄4“ (6.3 mm) jack socket; one audio loop output shall be provided utilizing a balanced 1⁄4“

(6.3 mm) jack socket. A headphone output with headphone volume control shall be provided and shall utilize a 1⁄4“ (6.3 mm) stereo

jack socket. The transmitter shall have an Ethernet port (RJ45) for remote network-based monitoring and control using the Senn-

heiser Wireless System Manager software. One 50 OBNC-type input socket shall be provided for connecting the antenna.

Nominal/peak deviation shall be ±24 kHz/±48 kHz. The transmitter shall incorporate the Sennheiser HDX compander system and

shall include a 19-kHz MPX pilot tone with a ±5 kHz deviation. The audio frequency response shall range from 25–15,000 Hz.

Maximum input level shall be +22 dBu. Total harmonic distortion (THD) at 1 mV and nominal deviation shall be < 0.9 %. Signal-to-

noise ratio at nominal load and peak deviation shall be > 90 dB.

The transmitter shall be menu-driven with a backlit LC display showing the current frequency, frequency bank and channel number,

metering of AF level, transmission status, transmission power, equalizer setting, input sensitivity, and lock status. An auto-lock

feature shall be provided to prevent settings from being accidentally altered.

The parameters of associated receivers shall be conﬁgurable in the transmitter menu and synchronized with the receivers via an

integrated infrared interface.

The transmitter shall operate on 12 V power supplied from the NT 2-3 mains unit. Power consumption shall be 350 mA.

The transmitter shall have a rugged metal housing; dimensions shall be approximately 202 x 212 x 43 mm (7.95“ x 8.35“ x 1.69“).

Weight shall be approximately 980 grams (2.16 lbs). Operating temperature shall range from −10°C to +55°C (+14°F to +131°F).

The transmitter shall be the Sennheiser SR 300 IEM G3.

CONNECTIvITy

PRODUCT vARIANTS

SR 300 IEM G3-A-EU – 516...558 MHz /

Power supply unit EU Cat. No. 503136

SR 300 IEM G3-A-US – 516...558 MHz /

Power supply unit US Cat. No. 503638

SR 300 IEM G3-G-EU – 566...608 MHz /

Power supply unit EU Cat. No. 503639

SR 300 IEM G3-G-US – 566...608 MHz /

Power supply unit US Cat. No. 503640

SR 300 IEM G3-B-EU – 626...668 MHz /

Power supply unit EU Cat. No. 503641

SR 300 IEM G3-B-US – 626...668 MHz /

Power supply unit US Cat. No. 503642

SR 300 IEM G3-C-EU – 734...776 MHz /

Power supply unit EU Cat. No. 503643

SR 300 IEM G3-C-US – 734...776 MHz /

Power supply unit US Cat. No. 503644

SR 300 IEM G3-D-EU – 780...822 MHz /

Power supply unit EU Cat. No. 503645

SR 300 IEM G3-D-EU-X – 780...822 MHz /

Power supply unit EU / Germany Cat. No. 503646

SR 300 IEM G3-D-UK – 780...822 MHz /

Power supply unit UK Cat. No. 503647

SR 300 IEM G3-E-EU – 823...865 MHz /

Power supply unit EU Cat. No. 503648

SR 300 IEM G3-E-EU-X – 823...865 MHz /

Power supply unit EU / Germany Cat. No. 503649

SR 300 IEM G3-E-UK – 823...865 MHz /

Power supply unit UK Cat. No. 503650

RECOMMENDED ACCESSORIES

Stacking elements, 1 pair Cat. No. 532711

GA 3 – rack adapter Cat. No. 503167

AM 2 – antenna front mount kit

(for GA 3 rack adapter) Cat. No. 009912

NT 2-3 EU – Mains unit for powering

the SR 300 IEM G3; EU version Cat. No. 503157

NT 2-3 US – Mains unit for powering

the SR 300 IEM G3; US version Cat. No. 503870

NT 2-3 UK – Mains unit for powering

the SR 300 IEM G3; UK version Cat. No. 503871

NT 3-1 EU – Table top power supply for

powering the AC 3 and four transmitters;

EU version Cat. No. 503159

NT 3-1 US – Table top power supply for

powering the AC 3 and four transmitters;

US version Cat. No. 503876

NT 3-1 UK – Table top power supply for

powering the AC 3 and four transmitters;

UK version Cat. No. 503877

AC 3 – antenna combiner Cat. No. 503166

A 5000 CP – circularly polarized

broadband antenna Cat. No. 528212

A 2003 – directional broadband antenna Cat. No. 003658

A 1031 – omni-directional

broadband antenna Cat. No. 004645

Antenna daisy-chain cable, 50 O,

BNC, 0.25 m Cat. No. 087969

GZL 1019-A1 – coaxial cable, type RG 58,

BNC to BNC, 1 m Cat. No. 002324

Sennheiser electronic GmbH & Co. KG

Am Labor 1, 30900 Wedemark, Germany

www.sennheiser.com

SR 300 IEM G3 Wireless stereo transmitter

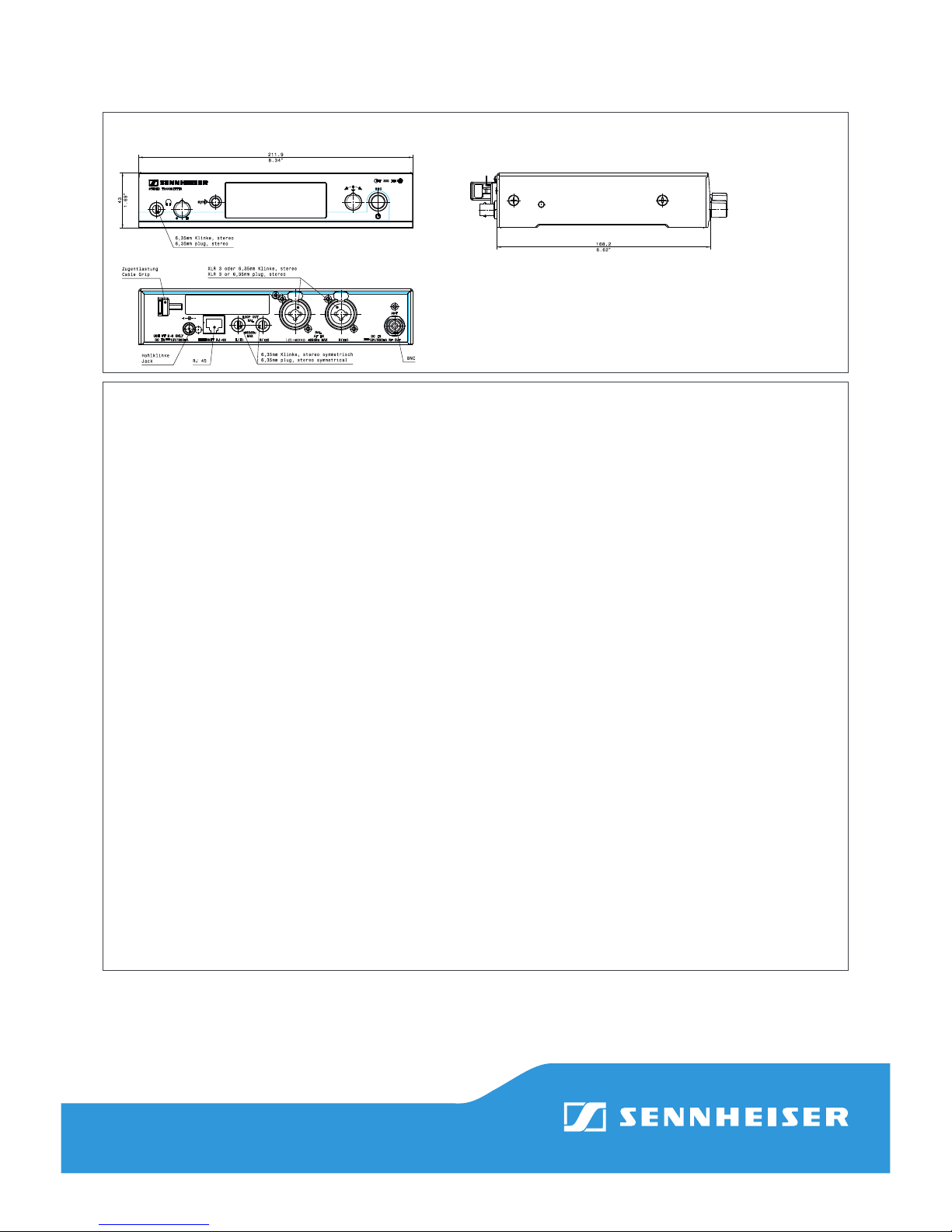

DIMENSIONS
