Sennheiser XS Wireless Manuel utilisateur

Sennheiser electronic GmbH & Co. KG

Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com

XS Wireless Digital - v2.1

Instruction Manual

XS Wireless Digital

►

XLR BASE SET

LAVALIER SET

PRESENTATION

BASE SET

XLR BASE SET

INSTRUMENT BASE SET

PEDALBOARD SET

►

PORTABLE

INTERVIEW SET

PORTABLE

LAVALIER SET

PORTABLE ENG SET

PORTABLE BASE SET

Package contents

VOCAL SET

Package contents

►

Additional information

1Microphone clamp for fastening the vocal microphone to a stand

2XSW Digital TX XLR: transmitter (female XLR socket) for connecting to

the vocal microphone

►

3XSW Digital RX XLR: receiver (male XLR plug) for connecting to a mixing

console

►

4Charging cable (USB-A to USB-C) for charging the transmitter and re-

ceiver

5XS 1: vocal microphone

6Stickers for labeling transmission paths

Operation

Connecting the transmitter to the vocal microphone

►

▷Plug the transmitter into the XLR socket on the vocal microphone.

Connecting the receiver to a mixing console

▷Plug the receiver into the XLR input of a channel on your mixing con-

sole.

Operation

Holding the vocal microphone

►

▷Grip the vocal microphone only by the handle.

▷You can also use the microphone clamp to fasten the vocal microphone

to a stand.

▷Hold the microphone 5 to 10 cm in front of your mouth when singing.

▷Do not grab the transmitter. The range may decrease if the transmitter

is covered.

▷Do not touch the microphone basket. The sound may be distorted if the

microphone basket is covered.

Switching on the transmitter and receiver

►

▷Briefly press the button on the transmitter and the button on the receiv-

er.

The status LEDs indicate the charge level for four seconds.

▷During these four seconds, check that the transmitter and receiver are

sufficiently charged.

> 75%

5% – 75%

< 5%

If the status LED remains red, you should charge the rechargeable bat-

tery first. If the status LED flashes red, the charge level is too low. You

have to charge the rechargeable battery first (see „Charging the re-

chargeable battery“).

Operation

After four seconds, the status LED starts flashing green. The flashing

indicates that a wireless connection is being established.

The status LEDs remain green once the transmitter and receiver are

connected. If the status LEDs do not remain green, either the charge

level is below 15% (see „Checking the charge level during use“) or the

transmitter and receiver are not paired (see „Pairing“).

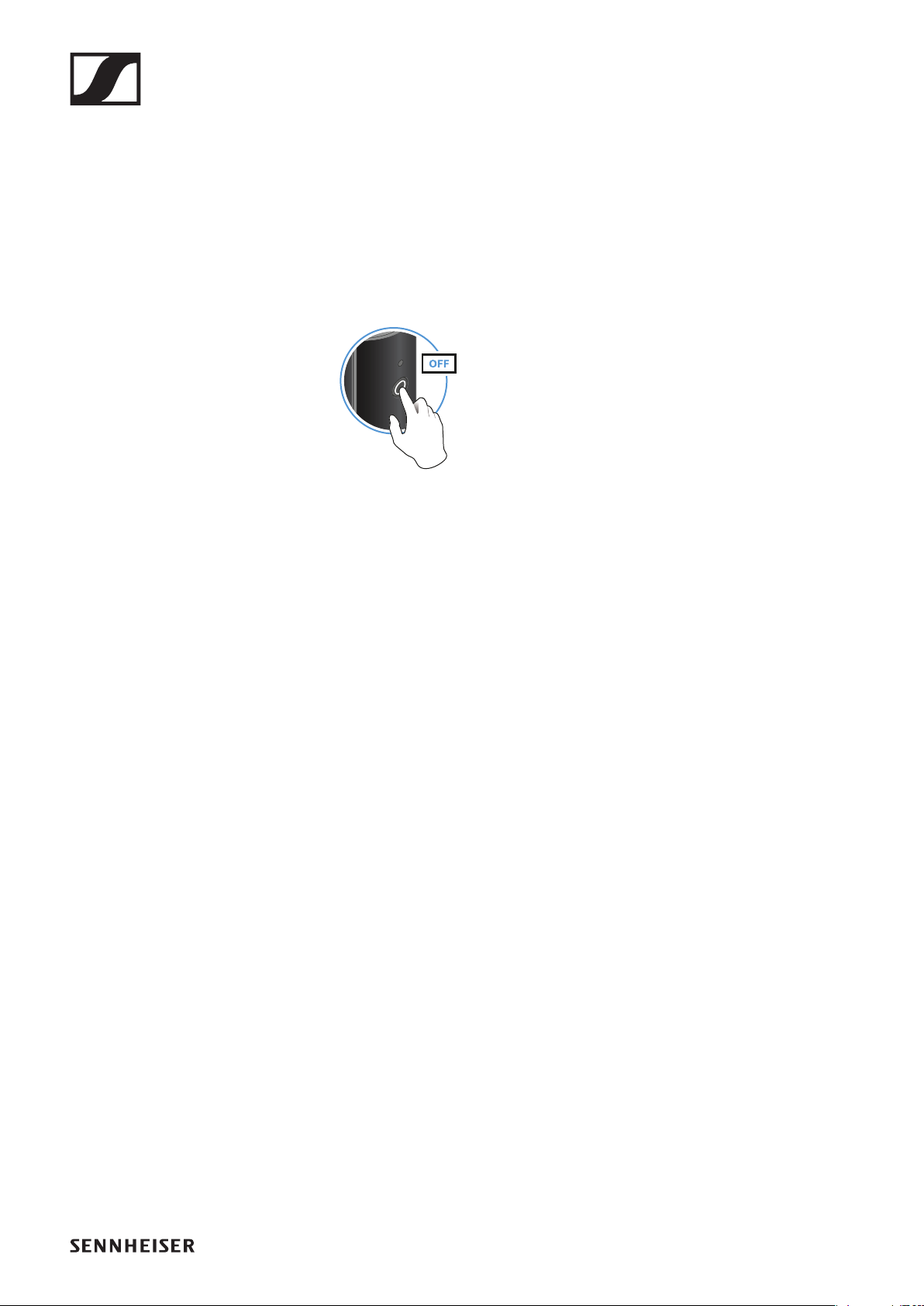

Switching off the transmitter and receiver

►

▷Press the button on the transmitter and the button on the receiver until

the status LEDs switch off.

Muting the audio signal

When using a set, you can mute the audio signal. The audio signal can then

be unmuted.

►

▷To mute the audio signal: Briefly press the button on the transmitter or

receiver.

►

▷To unmute the audio signal: Briefly press the button on the transmitter

or receiver.

Operation

Checking the charge level during use

The status LED remains green during use as long as the rechargeable bat-

tery has sufficient charge. The status LED begins flashing red and green in

alternation when the charge level falls below 15%. Once the charge level

falls below 5%, the status LED flashes only red.

In addition to the local charge level, the status LED on a transmitter or re-

ceiver also provides information about the charge level of the connected

transmitter or receiver. This allows you to check the charge levels at any

time.

The charge level is below 15%.

The charge level of the connected transmitter/

receiver is below 15%.

The charge level is below 5%.

The charge level of the connected transmitter/

receiver is below 5%.

Operation

Charging the rechargeable battery

To minimize charging time and monitor the charging status the transmitter

or receiver should be switched off before you charge the battery.

However the transmitter or receiver can be charged while in operation.

►

▷Plug the small end of the USB charging cable into the USB port on the

transmitter or receiver.

▷Plug the large end of the USB charging cable into the USB port on a

conventional USB power supply unit.

▷Plug the USB power supply unit into the wall socket.

The status LED indicates the charge level.

< 5%

5% – 75%

> 75%

100%

Using stickers to label transmission paths

You can use the colored stickers to show which transmitter belongs to

which receiver.

►

Operation

Pairing

The transmitter and the receiver of a set are pre-paired at the factory and

therefore ready for immediate use. The wireless connection is established

once the transmitter and receiver are switched on and within range of each

other.

You can pair up to four transmitters to the receiver.

Please note that you can only use one transmitter at a time. The other

paired transmitters must be switched off in the meantime.

▷Make sure that both the transmitter and receiver are switched off.

►

▷Press the button on the transmitter and the button on the receiver until

the status LEDs start flashing green and red in alternation.

The status LEDs will remain green once the transmitter and receiver

are paired and connected. If the status LEDs do not remain green, the

charge level is below 15% (see „Checking the charge level during use“).

Out-of-range monitoring

The status LEDs begin flashing red when the transmitter and receiver are

almost out of range.

Correcting faults

If the status LED remains red, a fault has occurred.

▷Unplug any connected USB cables from the UBS port.

▷Switch the transmitter and receiver off and on again.

▷Perform pairing, if necessary.

▷If this does not correct the fault, please contact Sennheiser customer

service:

www.sennheiser.com/service-support
