Sennheiser Evolution E 604 Manuel utilisateur

Instruction manual

Stage Microphones

e 604







123

125 Hz

250 Hz

500 Hz

1,000 Hz

2,000 Hz

4,000 Hz

8,000 Hz

16,000 Hz

30°

0°

180°

150°

120°

60°

90°

30°

0°

180°

150°

120°

60°

90°

- 50

- 60

- 70

- 80

- 90

- 40

dBV

0°, 1 m

0°, 5 cm

Important safety information

• Please read this instruction manual carefully and completely before

using the product.

• Make this instruction manual easily accessible to all users at all

times.

• Always include this instruction manual when passing the product on

to third parties.

Before operation

• Never open the housing of the product. If products are opened by

customers in breach of this instruction, the warranty becomes null

and void.

• Only use attachments, accessories or spare parts specified by

Sennheiser.

During operation

• Liquids entering the product can short-circuit the electronics or

damage the mechanics. Keep all liquids away from the product.

• Solvents or cleansing agents can damage the surface of the product.

Only use a soft, slightly damp cloth to clean the product.

• Do not expose the product to extreme temperatures.

After operation

• Handle the product with care and store it in a clean, dust-free

environment.

Intended use

Intended use includes:

• having read this instruction manual, especially the chapter “Impor-

tant safety information”,

• using the product within the operating conditions and limitations

described in this instruction manual.

“Improper use” means using the product other than as described in

this instruction manual, or under operating conditions which differ

from those described herein.

The e 604

A clip-on classic with character

Character instead of mainstream. Close to the attack, robust, easy

to handle: the e 604 has long been a classic on the rims of tom-toms

and snares the world over. Thanks to the practical clip-on microphone

clamp, the microphone can be mounted in seconds and positioned

however you choose.

Lightly emphasized in the upper mids and highs, the e 604 provides a

forceful sound, open and clear in the lows. The snare receives a warm

to dynamic presence; woodwind instruments also receive a marked

spaciousness. This is no surprise since the sound design is based on

the legendary MD 421 microphone.

Features

• Compact dynamic microphone

• Handles extreme sound pressure levels (over 160 dB) without

distortion

• Impact-resistant fiberglass reinforced housing

• Extremely simple handling and flexible positioning

• Low sensitivity to handling noise

• Very low inherent self-noise

• Humbucking coil

• Integral stand mount

Package contents

1 microphone e 604

1 MZH 604 microphone clamp

1 pouch

1 instruction manual

Product overview A*

1 Sound inlet basket

2 Microphone clamp

3 XLR-3 connector

Diagrams can be found on the cover pages.

Using the microphone

Positioning the microphone on a drum B

XUse the microphone clamp 2to attach the e 604 to the rim of the

drum.

Pos. Resulting sound Commentary

B.1 • More fundamental

• Little overtones

Position on the drum:

3 to 5 cm above the drumskin

The fundamental to overtones ratio

can be adjusted by changing the angle

of the microphone. The most balanced

results are obtained at an angle of

30 to 60°.

B.2 • Less fundamental

• Many overtones

B.3 Use of a second 604 for picking up

the bottom of the drumskin and the

snares.

NB: The lower microphone must

be phase-reversed to avoid phase-

cancellation effects due to the second

microphone being on the other side of

the drumskin.

Positioning the monitor loudspeakers

XTo prevent feedback and crosstalk, postion your monitor loudspea-

kers in the angle area of the highest cancellation of the microphone

(approx. 135°).

Cleaning and maintaining the e 604

Caution Liquids can damage the electronics of the product!

Liquids entering the housing of the product can cause a

short-circuit and damage the electronics.

XKeep all liquids away from the product.

XDo not use any solvents or cleansing agents.

XOnly use a soft, slightly damp cloth to clean the product.

Specifications

Transducer principle dynamic

Frequency response 40 ... 18,000 Hz

Pick-up pattern cardioid

Sensitivity

(free field, no load at 1 kHz) 1,8 mV/Pa

Nominal impedance (at 1 kHz) 350 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Dimensions Ø 33 x L 59 mm

Weight 60 g

The polar diagram and the frequency response curve Ccan be found on

the cover pages.

Connector assignment

+ +

XLR 6.3 mm

XLR

6.3 mm

balanced

XLR

Manufacturer Declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on

this product.

For the current warranty conditions, please visit our website at

www.sennheiser.com or contact your Sennheiser partner.

FOR AUSTRALIA ONLY

Sennheiser goods come with guarantees that cannot be excluded

under the Australian Consumer Law. You are entitled to a replacement

or refund for a major failure and compensation for any other reason-

ably foreseeable loss or damage. You are also entitled to have the

goods repaired or replaced if the goods fail to be of acceptable quality

and the failure does not amount to a major failure.

This warranty is in addition to other rights or remedies under law.

Nothing in this warranty excludes, limits or modifies any liability of

Sennheiser which is imposed by law, or limits or modifies any remedy

available to the consumer which is granted by law.

To make a claim under this warranty, contact

Sennheiser Australia Pty Ltd, Unit 3, 31 Gibbes Street Chatswood NSW

2067, AUSTRALIA.

Phone: (02) 9910 6700, email: [email protected].

All expenses of claiming the warranty will be borne by the person

making the claim.

The Sennheiser International Warranty is provided by Sennheiser

Australia Pty Ltd (ABN 68 165 388 312), Unit 3, 31 Gibbes Street

Chatswood NSW 2067 Australia.

In compliance with the following requirements

• WEEE Directive (2012/19/EU)

Please dispose of this product at the end of its operational lifetime

by taking it to your local collection point or recycling center for such

equipment.

CE Declaration of Conformity

• RoHS Directive (2011/65/EU)

• EMC Directive (2004/108/CE)

The declaration is available at www.sennheiser.com.

e 608

e 614

e 609 silver

e 604

e 602-II

e 835

e 845

e 865

e 901

e 902

e 904

e 906

e 908

e 914

e 935

e 945

e 965

e 608

e 614

e 609 silver

e 604

e 602-II

e 835

e 845

e 865

e 901

e 902

e 904

e 906

e 908

e 914

e 935

e 945

e 965

Autres manuels pour Evolution E 604

Table des matières

Autres manuels Sennheiser Microphone

Sennheiser

Sennheiser COM 190 Manuel utilisateur

Sennheiser

Sennheiser MKH 815 T-U Manuel utilisateur

Sennheiser

Sennheiser AQS e 604 Manuel utilisateur

Sennheiser

Sennheiser evolution e 912 WH Manuel utilisateur

Sennheiser

Sennheiser MD 402 Manuel utilisateur

Sennheiser

Sennheiser SL Ceiling Mic Manuel utilisateur

Sennheiser

Sennheiser E 945 - 03-06 Manuel utilisateur

Sennheiser

Sennheiser SKM 500 Manuel utilisateur

Sennheiser

Sennheiser MKE platinum-C Manuel utilisateur

Sennheiser

Sennheiser EK 2000 Manuel utilisateur

Sennheiser

Sennheiser Evolution E 602-II Manuel d'instructions

Sennheiser

Sennheiser evolution e 845 Manuel utilisateur

Sennheiser

Sennheiser MKH 60 Manuel utilisateur

Sennheiser

Sennheiser Evolution E914 Manuel utilisateur

Sennheiser

Sennheiser SDC 8000 C Manuel utilisateur

Sennheiser

Sennheiser MKH 435 T-U Manuel utilisateur

Sennheiser

Sennheiser SKM 9000 Manuel utilisateur

Sennheiser

Sennheiser MKH 70 P 48 Manuel utilisateur

Sennheiser

Sennheiser MD 421-II Manuel utilisateur

Sennheiser

Sennheiser Evolution E 902 Manuel utilisateur

Sennheiser

Sennheiser MKE 460 TV Manuel utilisateur

Sennheiser

Sennheiser XS Lav Mobile Manuel utilisateur

Sennheiser

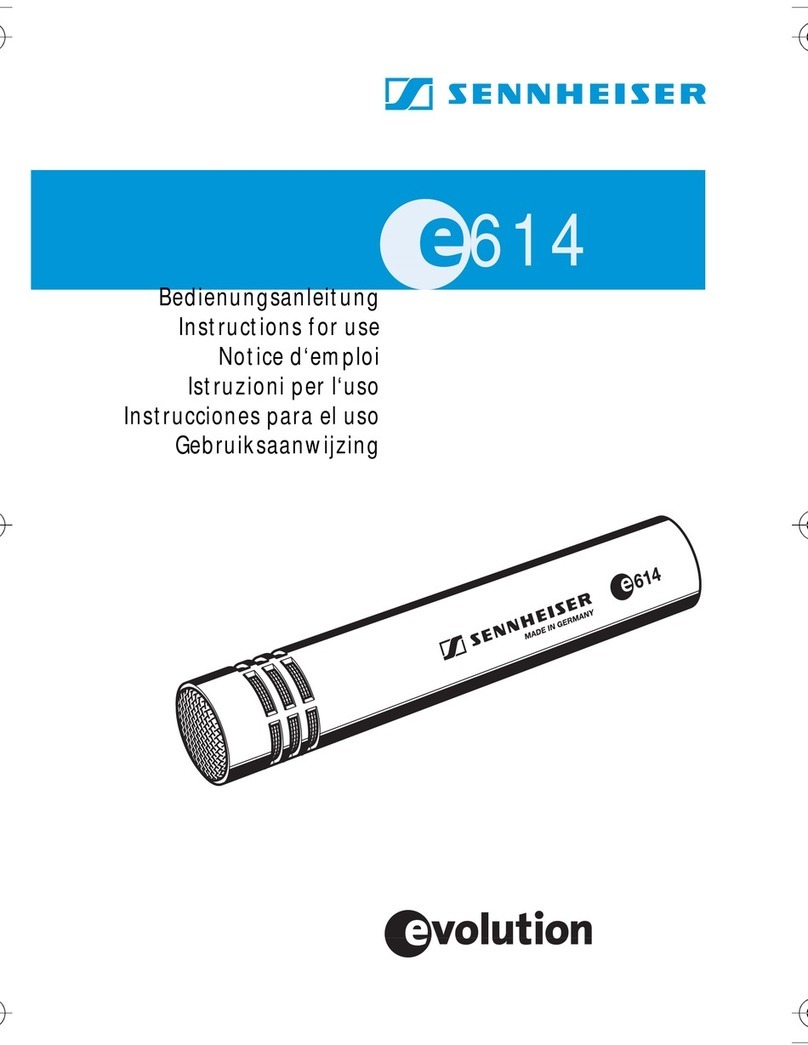

Sennheiser e614 Manuel utilisateur
