ew 300 handheld system

EM 300-500 G4 rack receiver

►

You can find more detailed information about the EM 300-500 G4 in the

following sections:

• Installation and Startup: “Installing the EM 300-500 G4”

• Operation: “Using the EM 300-500 G4”

• Technical Data: “EM 300-500 G4”

SKM 300 G4 handheld transmitter

►

You can find more detailed information about the SKM 300 G4 in the fol-

lowing sections:

• Installation and Startup: “Installing the SKM 300 G4”

• Operation: “Using the SKM 300 G4”

• Technical Data: “SKM 300 G4”

Accessories

A variety of accessories are available for the ew 300-500 G4 series.

Microphones and cables

Microphone modules

We recommend using the following microphone modules with the

SKM 300 G4 and SKM 500 G4 handheld transmitters.

►

You can find more information about the individual microphone mod-

ules on their respective product pages at www.sennheiser.com.

Module Features Article

no.

MMD 835-1 BK Dynamic, cardioid, black 502575

MMD 845-1 BK Dynamic, super-cardioid, black 502576

MME 865-1 BK Capacitor, super-cardioid, black 502581

MMD 935-1 BK Dynamic, cardioid, black 502577

MMD 945-1 BK Dynamic, super-cardioid, black 502579

MMK 965-1 BK Capacitor, switchable

Cardioid/super-cardioid, black

502582

MMK 965-1 NI Capacitor, switchable

Cardioid/super-cardioid, nickel

502584

MD 9235 BK Dynamic, cardioid, black 502585

MD 9235 NI Dynamic, cardioid, black 502586

MD 9235 NI/BK Dynamic, cardioid, nickel/black 502591

Neumann

KK 204

Capacitor, cardioid, nickel 008651

Neumann

KK 204 BK

Capacitor, cardioid, black 008652

Neumann

KK 205

Capacitor, super-cardioid, nickel 008653

Neumann

KK 205 BK

Capacitor, super-cardioid, black 008654

Accessories

Accessories for rack mounting

GA 3 rack mount kit

19” rack adapter for mounting the EM 100 G4, EM 300 G4, EM 500 G4 or

SR 300 IEM G4 in a 19” rack.

Article no. 503167

►

AM 2 antenna front mounting kit

Antenna front mounting kit for installing antenna connections on the front

of the rack when using the EM 100 G4, EM 300 G4, EM 500 G4 or

SR 300 IEM G4 together with the GA 3 rack mounting kit.

Article no. 009912

►

Accessories

Additional accessories

Color labeling set

•KEN 2, color labeling set for SKM handheld transmitters, article no.

530195

►

Microphone clamp

•MZQ 1, microphone clamp for SKM handheld transmitters, article no.

076670

►

MUTE switch

•RMS 1, remote mute switch for SK 300 G4, article no. 503164

►

The frequency bank system

There are different frequency ranges in the UHF band available for trans-

mission.

The following frequency ranges are available for the ew 300-

500 G4 series:

•Aw+ range: 470 – 558 MHz

•AS range: 520 – 558 MHz

•Gw1 range: 558 – 608 MHz

•Gw range: 558 – 626 MHz

•GBw range: 606 – 678 MHz

•Bw range: 526 – 698 MHz

•Cw range: 718 – 790 MHz

•Dw range: 790 – 865 MHz

•JB range: 806 – 810 MHz

•K+ range: 925 – 937.5 MHz

Every frequency range has 26 frequency banks with up to 32 channels:

►

You can find information about the frequency presets in the frequen-

cy tables of the respective frequency ranges under “Frequency ta-

bles”.

Installing the EM 300-500 G4

These sections contain detailed information about installing and starting

up the EM 300-500 G4.

You can find information about operating the EM 300-500 G4 under “Using

the EM 300-500 G4”.

Connectors on the rear of the device

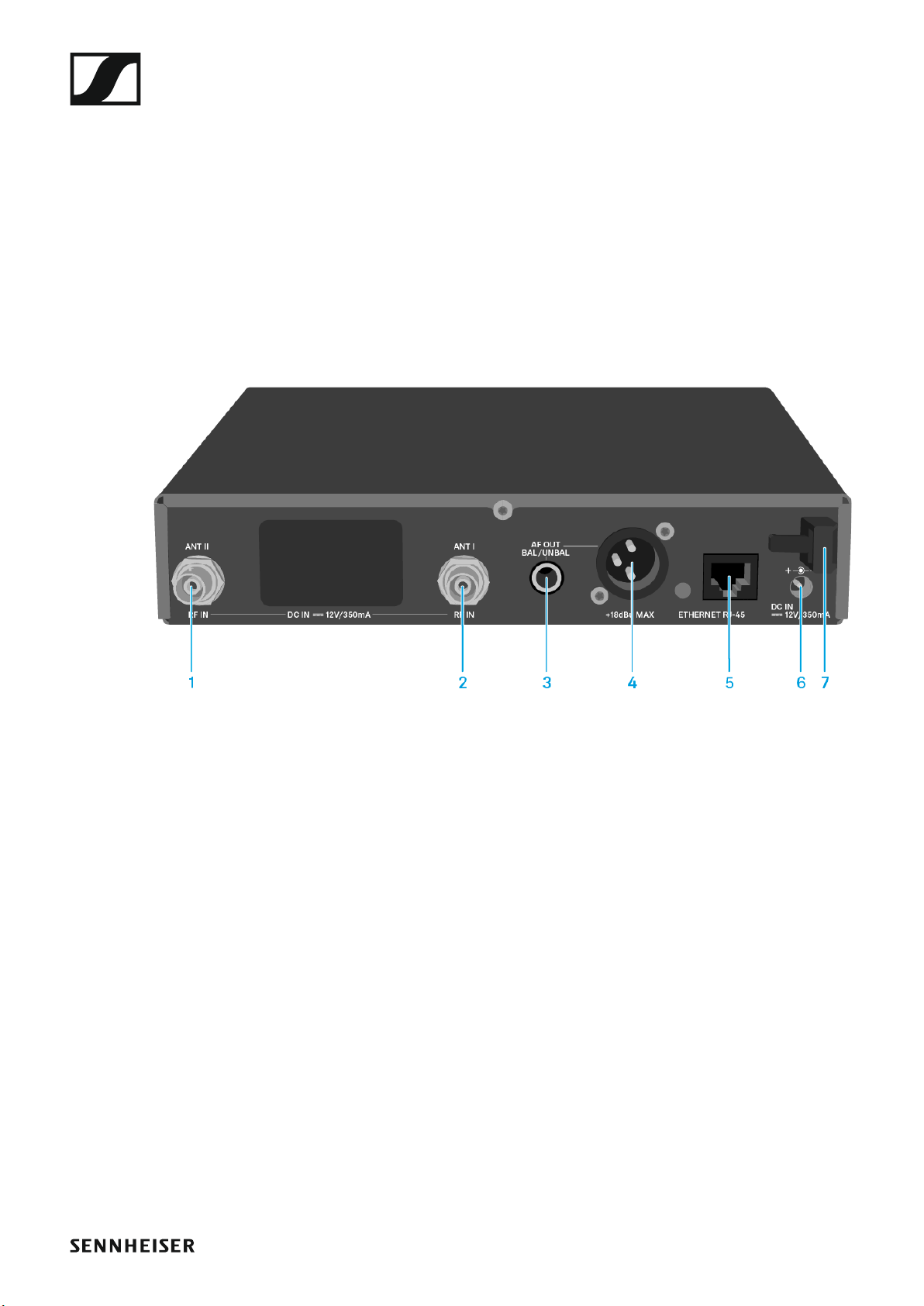

Product overview for the rear of the EM 300-500 G4

►

1BNC socket, antenna input II (ANT II) with remote power supply unit

• See “Connecting antennas”

2BNC socket, antenna input I (ANT I) with remote power supply unit

• See “Connecting antennas”

36.3 mm jack socket for audio output, unbalanced (AF OUT UNBAL)

• See “Outputting audio signals”

4XLR-3 socket for audio output, balanced (AF OUT BAL)

• See “Outputting audio signals”

5LAN connection socket (ETHERNET RJ 45)

• See “Creating a data network”

6Connecting cables for the power supply unit (DC IN)

• See “Connecting/disconnecting the EM 300-500 G4 to/from the

power supply system”

7Strain relief for the cable of the power supply unit

• See “Connecting/disconnecting the EM 300-500 G4 to/from the

power supply system”

Installing the EM 300-500 G4

Connecting/disconnecting the EM 300-500 G4 to/

from the power supply system

Only use the supplied power supply unit. It is designed for your receiver

and ensures safe operation.

To connect the EM 300-500 G4 to the power supply system:

▷Insert the plug of the power supply unit into the DC IN socket of the re-

ceiver.

▷Pass the cable of the power supply unit through the cable grip.

▷Slide the supplied country adapter onto the power supply unit.

▷Plug the power supply unit into the wall socket.

To completely disconnect the EM 300-500 G4 from the power supply sys-

tem:

▷Unplug the power supply unit from the wall socket.

▷Unplug the power supply unit from the DC IN socket of the receiver.

Installing the EM 300-500 G4

Creating a data network

You can monitor and control one or more EM 300-500 G4s via a network

connection using Sennheiser Wireless Systems Manager (WSM) soft-

ware.

Automatic frequency setup can also be performed over the network

without the WSM software. See “Easy Setup menu item”.

To connect the EM 300-500 G4 to a network:

▷Connect a network cable with an RJ-45 connector (to the Ethernet

socket on the rear side of the EM 300-500 G4.

▷Connect the other end of the network cable to a network switch.

►

For more information about controlling devices via the Sennheiser

Wireless Systems Manager (WSM) software, refer to the instruc-

tion manual for the software. You can download the software here:

www.sennheiser.com/wsm
