SC&T HE02EXP Manuel utilisateur

Smart Cabling & Transmission Corp.

HDMI over HDBaseT Extender

User Manual

Model : HE02EXP

4K 60Hz 4:4:4 HDMI & IR/R232/POH CAT5e Extender 100M

User Manual

HE02EXP

Introduction

HE02EXP is a 4K HDMI over HDBaseT™ extender that can use an Ethernet cable to transfer

uncompressed video & audio signals with resolution up to 4K@60Hz 4:4:4 and transmission distance

up to 100M. The extender also supports PoH (Power over HDBaseT™) to provide power from one side (Tx/

Rx) to another.

Features

Resolution up to 4K@60Hz 4:4:4.

Signal extension up to 100M over CAT5e/6 cable.

Support PoH (Power over HDBaseT™), power from either TX or RX.

Supports bi-directional IR, RS232 transmission.

Supports CEC, EDID pass through.

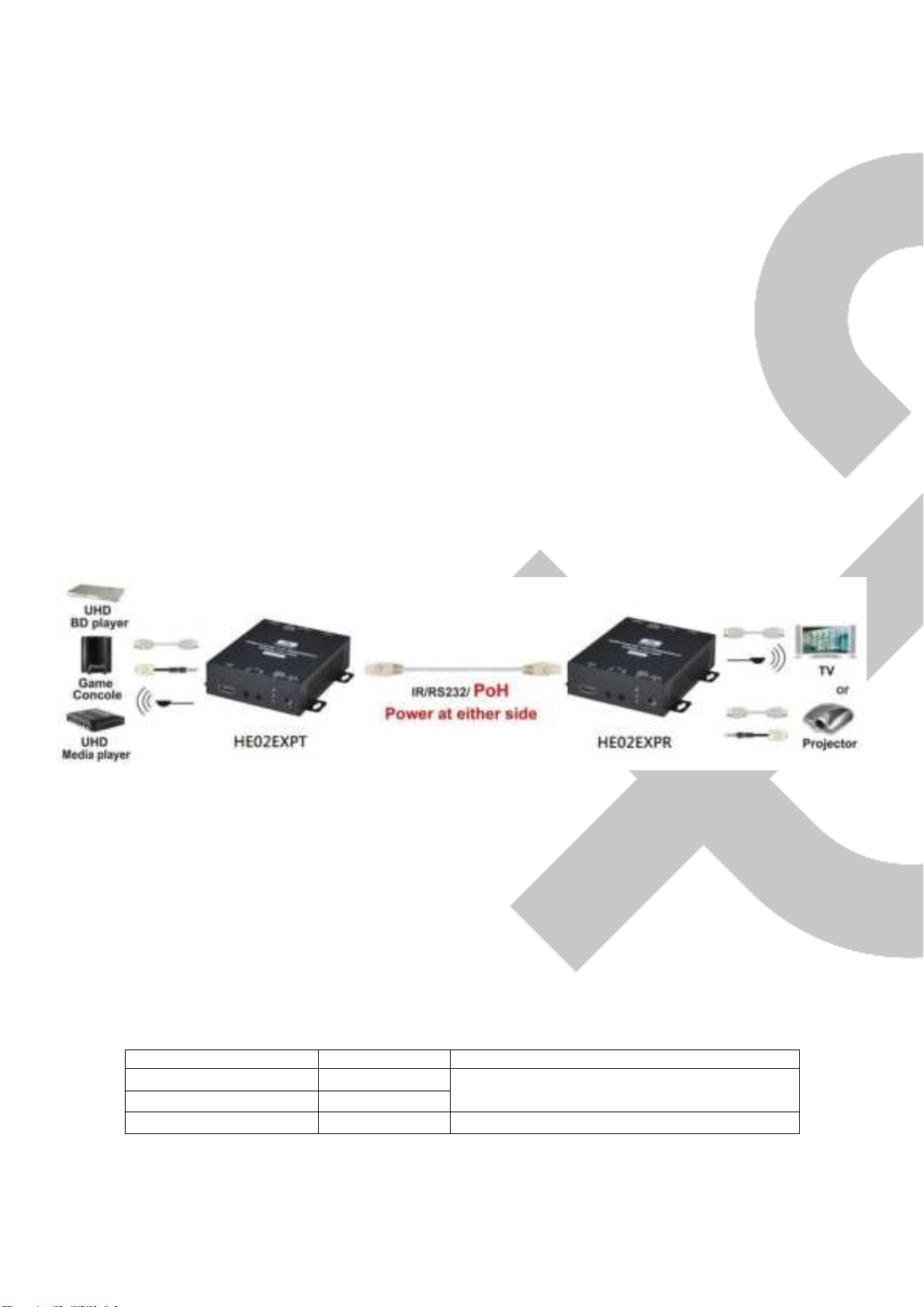

Installation view

Cable

Link cable recommend use high quality CAT5e, CAT6, CAT6a, CAT7 UTP / STP or FTP cable. Poor quality

cable or network connection or improper construction will cause unstable connection, video or sound

disruptions, picture noise appears.

HDBaseT Distance Chart by Different Cable

Cable Type

Range

Supported Video

CAT5e

90m

Up to 1080p 60Hz

CAT6a / CAT7

90m

CAT6a / CAT7

70m

Up to 4096x2160@60Hz 4:4:4

If connection through the wall socket, the cable length must less 5 meters between HDMI extender and

wall jack, as below drawing

CAT6a 4K 70M

User Manual

HE02EXP

MAX 100M

5M MAX 5M MAX

RJ45 Define

Video Link (TIA/EIA-568-B)

1. Orange-white DATA0 +

2. Orange DATA0 -

3. Green-white DATA1 +

4. Blue DATA2 +

5. Blue-white DATA2 -

6. Green DATA1 -

7. Brown-white DATA3 +

8. Brown DATA3 -

Panel view

HE02EXPT HE02EXPR

Cable

HE02EXPT

Wall Jack

HE02EXPR

Wall Jack

User Manual

HE02EXP

LED Instruction

Firmware updated Switch

1. Reserved

2. Manufacture Setting

3. Manufacture Setting

4. Manufacture Setting

RS232 Define

DB9 FEMALE DB9 MALE

RS232

Footprint

Define

Footprint

Define

Pin 2

Pin 3

Pin 5

GND

Pin 5

GND

Package Include

HE02EXPT x 1

HE02EXPR x 1

DC12V 1.5A Adapter x 1

IR Receiver Cable x 1

IR Emitter Cable x 1

Mounting Screw pack x 2

Color

Status

HE02EXPT

HE02EXPR

GREEN

LINK

ON: HDBaseT Linking

BLUE

Reserved

N/A

RED

FW UP

ON: Firmware Update

Color

Status

HE02EXPT

HE02EXPR

GREEN

ON: Power normal

BLUE

IR RX

ON: Receiving IR signal

RED

IR TX

ON: Sending IR signal

User Manual

HE02EXP

Trouble Shooting

1. The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone, microwave,

radio equipment, fluorescent lamp, high voltage power lines.

2 Under HDMI 2.0 mode, must use Premium certified HDMI cable.

3. Under HDCP 2.2 mode: any one monitor HDCP authorization failed will cause no video status, other

connecting monitors will be also failed. Then monitor testing must be one by one to find which monitor

HDCP failed.

4. This device HDBaseT port is not general Ethernet signal; do not connect with Network devices to avoid

damage.

5. IR transmitter do not put near from receiver to avoid mutual interference.

User Manual

HE02EXP

Specification:

ITEM NO.

HE02EXPT

HE02EXPR

Support

Compliance

HDMI 2.0, HDCP 2.2, 1.4, DVI

Max. Video Resolution

4K@60Hz 4:4:4

Max. Transmission Distance

90M over CAT6 or greater cable

Video Bandwidth

18 Gbps

RS232 Baud Rate

115200 bps/ Full Duplex

Audio Format

7.1 LPCM 192KHz, Dolby TrueHD, DTS-HD MA

IR Support

30-60Khz, ±15°, 5M, Bi-directional

30-60Khz, ±55°, 5M,

Bi-directional

Ports & Interfaces

Video Input

1 x HDMI Type A

1 x HDBaseT

Video Output

1 x HDBaseT

2 x HDMI Type A

RS232 Interface

1 x DB9 Female

1 x DB9 Male

IR Interface

1 x 3.5mm Phone Jack

Power

Power Supply

DC 12V 1.5A

Power Consumption

5.4W (Max), 2W (Low Power)

7.32W (Max), 1.8W (Low Power)

Ambient Temperature

Operation

0 to 55℃

Storage

-20 to 85℃

Humidity

up to 90%

Physical Characteristics

Dimensions

109.6 x 109.5 x 30mm

Weight

260g

275g
