BIOSMART SCREEN

TOUCH SCREEN FOR BIO-WALL™

Commercial Model

YOUR WARRANTY

Installation Date: _______________ Installed by: _________________

Installer Contact Info.: _________________________________________

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS PRODUCT.

Read and follow all instructions contained in the manual before using the product. Read the maintenance instructions before opening the UV unit

or system. Failure to comply with these instructions may result in injuries or damage to the UV unit or system.

NEVER EXPOSE EYES OR SKIN TO AN OPERATING UV LAMP.

1. Installation and servicing of UV units or systems (in an

air conditioning system or not) can be hazardous. Only

trained and qualied service personnel should install,

repair or service equipment.

2. Untrained personnel can perform basic maintenance

functions such as replacing lamp(s) and/or lter(s). All

other operations should be performed by trained service

personnel.

3. The unit is not to be used by persons (including children)

with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge.

CAUTION: Unit is not a toy. Keep away from

unsupervised children. Do not leave children unattended

with the unit.

4. DO NOT hang onto the UV unit or system.

5. Some UV units or systems could be heavy: Make sure

you have a minimum of 2 people to safely move or install

these UV units or systems, and make sure you adopt the

most ergonomic position possible (use UV unit or system

handles, if applicable).

CAUTION: Installing or maintaining heavy equipment,

especially overhead, can cause back pain or other injuries.

6. When installing or servicing an overhead UV unit or system,

be careful not to fall off the stepladder. Furthermore, make

sure the UV unit or system latches are always in place to

prevent falling parts.

CAUTION: Some parts of some UV units and systems

may open suddenly if the UV unit or system is installed

high up without its locks.

6.1.THIS AIR CLEANER SHALL NOT BE INSTALLED ON THE

HOT-AIR SIDE OF DUCT-TYPE SYSTEMS.

7. Units that are obviously damaged must not be operated.

8. CAUTION: When working on the UV unit or system,

observe precautions on the literature, tags and labels

attached to the UV unit or system, and all other safety

precautions considered as best practices in the HVAC

industry, if applicable.

9. When applicable, local regulation may comprise more

restrictive installation and/or certication requirements.

The aforementioned requirements prevail on those of this

document and the installer agree to conform to these at his

own expense.

10. Follow all the safety instructions outlined in this document

and respect all local and national codes applicable.

11. All UV units or systems contain a UV-C source. Damage to

the housing or unintended use of the UV unit or system may

result in harmful UV-C leaks. UV-C may, even in little doses,

cause harm to the eyes and skin.

12. Never expose eyes or skin to an operating UV lamp.

Therefore, before installing or performing maintenance

on the UV unit or system, TURN OFF AND DISCONNECT

the UV unit or system from all power sources (there

may be more than one switch to disconnect) and also

disconnect the HVAC system, is applicable.

CAUTION: Electrical shock may cause injuries or

possibly death. FIRST AID INSTRUCTIONS: If injured,

consult a doctor.

13. UV rays may damage certain types of lters (polymer or

plastic); please keep the UV unit or system light away from

shining directly on plastic.

14. When installing or performing maintenance on the UV unit

or system, it is recommended to wear safety gloves. In

order to avoid reduced performance of lamp(s), do not

touch lamp glass without gloves.

15. Just like conventional uorescent lamps, UV lamps contain

a small quantity of mercury: if a lamp breaks, clean and

dispose of with care. UV lamps can be disposed/recycled

after use in the same way as any other uorescent lamps.

Contact and follow the specic instructions of your local

and national authorities.

15.1. Dispose of unit or system according to the specic

instructions and standards of your local and national

authorities.

16. Use only specied SANUVOX branded replacement

UV lamps for your UV unit or system. Use of any other

lamps will void your warranty and can result in damage to

the UV unit or system.

17. Sanuvox UV units or systems are not waterproof. DO NOT

INSTALL OUTDOORS OR IN WET LOCATION unless

specied otherwise.

18. Use of this unit or system supplements, but does not

replace, infection control best practices. Users must follow

all these practices, particularly with regard to cleaning and

disinfecting surfaces.

SAVE THESE INSTRUCTIONS

For any inquiries on a UV unit or system, contact :

Robert Smith

146 Barr St, Saint-Laurent

Quebec, CA, H4T 1Y4

1-888-726-8869

[email protected]

Instruction Manual for BioSmart Screen

1-888-726-8869www.sanuvox.com

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS 1

TABLE OF CONTENTS 2

ABOUT THE PRODUCT 3

SETUP & INSTALLATION 3

What you will need 3

What’s included 3

Setup 3

Step by Step Installation 4

OPERATION 5

How to Operate your Product 5

MAINTENANCE 6

How to Clean your Product 6

STORAGE 6

ULTRAVIOLETS 6

ELECTRICAL RATINGS, POWER CONSUMPTION & AVAILABLE VOLTAGE 6

TROUBLESHOOTING 6

What you will need 6

Problems & Solutions Table 6

WARRANTY 7

CUSTOMER SERVICE 7

Instruction Manual for BioSmart Screen

1-888-726-8869www.sanuvox.com

ABOUT THE PRODUCT

Congratulations on your purchase of the Sanuvox BioSmart Screen. The BioSmart Screen has been specially designed for use

with the BIO-WALL™ UV system.

This option will greatly improve your experience and the reading of information from your Sanuvox BIO-WALL™ system.

Additional functions provided by the display include remote validation of the status of the unit (lamps and ballast) as well as the

hours of use of lamps while allowing you to reset the hour counters of each of the lamps remotely .

Designed and assembled in Montreal, Quebec, Sanuvox products are meticulously manufactured with the aim of bringing you

the best performance on the market and unparalleled air quality.

For information or recommendations on how to size your specic application, please call SANUVOX at 1-888-726-8869.

SETUP & INSTALLATION

What you will need

A knife to unpack all the components, a drill with bits, a screwdriver, anchors and suitable screws.

CAUTION: Handle your product with care to avoid breaking parts. Make sure you have a free and safe space to unpack, install

and setup your product. Conrm you have access to the necessary power source for the product requirements (see unit or system

label). If you have any questions regarding the installation instructions, call SANUVOX at 1-888-726-8869.

What’s included

The BioSmart Screen, a 5 VDC power supply module, a 20' Ethernet cable and a grommet.

Setup

When selecting the appropriate location for your BioSmart Screen, ensure that it can be supplied with the necessary current

(100-240V @ 50-60Hz). The 5 VDC power supply must be plugged into a conventional power outlet.

It is always possible for you to obtain (at your expense) an Ethernet cable longer than 6m if necessary. We recommend a cable

with a maximum length of 30m.

The location of the screen should preferably be in an accessible place, on a wall and at eye level.

CAUTION: Make sure the unit is plugged in and powered at the correct voltage. Be sure to leave enough space for service and

maintenance.

Instruction Manual for BioSmart Screen

1-888-726-8869www.sanuvox.com

Step by Step Installation

STEP 2

STEP 3

STEP 7

STEP 10

1. Separate the front of the case from the back. Set aside the front of the

case that contains the screen.

2. Depending on the type of surface, please use the appropriate anchors

and screws to secure the box to the wall.

7. Then insert the grommet eyelet and x it around the opening of the ballast

box where you passed the Ethernet cable to seal the opening.

3. Aligning the guide grooves on the top of the case, gently push the cover

to assemble the two parts of the case.

8. Connect the Ethernet cable and the power module to the BioSmart

Screen.

4. Prepare to connect the Ethernet cable to the ballast box.

NOTE: Make sure the power to the ballast box is turned off before

following the next steps.

9. Connect the other end of the Ethernet cable to the Ethernet port on the

display.

5. Remove the ballast box cover.

6. Drill the pre-cut opening of the ballast box housing at the desired location

and pass the Ethernet cable through it to then connect it to the Ethernet

port of the PCB module.

10. Finally, plug the power supply into a conventional power outlet, plugging

the DC cable into the BioSmart Screen’s power port.

Your BioSmart Screen is now ready to operate.

Instruction Manual for BioSmart Screen

1-888-726-8869www.sanuvox.com

OPERATION

How to Operate your Product

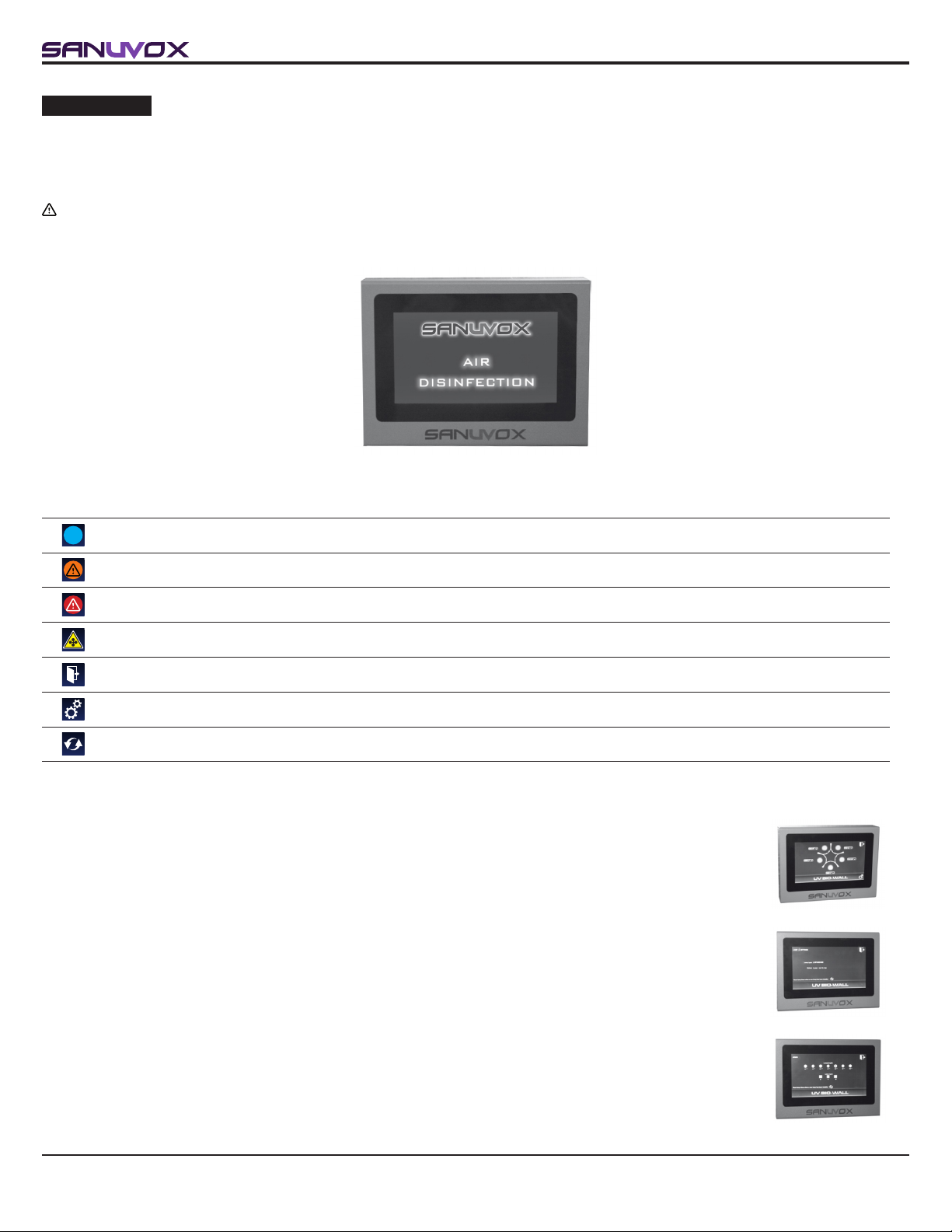

The BioSmart Screen is designed to give you real-time information about the status of the lamps in your BIO-WALL™.

CAUTION: The recommended operating temperature is between 4 to 40°C (40 to 105°F). Using the BioSmart Screen outside

of this temperature range may reduce its performance.

Touch the touch screen to access the lamp menu.

Homepage

Different menu icons

The lamp is on.

The lamp has been in operation and has been operating for over 2 years. The lamp should be replaced with a new one.

The lamp does not work. This or the ballast needs to be replaced.

The two fans located in the ballast box are stopped. Fans may be clogged with debris or need replacing.

Exit and return to the previous menu.

Settings, select the language (French or English).

Reset the lamp after replacing the old one with a new one.

Lamp Menu

The lamps menu shows you the status of the lamps through an icon for each of the lamps as well as

gives you the operation time of the lamps since their commissioning. By pressing directly on the icon

of a lamp, you directly access the menu of this lamp.

Lamp Settings Menu

This menu gives you very precise information on the lamp in question, such as the part number, the

number it represents in the set of 5 lamps and its operational status. Once you replace a lamp, you

can reset the counter to zero.

Admin Menu

From the lamp settings menu, you can access the admin menu by tapping the bottom left screen, then

tapping the bottom right screen. In the administrator mode, you can change the lamp type, its length

and the type of lamp.

Instruction Manual for BioSmart Screen

1-888-726-8869www.sanuvox.com

MAINTENANCE

How to Clean your Product

Use a damp cloth with a mild soap or alcohol solution to clean the outside of the screen. Always test the cleaner on a small area

before applying to the full surface to be cleaned.

CAUTION: Under no circumstance should water be sprayed or splashed onto the product.

STORAGE

The BioSmart Screen does not require specic storage. It is a permanent unit that works continuously when powered.

CAUTION: Keep away from unsupervised children. This unit is not a toy.

ULTRAVIOLETS

Ultraviolet wavelengths (UV) emitted by Sanuvox units and systems are identical to ultraviolets produced by the sun. UVC

damage nucleic acids (DNA/RNA) of microorganisms, which inactivates them. Unlike conventional UV lamps on the market,

Sanuvox units and systems use a patented process that delivers a maximum dose of UV to the moving air stream or surfaces.

CAUTION: Never expose eyes or skin to an operating UV lamp.

ELECTRICAL RATINGS, POWER CONSUMPTION & AVAILABLE VOLTAGE

The BioSmart Screenhas a power consumption of 4 W.

The BioSmart Screen necessary voltage requirements is 5 VDC.

See product label to conrm power consumption of your specic unit or system.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CUSTOMER SERVICE FIRST OR SEE YOUR WARRANTY.

DO NOT RETURN THE PRODUCT TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE

PRODUCT OR TAMPER WITH ITS COMPONENTS WITHOUT CONTACTING CUSTOMER SERVICE FIRST. DOING SO

MAY VOID YOUR WARRANTY AND CAUSE PERSONAL INJURY OR DAMAGE TO THE PRODUCT.

Problem Possible Cause Solution

The screen does not turn on. - The power supply is incorrectly connected or

defective.

- Test in another outlet.

Screen shows “SD Card Unmounted”. - SD card is defective. - Replace SD card.

Contact your contractor for all your needs in terms of replacement parts.

TROUBLESHOOTING

If your product is not working properly, refer to the following.

What you will need

A Phillips No. 2 screwdriver.

Instruction Manual for BioSmart Screen

1-888-726-8869www.sanuvox.com

CUSTOMER SERVICE

TO ORDER REPLACEMENT PARTS

PLEASE CONTACT YOUR CONTRACTOR OR SANUVOX CUSTOMER SERVICE

Toll-Free Phone #: 1-888-726-8869

Email: [email protected]

Website: www.sanuvox.com

Please be sure to specify product name.

Replacement parts for this product

BIOSCREEN BioSmart touch screen for BIO-WALL™

WARNING: Use only specied SANUVOX branded replacement UV lamps with your unit or system. Use of any other

lamps will void your warranty and can result in damage to the unit, system and/or lamp(s).

WARRANTY

You should rst read all instructions before attempting to use this product.

For this warranty to be valid, keep a copy of the proof of purchase.

BioSmart Screen 1 year

A. This limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to

damage resulting from abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered

manufacturing defects under this warranty.

SANUVOX IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, ANY IMPLIED WARRANTY OF MERCHANTABILITY

OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some jurisdictions do not allow the exclusion or limitation of incidential or consequential damages or limitation on how long an implied warranty last, so

the above limitations or exclusions may not apply to you. This warranty gives specic legal rights, and you also may have other rights which vary from

jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, SANUVOX will repair or replace this product if it is found to be defective in material or workmanship.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.

D. This warranty does not cover the lters, pre-lters or other accessories (if included), except for material or workmanship defects.

Call us toll-free at 1-888-726-8869 or email: [email protected]

Please be sure to specify product name.
