THANK YOU FOR CHOOSING SANUS
THE #1 TV MOUNT BRAND IN THE US.
Scan for easy
install video
BMF
118
Instruction Manual
WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator (ICD) is in use, magnetic fields may aect the operation of
those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5in.) between your device and the magnet. Please consult with your physician or medical
professional prior to using this product.
SANUS
MAGNETIC STUD FINDER
Designed to find your studs and make life easier– included in hardware kit.
TWO SIMPLE STEPS
TO FINDING YOUR STUDS:
Holding it vertically, lightly move the SANUS
Magnetic Stud Finder up and down while
sliding across your wall. The magnet within
will be attracted to the screws in the stud.
Once the magnet has landed on a screw,
place a pencil mark on the wall
directly below the magnet.
You can verify this is a stud by moving the
Magnetic Stud Finder up or down to find
a second or third screw within the wall.
Pull apart the SANUS Magnetic Stud Finder to
expose the probing pin within. Starting about
1/2inch away from the first pencil mark insert
the probing pin into the wall every 1/8inch until
it inserts completely into the wall. Once that
happens, you know you've found one edge of
your stud. Repeat this process till you have
found the stud edges and center of the stud.
Step 1 Step 2
magnet
locates screws in drywall
to show exactly where
your studs are
probing pin
helps find the edges of
your stud within the wall
level
attaches to your wall plate
for hands free leveling
3
Lo haremos sin estrés
Si tiene preguntas mientras realiza la instalación, llámenos.
1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520 (UK: 0800-056-2853) We’re ready to help!
BMF118
4
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Before getting started, let’s make sure this mount is perfect for you! Para Español ver página 26
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).
Do you have
all the tools
needed?
1
2
3
4
What is your
wall made of?
75 lbs.
(34 kg)
Ready to
begin?
Does your TV weigh
(including accessories)
more than 75 lbs.
(34 kg)?
CAUTION:
DO NOT install
into drywall alone
Unsure?
Drywall with
wood studs?
Solid concrete or
concrete block?
Call Customer Service:
1-800-359-5520 (UK: 0800-056-2853)
Perfect! Perfect!
Wood Stud Install
Concrete Install
Pencil Screwdriver
Tape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric Drill Hammer
1/2 in.
(13 mm)
Socket
Wrench Drill Bit
3/8 in.
(10 mm)
Concrete
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
No
—
Perfect!
Yes
—
This mount is NOT compatible. Visit MountFinder.Sanus.com or call
1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
5
Horizontal TV Bracket
Vertical
TV Bracket
01 x2
02 x1
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Parts and Hardware for STEP 1
M4x35 mm
M5x35 mm
M6x35 mm
M8x35 mm
04
06
07
x4
x4
x4
03
05
08 09
x4 x4
x4
x4
TV Screws TV Washers
Spacers
M8x45 mm
S
10
11
x4
x4
Thumb Screws
22 mm
STEP 1 Attach Bracket to TV
6
1.1 Select TV Screws
Hand thread screws into the threaded inserts on the back of your TV
to determine which screw diameter (M4, M5, M6, or M8) to use.
1.2 Spacers
Mount the spacers 10 above
the TV bracket, so the TV
bracket sits close to the TV
surface for flat back panels
(AND the TV closer to the wall).
Mount the spacers 10
under the TV bracket to
create extra space needed
for irregular shape TV
backs or large cables.
Spacers and screws are supplied to install your TV bracket.
Determine your preference for spacer configuration when
attaching your TV bracket.
TV Bracket
TV Bracket
10
10
ab
M4 M6 M8M5
CAUTION: Verify adequate thread engagement of the screw/
spacer combination on your TV.
Too short will not hold the TV and too long will damage the TV.
Round Back CablesInset HolesFlat Back
Too Short Correct Too Long
7
1.3 Attach TV Brackets
01 02
1. Slide the horizontal TV brackets 01 over the ends of the vertical TV bracket 02 .
NOTE: The horizontal and vertical TV brackets must be oriented in the positions shown.
Standard configurations are shown. For
special applications, or if you are uncertain
about your hardware selection, contact
Customer Service at
1-800-359-5520
.
1
8
If your TV included inset spacers or
wall mount adapters,
see Troubleshooting
on PAGE 26.
2. Position the TV bracket assembly over your TV hole pattern, center horizontally and LOOSELY
install using the spacer, TV screw and washer combination you selected for your TV.
CAUTION: Avoid potential personal injury or property damage! The TV Bracket
assembly MUST BE installed with the release cord Roriented on the bottom of the TV
as shown.
01 02
aSpacer, screw and washer
bSpacer, screw and washer
10
10
08
08
09
09
03
03
04
04
05
05
06
06
07
07
2
R
9
02
34
3. Vertically center TV bracket 02 .
4. Visually line up the locator holes Lin the horizontal TV brackets 01 with a hole in the vertical TV bracket 02 and install using four
screws 11 .
02
01
01 02
01
11
L
10

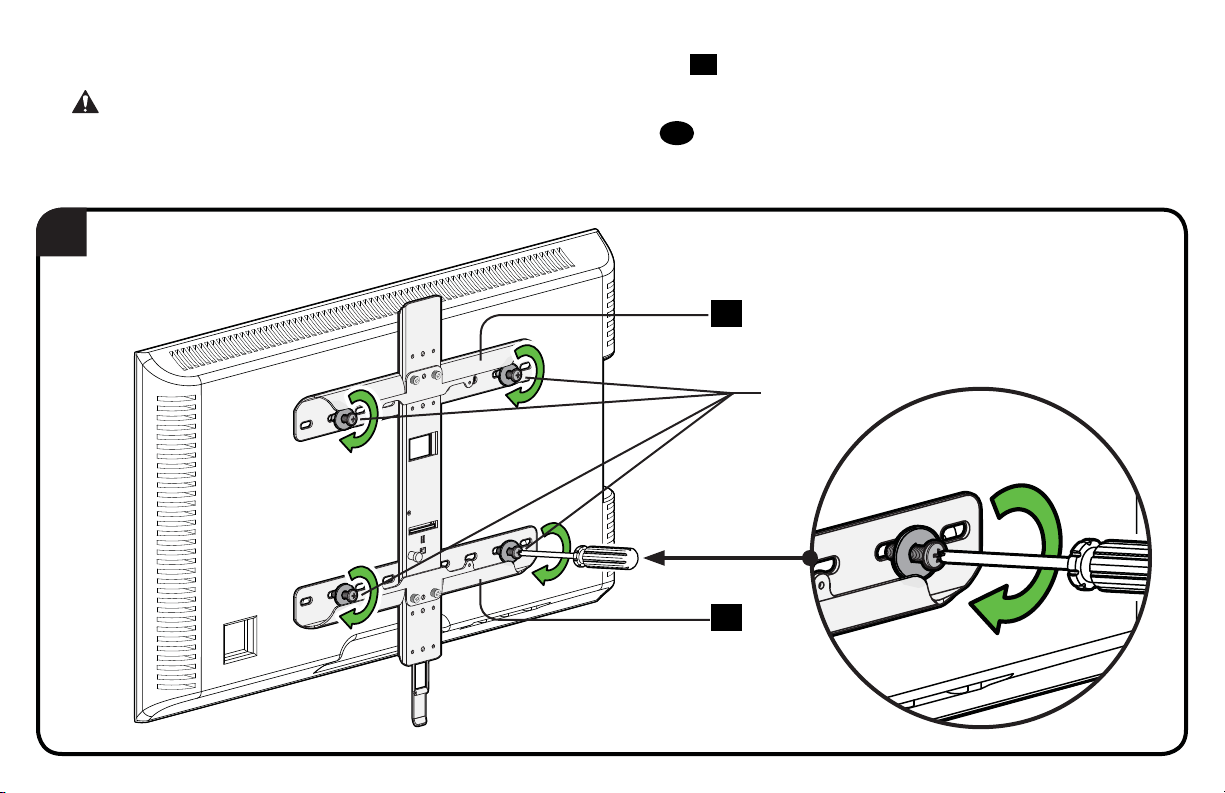

5. Securely tighten the four screws (from PAGE 8) on the horizontal TV brackets 01 .
CAUTION: Avoid potential personal injuries and property damage! DO NOT use a power screwdriver for this step. Tighten screws
only until TV Bracket is secured in place. DO NOT overtighten M4 screws 03 .
Screws
5
01
01
