IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT
Specications
Weight capacities:
Top shelf : 57 kg (125 lbs)
Middle shelf: 23 kg (50 lbs)
Bottom shelf: 23 kg (50 lbs)
CAUTION: Avoid potential personal injuries and property damage!
Do not use this product for any purpose not explicitly specied by manufacturer.
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact manufacturer
Customer Service or call a qualied contractor.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
CAUTION:

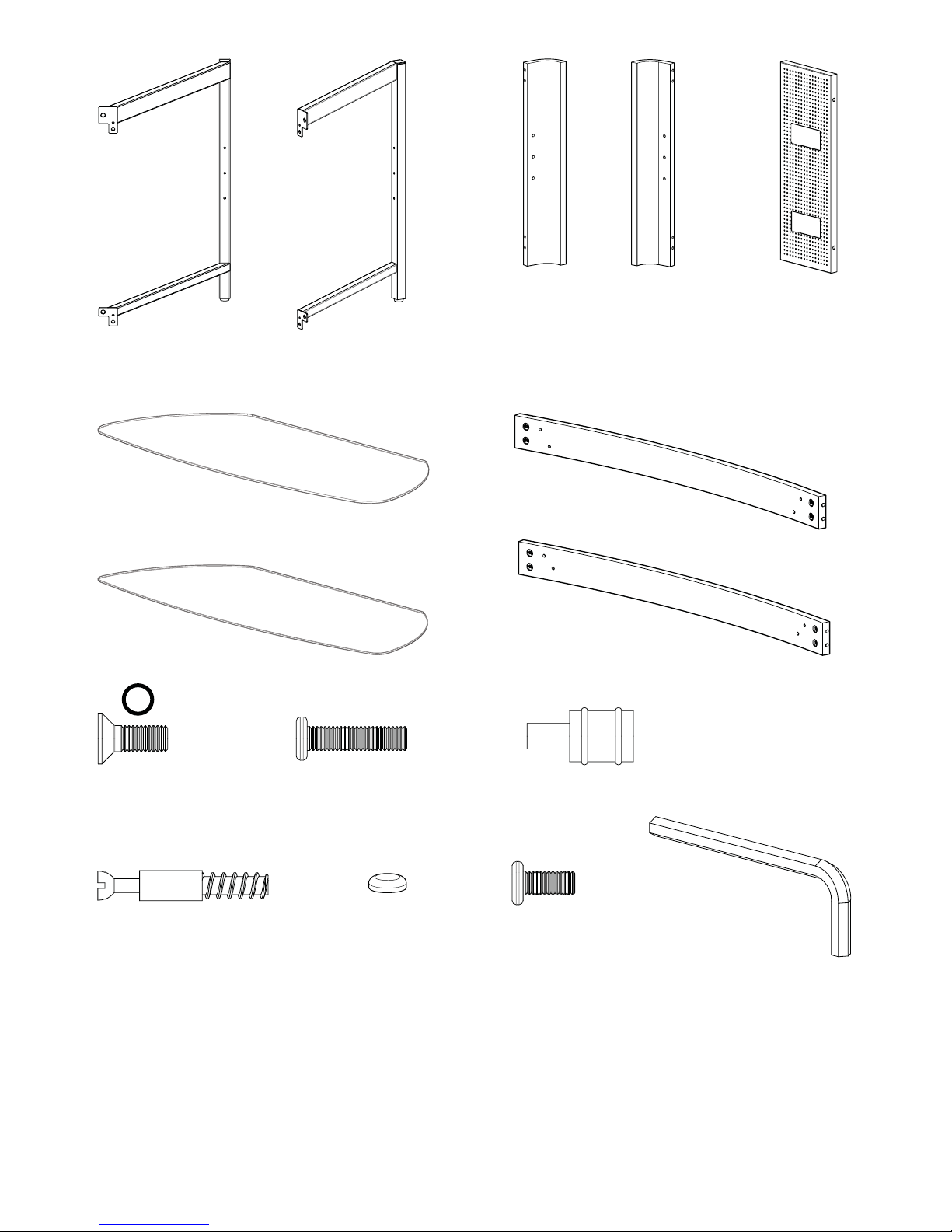

Supplied Parts and Hardware.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer
Service. Never use damaged parts!
NOTE:
Not all hardware included will be used.
OPT
English
6901-002082<01> 5
left
left
M6 x 12mm
M6 x 16mm M6 x 25mm
right
right
T
B
[01] x 1 [02] x 1 [03] x 1 [04] x 1
[06] x 1
[05] x 1
[08] x 1
[13] x 8
[11] x 4 [12] x 4
[14] x 9 [15] x 8
[09] x 1
[10] x 4
[07] x 2
[16] x 1
OPT
6901-002082<01>
6
1
1
2

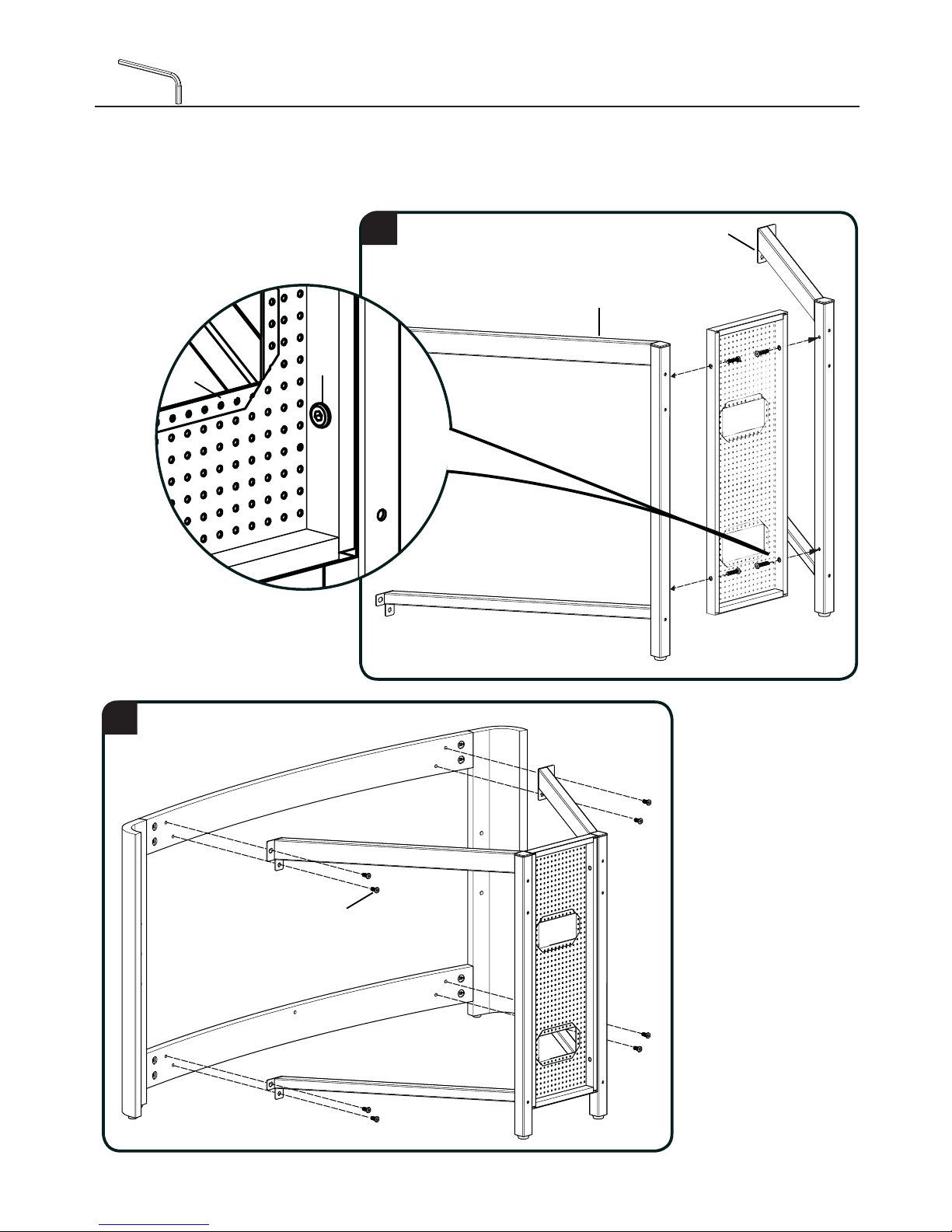

1. Insert Cam Pins [13] into the Brace Assemblies [03, 04].
2. Attach Brace Assemblies [03, 04] to front panels [08, 09]. Turn
Cam Locks 165 to tighten
[03]
[13]
[04]
[13]
[03, 04]
[03, 04]
[08, 09]
[03]
[04]
[09]
6901-002082<01> 7
2
[16]
1. Attach the leg assemblies [01, 02] to the back panel [05]. Secure
with bolt [11].
2. Attach the front and back assemblies using bolt [15].
1
2
[11]
[05]
[15]
[01]
[02]
6901-002082<01>
8
31. Attach glass pads [14] as shown.
2. Insert shelf pins [12].
1
2
[14]
[12]
6901-002082<01> 9
4
1
2
1. Set top glass shelf [06] on top of the glass pads [14].
2. Insert the middle and lower glass shelves [07] at an angle, as
shown. Set shelves on top of glass pads [14].
[14]
[06]
[07]
[07]
6901-002082<01>
10
[10]
[16]
NOTE: The M4 allen key and pillar bracket are included with the FMK056 pillar kit mount.
Attach Pillar Brackets
OPT
