ENGLISH

Assembly Instructions for Model: VMCC1

Thank you for choosing the Sanus Systems VMCC1. The VMCC1 is designed to mount a center channel speaker below a Sanus VMSA,

VMAA, VMAA18, VMAA26, VMDD or a VMDD26 Flat Panel Wall Mount.

Safety Warning: If you do not understand these directions, or have any doubts about the safety of the installation, please call a quali-

ﬁed contractor or contact Sanus at 800.359.5520 or www.sanus.com. Check carefully to make sure that there are no missing or defective

parts. Our customer service representatives can quickly assist you with installation questions and missing or damaged parts. Replace-

ment parts for products purchased through authorized dealers will be shipped directly to you. Never use defective parts. Improper instal-

lation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly speciﬁed by Sanus Systems.

Sanus Systems can not be liable for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use. Please call

Sanus Systems before returning products to the point of purchase.

Required Tools: Phillips screw driver and crescent wrench.

Supplied Parts and Hardware: Hardware shown as actual size.

(1) Left Upper Extension - a (1) Right Upper Extension- b

(2) Lower Extension - c (2) Axis Bracket - d

(2) Bar Bracket - e (2) Speaker Bracket - f (1) Support bar - g

(2) M4 x 10 Bolt - h (2) M5 x 10 Bolt - i (10) 1/4 - 20 x 3/8 Bolt - j (10) 1/4 - 20 x 5/8 Bolt - k

(2) Spacer - l (8) 1/4 - 20 Nut - m (2) 1/4 - 20 x 1500 Bolt - n

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 11.16.05

Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

VMCC1ins_010606_ML.indd 3 1/16/06 10:31:51 AM

ENGLISH

For assembly information for the VMSA, VMAA, VMAA18 and VMAA26 see the Steps 1 through 6. For assembly

information for the VMDD and VMDD26 see Steps 7 through 12.

Step 1: Remove mount from Wall Plate and remove lower Cross Tube from the mount assembly.

Remove the mount from the wall plate. Loosen the Allen Bolts in the lower three Vise Assemblies and remove the lower Cross Tube from

the mount assembly. See Diagrams 1a and 1b below.

Diagram 1a Diagram 1b

vise assemblies

cross tube

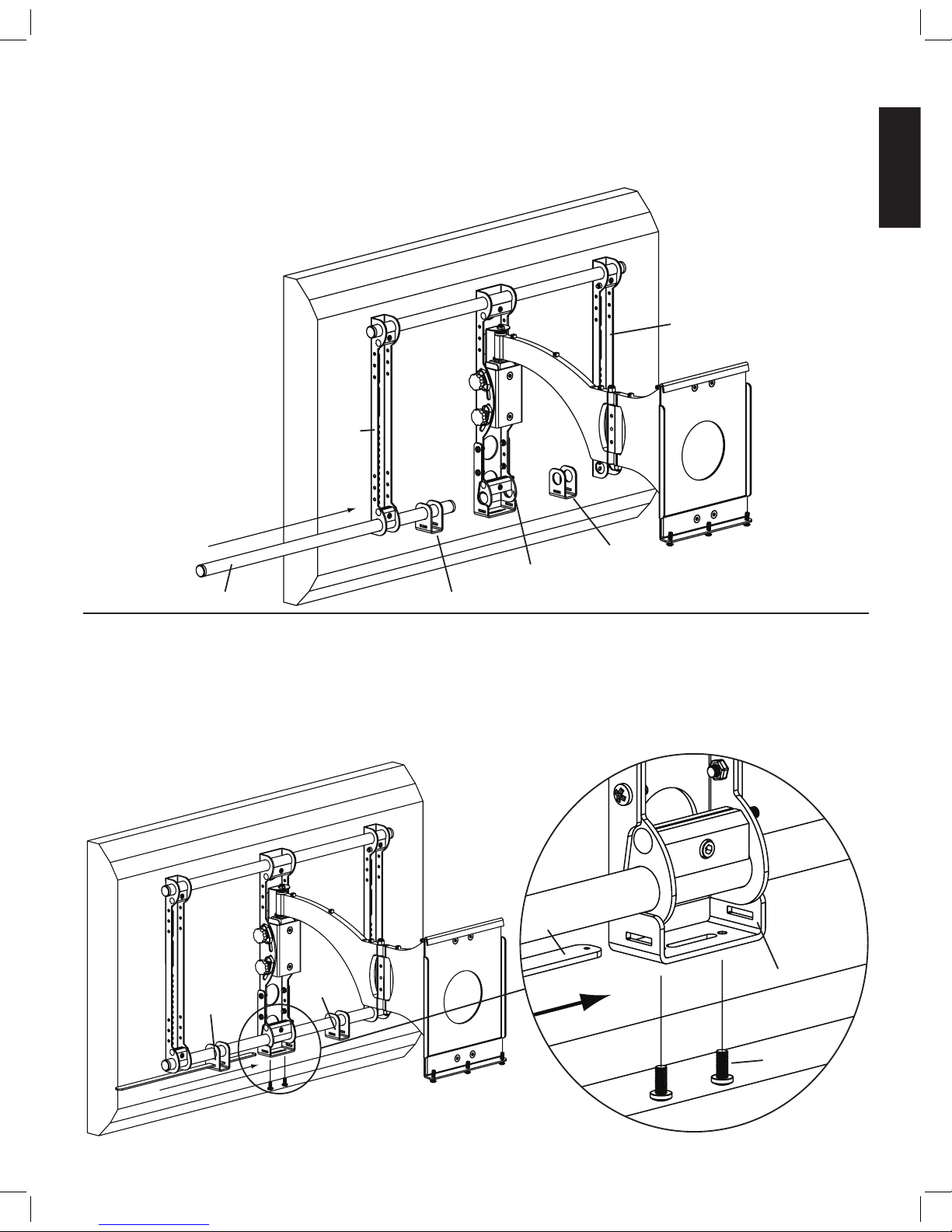

Step 2: Add Axis Brackets

Position the Axis Bracket (d) so it ﬁts over the Axis Assembly on the mount. Insert a 1/4 - 20 x 5/8 Bolt (k) through the Axis Bracket,

Axis Assembly and into a 1/4 - 20 Nut (m). Repeat process until the Axis Bracket is secured with four 1/4 - 20 x 5/8 Bolts and four 1/4

- 20 Nuts. Tighten each Bolt with a phillips screw driver until secure. See Diagram 2 below.

Detailed View Diagram 2

axis assembly

VMCC1ins_010606_ML.indd 4 1/16/06 10:31:53 AM

ENGLISH

Step 3: Add Bar Brackets

Slide the lower Cross Tube through the Bar Bracket (e), the AxisAssembly, a second Bar Bracket and through the second Monitor Brack-

et. Tighten all three Vise Assemblies secure the Cross Tube once it is slid through the second Monitor Bracket. See Diagram 3 below.

Diagram 3

monitor bracket

monitor

bracket

axis assembly

cross tube e

Step 4: Add Support bar

Slide the Support Bar (g) through the Bar Bracket (e), Axis Bracket (d) and through the other Bar Bracket. Make sure the Support Bar

is centered on the wall mount. Thread each 1/4 - 20 x 5/8 Bolt (k) through each hole in the bottom of the Axis Bracket until they bottom

out in the Support bar. See Diagram 4 below.

Diagram 4 Detailed View

VMCC1ins_010606_ML.indd 5 1/16/06 10:31:55 AM

ENGLISH

Step 5: Congure Speaker Attachments

Conﬁgure the Speaker Attachments as shown in the Diagrams below. Tighten all Bolts with a Phillips screw driver. Repeat process for

the second Speaker Attachment. The Extension assemblies can be adjusted vertically to adjust the vertical position of the speaker. The

depth of the speaker can be adjusted by using the front set of holes or the back set of holes in the Speaker Bracket (f). The Upper Exten-

sions can be adjusted using the slot in the top to adjust the depth of the speaker. Note: In rare occasions, the Lower Extensions may not

be used. In this case, Speaker Bracket (f) may be attached directly to the Upper Extensions (a,b)

Conguration 1 Conguration 2

a b

j j

c c

j j

Step 6: Add Speaker Attachments to assembly

Thread a 1/4 - 20 x 3/8 Bolt (j) up through each Upper Extension (a,b) and into the Bar Bracket (e). Tighten to secure the Upper Exten-

sion. Thread a 1/4 - 20 x 5/8 Bolt (k) up through each of the Upper Extensions. Do not tighten the 1/4 - 20 x 5/8 Bolts at this time, you

will tighten these so they bottom out into the Support Bar after the speaker is attached.

Note: For Speakers that have threaded inserts that are spaced between 1.75 inches and 15.5 inches use conﬁguration 1. If the threaded

inserts on the speaker are spaced wider than 15.5 inches, the tabs on the Speaker Brackets should face away from each other. In Diagram

6, Speaker Brackets shown facing toward each other.

Detailed View Diagram 6

a,b

VMCC1ins_010606_ML.indd 6 1/16/06 10:31:57 AM

ENGLISH

Assembly Instructions for the VMDD and VMDD26 at panel wall mounts.

Step 7: Remove mount from Wall Plate and remove lower Cross Tube from the mount assembly.

Remove the mount from the wall plate. Loosen the Allen Bolts in the lower four Vise Assemblies and remove the lower Cross Tube from

the mount assembly. See Diagram 7 below.

Diagram 7

vise

assemblies

cross tube

Step 8: Add Axis Brackets

If the threaded inserts on your speaker are spaced between 1.5 inches and 5.7 inches, you do NOT need to use the

Support Bar (g) for the installation.

Position the Axis Bracket (d) so it ﬁts the Axis Assembly on the mount. Insert 1/4 - 20 x 5/8 Bolt (k) through the outer side of the Axis

Bracket, Axis Assembly, and into a 1/4 - 20 Nut (m). Insert a 1/4 - 20 x 1.5 Bolt (n) through the inner side of the Axis Bracket, a Spacer

(l), the inner edge of the adjacent Axis Bracket. Thread it into a 1/4 20 Nut. Slide the Support Bar through the slots in each Axis Bracket

until centered with the wall mount. See Diagram 8 below.

Detailed View

Diagram 8

k m

axis assembly axis assembly

VMCC1ins_010606_ML.indd 7 1/16/06 10:31:59 AM

ENGLISH

Step 9: Add Bar Brackets

Note: If the Support Bar was not installed in Step 8, only re-install the cross tube in this step.

Slide the lower Cross Tube through the ﬁrst Monitor Bracket, ﬁrst Bar Bracket (e), both Axis Assemblies, a second Bar Bracket and

through the second Monitor Bracket. Tighten all four Vise Assemblies to secure the Cross Tube once it is slid through the second Moni-

tor Bracket. Thread each 1/4 - 20 x 5/8 Bolt (k) through each hole in the bottom of the Axis Bracket (d) until they bottom out against the

Support Bar (g). See Diagram 9 below.

Diagram 9 Detailed View

g d

Step 10: Congure Speaker Attachments - Support Bar Not installed. If using Support Bar, see Step 5 for conguration.

Conﬁgure the Speaker Attachments as seen below. Tighten all Bolts with a Phillips screw driver. Repeat process for the second Speaker

Attachment. See Diagrams below. The Extensions (a,b,c) can be adjusted vertically to adjust the vertical position of the speaker. The

depth of the speaker can be adjusted by using the front set of holes or the back set of holes in the Speaker Bracket (f). The Upper Exten-

sions can be adjusted using the slot in the top to adjust the depth of the speaker. Note: In rare occasions, the Lower Extensions may not

be used.

Conguration 3 Conguration 4

a b

c c

j j f

VMCC1ins_010606_ML.indd 8 1/16/06 10:32:02 AM

ENGLISH

Step 11: Add Speaker Attachments to assembly - Support Bar not installed

Thread a 1/4 - 20 x 3/8 Bolt (j) up through each Upper Extension (a,b) and through the slot in the Axis Bracket (d) and into a 1/4 - 20

Nut (m). Tighten so Upper Extension is secured. See Diagram 11 below.

Note: For Speakers that have threaded inserts that are spaced between 3.75 and 5.7 inches apart the tabs of the Speaker Brackets should

face away from each other. If the threaded inserts on the speaker are spaced between 1.5 and 3.75 inches, the tabs on the Speaker Brack-

ets should face each other. In example shown below, Speaker Brackets are conﬁgured for 3.75 to 5.7 inch threaded insert spacing.

Detailed View Diagram 11

d m

Step 12: Add Speaker Attachments to assembly - Support Bar installed

Thread a 1/4 - 20 x 3/8 Bolt (j) up through each Upper Extension (a,b) and into the Bar Bracket (e). Tighten so the Upper Extension is se-

cured to the Bar Bracket. Thread a 1/4 - 20 x 5/8 Bolt (k) up through each of the Upper Extensions. Do not tighten the 1/4 - 20 x 5/8 Bolts

at this time, you will tighten these so they bottom out against the Support Bar after the speaker is attached. See Diagram 12 below.

Note: For Speakers that have threaded inserts that are spaced between 5.7 and 15.5 inches wide, the tabs of the Speaker Brackets should

face each other. If the threaded inserts on the speaker are spaced wider than 15.5 inches, the tabs on the Speaker Brackets should face

away from each other. In Example shown below, Speaker Brackets are conﬁgured for the 5.7 to 15.5 range.

Detailed View Diagram 12

a,b

j k

VMCC1ins_010606_ML.indd 9 1/16/06 10:32:06 AM

ENGLISH

Step 13: Add center channel to VMCC1

Slide the Bar Brackets (e) until the Speaker Brackets (f) line up with the threaded inserts on the back of the speaker. Select the proper

bolt for your center channel speaker by hand threading the M4 x 10 Bolt (h), M5 x 10 Bolt (i) or 1/4 - 20 x 3/8 Bolt (j) into the into the

threaded inserts in the back of the speaker to determine which ﬁts. Once you have selected the proper bolt, insert it through each of the

Speaker Brackets and thread it into the center channel. Tighten each Bolt with a Phillips screw driver. See Diagram 13 below.

You can now center the speaker with the TV by sliding it left or right. Once it is positioned, tighten the 1/4 - 20 x 5/8 Bolt (k), installed

in Step 6, until it bottoms out against the Support Bar.

To adjust the vertical placement of the speaker, loosen the 1/4 - 20 x 3/8 Bolts connecting the Upper and Lower Extension arms and

reposition the arms until center channel is at desired position.

See Step 5 for depth adjustment of speaker.

Diagram 13

speaker

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 11.16.05

Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

VMCC1ins_010606_ML.indd 10 1/16/06 10:32:08 AM
