Sanus Systems PFV59S Guide d'installation

PLATINUM FURNITURE

Assembly Instructions

MODEL PFV59s - Digital TV Stand

Congratulations and thank you for purchasing your new Sanus

Platinum Furniture Product. If you have any questions regarding

this or any other Sanus product, please contact our customer

service department at ( 00)359-5520, or www.sanus.com. It is

not necessary to contact the retailer with any questions or

problems, as parts can be sent directly to you

BUS5306

We recommend that the unit is assembled on a soft surface

such as carpet. Please record your serial number in the space

provided below and retain this manual for future reference.

Serial No

Please follow these assembly instructions. This will save you

time, make assembly easier and prevent possible damage to

your new Digital TV Stand. Assistance may be required for

some assembly procedures. Correct assembly is your

responsibility.

This unit was manufactured using ISO 9000 certified systems.

For improvement purposes, design and specifications are subject to

change without notice.

Thin side

2. PRODUCT MODEL NAME/NUMBER AND COLOR.

OF REQUIRED PARTS.

4. PURCHASE DETAILS:

(LOCATED ON REAR OF UNIT)

5. SERIAL NUMBER OF THE UNIT PURCHASED.

-DATE OF PURCHASE.

-STORE THE UNIT WAS PURCHASED FROM.

THE TOLL FREE NUMBER WITHIN 14 DAYS OF PURCHASE.

TOLL-FREE NUMBER - (800) 359-5520 (USA ONLY)

1. YOUR NAME, ADDRESS AND TELEPHONE NUMBER.

THE FOLLOWING INFORMATION MUST BE SUPPLIED IN FULL:

CUSTOMER SERVICE INFORMATION

3. DESCRIPTION, PART NUMBER AND QUANTITY

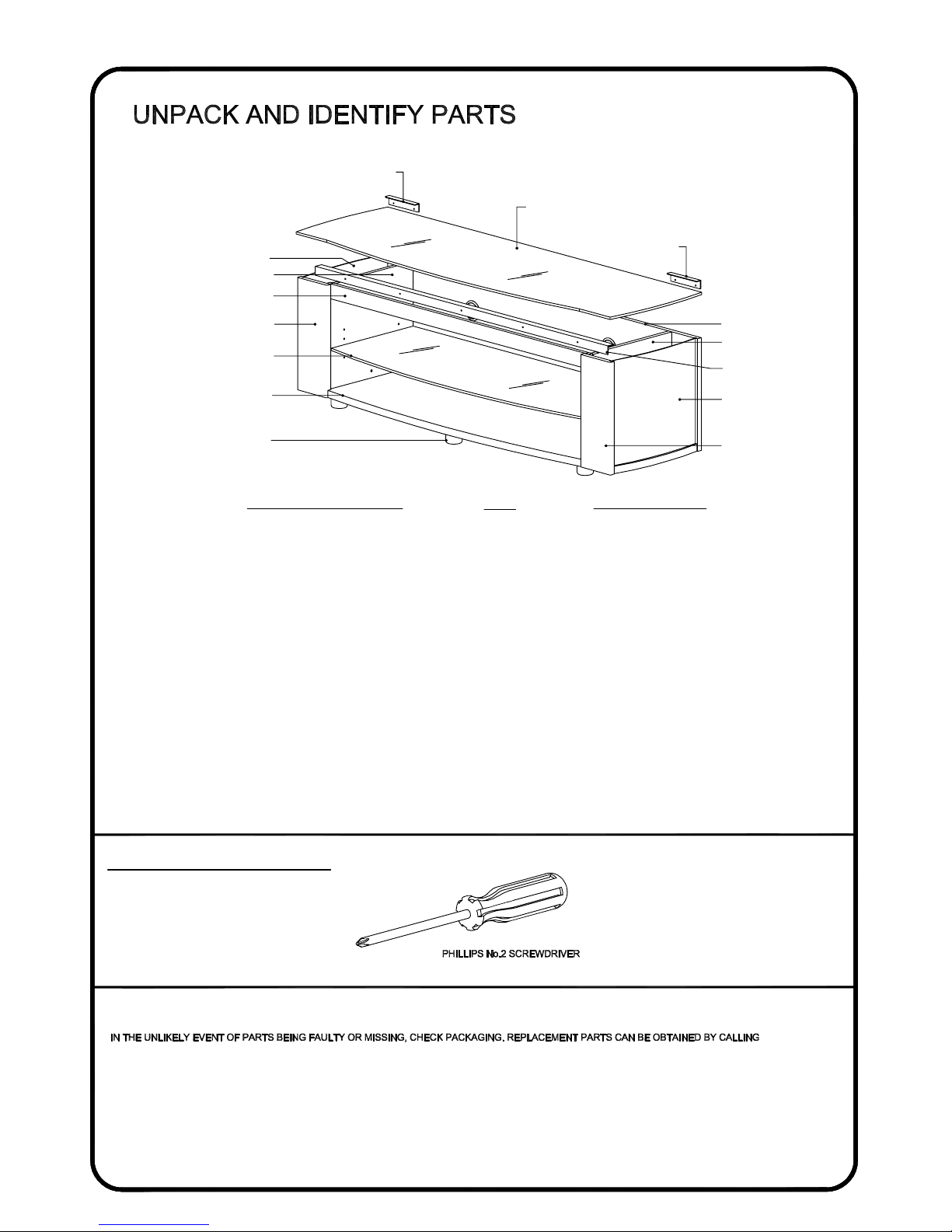

TOOLS REQUIRED:

Steel bracket

Glide (gray / black)

Base

Glass shelf

Left front

Long rail

Left side

Angle bracket

Glass top

Thin side

Back

Right side

PART NUMBER

QTY

PART DESCRIPTION:

Base

Left side

Right side

Thin side

Right front

Left front

Long rail

Back

Glass top

Glass shelf

Steel bracket

Angle bracket

Cable duct

Gray glide

Black glide

Hardware pack

M20205A1PO

M20206A1ZS

M20207A1ZS

M20208A1ZS

M20209A1ZS

M20210A1ZS

M20211A1ZS

M20212A1PO

M20213A1PO

M20214A1PO

P816190

P816191A

P840200

P815034A

P815034

MH1181A0

Right front

Angle bracket

Bump-on

P840022 x 18

Right front panel

Left front panel

Screw 3 connector rods into holes in left and right front panels as indicated above.

Press fit 2 large wooden dowels into large holes in left and right panels as shown.

Glide (gray/black)

Large wooden dowels x 4

Base (underside)

Fasten 6 glides to the base as shown.

Note that there are 3 gray and 3 black glides. Use gray glides at front of the base if the stand is going to

be placed on a light colored floor. Use Black glides at the front if the stand is going to be placed on a

dark colored floor.

Front edge

Back edge

Left side panel

Right side panel

Insert cams into large holes in left and right sides as shown.

Make sure arrows on the cams point towards the corresponding cam holes along the edges of the panels.

Press fit small wooden dowels into left and right sides as shown above.

Left side panel Right side panel

x12

Small wooden dowels

x12

Back

Base

Screw 4 connector rods into holes in the base as indicated above.

Insert 2 cams into large holes in the base as shown above.

Screw 4 connector rods into holes indicated in back panel.

Assistance may be needed for this step.

Left side panel

Right side panel

Press fit the sides and back assembly onto the base as shown. Turn the cams clockwise to tighten.

Press fit the sides to the back as shown above. Turn the cams clockwise to tighten.

Press fit 4 cable ducts into large holes in the back as shown.

Cable duct

Hold the long rail in between the sides as illustrated.

Insert the black barrel nuts into the holes in the long rail.

Ensure the holes in the sides are aligned with the holes in the long rail.

Fasten the sides to the long rail as shown.

Fasten the back to the base as shown above.

Long rail

Assistance may be needed for this step.

Thin side

Adjusting screw x 4

Press fit the front panels to the sides and base as shown.

Turn the cams clockwise to tighten.

Slide thin sides down slots in front panels and back, ensuring silver surfaces face out.

Screw each adjusting screw into sides by half of it's visible threaded length, then once this is

done, tighten all 4 Adjusting screws fully into sides.

Once the bracket is adjusted in the sides, fasten it to the long rail using the screws shown above.

It is important that you hold the long rail against the steel bracket as you tighten the screws.

Fit the long steel bracket into the rebate in the long rail and in the grooves in the sides as shown above.

Ensure the bracket is equally distanced from the sides on both ends.

Steel bracket
