Wired Remote Controller

ContentsWired Remote Controller

MODEL CODE : MWR-WW10N

MWR-WW10JN

MWR-WW10KN

MWR-WW10UN

SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

Disclaimer:

This manual contains confidential and proprietary information of Samsung

Electronics Co., Ltd. ("Samsung")

All text, graphics, user interfaces, visual interfaces, photographs,

trademarks, and logos (collectively, "Content"), including but not

limited to the design, structure, selection, coordination, "look and feel"

and arrangement of such Content, contained in this manual is owned,

controlled or licensed by or to Samsung, and is protected by trade dress,

property rights and unfair competition laws.

No part of this manual or the Content may be copied, reproduced,

republished, uploaded, posted, publicly displayed, encoded, translated,

transmitted or distributed in any way (including "mirroring") to anyone,

any entity, any other computer, server, Web site or other medium for

publication or distribution or for any commercial purpose, without

Samsung’s express prior written consent.

Samsung reserves the right, at its sole discretion, to change, modify,

add or remove portions of any part of this manual at any time. It is your

responsibility to check the manual periodically for changes. Your use of

the manual will mean that you accept and agree to this disclaimer. If you

do not agree with any part of this disclaimer, please stop using this manual

immediately.

SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

Contents

SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

1. Precautions ............................................................................................................................................ 1-1

1-1. Service Precautions............................................................................................................................ 1-1

1-2. Product Safety Precautions .............................................................................................................. 1-1

2. Features and Specifications .................................................................................................................2-1

2-1. Product Features................................................................................................................................ 2-1

2-1-1. Product Features.....................................................................................................................2-1

2-1-2. Changes compared to basic products..................................................................................2-2

2-2. Product structure...............................................................................................................................2-3

2-3. Product Specification ....................................................................................................................... 2-4

2-3-1. Environment and Specification ........................................................................................... 2-4

2-3-2. Feature expansion specification ..........................................................................................2-5

2-4. How to install ...................................................................................................................................2-18

2-4-1. Wired remote control installation .....................................................................................2-18

3. Disassembly and assembly ..................................................................................................................3-1

4. Troubleshooting....................................................................................................................................4-1

4-1. Things to check before diagnosis ....................................................................................................4-1

4-1-1. Errors displayed on the Wired Remote Controller ............................................................4-1

4-2. Action by symptom .......................................................................................................................... 4-2

4-2-1. When the LCD screen does not come out .......................................................................... 4-2

5. Parts layout............................................................................................................................................5-1

6. Wiring diagram......................................................................................................................................6-1

7. S/W Download ....................................................................................................................................... 7-1

Cautions

1-1 1-1

SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

1. Precautions

1-1. Service Precautions

• When replacing electrical parts, be sure to use the rated parts.

- Check the display of the model name, rated voltage, rated current, etc. of the electrical parts.

• When repairing the fault, please repair the connection of HARNESS type firmly.

- If the wiring is not good, abnormal noise or abnormal operation may occur.

• If the product is disassembled and assembled while lying down, work on the operation beam.

- Scratches may occur on the back of the product.

• When repairing a fault, remove dust and foreign matter from the HOUSING, wiring and inspection parts.

- It is possible to prevent fire hazard such as TRACKING, SHORT.

• Check the assembly of the parts after the fault has been repaired.

- It must be in the same state as before repair.

1-2. Product Safety Precautions

• Do not pull on the wire or touch the power plug or the auxiliary power switch with wet hands.

- Risk of electric shock or fire.

• If the power cord or power plug is damaged, be sure to replace it to prevent danger.

• Do not bend the wires excessively or do not break them with heavy objects.

- Risk of electric shock or fire.

• Do not use multi-outlet.

- Risk of electric shock or fire.

• Ground if necessary.

- In particular, be sure to ground if water or humidity indicates that there is a risk of a short circuit.

• When replacing or repairing electrical parts, unplug the power plug or turn off the auxiliary power switch.

- There is a danger of electric shock.

Features and Specifications

2-1 2-1

SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

2. Features and Specifications

2-1. Product Features

2-1-1. Product Features

■Color Graphic LCD (4.3 ") wired remote control with large screen

- Floating Display for user-desired point function

[ For the slave wired remote controller settings,

please refer to the sections about the wired remote controller installation/service mode. ]

Features and Specifications

2-2

SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

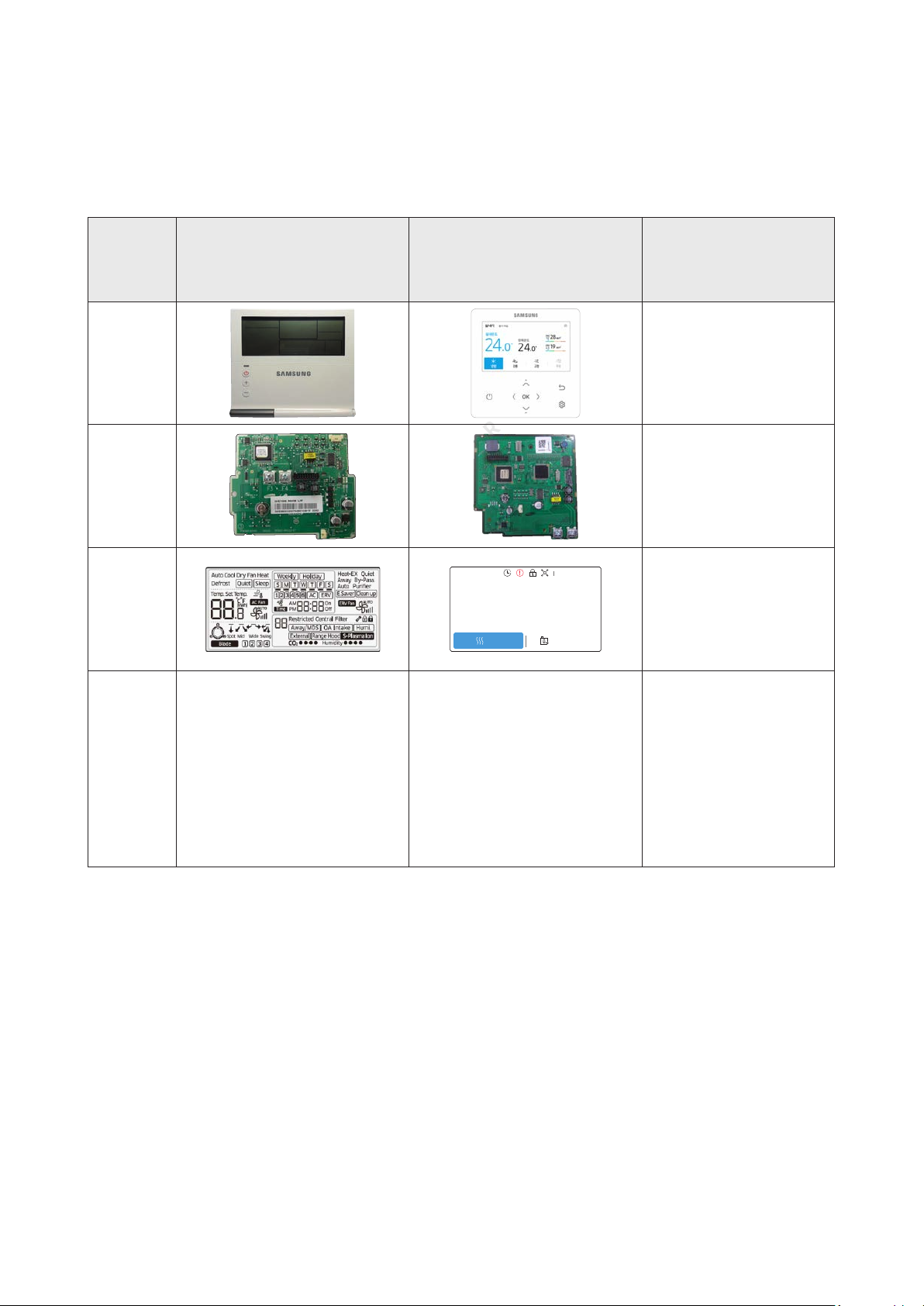

Item Basic

(MWR-WE13N)

New

(MWR-WG00JN/MWR-WG00KN

/MWR-WW10N/MWR-WW10JN/

MWR-WW10KN/ MWR-WW10UN)

Changes

CASE

Apply new CASE

- CASE TOP

- CASE BOTTOM

ASSY

PCB

Applying new PBA

ASSY

DISPLAY

03/28/2019 1:30 PM

Heat

Zone 1

Set Current

Water outlet

Water

Outlet

Water

Outlet

Indoor

.0 28.2°

8.3°

Fixed LCD Display



Display

ETC

- Software code

• Main Micom: DB91-01543A

- Fixed Display Icon

- No air cleanliness indication

- No indication of indoor model

information

- Software code

• Main Micom: DB91-02150A

• Touch Micom: DB91-02076A

• Image Micom: DB91-02077D

- Color Floating Display Icon

- Air cleanliness value display

(PM 10 / 2.5 / 1.0)

- Indication of indoor model

information

(Serial No, model code)

2-1-2. Changes compared to basic products

Features and Specifications

2-2 2-3

SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

2-2. Product structure

■ExternalDimensions

120.0 (4.72) 19.0(0.75)

120.0 (4.72)

[Unit : mm(inch)]

Features and Specifications

2-4

SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

2-3. Product Specification

2-3-1. Environment and Specification

Classification Item Specification Remarks

General

Conditions

Use Aria Region of use (Korea)

Type of use Wall-mount type, air conditionerIndoor unit Remote controller

Refer to

User's Manual

Refer to

Installation Guide

Accessory

Supply Contact Service Center

Installation

conditions

Operating

temperature 

Operating

humidity Humidity 30% RH to 90% RH (except for condensation)

Power input 12VDC / 25A

Installation Installation

space Installation Mounting wall Installation

Delivery

Open Follow the prescribed sequence.

Delivery

confirmation

• Check by delivery CHECK SHEET, repair defective items.

• Instructions for use, conditions of use, and precautions for

use are given in the instructions. In case of a problem in this

process, the service is available where possible.

Installation Instructions Reference Guide Installation Guide Refer to

Installation Guide

ETC Be sure to refer to installation guides and user manuals. Refer to

Installation Guide

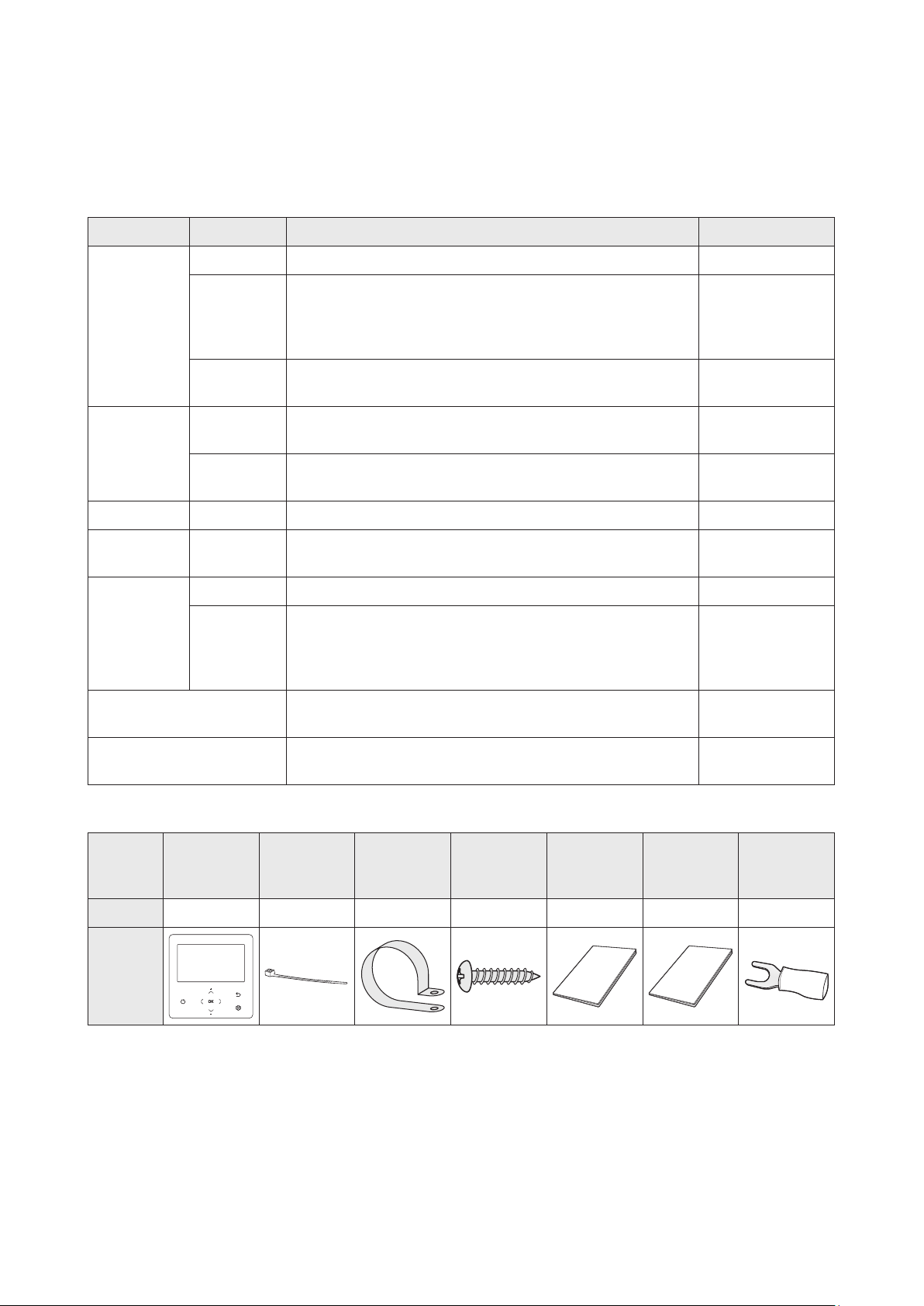

■Accessories

Name

Wired

Remote

Controller

Cable Tie Cable Clamp M4x16

Screw

User's

Manual

Installation

Guide U Terminal

Quantity 1 2 3 5 1 1 6

Shape

Features and Specifications

2-4 2-5

SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

Outdoor 03/28/2019 1:30 PM

Zone1 Zone2

Heat

Set

28.2

.0 24

Heat

Set

DHW

Economic

Set

2-3-2. Feature expansion specification

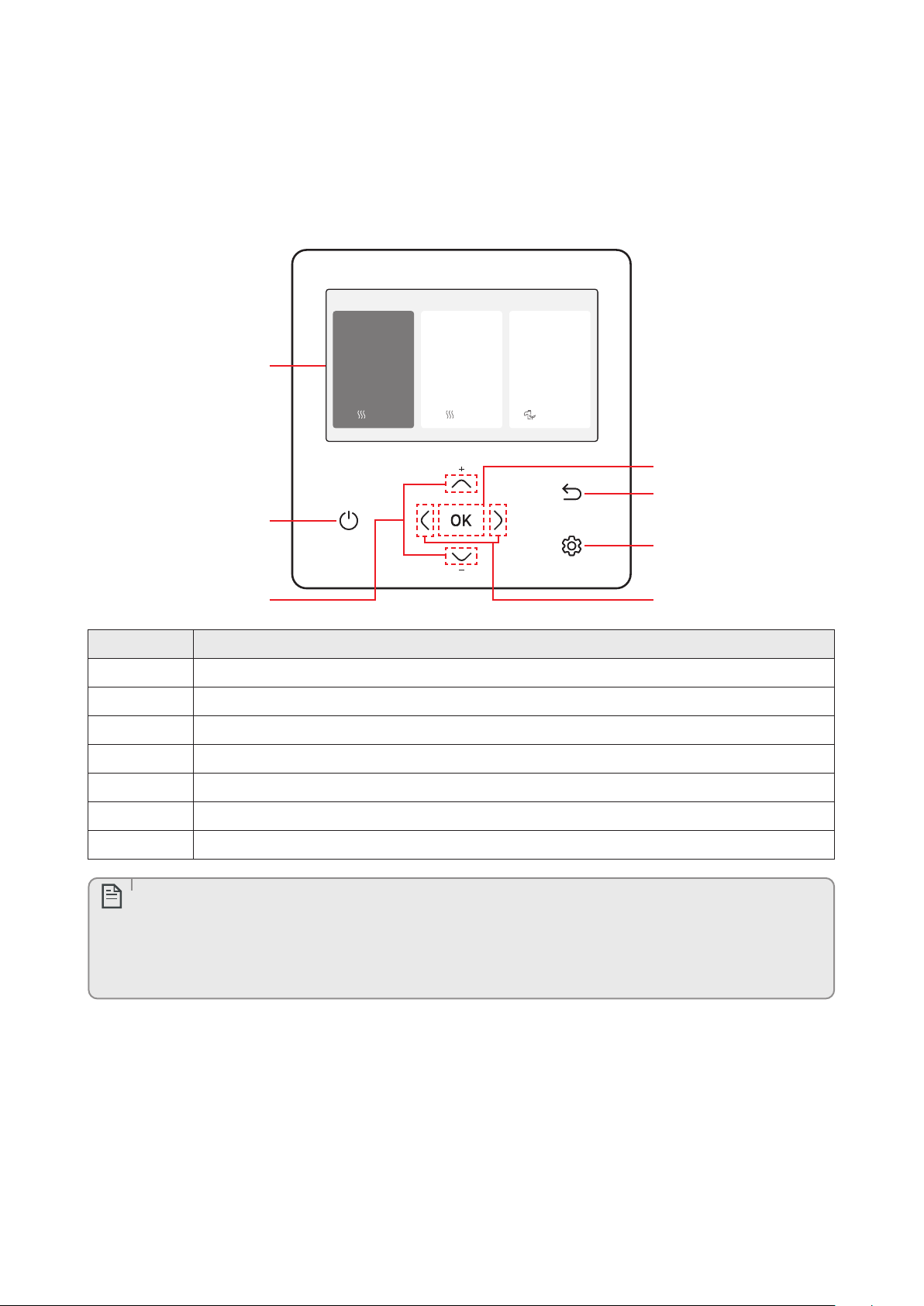

■Lookatthebutton

Num Overview

①Operation status display : Displays the operation/function settings and statuses.

②Operation On/Off button (LED) : Turns the air conditioner/ventilator power On/Off

③Up/Down button : Moves between items vertically or changes the set temperature.

④Left/Right button : Moves between items horizontally orchanges the item value.

⑤OK button : Saves your new settings.

⑥Save & Return button : Saves your new settings and returns to the previous step.

⑦Option button : Selects the detailed setting function.

• The operation mode display on the remote controller changes depending on the selected language.

• Some functions may not be available, depending on the indoor unit specifications.

• You can see the operation status on the LED display.

- On: Product is operating

Blinking: Error occurred

Off: Product is off

NOTE

①①

②②

④④

⑤⑤

⑥⑥

⑦⑦

③③

Features and Specifications

2-6

SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

Outdoor 03/28/2019 1:30 PM

Zone1 Zone2

Heat

Set

28.2

.0 24

Heat

Set

DHW

Economic

Set

Feature expansion specification

■HomeScreen

Num

Overview

①Outdoortemperature display : Displays outdoortemperature.

②Date and time display : Displays current date and time.

③Zone1 display : Displays set temperature and operation modes for Zone 1.

④Zone 2 display : Displays set temperature and operation modes for Zone 2.

⑤DHW display : Displays set temperature and operation modes for DHW

• The Home screen may vary depending on whether Zone control is selected at the initial installation and whether DHW

is supported.

NOTE

①①②②

⑤⑤③③

④④

Autres manuels pour MWR-WW10N

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Télécommande

Samsung

Samsung BN68-11568A Manuel utilisateur

Samsung

Samsung MWR-SH00 Manuel utilisateur

Samsung

Samsung AR-KH04E Manuel utilisateur

Samsung

Samsung MWR-WG00RN Manuel utilisateur

Samsung

Samsung MWR-TH01 Manuel utilisateur

Samsung

Samsung MWR-WE13 Manuel utilisateur

Samsung

Samsung SolarCell Remote Manuel utilisateur

Samsung

Samsung SolarCell Remote Manuel utilisateur

Samsung

Samsung MWR-WH02 Manuel utilisateur

Samsung

Samsung NS052LHXEA Manuel utilisateur

Samsung

Samsung SolarCell Remote Manuel utilisateur

Samsung

Samsung BN68-03092A-02 Manuel utilisateur

Samsung

Samsung MWR-TH00 Manuel utilisateur

Samsung

Samsung MWR-WH00 Manuel utilisateur

Samsung

Samsung SMART TV Manuel utilisateur

Samsung

Samsung MWR-WW00 Manuel utilisateur

Samsung

Samsung AR-KH03E Manuel utilisateur

Samsung

Samsung SPC-300 Manuel utilisateur

Samsung

Samsung RMC-QTD1 Manuel utilisateur

Samsung

Samsung C700 Manuel utilisateur

Samsung

Samsung Smart Remote BN68 Series Manuel utilisateur

Samsung

Samsung MWR-WE10 Manuel utilisateur

Samsung

Samsung RMCSPM1AP1 Manuel utilisateur

Samsung

Samsung MWR-WG00UN Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
