Samsung RL4323 Series Manuel utilisateur

English

User servicing manual

MODEL CODE: RL4323*, RL4353*

1. You may nd the installation, maintenance, repair, cleaning information about the device,

the list of spare parts of the device, and the necessary information for ordering spare

parts that can be supplied by authorized service http://samsung.com/support or call

center 4447711

2. The model code is labelled on the outer side of your product.

- You can check the model code and version on the barcode label at the bottom left of

the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual.

- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and

hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional

repair of the product, Samsung is not liable for any damage to the product, any injury or

any other product safety issue caused by any attempt to repair the product which does

not carefully follow these repair and maintenance instructions. Any damage to the product

caused by an attempt to repair the product by any person other than a Samsung certied

service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you

choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs.

Barosa_User-servicing-manual_EN.indd 1 2021-02-04  11:45:26

English

The actual image and provided parts of the refrigerator may differ, depending on the model

and the country.

01 Hinge Up 02 Gasket

03 Drawer 04 Hinge Middle

05 Barcode label 06 Hinge Low

Barosa_User-servicing-manual_EN.indd 2 2021-02-04  11:45:26

English

Handle replacement

CAUTION

• When replacing the door handle, take care not to scratch the front of the door.

• Firmly press the handles at the supports. Make sure there is no gap between the supports

and the door.

• Tightly fasten the screws when attaching the handle.

• Check that the handle is rmly attached before using the product.

Tools required (not provided)

Phillips screwdriver Flat-head

screwdriver

Allen wrench

(5 mm)

To detach the handles

LONG BAR

1. Unscrewing and removing two set screw

by Allen wrench disassemble the handle.

BAR / EASY

HANDEL

BAR/EASY HANDEL

2. Remove cap screw

3. Unscrewing and removing two set screw

by Hexagon wrench disassemble the

handle.

CAUTION

• Be careful not to scratch.

• When disassembling, make sure the unit

turned off if you want to assembly fellow

the reverse order.

4. Assemble the new handle in the reverse

order of disassembly.

Barosa_User-servicing-manual_EN.indd 3 2021-02-04  11:45:27

English

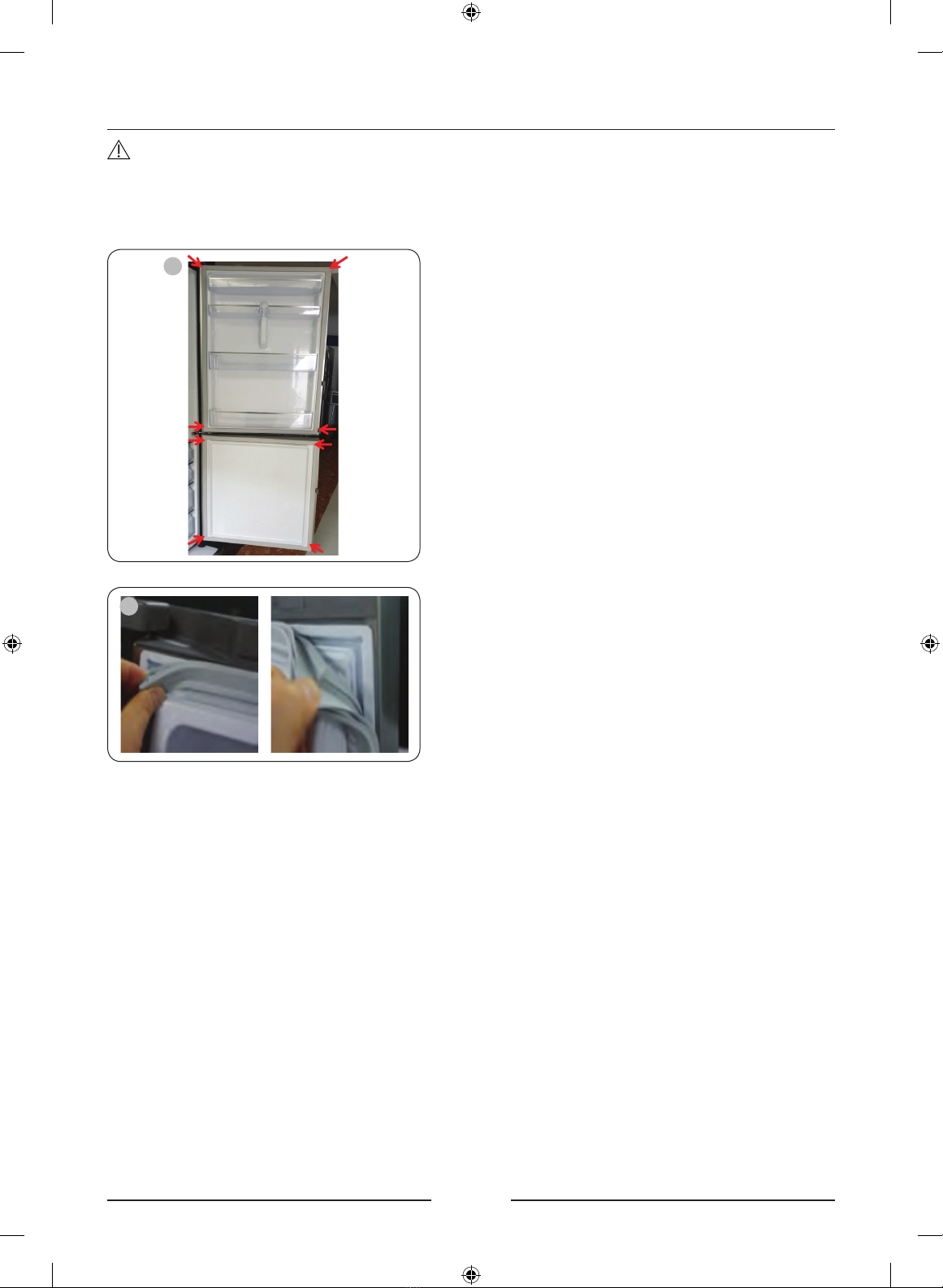

Gasket replacement

CAUTION

Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

Open the door and remove the gasket from

the door.

To replace the gasket

Attach a new gasket to the refrigerator door.

Make sure there is no gap between the newgasket and the door.

Barosa_User-servicing-manual_EN.indd 4 2021-02-04  11:45:27

English

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the drawer

Pull the drawers out fully then slightly lift it

up to remove the drawers.

• If the drawers get stuck to door, remove

drawer by lifting up after remove shelves.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

Hinge replacement

To replace the hinges, you must remove the doors rst.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent

scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we

recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors.

Barosa_User-servicing-manual_EN.indd 5 2021-02-04  11:45:27

English

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench Allen wrench (5 mm)

Reversing the door

Hinge Up



1. Remove the Cover wire Door using a at

head screwdriver.



2. Remove screw 3 ea Cover hinge with the

(+) screwdriver and Disconnect wire.

Barosa_User-servicing-manual_EN.indd 6 2021-02-04  11:45:28

English



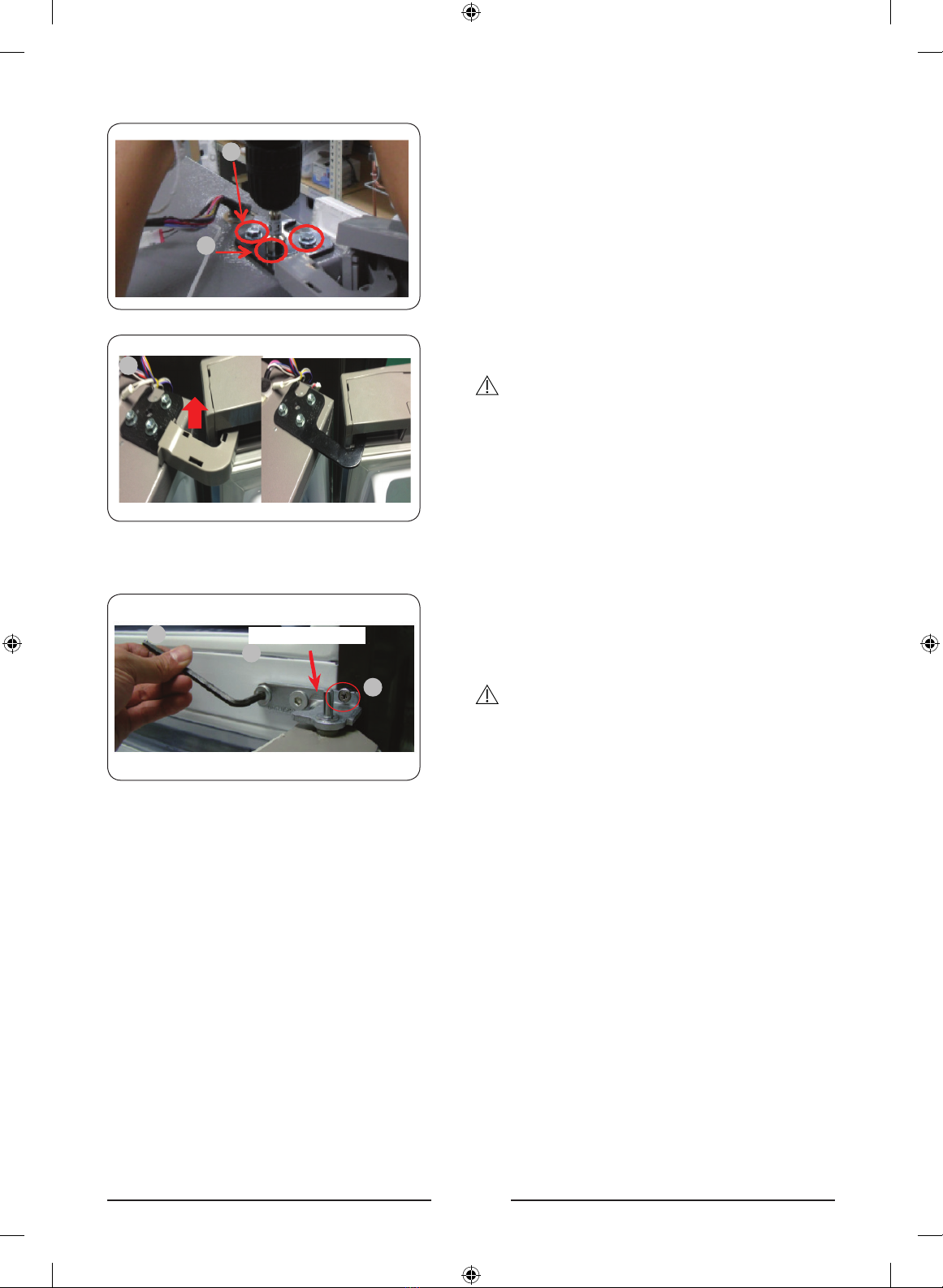

3. Remove the 3 hex bolts that hold the

hinge on the top of the refrigerator with

the 10mm socket wrench.



4. Take out cover hinge wire and remove

hinge.

CAUTION

• Be sure to unplug the power cord before

performing the operation above.

• Must working more than 2 people.

Hinge Mid







ASSY HINGE MID

1. Assembly hinge mid from door ref up.

2. Fix the screw 1 ea the hinge With

(+) screwdriver.

3. Fix the 2 hex bolts that by Allen wrench.

CAUTION

• Be sure to unplug the power cord before

performing the operation above.

• Must working more than 2 people. One

person grab the door to prevent falling

door.

Barosa_User-servicing-manual_EN.indd 7 2021-02-04  11:45:28

English

Hinge Low



1. Lay down product (Refer picture).

CAUTION

• Must to a pad underneath to protect the

back of the product from being damaged.

• Must working more than 2 people.

• Be sure to unplug the power cord before

performing the operation above.



2. Remove the 3 hex bolts that hold the

hinge with the 8 mm socket Wrench or

using (+) screwdriver.

3. Remove Hinge Low.

4. Reassemble in the opposite order of

disassembly after replacing the Hinge Up,

Hinge Mid, and/or Hinge Low.

CAUTION

• Make sure the wire connectors are

connected properly.

• Be careful not to damage the wires when

fastening the top cover.

Barosa_User-servicing-manual_EN.indd 8 2021-02-04  11:45:28

Türkçe

Kullanıcı servis kılavuzu

MODEL KODU: RL4323*, RL4353*

1. Cihaza ilişkin kurulum, bakım, onarım, temizlik bilgileri, cihazın yedek parçalarının

listesi ve yetkili servis aracılığıyla temin edilebilecek yedek parçaların siparişi için

gerekli bilgilere http://samsung.com/support adresinden veya 4447711 numaralı çağrı

merkezinden ulaşabilirsiniz.

2. Model kodu ürününüzün dış tarafına etiketlenmiştir.

- Model kodunu ve sürümü ürünün sol altında bulunan barkod etiketinde görebilirsiniz.

3. Yedek parçalar için parça adının bu kılavuzdaki çizimdekiyle eşleştiğinden emin olun.

- Kullanıcının bakımını yapabileceği parçalar kollar (yalnızca bazı modellerde), contalar,

çekmeceler ve menteşeler ile sınırlıdır.

NOT

Yetkisi olmayan bir servis sağlayıcının yaptığı onarım, kendi kendini onarım veya

ürünün profesyonel olmayan onarımı sonrasında, üründe meydana gelen hasarlardan,

yaralanmalardan veya bu onarım ve bakım talimatlarını dikkatli bir şekilde izlemeden

onarmaya çalışmaktan kaynaklanan ürünle ilgili diğer güvenlik sorunlarından Samsung

sorumlu değildir. Samsung yetkili servis sağlayıcısı haricinde birinin ürünü onarmaya

çalışmasından kaynaklanan üründeki hasarlar garanti kapsamına alınmaz.

DİKKAT

• Sitede listelenen parça adı bu kılavuzdakinden farklı olabilir. Lütfen doğru parça adını

seçtiğinizden emin olun.

• Kapıyı çıkarmak gerektiğinden menteşeleri değiştirme aşırı dikkat gerektirir.

• Onarım yaparken güvenlik eldiveni taktığınızdan emin olun.

Barosa_User-servicing-manual_TR.indd 1 2021-02-04  11:45:22

Türkçe

Buzdolabının gerçek görüntüsü ve sağlanan parçalar modele ve ülkeye bağlı olarak

değişebilir.

01 Üst Menteşe 02 Conta

03 Çekmece 04 Orta Menteşe

05 Barkod etiketi 06 Alt Menteşe

Barosa_User-servicing-manual_TR.indd 2 2021-02-04  11:45:22
