Samsung SRG-V57 Manuel utilisateur

REFRIGERA

TOR

Model : SR(G)-V57, 569MV, 569LV

Model : SR(G)-V52, 519MV, 519LV

REFRIGERATOR CONTENTS

1. Warning For Safety

2. Product Specifications

3. Electrical Part Specifications & Standard

4. Circuit Diagram

5. Function & Operating Instruction

6. Cool Air Circulation

7. Exploded View And Parts List

8. Disassembling The Freezer Compartment

9. Disassembling Fresh Food Compartment

10. Assembly Of Mechanic Compartment In The

Refrigerator

11. Disassembling And Assembling The Electrical

Equipment box

12. Trouble Shooting

13. Specifications Of Package

GREEN

SR(G)-V52

SR(G)-519MV

SR(G)-519LV

SR(G)-V57

SR(G)-569MV

SR(G)-569LV

SRG-V57

SRG-569MV

SRG-569LV

SRG-V52

SRG-519MV

SRG-519LV

[NON-CFC]

SERVICE

Manual

HOL

BENZENE

Samsung Electronics 1

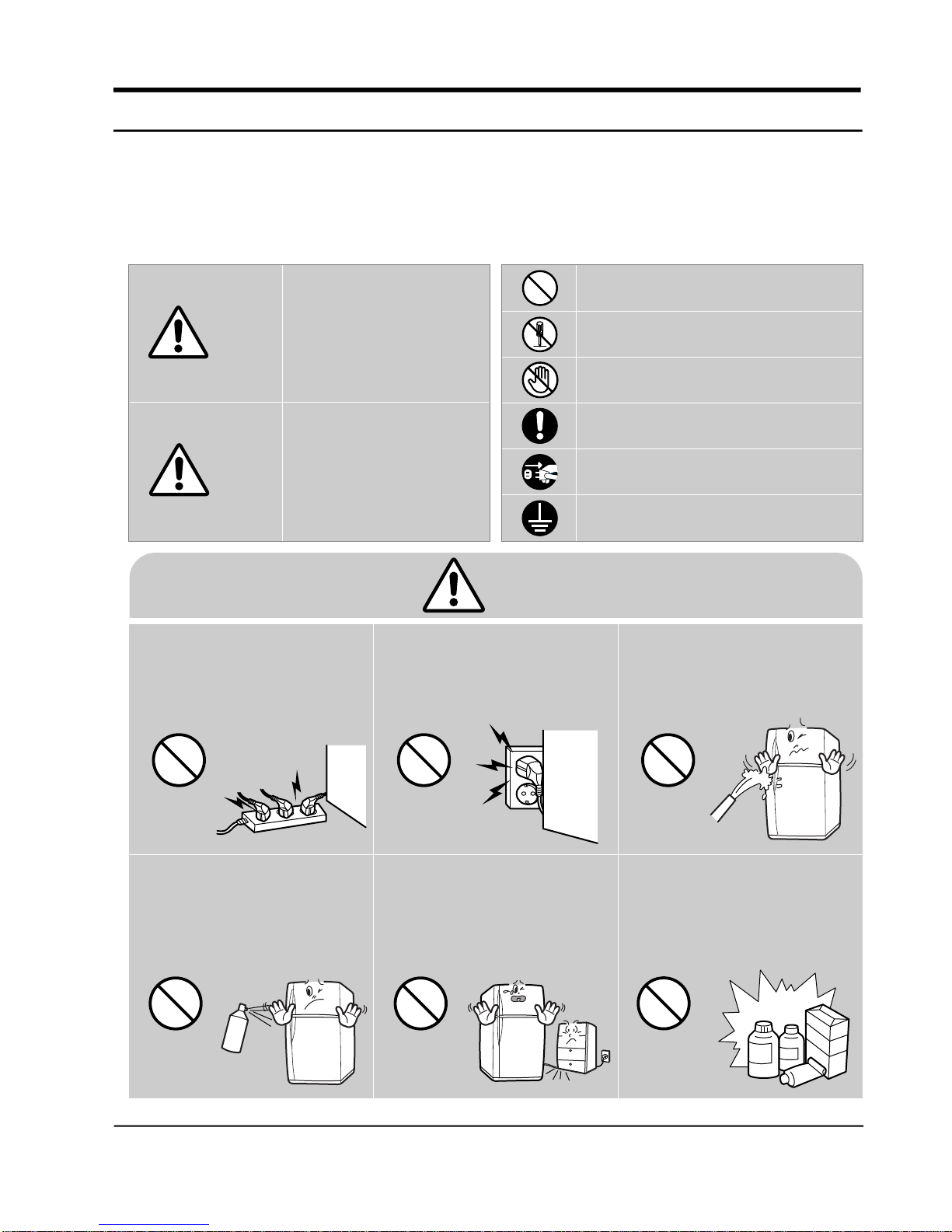

1. Warning for safety

This is to prevent users or other persons from being wounded or injured, by using the present product properly. Be sure to observe

these contents for safely. (After reading these contents, please keep in such a safe place as to look up)

Contents of caution/warning Contents of indication

Represents the contents of prohibition

Represents the prohibition of disassembly.

Represents the prohibition of contact.

Represents what has to be observed.

Represents that a power plug has to be separated

from the plug socket.

Represents earth for prevention of electric

shock.

Do not insert the power plugs for

many products at the same time.

• May cause abnormal generation of heat

or fire.

Set the power plug free from the back

side of the refrigerator.

• Damaged power plug may cause fire due

to short circuit.

Do not directly spray water inside or

outside of the refrigerator

• May cause fire or electric shock.

Do not spray inflammable gas near the

refrigerator.

• May cause explosion or fire.

Do not bend the power cord with

excessive force or do not have the

power cord pressed by heavy article.

•

May cause fire.

Do not store a volatile and inflammable

substance in the refrigerator.

•

Storage of benzene, thinner, alcohol,

ether, LP gas, etc.,

may cause explosion.

Warning Represents the contents that death

or heavy injury of a person is

foreseen.

Caution Represents the contents that injury

of a person or damage of material

is foreseen.

Warning

25cm

2Samsung Electronics

Warning

Do not put a container filled with water

on the product.

• If water poured, it cause bad insulation

of the electric parts which may lead to

fire or electric shock.

Do not install the refrigerator in the wet

place or the place which water

splashes.

• Deterioration of insulation of electric

parts may cause electric shock or fire.

Do not insert the power plug with the

wet hand.

• May cause electric shock.

Do not disassemble, repair or alter.

• It may cause fire or abnormal operation

which leads to injury.

Pull the power plug out for exchanging

the interior lamp of the refrigerator.

• It may cause electric shock.

Be sure to earth.

• If earthing is not done, it will cause

breakdown and electric shock.

(Please refer to page 6).

If and when gas leaks, immediately ventilate without

touching the refrigerator and the plug.

• Explosion of gas may cause fire and a burn.

Dispose refrigerator after door or door‘s packing is

removed, if disposition is required.

• It is dangerous for child to enter the refrigerator for play-in

with door closed.

Samsung Electronics 3

Caution

Do not store too much foodstuffs therein.

• Opening of the door may cause pouring over which may inflict

a wound.

Do not store narrow and lengthy bottles or foods in a small

multi-purpose room.

• It may hurt you when refrigerator door is opened and closed

resulting in falling stuff down.

If the hole of the power plug socket is loose, do not insert

the power plug.

• It may cause electric shock and fire.

Do not put bottles or kinds of glass in the freezing room.

• Freezing of the contents may inflict a wound.

Do not store articles on the product.

• Opening or closing of the door may cause throwing down

which may inflict a wound.

Do not pluck out the power cord by pulling the portion of it.

• Damage of the cord portion may cause fire and electric shock.

Do not let a child be hung down from the door.

• injury may occurs, when the product falls down or a finger is

jammed in the door.

Do not store pharmaceutical products, scientific materials,

etc,. in the refrigerator.

• The products which temperature control shall be strict shall not

be stored in the refrigerator.

After five minutes

4Samsung Electronics

Caution

Do not touch the container and the food stuffs of the

freezing room with the wet hand.

• It may cause frostbite.

Do not enter the hand into the bottom surface of the product.

• Sharp edge may inflict a wound.

Please wipe out foreign materials of the metal option of the

power plug cleanly.

• Use of it as it is may cause fire.

If you want to insert the power plug again, please insert it five

minutes after pulling out of the plug socket.

• Abnormal operation of freezing device may cause breakdown of

it.

Move it by catching the upper handle of rear side and the

lower handle of front side.

• Slippery is caused to hurt, when other part is grasped.

Use handle when opening and closing the refrigerator door.

• In case of using other parts than handle, it may hurt you with

your finger jammed.

If the refrigerator is not to be used for a long time, pull out

the power plug.

• Due to deterioration of insulation, may cause fire.

When abnormal sound, smell or smoke is noticed, pull a

power plug off immidiately, then call service center.

Samsung Electronics 5

2. Product Specifications

SRG-V57

High

344LT (12.1cu.ft)

464LT (16.3cu.ft)

304LT (10.7cu.ft)

424LT (14.9cu.ft)

1836

“X”-FLOW MULTI-FLOW “X”-FLOW MULTI-FLOW

1748

Model name (NON-CFC)

Option

Type

Power source

2-Door Freezer/Refrigerator

AC 110V/60Hz, 220V/50Hz, 230~240V/50Hz

120LT (4.2cu.ft)

HFC-134a / 160Gr

Automatic (Thermostat)

Automatic (Start-Finish by Timer)

740

705

ABS

1 Guard bottle

2 Guard freezer

3 Guard variety

2 Tray egg

1 Freezer shalf

1 Air shower

2 Twist tray ice

1 Tray ice cube

Freezer

Refrigerator

Total

Capacity

(Net )

Width

Depth

Height

Net

Dimensions

(mm)

Cabinet-insulation

Door-insulation

Foam Cyclo-Pentane

Door storage

Inside

storage

Accessory

Parts

Net weight (Kg)

Refrigerant

Temperature control

Defrosting

Refrigerator cooling type

Liner/Door Panel

SRG-569MV

Middle

SRG-569LV

Low

SRG-V52

High

SRG-519MV

Middle

SRG-519LV

Low

NON-CFC

6Samsung Electronics

1 Tray chilled room

1 vegetable ware

1 Guide vegetable

2 (Refrigerator), 1 (Freezer)

2 (Rear), 2 (Front)

2 Legs (Front)

Interior lamp

Movable caster

Angle adjustment

Inside

storage

R2 Slide-out

shelves

2 Slide-out

wire shelves

2 Slide-out

wire shelves

2 Slide-out

shelves

Accessory

Parts

Model name (NON-CFC)

Option

SRG-V57

High

SRG-569LV

Low

SRG-569MV

Middle

SRG-V52

High

SRG-519LV

Low

SRG-519MV

Middle

Samsung Electronics 7

SR-V57

High

344LT (12.1cu.ft)

464LT (16.3cu.ft)

304LT (10.7cu.ft)

424LT (14.9cu.ft)

1836

“X”-FLOW

MULTI-FLOW

“X”-FLOW

MULTI-FLOW

1748

Model name (CFC)

Option

Type

Power soruce

2-Door Freezer/Refrigerator

115V/60Hz, 220V/50, 60Hz, 230~240V/50Hz

120LT (4.2cu.ft)

R-12 / 160Gr

Automatic (Thermostat)

Automatic (Start-Finish by Timer)

740

705

ABS

1 Guard bottle

2 Guard freezer

3 Guard variety

2 Tray egg

1 Freezer shalf

1 Air shower

2 Twist tray ice

1 Tray ice cube

Freezer

Refrigerator

Total

Capacity

(Net )

Width

Depth

Height

Net

Dimensions

(mm)

Cabinet-insulation

Door-insulation

Foam Cyclo-Pentane

Door storage

Inside

storage

Accessory

Parts

Net weight (Kg)

Refrigerant

Temperature control

Defrosting

Refrigerator cooling type

Liner/Door Panel

SR-569MV

Middle

SR-569LV

Low

SR-V52

High

SR-519MV

Middle

SR-519LV

Low

CFC

8Samsung Electronics

1 Tray chilled room

1 vegetable ware

1 Guide vegetable

2 (Refrigerator), 1 (Freezer)

2 (Rear), 2 (Front)

2 Legs (Front)

Interior lamp

Movable caster

Angle adjustment

Inside

storage

R2 Slide-out

shelves

2 Slide-out

wire shelves

2 Slide-out

wire shelves

2 Slide-out

shelves

Accessory

Parts

Model name (CFC)

Option

SR-V57

High

SR-569LV

Low

SR-569MV

Middle

SR-V52

High

SR-519LV

Low

SR-519MV

Middle

Spilt fin type

Forced & Natural convection

Molecular sieve

I.D 0.75XL2450 (mm) [5.09kg/cm2]

PFN-174S-05B, B363-E9

PDC-219 SA, D705-E9C

AC125/250V, 10/5A

ON : -5±3˚C, OFF : 12±3˚C

250V/10A

72±4˚C

Samsung Electronics 9

3. Electrical part specifications & standard

110/60

SK170E-L2W

NON-CFC

SRG-V57, 569M, LV

SRG-V52, 519M, LV

CFC

SR-V57, 569M, LV

SR-V52, 519M, LV

ITEM

Model

soruce(Volt/Hz)

STANDARD

Model

Starting Type

Oil charge

CSR RSCR

FREOL α– 15C

265cc

SUNISO 2GSD (R-12)

CSR RSCR

200cc 265cc

Compressor

Freezer

Refrigerator

Bimetal-Thermo.

(Off/On)

Thermal-

Fuse

Type

Defrosting cycle

Defrosting Time

Model

Primary resistance

Type

operating

Temp.

Regularity

operating

Temp.

TMDE 714TA1

6HR 35min

13min±40sec

912x32E 100MQ

16APE3

10Ω±20%

TMDE 714 TF1

7HR 54min±6min (50Hz)

14min 26sec±3min

TMDE 714TA1

6HR 35min

13min±40sec

PTHAS-

T220M350D

68Ω±20%

PTHAS-

T220M350D

68Ω±20%

912x35E 330MT

20APE2

32Ω±20%

912x35E 330MT

20APE2

32Ω±20%

912x32E 100MQ

16APE3

10Ω±20%

TMDE 714 TF1

7HR 54min±6min (50Hz)

6HR 35min±5min (60Hz)

14min 26sec±3min(50Hz)

13min 40sec±2min(60Hz)

Thermostat

Defrost-

Thermo

Defrost-

Timer

Starting-

Relay

Evaporator

Condenser

Dryer

Capillary Tube

220/50

SK182H-L2U

240/50

SK182Q-L2U

115/60

SD362C-L2W2

220/50,60

SK370H-L2U

240/50

SK370Q-L2U

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Réfrigérateur

Samsung

Samsung RSG257AABP - 24 cu. ft Manuel utilisateur

Samsung

Samsung RS261M Series Instructions de montage

Samsung

Samsung RFG297AARS Manuel utilisateur

Samsung

Samsung RSH5PTPN Manuel utilisateur

Samsung

Samsung RB195ACRS Manuel utilisateur

Samsung

Samsung RS757LHQESR Manuel utilisateur

Samsung

Samsung RS265TD series Manuel utilisateur

Samsung

Samsung RS23KCSW Guide de sécurité

Samsung

Samsung RB38A7B63S9/EF Manuel utilisateur

Samsung

Samsung Refrigerator Manuel utilisateur

Samsung

Samsung RF23M8590SR/AA Manuel utilisateur

Samsung

Samsung RR19 series Manuel utilisateur

Samsung

Samsung RF4289HARS Manuel utilisateur

Samsung

Samsung rf28hmedbsr Manuel utilisateur

Samsung

Samsung RT44A Series Manuel utilisateur

Samsung

Samsung RF28HDED Series Manuel utilisateur

Samsung

Samsung RL36SBMT Manuel utilisateur

Samsung

Samsung BRB26602FWW Manuel utilisateur

Samsung

Samsung RS64R5311M9/FA Manuel utilisateur

Samsung

Samsung RSG257AA Series Manuel utilisateur

Samsung

Samsung HNR3117 Manuel utilisateur

Samsung

Samsung Refrigerator Manuel utilisateur

Samsung

Samsung RFG296HD SERIES Manuel utilisateur

Samsung

Samsung RT3 SERIES Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur

Teledyne

Teledyne 6712FR and Mode d'emploi
