Samsung RT38 Manuel utilisateur

REFRIGERATOR

REFRIGERATOR CONTENTS

1. PRECAUTIONS

2. PRODUCT SPECIFICATIONS

3. DISASSEMBLY AND REASSEMBLY

4. TROUBLESHOOTING

5. PCB DIAGRAM

6. WIRING DIAGRAM

7. BLOCK DIAGRAM

8. SCHEMATIC DIAGRAM

9. REFERENCE INFORMATION

Basic Model : RT38(RT42) / RT35(RT39) / RT32(RT36) /

RT29(RT33) / RT25(RT28) / RT22(RT26)

Model Code :

RT38(RT42)FA* / RT35(RT39)FA* / RT32(RT36)FA* / RT29(RT33)

FA* / RT25(RT28)FA* / RT22(RT26)FA* (Basic)

RT35(RT39)FB* / RT32(RT36)FB* / RT29(RT33)FB* (Dispenser)

RT38(RT42)FD* / RT35(RT39)FD* / RT32(RT36)FD* (Display)

RT38(RT42)FE* / RT35(RT39)FE* (Display+Dispenser)

RT38(RT42)FF* (Display+Dispenser+Stand Table)

RT38(RT42)FG* / RT35(RT39)FG* / RT32(RT36)FG* / RT29(RT33)

FG* / RT25(RT28)FG* / RT22(RT26)FG* (Stand Table)

RT35(RT39)FJ* (Display+Stand Table)

RT**FB RT**FA

RT**FG

RT**FD

RT**FJ

RT**FF

RT**FE

[HANDLE Type] : Recessed & BAR

2. PRODUCT SPECIFICATIONS

2-1. Introduction of Main Function

• A newly developed SAMSUNG Top mount freezer has the following characteristics.

QUICK COOLING MODE

Pushing "Power Cool" button on the display, fridge starts cooling

inside powerfully and helps reach to the target temperature in a short

time. This convenient mode can reduce waiting time for cooling when

needed.

6TH Option(Exterior) : D,J,E,F

EASY ACCESS DISPENSER

Locating the dispenser at the waist level, the access to water gets

easier without the need to bend over your waist.

6th Option(Exterior) : B,E,F

EASY HANDLE

A modern style Easy Handle features advanced method in door

opening. Simply click on the button in the handle and it pushes the

body, enabling an easy and effortless opening.

7th Option(Handle) : A

RECESSED HANDLE & SIDE RECESSED HANDLE

With it's ergonomic design of the front and side recessed handle, the

door can be opened easily.

7th Option(Handle) : R

BAR HANDLE & SIDE RECESSED HANDLE

With comfortable grip of bar handle, the door can be opened more

easily. And the front of the side recess handle sticks out more than

the back, enabling to open the door easily with elbow while both

hands are full of groceries.

7th Option(Handle) : J

AUTO ICE MAKER

- All the process of ice making is done automatically only by filling the

water tank.

- 5L big capacity ice maker gets ice cubes always ready.

8th Option(Interior) : K

PRODUCT SPECIFICATIONS

ICE MAX

Ice Max provides two times bigger space than conventional model

by adding one more ice box. The two ice boxes can contain enough

amount of ice to serve many visitors ice beverage without the need to

purchase more ice.

The right ice box can be removed for more space to store other items.

With the removable ice box, the space can be adjusted more flexibly

depending on your need.

8th Option(Interior) : C,D,F,G,J,Q,S

COOL PACK

Even in case of power shut-off, cool pack keeps cooling for 8 hours,

which keeps foods from defrosting or ending up in the rubbish bin.

8th Option(Interior) : B,C,E,F,G,K,Q,R,S,Z

MULTI STORAGE BASKET

- Multi Storage Basket was designed to store various items such as

cosmetics, medinines, and sauces separately from others.

- It also can be detached and moved conveniently to a desired place.

8th Option(Interior) : C,D,E,F,G,S

EASY SLIDE

This specially designed shelf that can slide out enables a more

efficient organization where one can easily store and take out food,

while reducing unused space inside.

8th Option(Interior) : ALL

BIG GUARD

A wider and deeper Big Guard can store big and tall bottles easily,

enabling to enjoy a big bottle of beverage for a long period of time or

to store more and various beverages.

Available : 290L, 320L, 350L, 380L

ANTI BACTERIA PROTECTOR

The inside fan creates air movement passing through a sterilizing /

deodorizing filter and ensures more effective and powerful sterilization

and deodorization.

8th Option(Interior) : D only

Deodorizing Filter

Has a natural ﬁber ﬁlter and deodorizing ﬁlter to

eliminate food smell and bacteria that changes the

original smell of groceries. SILVER+ DEODORIZER

Deodorizing Filter

Has a natural fiber filter and deodorizing filter to eliminate food smell

and bacteria that changes the original smell of groceries.

8th Option(Interior) : All option excluded D

PRODUCT SPECIFICATIONS

2-2. Model Specification

MODEL RT38(RT42) RT35(RT39) RT32(RT36)


CAPACITY 380L 350L 320L

DIMENSION

(W X D X H) 675 X 668 X 1785 675 X 668 X 1715 600 X 672 X 1715

FEATURE

DISPLAY

DISPENSER

EZ-HANDLE / BAR / RECESS

STAND-TABLE

AUTO-ICE MAKER/ ICE MAX /

TWIST ICE MAKER / TRAY

COOL PACK

BEAUTY BASKET

EZ SLIDE SHELF

ANTI VIRUS PROTECTOR

DEODORIZER

DISPLAY

DISPENSER

EZ-HANDLE / BAR / RECESS

STAND-TABLE

ICE MAX / TWIST / TRAY

COOL PACK

BEAUTY BASKET

EZ SLIDE SHELF

ANTI VIRUS PROTECTOR

DEODORIZER

DISPLAY

DISPENSER

EZ-HANDLE / BAR / RECESS

STAND-TABLE

ICE MAX / TWIST / TRAY

COOL PACK

BEAUTY BASKET

EZ SLIDE SHELF

DEODORIZER

MODEL RT29(RT33) RT25(RT28) RT22(RT26)


CAPACITY 290L 250L 220L

DIMENSION

(W X D X H) 600 X 672 X 1635 555 X 637 X 1635 555 X 637 X 1545

FEATURE

DISPLAY

DISPENSER

EZ-HANDLE / BAR / RECESS

STAND-TABLE

ICE MAX / TWIST / TRAY

COOL PACK

BEAUTY BASKET

EZ SLIDE SHELF

DEODORIZER

DISPLAY

DISPENSER

EZ-HANDLE / BAR / RECESS

STAND-TABLE

ICE MAX / TWIST

COOL PACK

BEAUTY BASKET

EZ SLIDE SHELF

DEODORIZER

DISPLAY

DISPENSER

EZ-HANDLE / BAR / RECESS

STAND-TABLE

ICE MAX / TWIST

COOL PACK

BEAUTY BASKET

EZ SLIDE SHELF

DEODORIZER

PRODUCT SPECIFICATIONS

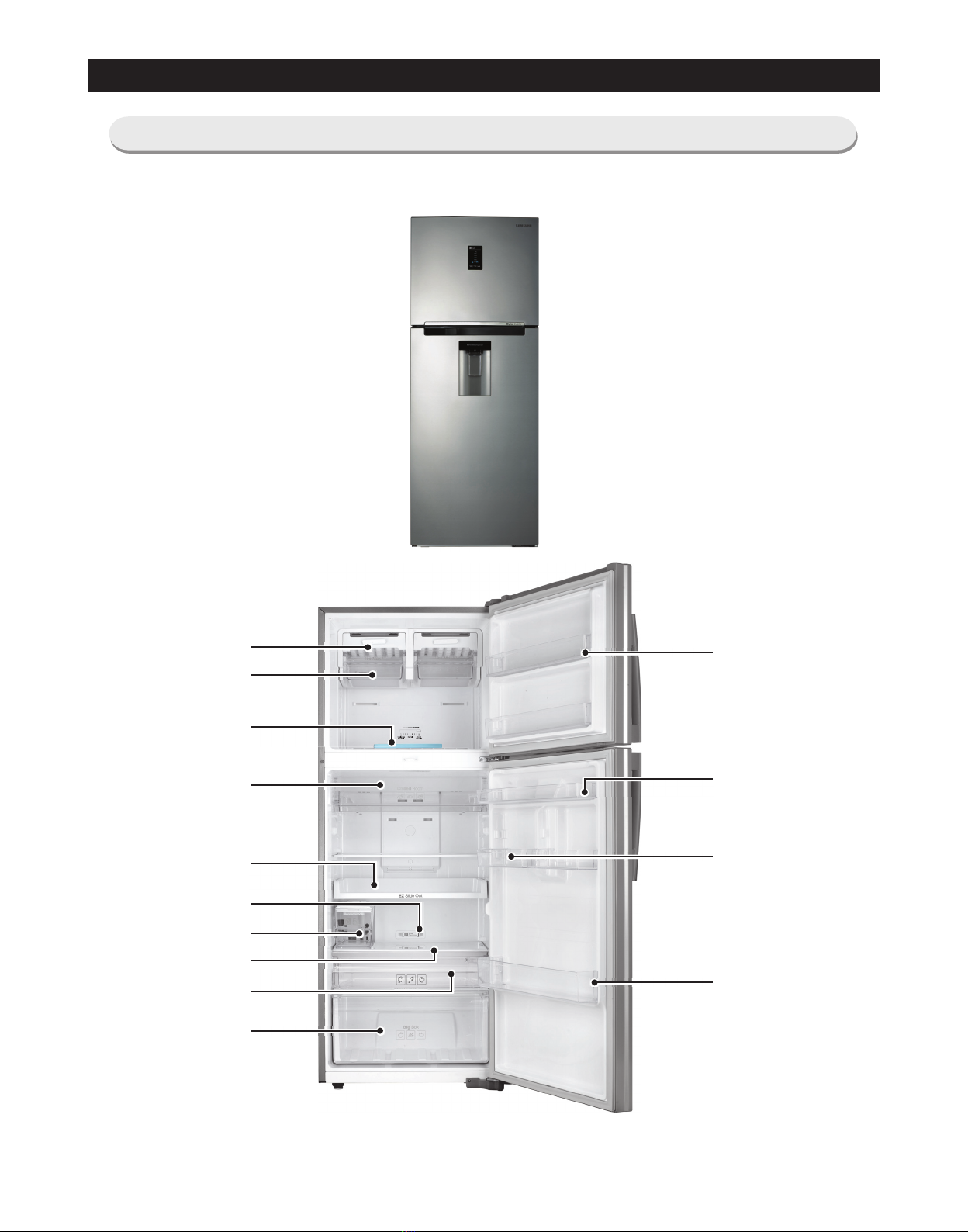

2-3. View of your FRIDGE / FREEZER

Ice Max Type : RT38(RT42), RT35(RT39), RT32(RT36), RT29(RT33), RT25(RT28), RT22(RT26)

Ice Maker (Option) Freezer Guard

Guard-Egg

Movable Guard (Option)

Guard-Bottle

Ice Bucket (Option)

Cool-Pack (Option)

Chilled-Room (Option)

Slide Shelf

Deodorizer

Water Tank (Option)

2nd Drawer (Option)

Refrigerator Shelf

Vegetable Drawer

PRODUCT SPECIFICATIONS

Twist Type : RT38(RT42), RT35(RT39), RT32(RT36), RT29(RT33), RT25(RT28), RT22(RT26)

Tray Type : RT38, RT35, RT32, RT29F**L

Cool Pack(Option)

or Shelf-Half

Shelf-Full

Tray Ice

(Option)

PRODUCT SPECIFICATIONS

Auto Ice Maker Type : RT38F**K

Cool Pack(Option)

or Shelf

Tray Ice (Option)

Auto Ice Maker

(Option)

PRODUCT SPECIFICATIONS

2-4. Model Specification

Model RT38(RT42) RT35(RT39) RT32(RT36)

Type TMF 2 Door

Temperature control Electronic

Option

Chilled &

Movable

Box

Dispenser Auto Ice

Maker

Chilled & Movable

Box Dispenser Chilled & Movable

Box

Chilled &

Dispenser

Net

Capacity

(ISO)

Total 385 380 372 363 359 322 320

Freezer 87 87 79 87 87 72 72

Refrigerator 298 293 293 276 272 250 248

Dimension

(WXDXH)

Net 675 X 668 X 1785 675 X 668 X 1715 600 X 672 X 1715

Package

Recess 716 X 702 X 1850 716 X 702 X 1780 641 X 709 X 1780

Bar 716 X 749 X 1850 716 X 749 X 1780 641 X 756 X 1780

Foam

insulation

Cabinet CYCLO-PENTANE CYCLO-PENTANE CYCLO-PENTANE

Door CYCLO-PENTANE CYCLO-PENTANE CYCLO-PENTANE

Liner

Cabinet ABS ABS ABS, HIPS(SIEL-C)

Door ABS ABS ABS, HIPS(SIEL-C)

Net weight (Kg) 66.5 59.5 57.7

Model RT29(RT33) RT25(RT28) RT22(RT26)

Type TMF 2 Door

Temperature control Electronic

Option

Chilled & Movable

Box

Chilled &

Dispenser Chilled Chilled

Net

Capacity

Total 302 299 255 234

Freezer 72 72 53 53

Refrigerator 230 227 202 181

Dimension

(WXDXH)

Net 600 X 672 X 1635 555 X 637 X 1635 555 X 637 X 1545

Package

Recess 641 X 709 X 1698 582 X 663 X 1698 582 X 663 X 1610

Bar 641 X 756 X 1698 582 X 710 X 1698 582 X 710 X 1610

Foam

insulation

Cabinet CYCLO-PENTANE CYCLO-PENTANE CYCLO-PENTANE

Door CYCLO-PENTANE CYCLO-PENTANE CYCLO-PENTANE

Liner

Cabinet ABS, HIPS(SIEL-C) ABS, HIPS(SIEL-C) ABS, HIPS(SIEL-C)

Door ABS, HIPS(SIEL-C) ABS, HIPS(SIEL-C) ABS, HIPS(SIEL-C)

Net weight (Kg) 53.7 50.7 48.3

PRODUCT SPECIFICATIONS

2-5. Electrical Part Specifications & Standard

Model RT38(RT42)F***A**

RT38(RT42)F***D** RT38(RT42)F***C** RT35(RT39)F***A**

RT35(RT39)F***D** RT35(RT39)F***C** RT32(RT36)F***A**

RT32(RT36)F***D** RT32(RT36)F***C**

Type TMF 2 Door

Rated Input

110~127V/60Hz

220~240V/50~60Hz

110~127V/60Hz

220~240V/50~60Hz

110~127V/60Hz

220~240V/50~60Hz

110~127V/60Hz

220~240V/50~60Hz

110~127V/60Hz

220~240V/50~60Hz

110~127V/60Hz

220~240V/50~60Hz

Compressor

Model

MSV488AL1R MSV488AL1P MSV488AL1R MSV488AL1P MSV488AL1R MSV488AL1P

Type

BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER)

Refrigerant

R-600a, 57g R-600a, 65g R-600a, 57g R-600a, 65g R-600a, 53g R-600a, 65g

Oil Charge

200cc 200cc 200cc 200cc 200cc 200cc

Evaporator Freezer

Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type

Sub-Condenser

Natural Convection

Type

Natural Convection

Type

Natural Convection

Type

Natural Convection

Type

Natural Convection

Type

Natural Convection

Type

Dryer

Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9

Capillary Tube

ID0.75 X L3000 ID0.75 X L4000 ID0.75 X L3000 ID0.75 X L4000 ID0.75 X L3000 ID0.75 X L4000

Ground Screw

BSBN BSBN BSBN BSBN BSBN BSBN

Model RT29(RT33)F***A**

RT29(RT33)F***D** RT29(RT33)F***C** RT25(RT28)F***A**

RT25(RT28)F***D** RT25(RT28)F***C** RT22(RT26)F***A**

RT22(RT26)F***D** RT22(RT26)F***C**

Type TMF 2 Door

Rated Input

110~127V/60Hz

220~240V/50~60Hz

110~127V/60Hz

220~240V/50~60Hz

110~127V/60Hz

220~240V/50~60Hz

110~127V/60Hz

220~240V/50~60Hz

110~127V/60Hz

220~240V/50~60Hz

110~127V/60Hz

220~240V/50~60Hz

Compressor

Model

MSV488AL1R MSV488AL1P MSV488AL1R MSV488AL1P MSV488AL1R MSV488AL1P

Type

BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER)

Refrigerant

R-600a, 53g R-600a, 65g R-600a, 46g R-600a, 65g R-600a, 46g R-600a, 65g

Oil Charge

200cc 200cc 200cc 200cc 200cc 200cc

Evaporator Freezer

Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type

Sub-Condenser

Natural Convection

Type

Natural Convection

Type

Natural Convection

Type

Natural Convection

Type

Natural Convection

Type

Natural Convection

Type

Dryer

Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9

Capillary Tube

ID0.75 X L3000 ID0.75 X L4000 ID0.75 X L3000 ID0.75 X L4000 ID0.75 X L3000 ID0.75 X L4000

Ground Screw

BSBN BSBN BSBN BSBN BSBN BSBN

PRODUCT SPECIFICATIONS

MODEL RT38(RT42), RT35(RT39), RT32(RT36), RT29(RT33), RT25(RT28), RT22(RT26)

Temperature

Freezer Type Temperature Selection ON (℃)

OFF (℃)

F-Sensor Not applied - -

Refrigerator

R-Sensor

Dispaly bar

type(5steps)

Actual set

temperature

Rotary type(6steps) Actual set

temperature

7℃

6.5±2℃

1 step 6.5±2℃

5℃

5.0±2℃

2 step 5.0±2℃

3℃ 3.0±2℃ 3 step 3.0±2℃

2℃ 2.0±2℃ 4 step 2.0±2℃

5 step 1.0±2℃

1℃

0.5±2℃

6 step 0.5±2℃

Electrical parts

Defrosting

First Defrost Cycle

Not applied

Defrost Cycle Min(6HR), Max(53HR)

Pause Time 10 Min

Sensor

Refrigerator-Sensor

THERMISTOR(PX-41C, 502AT-2)

SPEC (5.0KΩ/25℃)

Freezer Evap-Sensor

Ambient TEMP-Sensor

MODEL RT38(RT42), RT35(RT39) RT32(RT36), RT29(RT33) RT25(RT28), RT22(RT26)

Temperature

RATED INPUT 110~127V/60Hz

220V~240V/50~60Hz 󱈔󱈔

COMPRESSOR MODEL

MSV488AL1R / MSV488AL1P

󱈔󱈔

[ ISO Energy ] A+(RT**F**A**, RT**F**D**): MSV488AL1R / A++(RT**F**C**): MSV488AL1P

Overload Protector 4TM308RFBYY-82 󱈔 󱈔

Motor Fan

3612JL-04W 󱈔 󱈔

3350 ±7% 󱈔 󱈔

1.92W 󱈔 󱈔

92mm/3wing 󱈔 󱈔

Electrical parts

Lamp LED Type FR4, 65*10, 1.6T, 3PKG 󱈔 󱈔

Heater-Defrost

120V, 160W, 90ohm,

230V, 160W, 330ohm

120V, 130W, 110ohm,

230V, 130W, 407ohm

120V, 120W, 120ohm,

230V,120W, 440ohm

Metal Sheath Heater 󱈔 󱈔

Door-Switch

125VAC/1.5A

250VAC/0.75A

1-BUTTON

󱈔󱈔

pump Motor DC12V, 400mA(Optional) 󱈔 Not applied

Switch for water AC 250VAC 16A(Optional) 󱈔 Not applied

MOTOR – ANTI VIRUS PROTECTOR DC12V, 70mA(Optional) Not applied Not applied

Water valve DC12V,300mA(Optional) 󱈔 Not applied

Autres manuels pour RT38

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Réfrigérateur

Samsung

Samsung Refrigerator Manuel utilisateur

Samsung

Samsung RS265LA series Guide de sécurité

Samsung

Samsung RT2 SERIES Manuel utilisateur

Samsung

Samsung RF26J7500 Series Manuel utilisateur

Samsung

Samsung RF4289HA Manuel utilisateur

Samsung

Samsung RL34E Series Manuel utilisateur

Samsung

Samsung RSH1UTPE Manuel utilisateur

Samsung

Samsung RF195AC Manuel utilisateur

Samsung

Samsung RFG296HD SERIES Manuel utilisateur

Samsung

Samsung RS65R56 Series Manuel utilisateur

Samsung

Samsung RF4287HABP Manuel utilisateur

Samsung

Samsung HomePAD HP2777AT Guide de sécurité

Samsung

Samsung DA99-01220J Manuel utilisateur

Samsung

Samsung RF22 Series Manuel utilisateur

Samsung

Samsung RF265ABBP/XAA Manuel utilisateur

Samsung

Samsung RT45M Manuel utilisateur

Samsung

Samsung DA99-01906A Manuel utilisateur

Samsung

Samsung Refrigerator Manuel utilisateur

Samsung

Samsung RT331G Manuel utilisateur

Samsung

Samsung RB215BSSW Manuel utilisateur

Samsung

Samsung RFG298AA Manuel utilisateur

Samsung

Samsung SRF680CDLS Manuel utilisateur

Samsung

Samsung RF22M SERIES Manuel utilisateur

Samsung

Samsung DA99-01225E Guide de sécurité

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur

Teledyne

Teledyne 6712FR and Mode d'emploi
