Samsung RS50N3513SA Manuel utilisateur

English

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com/support

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product.

- You can check the model code and version on the barcode label at the bottom left of

the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual.

- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and

hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional

repair of the product, Samsung is not liable for any damage to the product, any injury or

any other product safety issue caused by any attempt to repair the product which does

not carefully follow these repair and maintenance instructions. Any damage to the product

caused by an attempt to repair the product by any person other than a Samsung certified

service provider will not be covered by the warranty.

CAUTION

•The part name listed on the site may differ from that in this manual. Please make sure

you choose the right part name.

•Replacing hinges requires extreme caution because it involves detaching the door.

•Be sure to wear safety gloves while making repairs.

RB7300T_User-servicing-manual_EN.indd 1 10/15/2020 3:39:13 PM

English

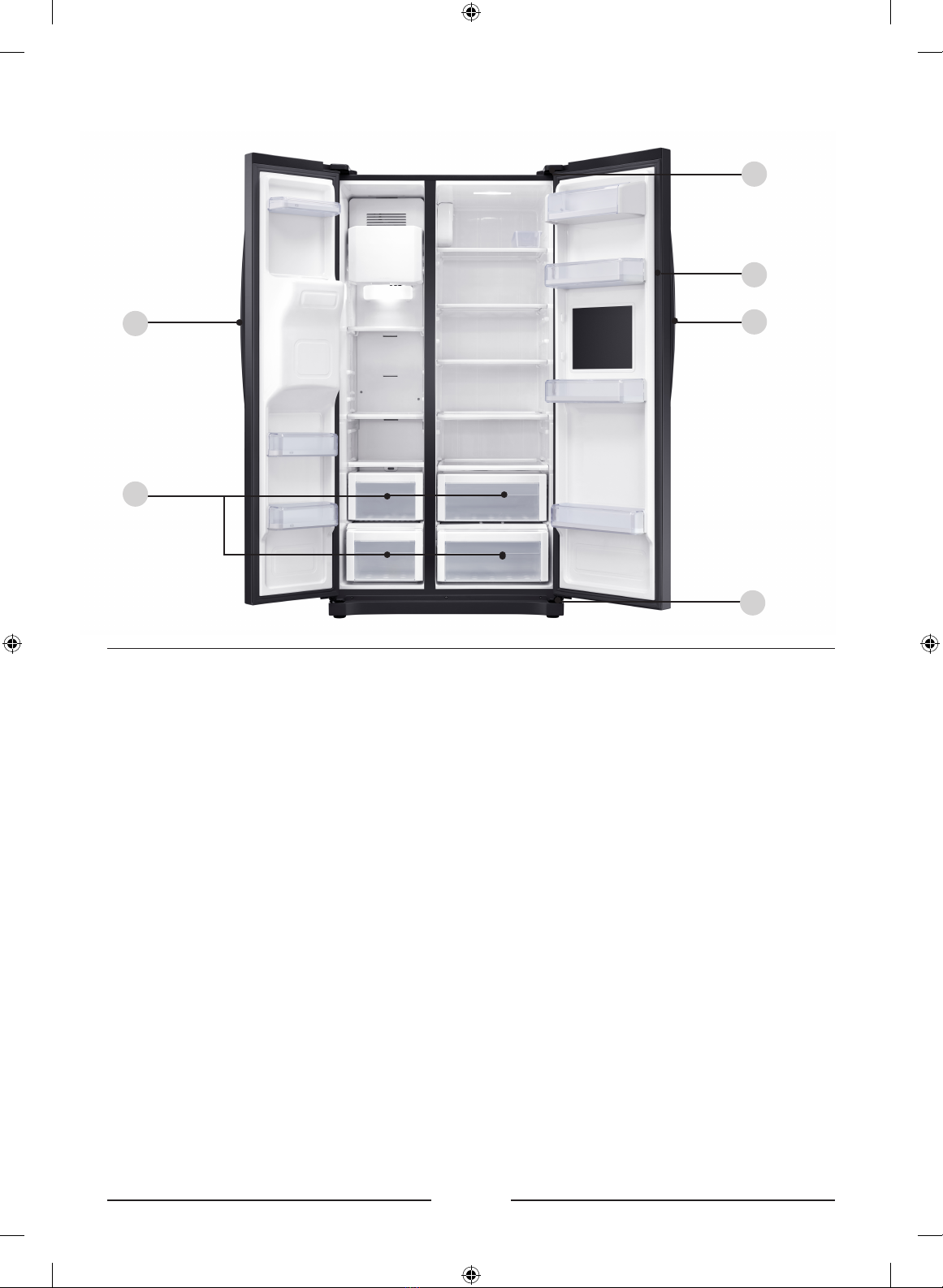

The actual image and provided parts of the refrigerator may differ, depending on the model

and the country.

02 Drawer

04 Gasket

01Handle

03 Top hinge

05 Bottom hinge

RB7300T_User-servicing-manual_EN.indd 2 10/15/2020 3:39:14 PM

English

Handle replacement

Model name looks like this: RS54**3****, RS52**3****, RS50**3****,What replaces the

asterisks may differ depending the model.

Asterisk(s) in the model code indicate a variant model and may replace (0-9) or (A-Z) in

the model code.

CAUTION

•When replacing the door handle, take care not to scratch the front of the door.

•Firmly press the handles at the supports. Make sure there is no gap between the supports

and the door.

•Tightly fasten the screws when attaching the handle.

•Check that the handle is firmly attached before using the product.

Tools required (not provided)

Philips screwdriver Flat-head

screwdriver

To detach the handles

NOTE

This procedure applies to both the fridge and freezer compartment.

RB7300T_User-servicing-manual_EN.indd 3 10/15/2020 3:39:19 PM

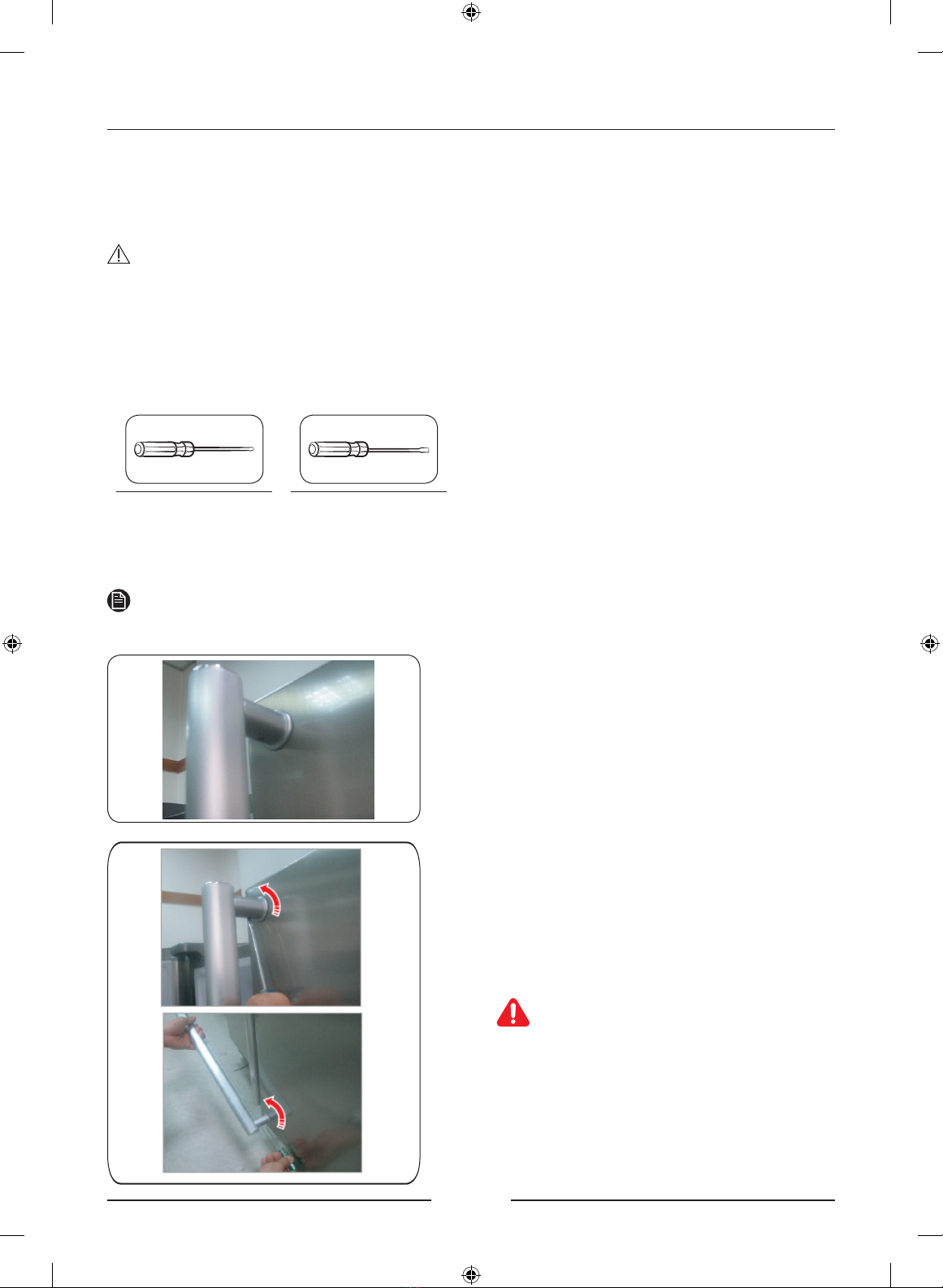

1.Handle Assemblies are located on

the front of>the refrigerator door.

2.Insert the small flat-head driver to the

hole>at the bottom of Cap support

handle and>pull the handle assembly

out to the front>side with turning driver

to one side.

Turn around the Handle assembly

to>one side to dissemble about

the bottom>position

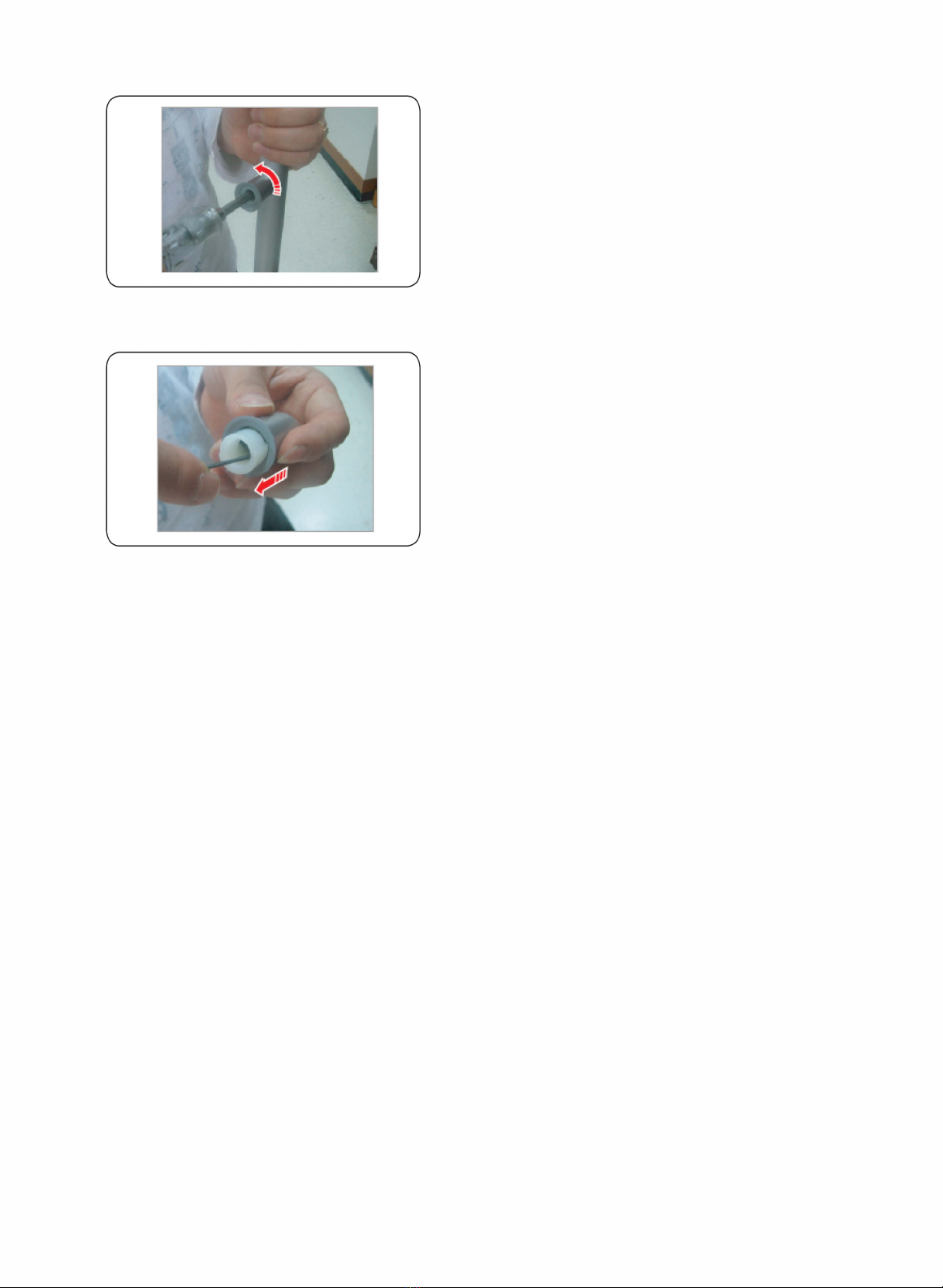

3.Unscrew 4 screws to diassemble

Cap support handle and Support

handle.

4.Pull the Support handle out using

hex wrench as shown or flat-head

driver pushing the back side.

English

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

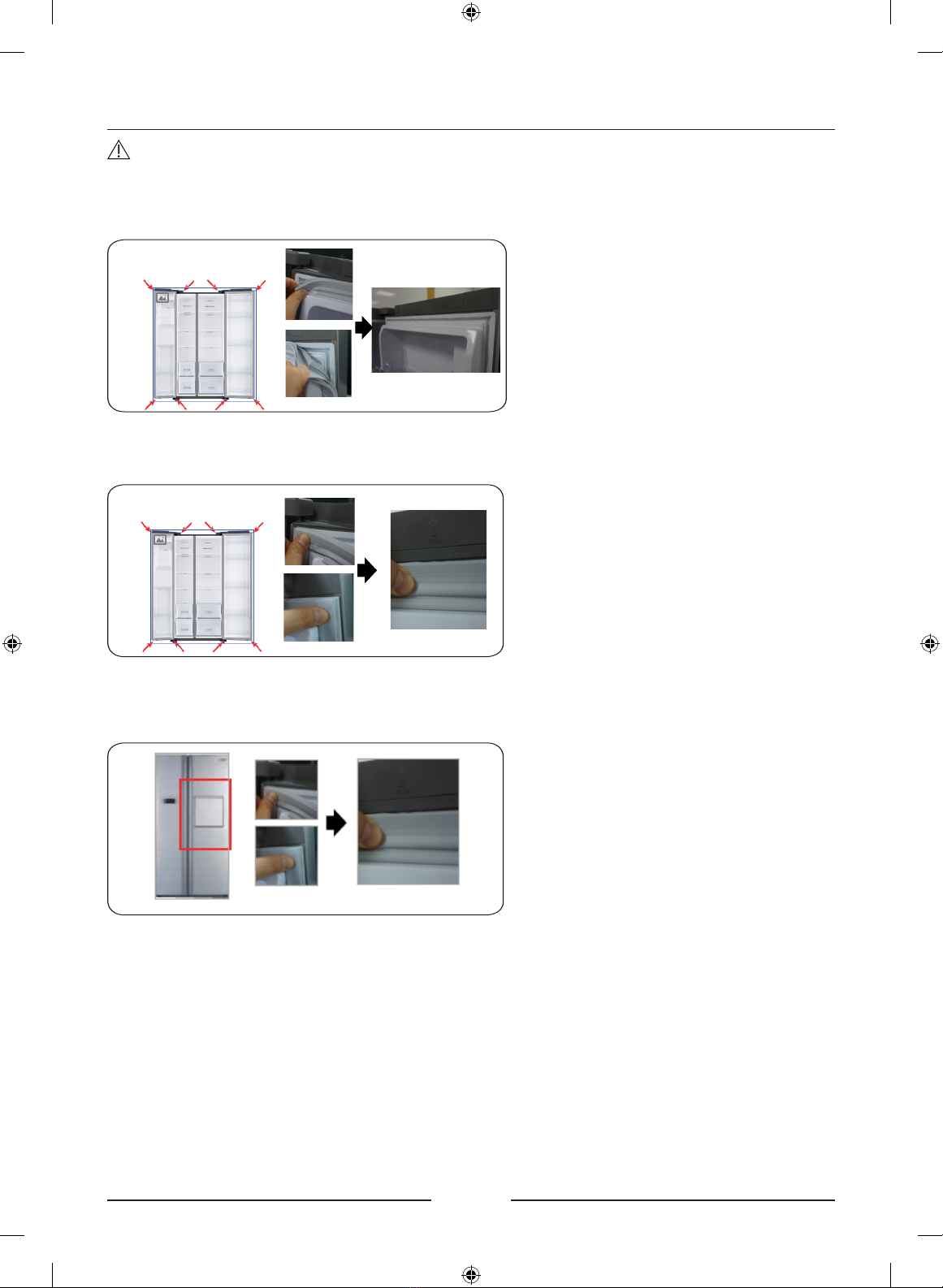

To remove the gasket

1.Pull the 4 corners of gasket.

2.Pull the center of gasket.

To replace the gasket

1.Push the 4 corners of gasket.

2.Push the center of gasket.

RB7300T_User-servicing-manual_EN.indd 4 10/15/2020 3:39:20 PM

Pull the corne of Gasket

1. Push the 4 corners of gasket.

2. Push the center of gasket.

English

Hinge replacement

To replace the hinges, you must remove the doors first.

CAUTION

•When removing the doors, take extreme caution because the doors are heavy.

•Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent

scratches on the door when you place the doors down.

•As the hinges must be handled carefully and replaced by two or more persons, we

recommend you to call for professional technical service.

•If you remove the hinge without holding the door, the door may fall and cause injury.

•Ensure that the shaft is firmly tightened on the hinge.

•Check that the hinge is firmly attached to the cabinet.

•Make sure the wire connectors are connected properly.

•Be careful not to damage the wires when fastening the top cover.

WARNING

•Tilting/laying the refrigerator requires a minimum of 2 people.

•Disconnect the power cord before reversing the doors.

Tools required (not provided)

Philips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench 8 mm socket wrench 10 mm spanner

RB7300T_User-servicing-manual_EN.indd 5 10/15/2020 3:39:20 PM

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

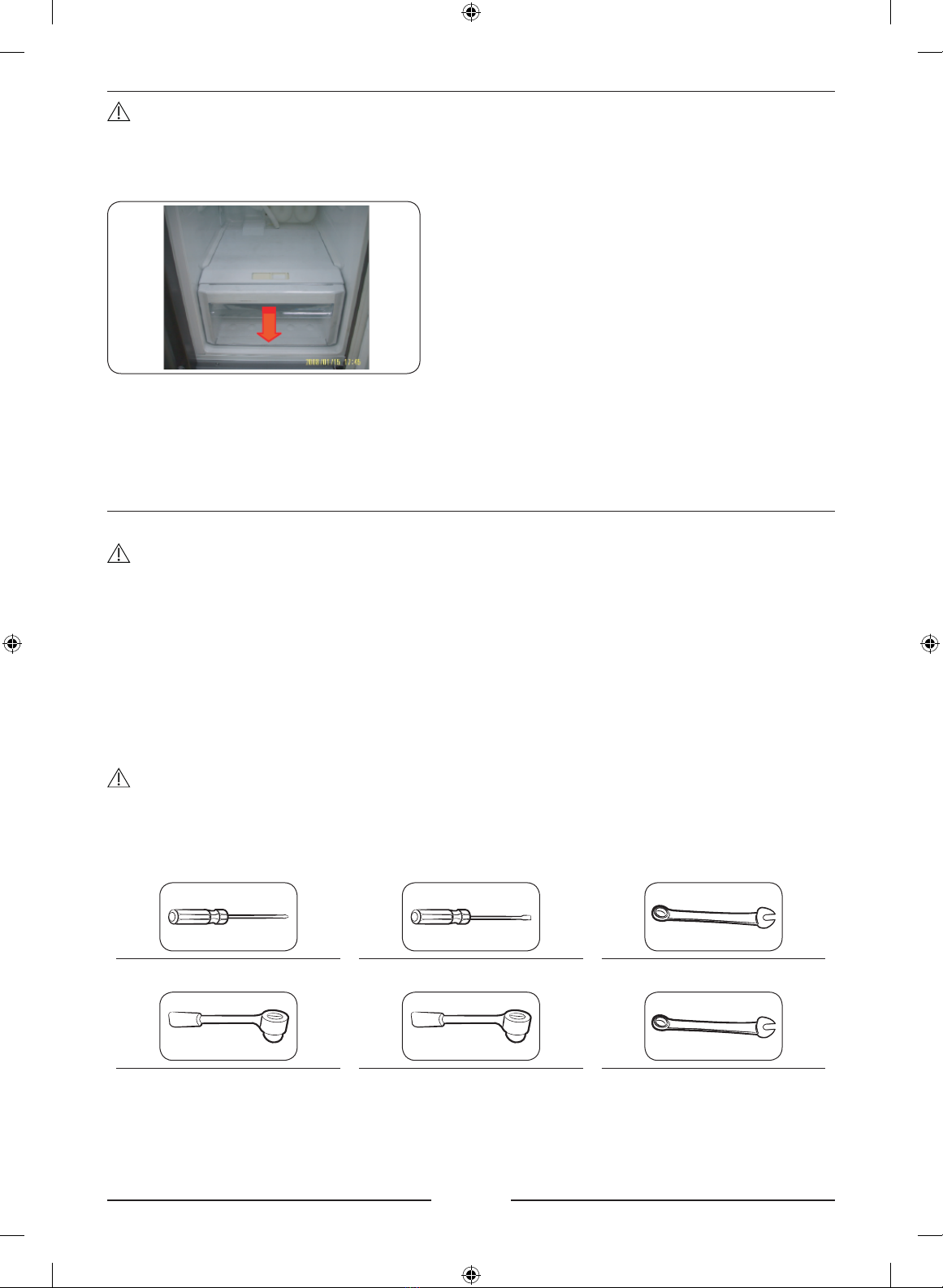

To remove the drawer

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

1. Pull out the drawer as far as it goes.

2. Tilt the drawer up and pull it out until it

is removed.

English

Reversing the door

NOTE

For the models with handles, reverse the handles first. (For detailed information, see the

“Reversing the door handle position (For models with bar handles)” section.)

1. Disconnect the power cord, andremove 1 cover

screws using a Phillips screwdriver.

Then open the Freezer door and pull the hooks on

the sides to loosen the cover.

Lift up the cover towards you to detach it.

2.Disconnect the two top housings.

3.Remove the three bolts holding the hinge.

4.Disassemble the top hinge from

RB7300T_User-servicing-manual_EN.indd 6 10/15/2020 3:39:21 PM

English

RB7300T_User-servicing-manual_EN.indd 7 10/15/2020 3:39:21 PM

PPullullthe guide and hosethe guide and hose

PPushushthe guide and hosethe guide and hose

Hinge lHinge looww

1. Disconnect the Power Cord.

2. Lay down the set.

Must working more than 2 people.

Be sure to unplug the power cord before

performing the operation above.

CAUTION

1. Disconnect Hose.

(Only Hinge Low Left)

2. Exhaust water in Hose.

(Only Hinge Low Left)

3. Remove Bolt(3ea).

(Using spanner or10mm Box wrench)

4. Remove Hinge Low R/L.

1. Assemble hinge low on bottom.

(Using spanner or10mm Box wrench)

2. connect Hose (Only Hinge Low Left)

3. Assemble water in Hose.

(Only Hinge Low Left)

CAUTION

Be sure to unplug the power cord

before performing the operation

above.

1. Assemble Hinge low R/L.

2. Put up the set.

CAUTION

Must working more than 2 people.

Hinge lHinge looww
