Samsung Function controller Manuel utilisateur
Function Controller
OWNER’S
INSTRUCTIONS
EDB98-04188A(1)
System Air Conditioner
Safety Precautions
◆Do not attempt to install or repair this function
controller by yourself.
◆This function controller contains no user-serviceable
parts. Always consult authorized service personnel
for repairs.
◆When moving, consult authorized service personnel
for disconnection and installation of the function
controller.
◆Ensure that the wall is strong enough to support the
weight of the function controller.
◆Must install the function controller with rated power
supply.
◆In the event of a malfunction (burning smell, etc.),
immediately stop operation, turn off the electrical
breaker, and consult authorized service personnel.
WARNING
CAUTION ◆
Do not use inflammable gases near the function
controller.
◆
Do not spill water into the function controller.
◆
Do not operate the function controller with wet hands.
◆
Do not install the function controller in a location
where it will come into contact with the combustible
gases, machine oil, sulphide gas, etc.
◆
Do not press buttons with a pointed thing.
◆
Do not pull or bend the function controller cable
excessively.
◆
Do not use this function controller for other purpose.
◆
Do not spray an insecticide or other combustible
things on the function controller.
◆
Do not clean the function controller with benzene,
solvents or other chemicals.
◆
Do not give a shock to the function controller or
disassemble it by yourself.
E-2
●
Before using the function controller, read carefully this instructions.
●
After reading the instructions, keep this owner's instructions and the
installation manual in a handy and safe place. If a user is changed, you must
hand over the manuals.
●
Never attempt to install the air conditioning system or to move the function
controller by yourself.
E-3
Contents
◆
V
IEW OF THE
F
UNCTION
C
ONTROLLER
◆
G
ETTING
S
TART
◆
S
ELECTING THE
I
NDOOR
U
NIT
◆
S
ELECTING THE
A
UTOMATIC
O
PERATING
M
ODE
◆
C
OOLING
Y
OUR
R
OOM
◆
H
EATING
Y
OUR
R
OOM
◆
R
EMOVING
E
XCESS
H
UMIDITY
◆
A
IRING
Y
OUR
R
OOM
◆
A
DJUSTING THE
A
IR
F
LOW
D
IRECTION
(F
OR
C
ASSETTE
T
YPE
O
NLY
)
4
5
6
7
8
10
12
14
15
E-4
View of the Function Controller
The function controller is an additional controller which is used with the centralized controller.
◆Test button is for your installation specialist. You must NOT press it.
NN
No
ot
te
e
Mode selection button
Communication error indicator
Room number display
Test indicator
Indoor unit selection button
Test button Filter Reset button
Swing button
Temperature adjustment
buttons
Removing frost indicator
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
On/Off indicator
Operating mode
Centralized controller indicator
G
etting Start
You have just purchased a function controller and it has
been installed by your installation specialist.
Your Owner’s Instructions contain much valuable information on
using your function controller. Please take the time to read them as
they will help you take full advantage of the unit’s features.
In the main part of the document, you will find a series of step-by-step
procedures for each function available.
The illustrations in the step-by-step procedures use three different
symbols:
PRESS PUSH HOLD DOWN
E-5
Select an indoor unit you want to control by pressing
button.
Result: :◆Each time you press button, the room
number is increased by 1, and each time you
press button, the room number is
decreased by 1 from 0~15.
1
Turn the air conditioner by pressing (ON/OFF)
button.
Result: ◆The On/Off indicator on the function controller
comes on.
◆The air conditioner runs in the mode selected
when the unit was last used.
2
◆For further details on operating modes,
refer to page 7~15.
N
No
ot
te
e
Select an appropriate operating mode by pressing
Mode button.
Result: ◆The air conditioner runs in the selected mode.
3
Selecting the Indoor Unit
E-6
You can control a specific indoor unit from the function controller.
E-7

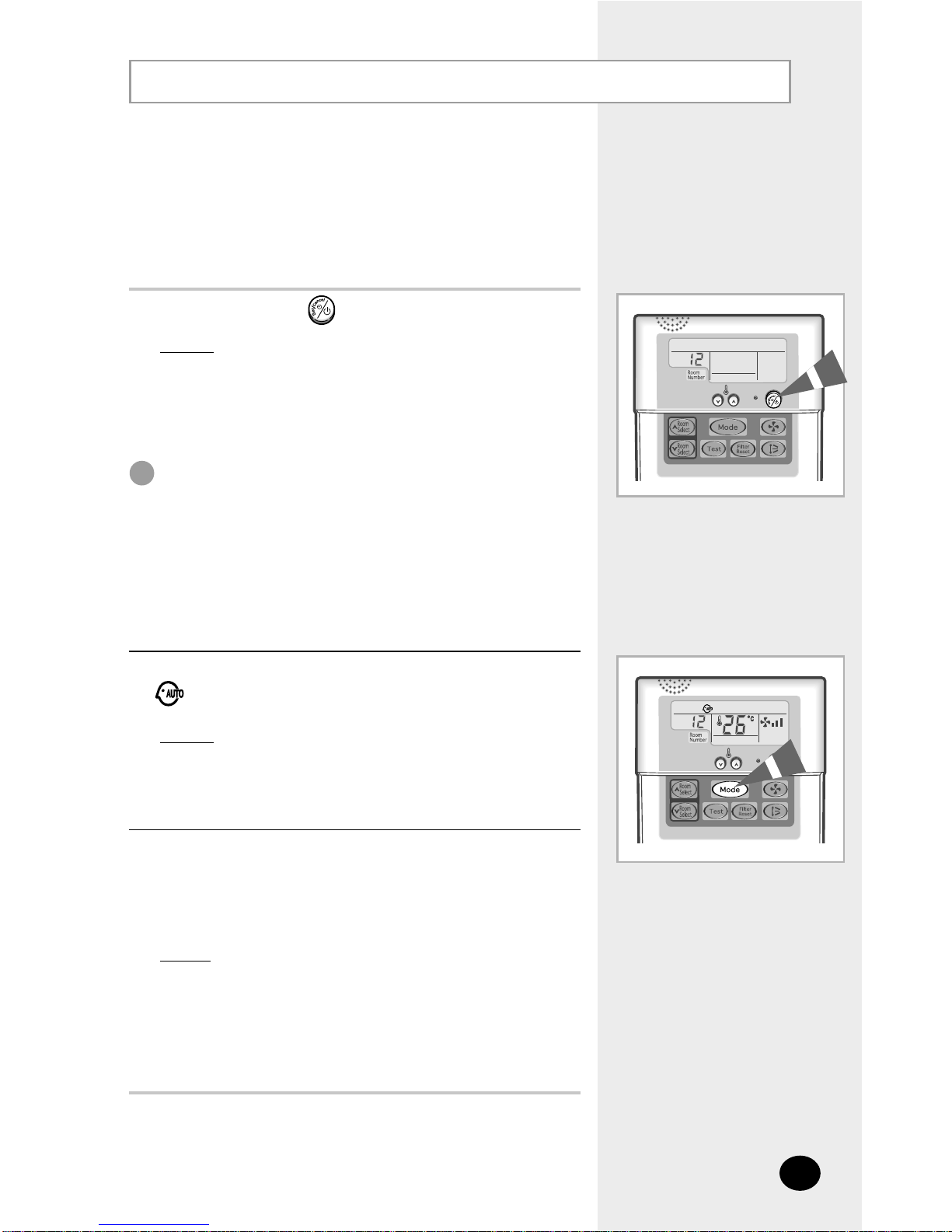

Selecting the Automatic Operating Mode
If necessary, press (ON/OFF) button.
Result: :◆The On/Off indicator on the function
controller comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
1
In the Automatic mode, the room temperature and the
fan speed are controlled automatically.
To select the AUTO mode, press the Mode button until
is displayed at the top of the function controller.
Result: :◆The air conditioner runs in AUTO mode.
2
The air conditioner is fitted with a
protection mechanism to prevent the unit
from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
◆You can change modes at any time.
N
No
ot
te
e
To adjust the temperature, press the Temperature buttons
one or more times until the required temperature is
displayed. Possible temperatures are between 18ºC and
30ºC inclusive.
Result: ◆Each time you press Temperature buttons:
- The temperature is adjusted by 1ºC.
◆The air conditioner starts cooling, provided
that the room temperature is than the
selected temperature.
- The quantity of air is adjusted automatically.
3
E-8

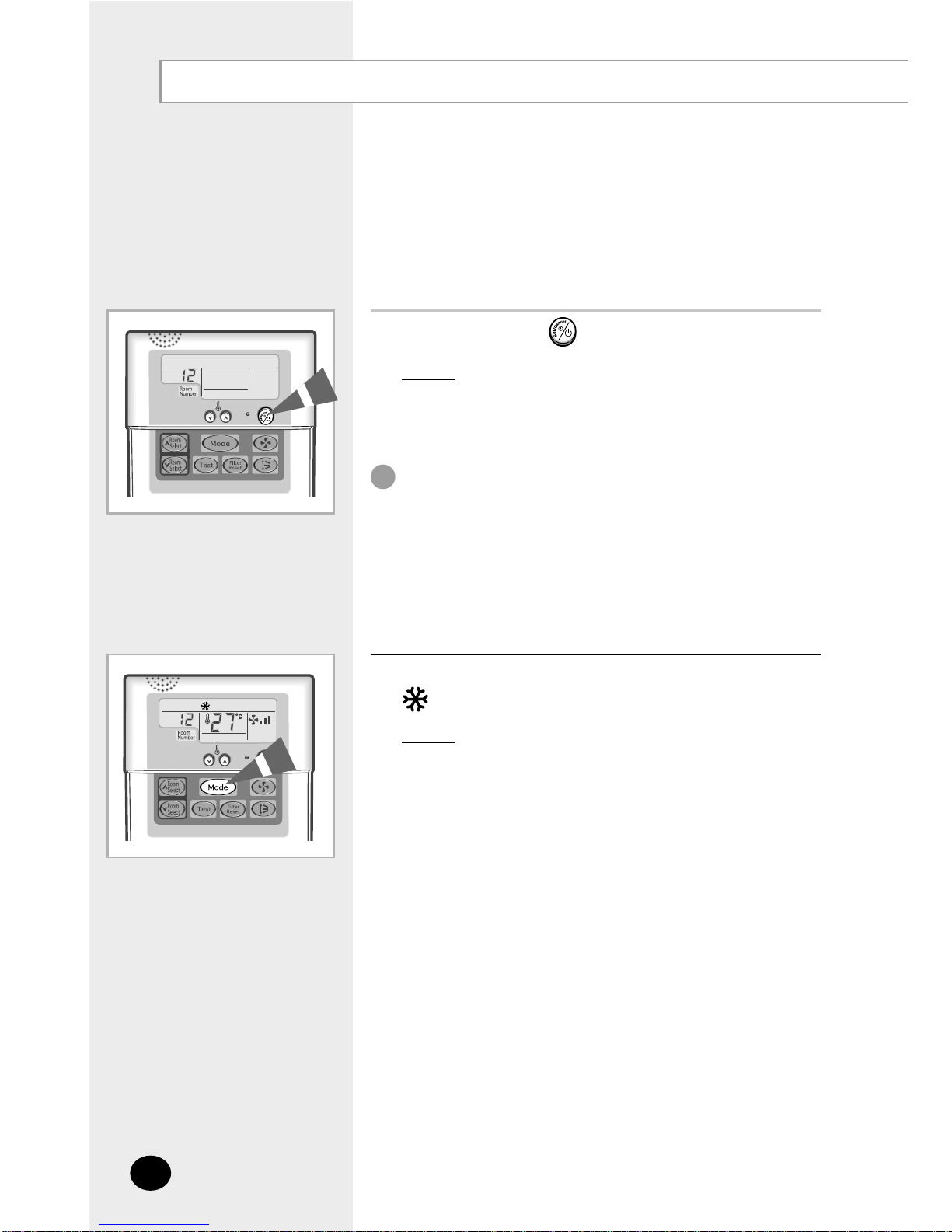

Cooling Your Room
If necessary, press (ON/OFF) button.
Result: :◆The On/Off indicator on the function
controller comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
1
You must select the COOL mode if you wish to adjust the :
◆Cooling temperature
◆Fan speed when cooling
To select the COOL mode, press the Mode button until
is displayed at the top of the function controller.
Result: :◆
The air conditioner runs in COOL mode.
2
The air conditioner is fitted with a protection
mechanism to prevent the unit from being
damaged when it is started immediately
after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
◆You can change modes at any time.
N
No
ot
te
e
E-9
To adjust the temperature, press the Temperature buttons
one or more times until the required temperature is
displayed. Possible temperatures are between 18ºC and
30ºC inclusive.
Result: ◆Each time you press Temperature buttons:
- The temperature is adjusted by 1ºC.
◆The air conditioner starts cooling, provided
that the room temperature is higher than the
selected temperature ; the fan will, however,
operate.
3
Select the fan speed by pressing the Fan button one or
more times until the intended value is displayed :
4
To control the direction of the air flow, refer to page 15.
5
Automatic(rotated : ➔➔ )
Low
Medium
High
E-10
Heating Your Room
If necessary, press (ON/OFF) button.
Result: :◆The On/Off indicator on the function
controller comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
1
You must select the HEAT mode if you wish to adjust the :
◆Heating temperature
◆Fan speed when heating
To select the HEAT mode, press the Mode button until
is displayed at the top of the function controller.
Result: :◆
The air conditioner runs in HEAT mode.
2
The air conditioner is fitted with a protection
mechanism to prevent the unit from being
damaged when it is started immediately
after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
◆You can change modes at any time.
N
No
ot
te
e
