Samsung SPC-2010 Manuel utilisateur

SYSTEM CONTROLLER

User Manual SPC-2010

Trademark

is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document

shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no

formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s

own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

Design and specifications are subject to change without prior notice.

The default password can be exposed to a hacking thread so it is recommended to change the

password after installing the product.

Note that the security and other related issues caused by the unchanged password shall be responsible

for the user.

System Controller

User Manual

English _3

●OVERVIEW

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9. Do not defeat the safety pu rpose of the polarized or grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit

into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,

or sold with the apparatus. When a cart is used, use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for long periods of time.

14.

Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

overview

4_overview

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT

THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with

liquids, such as vases, shall be placed on the apparatus.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of “dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the product.

English _5

●OVERVIEW

Please read the following recommend safety precautions carefully.

Do not Place this apparatus on an uneven surface.

Do not install on a surface where it is exposed to direct sunlight, near heating

equipment or heavy cold area.

Do not place this apparatus near.

Do not attempt to service this apparatus yourself.

Do not place a glass of water on the product.

Do not install near any magnetic sources.

Do not block any ventilation openings.

Do not place heavy items on the product.

User’s Manual is a guidance book on how to use the product.

Below is a key to the following signs that are used in this manual.

Reference : Providing useful information for the user.

Notice : If the instructions are not followed correctly damage to the goods or person

may occur.



For safety please read this manual for the before using of goods and keep it in the safe place.

overview

6_overview

CONTENTS

OVERVIEW

3Important Safety Instructions

6Contents

8Key Features

9What’s Included

10 System Controller at a Glance

INSTALLATION

13 Precautions

CONNECTING TO AN EXTERNAL

DEVICE

14 To Connect a RS-485/422 Device

USING THE MENU

19 Getting Started

19 Controlling the PTZ Camera

24 Controlling DVR

English _7

●OVERVIEW

MENU SETTING

26 PTZ setting

27 DVR Setting

28 Controller Setting

31 Joystick Calibration

APPENDIX

32 Specifications

34 Troubleshooting

35 Product Overview

overview

8_overview

KEY FEATURES

SPC-2010 system controller enables you to control external devices such as PTZ camera, DVR using

RS-485/422 communications.

It provides a user-friendly interface with joystick.

• Long-distance remote control

• With RS-485/422 communications, the control distance is a maximum of 1km.

• Integrated system control

• With a single system controller, you can control all cameras (receiver unit), DVRs.

Compatibility List

• Camera

• DVR

SRD-XXXX series (Not supported by SRD-480D.)

English _9

●OVERVIEW

WHAT’S INCLUDED

Unpack the product package and place the product on the floor or a flat surface.

Check if the following components are all included in the product package.

123

456

789

CLR ENT

CAM

FUNC

MODE

SEARCH FREEZE ALARM

SETUP

AUDIO

REC

GROUP

ESC

PWR

A/F AUX

PRESET

MON PTZ/DVR

PWR Tx Rx

PTZ IRIS

FOCUS

ZOOM

Main Unit User Manual CD (Optional) User Manual

Quick Guide (Optional) Warranty Card Power Adaptor 1EA

Tx1

Tx2

Tx3

TRx

Terminal Block 1EA

overview

10_overview

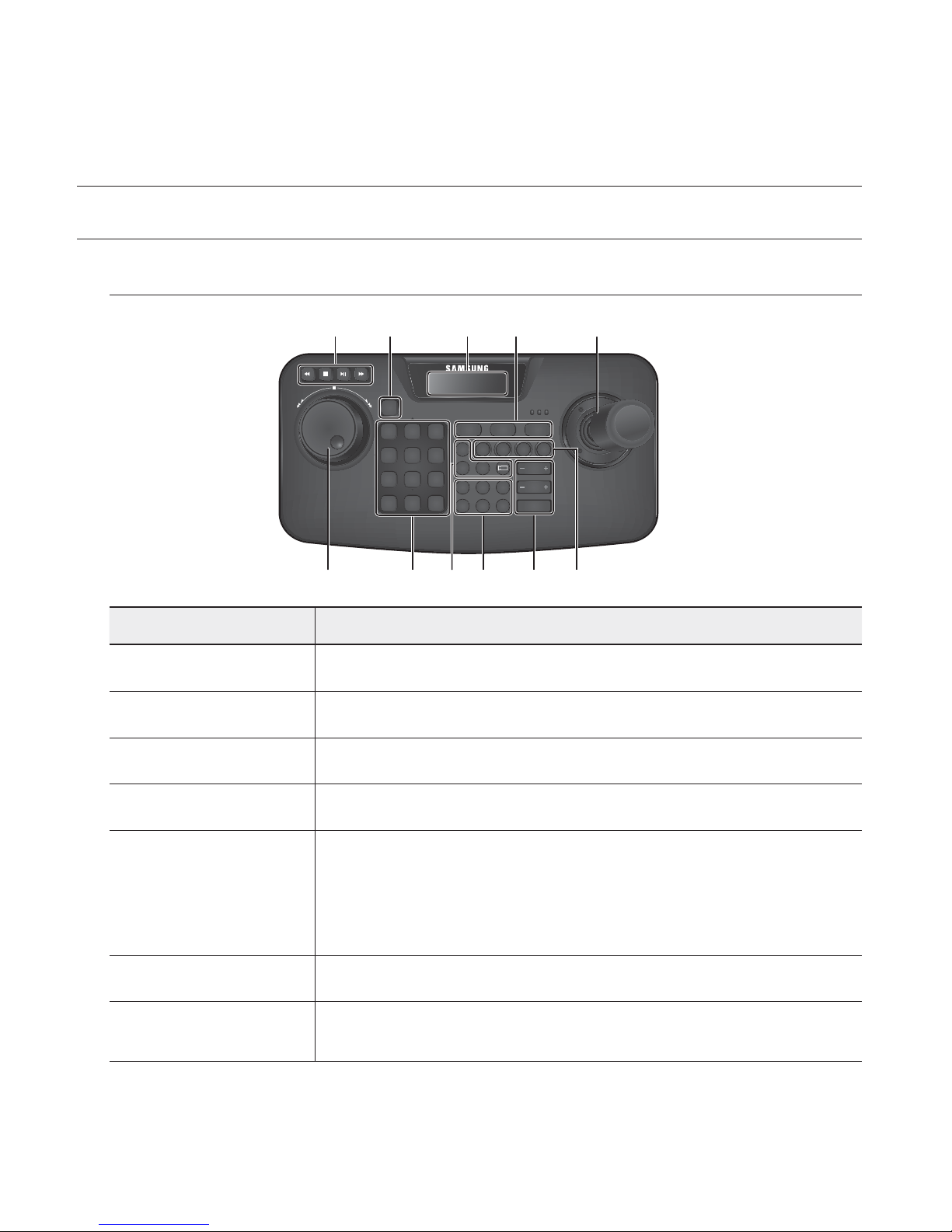

SYSTEM CONTROLLER AT A GLANCE

Front Side

Item Description

DVR Play Bar Play/Pause, Fast Forward/Fast Backward, Stop, Record

bESC / PWR Cancels a command or turns power on/off.

cLCD Display Display the operation status and the setup menu of the system controller.

Controller Selection Bar Used to select a camera, monitor or DVR.

Joystick Controller

You can manipulate the Pan/Tilt operation up or down in connection with the PTZ camera

or receiver unit.

Turn the joystick clockwise or counter clockwise to control zooming.

You can control the direction of the connected controller from the menu screen of the

controller.

Camera Operation Bar Runs Preset, Group, Auto Focus and Aux output functions.

DVR Control Bar Executes the selected DVR’s Audio, Search, screen mode selection, Freeze and Alarm

Control.

123

456

789

CLR ENT

CAM

FUNC

MODE

SEARCH FREEZE ALARM

SETUP

AUDIO

REC

GROUP

ESC

PWR

A/F AUX

PRESET

MON PTZ/DVR

PWR Tx Rx

PTZ IRIS

FOCUS

ZOOM

 b c 

  
