Samson Stage 200 Manuel utilisateur

OWNER'S MANUAL

Samson Technologies Corp.

45 Gilpin Avenue

Hauppauge, New York 11788-8816

Phone: 1-800-3-SAMSON (1-800-372-6766)

Fax: 631-784-2201

www.samsontech.com

3Stage 200: Dual Handheld Wireless System

Important Safety Information

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER

(OR BACK) AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral

triangle is intended to alert the user to the presence of non-insulated

“dangerous voltage” within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and maintenance

instructions in the literature accompanying the appliance.

ATTENTION

RISQUE DE CHOC ÉLECTRONIQUE -

NE PAS OUVRIR

If you want to dispose this product, do not mix it with general household waste. There is a

separate collection system for used electronic products in accordance with legislation that

requires proper treatment, recovery and recycling.

Private household in the 28 member states of the EU, in Switzerland and Norway may

return their used electronic products free of charge to designated collection facilities or to

a retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of

disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery

and recycling and thus prevent potential negative effects on the environment and human health.

YOU CAN HELP TO PROTECT THE ENVIRONMENT!

Please remember to respect the local regulations: Hand in the non-working electrical

equipment to an appropriate waste disposal center.

Important Safety Information

FCC Rules and Regulations

Samson wireless receivers are certified under FCC Rules part 15 and transmitters are

certified under FCC Rules part 74.

Licensing of Samson equipment is the user’s responsibility and licensability depends on

the user’s classification, application and frequency selected.

NOTE: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced Radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement.

To maintain compliance with FCC’s RF exposure guidelines, this equipment should be

installed and operated with a minimum distance of 20cm between the radiator and your

body.

The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modifications or change to this equipment. Such modifications or change

could void the user’s authority to operate the equipment.

This radio transmitter (identify the device by certification number or model number if

Category II) has been approved by Industry Canada to operate with the antenna types

listed below with the maximum permissible gain indicated. Antenna types not included

in this list, having a gain greater than the maximum gain indicated for that type, are

strictly prohibited for use with this device.

This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS

standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

WARNING: Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

5Stage 200: Dual Handheld Wireless System

Important Safety Information

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufac-

turer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polar-

ized plug has two blades with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does not ﬁt into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at the plugs,

convenience receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table speciﬁed by the

manufacturer, or sold with the apparatus. When a cart is used, use cau-

tion when moving the cart/apparatus combination to avoid injury from

tip-over.

13. Unplug the apparatus during lightening storms, or when unused for long periods of

time.

14. Refer all servicing to qualiﬁed personnel. Service is required when the apparatus

has been damaged in any way, such as power supply cord or plug is damaged, liq-

uid has been spilled or objects have fallen into the apparatus has been exposed to

rain or moisture, does not operate normally, or has been dropped.

15. This appliance shall not be exposed to dripping or splashing water and that no

object ﬁlled with liquid such as vases shall be placed on the apparatus.

16. Caution-to prevent electrical shock, match wide blade plug wide slot fully insert.

17. Please keep a good ventilation environment around the entire unit.

18. The direct plug-in adapter is used as disconnect device, the disconnect device shall

remain readily operable.

19. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat

such as sunshine, ﬁre or the like.

20. The AC plug considered as disconnect device of adapter.

Congratulations on purchasing the Samson Stage 200 Dual Microphone Wireless System!

The Stage 200 system is the perfect solution for any application requiring two high

quality, wireless microphones in an easy to use package. The system features the SR200

dual channel receiver with individual and mixed outputs. Also included are two VH200

handheld microphone transmitters.

With the Stage 200 system, you’ll have great sound quality with clear reception, and

the ability to walk freely around your venue. For any live sound application (karaoke,

presentation, education, house of worship, etc.) the Stage 200 is the ideal tool for your

dual-performer needs. The Stage 200 provides outstanding performance and reliability.

Although this product is designed for intuitive operation, we suggest you take some

time to go through these pages to learn how we’ve implemented a number of unique

features, and to get step-by-step instructions for setting up your system. If your

Stage 200 was purchased in the United States, you’ll also find a warranty card

enclosed—please don’t forget to follow the instructions so that you can receive

online technical support, and so that we can send you updated information

about this and other Samson products. Also, be sure to check out our website

(www.samsontech.com) for complete information about our full product line.

We recommend that you record your serial number in the space provided below, for future

reference.

Serial number:_______________________________

Date of purchase:____________________________

Should your unit ever require servicing, a Return Authorization (RA) number must be

obtained before shipping your unit to Samson. Without this number, the unit will not be

accepted. Please call Samson at 1-800-3SAMSON (1-800-372-6766) for an RA number

prior to shipping your unit. Please retain the original packing materials and, if possible,

return the unit in the original carton. If you purchased your Samson product outside the

United States, please contact your local distributor for warranty information and service.

Features

• Professional, dual-handheld wireless system

• Easy setup and operation

• Individual ¼” and mixed XLR outputs

• Up to 200’ of line-of-sight operating range

• Two professional VH200 handheld transmitters with Q6 Dynamic Microphone

capsules

• Up to 10 hours of battery life, using two standard AA batteries

Introduction

7Stage 200: Dual Handheld Wireless System

1. Power Switch - Press to turn the receiver on or off.

2. POWER Indicator - Lights red when the receiver is powered on.

3. Volume Control (Channel A) - Rotate to adjust the level of the audio signal output

from the Channel A receiver.

4. Channel A AF Indicator - Lights green when the corresponding Channel A VH200

transmitter is powered on, and there is an audio signal present and detected by the

receiver. The indicator lights red when the transmitted audio signal is overloaded.

5. Channel A RF Indicator - Lights orange when the corresponding Channel A VH200

transmitter is powered on, and there is an RF signal present and detected by the

receiver.

6. Volume Control (Channel B) - Rotate to adjust the level of the audio signal output

from the Channel B receiver.

7. Channel B AF Indicator - Lights green when the corresponding Channel B VH200

transmitter is powered on, and there is an audio signal present and detected by the

receiver. The indicator lights red when the transmitted audio signal is overloaded.

8. Channel B RF Indicator - Lights orange when the corresponding Channel B VH200

transmitter is powered on, and there is an RF signal present and detected by the

receiver.

9. Channel Label - The channel label designates the operating channel and frequency.

The label color matches the label color of the corresponding handheld microphone

transmitter. See the chart below for the available channels:

8761 2 3 4 5

12 13 15

1410

9 9

SR200 Receiver Front Panel Features

Group A

Receiver Channel / Frequency Color

A CH 21 / 200.9 MHz Red

B CH 27 / 182.1 MHz Orange

Group B

Receiver Channel / Frequency Color

A CH 11 / 208.2 MHz Brown

B CH 28 / 195.4 MHz Black

Group C

Receiver Channel / Frequency Color

A CH 35 / 212.725 MHz Silver

B CH 36 / 192.83 MHz Blue

Group D

Receiver Channel / Frequency Color

A CH 37 / 207.675 MHz Green

B CH 38 / 184.35 MHz Purple

9. Antenna - The antenna mountings allow full rotation for optimum placement. In

normal operation, both antennas should be placed in a vertical position. The

antennas can be folded down for convenience when transporting the SR200.

10. DC Input - Connect the supplied 15-volt adapter here.

WARNING: Do not substitute any other kind of power adapter. Doing so can cause

damage to the SR200 and will void your warranty.

11. Channel A Output - Use this unbalanced, ¼” jack to connect the SR200 Channel A

receiver to the line level input of a mixer, amplifier, or other audio equipment.

12. Channel B Output - Use this unbalanced, ¼” jack to connect the SR200 Channel B

receiver to the line level input of a mixer, amplifier, or other audio equipment.

13. MIXED OUT - This balanced, low impedance XLR jack carries a mix of both the

Channel A and Channel B receivers.

14. SQUELCH Switch - This control determines the maximum range of the system before

audio signal dropout. Although it can be adjusted, it should normally be left at its

factory setting.

8761 2 3 4 5

12 13 15

1410

9 9

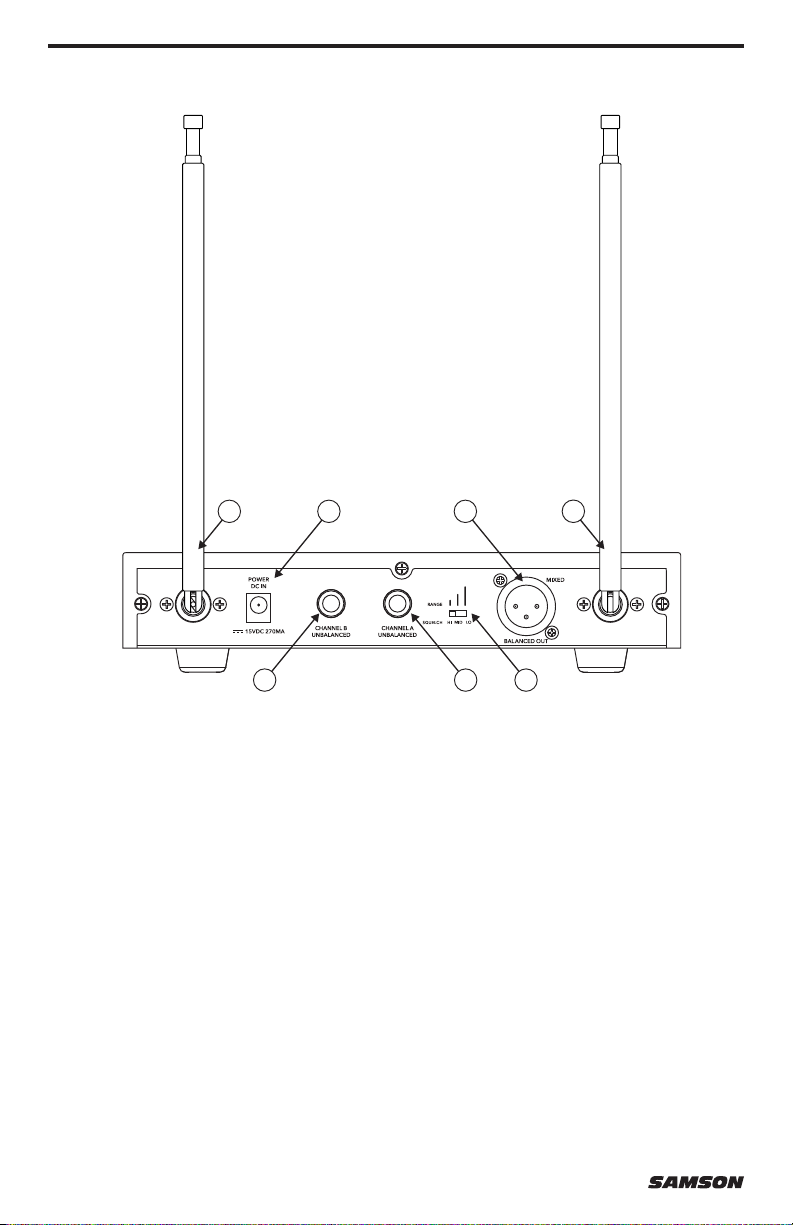

SR200 Receiver Rear Panel Features

9Stage 200: Dual Handheld Wireless System

1. Status Indicator - This LED displays the operation mode:

Green Normal Operation

Amber Mute

Red Low Battery

2. Power/Mute Switch - Press and hold to turn the unit on or off.

Press and release to mute or unmute the transmitter.

3. Battery Compartment - Insert two standard AA (LR6) batteries

here, being sure to observe the plus and minus polarity

markings shown. Although rechargeable Ni-Cad batteries can be

used, they do not supply adequate current for more than four

hours.

WARNING: Do not insert the battery backwards; doing so can

cause severe damage to the VH200 and will void your warranty.

4. Battery Cover - Unscrew the battery cover and slide down to

open the VH200 battery compartment.

VH200 Transmitter Controls and Features

Squelch Control

Checking the Squelch Setting

Temporarily turn down the level of your mixer/

amplifier system and turn off the power to your

transmitter, leaving the SR200 on. Then restore the

previously set level of your mixer/amplifier. With the

transmitter off, the receiver output should be totally

silent, if it is, skip ahead to the next step. If it isn’t

(that is, if you hear some noise), you may need to

adjust the receiver’s rear panel Squelch control. When

the Squelch control is at the “LO” setting, the Stage 200 system provides maximum

range without dropout; however, depending upon the particular environment your system

is used in, you may need to reduce that range somewhat in order to eliminate band

noise or interference when the transmitter is turned off. To do so, move Squelch switch

to the “MID” or “HI” position until the noise disappears. If no noise is present at any

position, leave it at its “LO” position (so as to have the greatest overall range available).

The Squelch circuit mutes the audio output of the receiver when the radio signal is

below the squelch setting. Setting the squelch control to the lowest setting will provide

the greatest range, but when the transmitter signal is lost, the receiver may pass

background noise. As the setting is increased, the range may be reduced, but it will

reduce the likelihood of passing noise through the audio system.

Table des matières

Autres manuels Samson Système de microphone

Samson

Samson AirLine Manuel utilisateur

Samson

Samson CONCERT 88X Manuel utilisateur

Samson

Samson Concert 88 Manuel utilisateur

Samson

Samson CONCERT XD2 Manuel utilisateur

Samson

Samson CONCERT 99 Manuel utilisateur

Samson

Samson Stage v266 Manuel utilisateur

Samson

Samson VLX Manuel utilisateur

Samson

Samson Go Mic Manuel utilisateur

Samson

Samson Stage XPD1 Manuel utilisateur

Samson

Samson Concert88 Manuel utilisateur

Samson

Samson SYNTH32 Manuel utilisateur

Samson

Samson DK705 Manuel utilisateur

Samson

Samson STAGE 266 HT6 Manuel utilisateur

Samson

Samson STAGE 412 Manuel utilisateur

Samson

Samson Airline 88 Manuel utilisateur

Samson

Samson Concert99 Manuel utilisateur

Samson

Samson AirLine Manuel utilisateur

Samson

Samson Concert 77 Manuel utilisateur

Samson

Samson Concert 288x Manuel utilisateur

Samson

Samson UHF Synth 32 Manuel utilisateur

Samson

Samson Stage v466 Manuel utilisateur

Samson

Samson Airline 77 Manuel utilisateur

Samson

Samson Conert 277 Manuel utilisateur

Samson

Samson AIRLINE CR77 Manuel utilisateur

Manuels Système de microphone populaires d'autres marques

Paso

Paso R824 Manuel utilisateur

Naxa

Naxa NAM-982 Manuel utilisateur

Motorola

Motorola PMNN4461 Manuel utilisateur

Xvive

Xvive U3 Manuel utilisateur

Tekon

Tekon DUOS Manuel utilisateur

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuel utilisateur

Devine

Devine WMD-IE Manuel utilisateur

LG LF-D7150 Manuel utilisateur

GE S768DAV Manuel utilisateur

LD U305 HBH 2 Manuel utilisateur

Chainway

Chainway URA8 Manuel utilisateur

ORATOR

ORATOR D860TD Manuel utilisateur

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuel utilisateur

Alpha Technologies

Alpha Technologies RBMS Manuel utilisateur

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuel utilisateur

Shure

Shure UA844 Manuel utilisateur

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuel utilisateur

Pyle

Pyle PDWM5000 Manuel utilisateur
