Samson Stage 212 Manuel utilisateur

OWNER'S MANUAL

v1.1

Samson Technologies Corp.

278-B Duffy Ave

Hicksville, NY 11801

www.samsontech.com

3Stage 212: Dual Handheld Wireless System

Important Safety Information

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR

BACK) AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is

intended to alert the user to the presence of non-insulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to constitute

a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance instructions in the

literature accompanying the appliance.

ATTENTION

RISQUE DE CHOC ÉLECTRONIQUE -

NE PAS OUVRIR

If you want to dispose this product, do not mix it with general household waste. There is a

separate collection system for used electronic products in accordance with legislation that

requires proper treatment, recovery and recycling.

Private household in the 28 member states of the EU, in Switzerland and Norway may return

their used electronic products free of charge to designated collection facilities or to a retailer (if

you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of

disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery

and recycling and thus prevent potential negative effects on the environment and human health.

Important Safety Information

FCC Rules and Regulations

Samson wireless receivers are certified under FCC Rules part 15 and transmitters are certified

under FCC Rules part 74.

Licensing of Samson equipment is the user’s responsibility and licensability depends on the

user’s classification, application and frequency selected.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced Radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement.

To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed

and operated with a minimum distance of 20cm between the radiator and your body.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized

modifications or change to this equipment. Such modifications or change could void the user’s

authority to operate the equipment.

This radio transmitter (identify the device by certification number or model number if Category

II) has been approved by Industry Canada to operate with the antenna types listed below with

the maximum permissible gain indicated. Antenna types not included in this list, having a gain

greater than the maximum gain indicated for that type, are strictly prohibited for use with this

device.

This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS

standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause

undesired operation.

WARNING: Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

5Stage 212: Dual Handheld Wireless System

Important Safety Information

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and

a third grounding prong. The wide blade or the third prong are provided for your safety. If

the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at the plugs,

convenience receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table speciﬁed by the

manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug the apparatus during lightening storms, or when unused for long

periods of time.

14. Refer all servicing to qualiﬁed personnel. Service is required when the apparatus has

been damaged in any way, such as power supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

15. This appliance shall not be exposed to dripping or splashing water and that no object ﬁlled

with liquid such as vases shall be placed on the apparatus.

16. Caution-to prevent electrical shock, match wide blade plug wide slot fully insert.

17. Please keep a good ventilation environment around the entire unit.

18. The direct plug-in adapter is used as disconnect device, the disconnect device shall

remain readily operable.

19. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such

as sunshine, ﬁre or the like.

20. The AC plug considered as disconnect device of adapter.

Congratulations on purchasing the Samson Stage 212 Dual Microphone Wireless System! The

Stage 212 system is the perfect solution for any application requiring two high quality, wireless

microphones in an easy to use package. Featuring simple operation, with 12 available channels

and infrared set for the transmitter channel, the Stage 212 can quickly be up and running out

of the box. The system includes the SR212 dual channel receiver with individual and mixed

outputs. Also included are two VH212 handheld microphone transmitters.

With the Stage 212 system, you’ll have great sound quality with clear reception, and the

ability to walk freely around your venue. For any live sound application (karaoke, presentation,

education, house of worship, etc.) the Stage 212 is the ideal tool for your dual-performer needs.

The Stage 212 provides outstanding performance and reliability.

Although this product is designed for intuitive operation, we suggest you take some time to

go through these pages to learn how we’ve implemented a number of unique features, and to

get step-by-step instructions for setting up your system. If your Stage 212 was purchased in

the United States, you’ll also ﬁnd a warranty card enclosed—please don’t forget to follow the

instructions so that you can receive online technical support, and so that we can send you

updated information about this and other Samson products. Also, be sure to check out our

website

(www.samsontech.com) for complete information about our full product line.

We recommend that you record your serial number in the space provided below, for future

reference.

Serial number:_______________________________

Date of purchase:____________________________

Should your unit ever require servicing, a Return Authorization (RA) number must be obtained

before shipping your unit to Samson. Without this number, the unit will not be accepted. Please

call Samson at 1-800-3SAMSON (1-800-372-6766) for an RA number prior to shipping your

unit. Please retain the original packing materials and, if possible, return the unit in the original

carton. If you purchased your Samson product outside the United States, please contact your

local distributor for warranty information and service.

Features

• Professional, dual-handheld wireless system for use in both live sound and sound contract-

ing applications

• 12 available channels operating in the VHF band designed for maximum system

compatibility in the same location without interference

• Individual ¼” and mixed XLR outputs

• Up to 200’ of line-of-sight operating range

• Two professional VH212 handheld transmitters with Q6 Dynamic Microphone capsules

• Up to 10 hours of battery life, using two standard AA batteries

Introduction

7Stage 212: Dual Handheld Wireless System

SR212 Receiver Front Panel Features

1. Power Switch - Press to turn the receiver on or off.

2. IR Transmitter - During “IR SET” an infrared light is used to set the transmitter channel.

3. Channel A SELECT Button - Press this button to cycle through Channel A receiver’s operating

channels. Press and hold this button to send the channel information to the transmitter via

infrared transmission.

4. LED Display - The 7-segment LED display shows each receiver’s current operating channel.

The channels are indicated by 1–9 and A–C.

5. VOLUME Control (CH A) - This knob sets the level of the audio signal being output through

the CH A output jacks on the rear panel. Reference level is obtained when the knob is

turned fully clockwise (to its “10” setting).

6. Channel A AF Indicator - Lights green when the corresponding Channel A VH212 transmitter

is powered on, and there is an audio signal present and detected by the receiver. The

indicator lights red when the transmitted audio signal is overloaded.

7. Channel A RF Indicator - Lights orange when the corresponding Channel A VH212

transmitter is powered on, and there is an RF signal present and detected by the receiver.

8. Channel B AF Indicator - Lights green when the corresponding Channel B VH212 transmitter

is powered on, and there is an audio signal present and detected by the receiver. The indi-

cator lights red when the transmitted audio signal is overloaded.

9. Channel B RF Indicator - Lights orange when the corresponding Channel B VH212 transmit-

ter is powered on, and there is an RF signal present and detected by the receiver.

10. Volume Control (Channel B) - This knob sets the level of the audio signal being output

through the CH A output jacks on the rear panel. Reference level is obtained when the

knob is turned fully clockwise (to its “10” setting).

11. LED Display - The 7-segment LED display shows each receiver’s current operating channel.

The channels are indicated by 1–9 and A–C.

12. Channel B SELECT Button - Press this button to cycle through Channel B receiver’s operating

channels. Press and hold this button to send the channel information to the transmitter via

infrared transmission.

13. Channel Label - The channel label designates the frequency group. The label color matches

the label color of the corresponding handheld microphone transmitter.

1 2 3 4 5

76 98

12111013

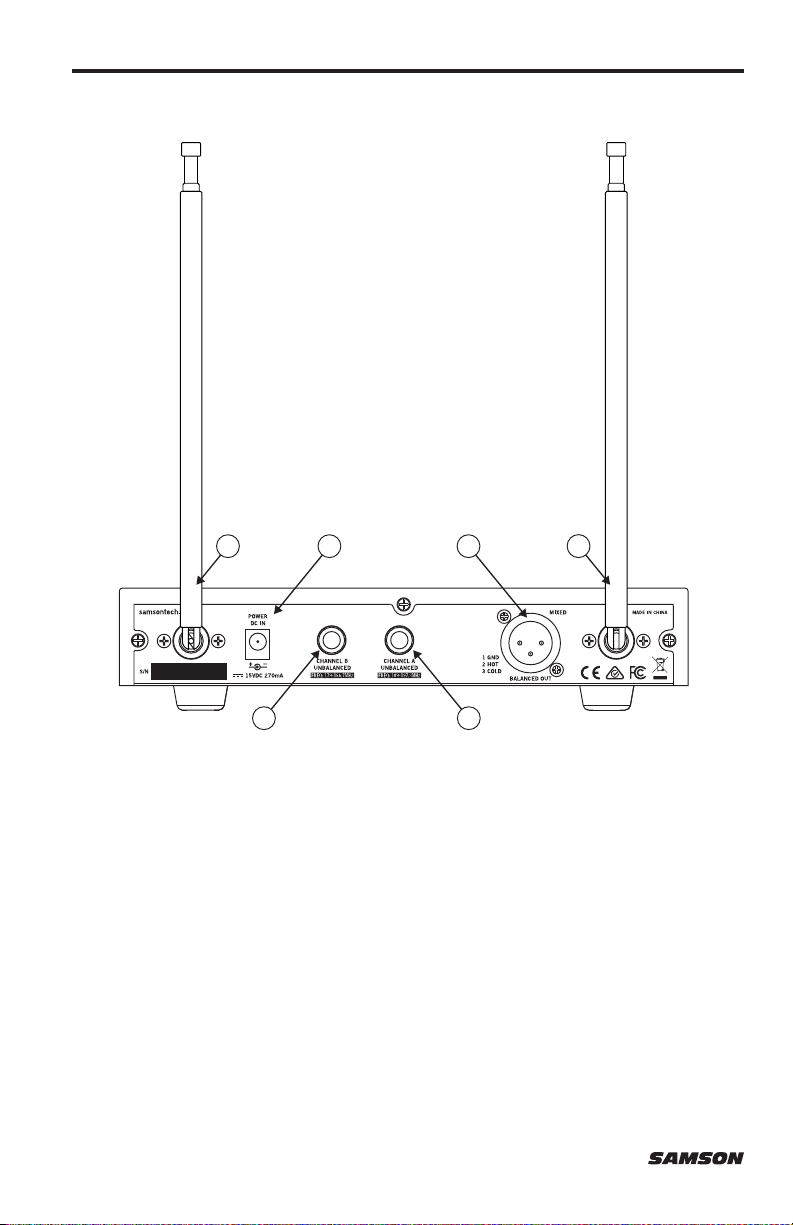

14. Antenna - The antenna mountings allow full rotation for optimum placement. In normal

operation, both antennas should be placed in a vertical position. The antennas can be

folded down for convenience when transporting the SR212.

15. DC Input - Connect the supplied 15-volt adapter here.

WARNING: Do not substitute any other kind of power adapter. Doing so can cause damage

to the SR212 and will void your warranty.

16. Channel A Output - Use this unbalanced, ¼” jack to connect the SR212 Channel A receiver

to the line level input of a mixer, amplifier, or other audio equipment.

17. Channel B Output - Use this unbalanced, ¼” jack to connect the SR212 Channel B receiver

to the line level input of a mixer, amplifier, or other audio equipment.

18. MIXED OUT - This balanced, low impedance XLR jack carries a mix of both the Channel A

and Channel B receivers.

17 16

1814

SR212 Receiver Rear Panel Features

9Stage 212: Dual Handheld Wireless System

1. Status Indicator - This LED displays the opera-

tion mode:

GREEN Normal Operation

RED Mute

Flashing GREEN Low Battery

2. Power/Mute Switch - Press and hold to turn the

unit on or off. Press and release to mute or

unmute the transmitter.

3. Battery Cover - Unscrew the battery cover and

slide down to open the VH212 battery com-

partment.

4. Battery Holder - Open the battery holder by

pressing the tab and lifting the cover. Insert

two standard AA (LR6) batteries here, being

sure to observe the plus and minus polarity

markings shown.

WARNING: Do not insert the batteries back-

wards; doing so can cause severe damage to

the VH212 and will void your warranty.

5. Input GAIN Control - This control adjusts the

transmitter input sensitivity. For optimal per-

formance, using the included screwdriver, set

the input GAIN control to where you see the

VH212 PEAK indicator start to light under high

levels, then turn down until the PEAK light

stops lighting.

6. IR Lens - This window is used to capture the

infrared signal sent from the VH212 during

the IR SET to channelize the transmitter. The

battery cover must be open and the IR Lens

facing towards the receiver to load the selected

channel.

7. Plastic Screwdriver - Designed for use in adjust-

ing the VH212 input GAIN control (See #5

Input GAIN Control).

VH212 Transmitter Controls and Features

Quick Start

In order for your wireless system to work correctly, both the receiver and transmitter must be set to

the same channel.

Follow this basic procedure for setting up and using your Stage 212 wireless system:

Physically place the SR212 receiver where it will be used, and fully extend the antennas

vertically. The general rule of thumb is to maintain “line of sight” between the receiver and

transmitter so that the person using or wearing the transmitter can see the receiver.

With the SR212 powered off, connect the included power adapter. Turn the SR212 on

momentarily to confirm that the unit is receiving power. You’ll see the LED display light up.

Then turn the SR212 power off.

With your amplifier or mixer off and volume control

all the way down, connect the SR212 receiver 1/4”

outputs (or XLR Mix Output) to the inputs of a mixer

or amplifier. Turn the Level knob on the SR212

completely counterclockwise, then turn its power on.

Table des matières

Autres manuels Samson Système de microphone

Samson

Samson DK705 Manuel utilisateur

Samson

Samson Go Mic Manuel utilisateur

Samson

Samson Stage 55 Manuel utilisateur

Samson

Samson UHF 801 Manuel utilisateur

Samson

Samson AIRLINE CR77 Manuel utilisateur

Samson

Samson AirLine Manuel utilisateur

Samson

Samson AIRLINE CR77 Manuel utilisateur

Samson

Samson Stage v466 Manuel utilisateur

Samson

Samson Stage 200 Manuel utilisateur

Samson

Samson Stage v166 Manuel utilisateur

Samson

Samson UHF Series One Manuel utilisateur

Samson

Samson Concert 88 Manuel utilisateur

Samson

Samson SynthSeven Manuel utilisateur

Samson

Samson Concert88 Manuel utilisateur

Samson

Samson VLX Manuel utilisateur

Samson

Samson SYNTH32 Manuel utilisateur

Samson

Samson Go Mic Manuel utilisateur

Samson

Samson CONCERT XD2 Manuel utilisateur

Samson

Samson UHF Series One Manuel utilisateur

Samson

Samson AirLine Manuel utilisateur

Samson

Samson UHF Synth 32 Manuel utilisateur

Samson

Samson AirLine 77 AH1N Manuel utilisateur

Samson

Samson XPD2 Manuel utilisateur

Samson

Samson Conert 277 Manuel utilisateur

Manuels Système de microphone populaires d'autres marques

Paso

Paso R824 Manuel utilisateur

Naxa

Naxa NAM-982 Manuel utilisateur

Motorola

Motorola PMNN4461 Manuel utilisateur

Xvive

Xvive U3 Manuel utilisateur

Tekon

Tekon DUOS Manuel utilisateur

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuel utilisateur

Devine

Devine WMD-IE Manuel utilisateur

LG LF-D7150 Manuel utilisateur

GE S768DAV Manuel utilisateur

LD U305 HBH 2 Manuel utilisateur

Chainway

Chainway URA8 Manuel utilisateur

ORATOR

ORATOR D860TD Manuel utilisateur

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuel utilisateur

Alpha Technologies

Alpha Technologies RBMS Manuel utilisateur

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuel utilisateur

Shure

Shure UA844 Manuel utilisateur

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuel utilisateur

Pyle

Pyle PDWM5000 Manuel utilisateur
