Samson S-Combine Manuel utilisateur

Two by One Microphone Combiner

S Class Signal Processors

Table Of Contents

Introduction and Features 3

Front and Rear Panel Layout 4

Operating the S combine

Setting up the S combine 5

Typical Set-up 6

Wiring Guide 7

Specifications 8

Printed June 2003

Samson Technologies Corp.

575 Underhill Blvd.

P.O. Box 9031

Syosset, NY 11791-9031

Phone: 1-800-3-SAMSON (1-800-372-6766)

Fax: 516-364-3888

www.samsontech.com

S combine Introduction and Features

Introduction

Congratulations on your purchase of the S combine by Samson Audio! The S combine is a

two-to-one microphone combiner ideal for any situation where an extra microphone input

is needed. The S combine is a perfect solution for live sound applications, as well as, fixed

installations like schools, hotel meeting rooms and houses of worship. You can use your

S combine anytime two microphone inputs are needed and only one is available.

Whatever your situation, the S combine will provide high quality and reliable performance

thanks to its solid build construction based around the extruded aluminum chassis and

oversized rubber bumper feet.

In this manual, you’ll find a more detailed description of the features of the S combine, as

well as a guided tour through the front and rear panels, step-by-step instructions for using

the S combine, and full specifications. You’ll also find a warranty card enclosed—please

don’t forget to fill it out and mail it so that you can receive online technical support and so

we can send you updated information about other Samson products in the future.

SCombine Features

•Two inputs by one output microphone combiner.

•2balanced XLR microphone inputs.

•1balanced XLR microphone output.

•Ground lift switch for transformer isolated microphone input.

•Large rubber bumper feet.

•Three year extended warranty.

Scombine Front and Rear Panel Layout

123

ABALANCED OUTPUT- XLR balanced

connector outputs carrying the

summed signal from Microphone 1

and 2.

1ISOLATED INPUT- XLR balanced, trans-

former isolated microphone input for

connecting the first microphone.

2ISOLATED GROUND LIFT- When

engaged, the ground from the Isolated

Mic Input is disconnected.

3DIRECT INPUT- XLR balanced

microphone input for connecting

the second microphone.

Front Panel Layout

Rear Panel Layout

Operating the S combine

Setting Up the S combine

The basic procedure for setting up and using your S combine is simple and takes only a

few minutes. Remove all packing materials (save them in case of need for future service).

There are many different ways to use the S combine, however the basic connection is the

same in most installations and applications. The following example details the connection

for two microphones to a main PA mixer. Follow these simple steps to get connected.

•Using a standard XLR microphone cable, connect both mics to the S combine MIC

INPUTS.

•Using another standard mic cable, connect the BAL. OUT. 1 to the main PA mixer or

stage box.

Typical Set-up

The diagram below shows a typical set-up for a project recording studio using the S com-

bine to mix two microphones into one microphone input.

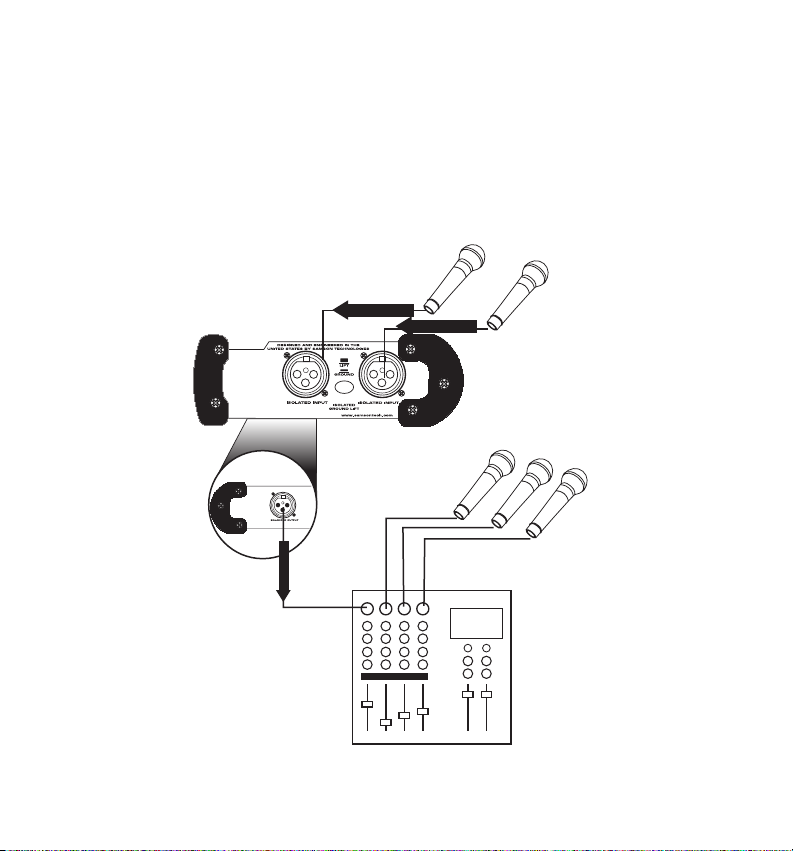

Typical hook-up for connecting two

mics to one channel of a mixer.

Mic Out.

to Mixer without

Phantom Power

SIGNAL FLOW

Operating the S combine

S combine Wiring Guide

Wiring Guide

There are several ways to interface the S combine, depending on your exact set-up. Follow the cable

diagrams below for connecting your gear.

Samson Technologies Corp.

575 Underhill Blvd.

P.O. Box 9031

Syosset, NY 11791-9031

Phone: 1-800-3-SAMSON (1-800-372-6766)

Fax: 516-364-3888

www.samsontech.com

Frequency Response 10 Hz to 30kHz +/- 3dB

Noise Level -110 dBu

Maximum Ouput Level Bal: +18 dBu

Max Input Level Bal: +22 dBu

Input Impedance

XLR: 10k Ohm

Output Impedance

XLR: 100 Ohm balanced

THD .003% Max

Noise Floor <-90 dBu

Dimensions 5.65” L x 4.13” W x 2” H (144mm L x 105mm

W x 51mm H)

Weight 16.5 oz., 419 gm.

S combine Specifications
